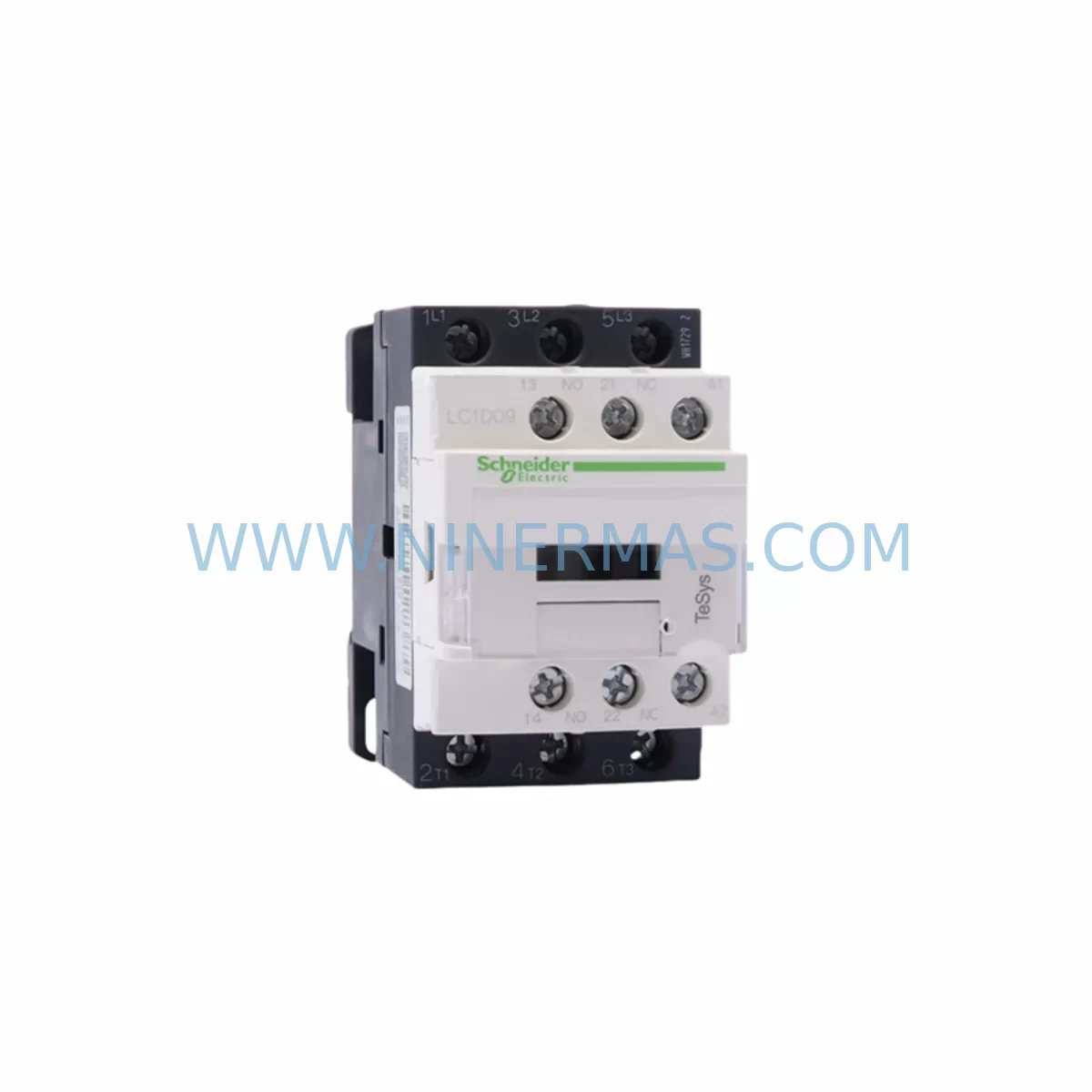

The Schneider Electric LC1D65M7C is a 3-pole AC contactor from the TeSys D series, rated at 65A with a 220VAC (M7) coil voltage. As a critical switching and protection component in motor control centers (MCCs), control panels, and distribution boards, the LC1D65M7C is widely deployed across manufacturing, water treatment, HVAC, and process automation facilities worldwide. When this contactor fails or reaches end-of-life, every minute of unplanned downtime translates directly into production loss. Maintaining a service-ready LC1D65M7C in your spare parts inventory is one of the most cost-effective strategies a maintenance engineer can implement to protect uptime and reduce mean time to repair (MTTR).

At NINERMAS, we supply the LC1D65M7C as a tested, original-specification spare part backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification — including coil energization, contact resistance measurement, and mechanical operation checks — before dispatch. Our long-term supply commitment means you can establish a reliable replenishment cycle without the risk of obsolescence-driven shortages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the LC1D65M7C, the replacement event should be treated as a broader control circuit health check — not just a single component swap. In practice, the LC1D65M7C operates within a coordinated protection and switching assembly, and adjacent components are subject to the same thermal and electrical stress cycles.

Begin by inspecting the associated LRD332 or LRD340 TeSys D overload relay, which is mechanically and electrically coupled to the LC1D65M7C. Overload relays in this current range often exhibit calibration drift or bimetal fatigue after extended service, and replacing the contactor without verifying the overload relay’s trip class and current setting is a common source of repeat failures. Similarly, check the LAD4RCU or LADN11 auxiliary contact blocks mounted on the contactor body — worn auxiliary contacts cause intermittent control signal faults that are difficult to diagnose remotely.

Inspect the 24VDC or 220VAC control power supply feeding the contactor coil circuit. Voltage sags or ripple on the control bus can cause coil chatter, accelerating contact wear on the LC1D65M7C and neighboring devices. If the panel uses a Schneider ABL8 or Phaseo power supply module, verify output voltage stability under load before commissioning the replacement contactor.

For panels with PLC-driven motor control, review the digital output (DO) module — such as a Modicon TM3DQ or TM2DQ series card — that drives the contactor coil. Output transistors or relay contacts on DO modules can degrade silently, producing marginal drive current that causes unreliable contactor pull-in. This is especially relevant in older Modicon M340 or Premium PLC installations where I/O modules may be approaching end-of-service life.

Check terminal blocks and power wiring at the contactor’s line and load sides. Loose or oxidized connections at Schneider NSYTRV or Phoenix Contact terminal strips are a leading cause of localized overheating that shortens contactor life. Torque all connections to the manufacturer’s specification and inspect for discoloration or insulation damage.

If the LC1D65M7C is part of a reversing starter or star-delta starter circuit, also inspect the LC1D40 or LC1D50 companion contactors in the same assembly. Mechanical and electrical interlocking components — including the LAD9R3 reversing interlock — should be tested for correct operation before returning the circuit to service.

For facilities running Schneider Altivar ATV312 or ATV630 variable speed drives in bypass mode with the LC1D65M7C as the bypass contactor, verify drive output parameters and bypass logic before energizing. Drives in this configuration place asymmetric switching demands on the contactor that differ from standard DOL applications.

Finally, update your CMMS spare parts record to reflect the replacement date, coil voltage variant, and next scheduled inspection interval. Establishing a 3–5 year proactive replacement cycle for contactors in this current class — combined with annual inspection of the overload relay, auxiliary blocks, and control wiring — is the most reliable strategy for preventing unplanned motor circuit outages.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the motor circuit and apply LOTO (lockout/tagout) per site safety procedures. Verify absence of voltage at the LC1D65M7C line terminals using a calibrated voltage tester.

Step 2 — Documentation: Photograph the existing wiring arrangement, terminal labeling, and auxiliary block configuration before disassembly. Record the coil voltage variant (M7 = 220VAC) to confirm the replacement unit matches.

Step 3 — Component removal: Disconnect control wiring from the coil terminals (A1/A2) and auxiliary block. Remove main power cables from L1/L2/L3 and T1/T2/T3. Detach the overload relay if it will be reused, and unclip the contactor from the DIN rail or unscrew from the mounting plate.

Step 4 — Compatibility verification: Confirm the replacement LC1D65M7C matches the original in coil voltage, pole count, and frame size. Verify that the LRD overload relay and LAD auxiliary blocks are mechanically compatible with the new unit before assembly.

Step 5 — Installation and torque: Mount the new contactor, reattach the overload relay and auxiliary blocks, and reconnect all wiring per the original documentation. Torque main terminals to 6–8 Nm and control terminals to 1.2–1.5 Nm.

Step 6 — Functional test: Energize the control circuit and verify contactor pull-in at rated coil voltage. Test auxiliary contact continuity and overload relay trip function before returning the motor to service.

Step 7 — Record update: Log the replacement in your CMMS with part number, serial number, installation date, and next inspection date.

Spare Parts Support FAQ

Q1: Is the LC1D65M7C compatible with my existing LRD series overload relay and LAD auxiliary blocks?
Yes. The LC1D65M7C is fully compatible with the TeSys D series LRD overload relays (LRD332, LRD340, etc.) and LAD series auxiliary contact blocks (LADN11, LADN20, LAD4RCU, etc.). These components clip directly onto the contactor body without adapters. Always verify the current rating of the overload relay matches your motor’s full-load amperage before installation.

Q2: What pre-shipment testing does NINERMAS perform on the LC1D65M7C?
Every LC1D65M7C unit shipped by NINERMAS undergoes coil energization testing at rated voltage, contact resistance measurement on all main and auxiliary poles, and mechanical operation verification. A test report is available upon request. Units that do not meet original Schneider Electric specifications are not dispatched.

Q3: Can NINERMAS guarantee long-term supply of the LC1D65M7C for multi-year maintenance contracts?
Yes. NINERMAS maintains strategic stock of the LC1D65M7C and other TeSys D series components to support customers with annual maintenance contracts, shutdown planning, and emergency replenishment requirements. Contact our team to discuss blanket order arrangements and lead time commitments for your facility.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, coil failure under normal operating conditions, and contact welding attributable to component quality. It does not cover damage resulting from incorrect installation, overvoltage, short-circuit events beyond the device’s rated breaking capacity, or mechanical impact. Warranty claims are supported with replacement unit dispatch and technical assistance from our engineering team.
