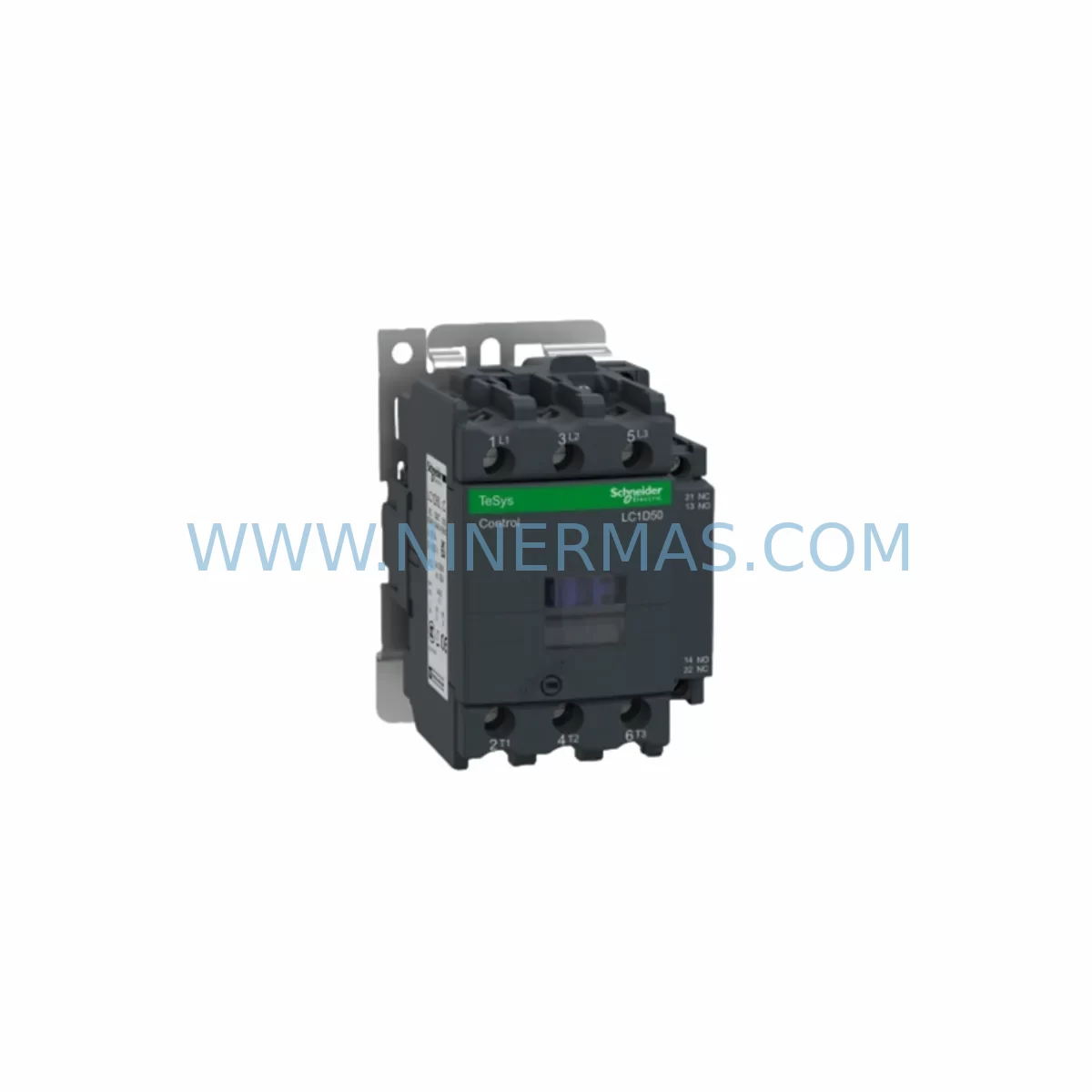

The Schneider Electric LC1D50M7C is a 3-pole AC contactor from the renowned TeSys D series, rated at 50A with a 220V AC (M7) control coil. As a critical switching and protection component in motor control centers (MCC), control panels, and industrial automation systems, the LC1D50M7C is widely deployed across manufacturing, water treatment, HVAC, and process industries. When this contactor fails or shows signs of wear — coil burnout, contact welding, or mechanical fatigue — every minute of unplanned downtime translates directly into production loss. Sourcing a verified, service-ready replacement from a reliable supplier is the fastest path back to full operation.

At NINERMAS, we stock the LC1D50M7C as an original-specification spare part, pre-tested before shipment and backed by a 12-month warranty. Whether you are executing an emergency replacement, building a preventive maintenance kit, or replenishing your MRO inventory, our supply chain is structured to support long-term, stable procurement for industrial customers worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the LC1D50M7C in the field is rarely an isolated task. Experienced maintenance engineers know that a failed contactor is often a symptom of broader stress in the electrical circuit. A thorough site inspection during the replacement window should cover the entire motor control loop to prevent repeat failures and maximize the value of the planned downtime.

Start with the thermal overload relay — in TeSys D configurations, the LRD35C or LRD332C overload relay is typically mounted directly onto the LC1D50M7C. If the contactor has failed due to overload conditions, the relay’s bimetal elements may have been stressed beyond calibration. Inspect and replace if necessary. Next, check the LAD4RCE surge suppressor wired across the coil terminals — a missing or degraded suppressor accelerates coil insulation breakdown and is a common root cause of premature contactor failure.

Inspect the control circuit fusing: verify that the upstream DF2CN25 or equivalent control fuse is intact and correctly rated for the 220V coil circuit. Examine the terminal blocks (such as Schneider NSYTRV or equivalent DIN rail terminals) for signs of overheating, loose torque, or oxidation on the power conductors feeding L1/L2/L3 and T1/T2/T3. Loose power connections are a leading cause of contact erosion and arc damage.

If the LC1D50M7C is part of a star-delta starter or reversing starter assembly, also inspect the companion contactors — typically an LC1D25 (star) and LC1D50 (delta/main) — for contact wear and mechanical interlock integrity. The LAD9R1 mechanical interlock kit should be checked for free movement and correct alignment.

For systems controlled by a Schneider Modicon M340 or Premium PLC, verify that the digital output module (such as the BMX DDO 3202K) driving the contactor coil is delivering correct voltage levels and that no output channel has been damaged by coil back-EMF. If a Zelio Logic SR3B261FU smart relay is used for local motor control logic, confirm its output relay contacts are within rated life cycles.

Finally, review the Magelis HMI or SCADA alarm history for any recurring motor trip events that may indicate a systemic issue — such as supply voltage fluctuation, phase imbalance, or mechanical overload — that a simple contactor swap will not resolve. Addressing root causes during the replacement window is the hallmark of proactive maintenance engineering.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the panel, apply LOTO, and verify absence of voltage on all three phases at the contactor line terminals using a calibrated multimeter or voltage tester.

Step 2 — Documentation: Photograph the existing wiring layout, label all control wires (A1/A2 coil, auxiliary contacts), and record the overload relay setting before removal.

Step 3 — Removal: Disconnect power cables (L1/L2/L3, T1/T2/T3) and control wiring. If an overload relay (e.g., LRD35C) is attached, unclip it from the contactor base — it can typically be reused if undamaged. Unscrew or unclip the contactor from the DIN rail.

Step 4 — Inspection: Before installing the new LC1D50M7C, inspect the busbar connections, cable lugs, and terminal block condition. Replace any damaged components identified during inspection.

Step 5 — Installation: Mount the new LC1D50M7C, reattach the overload relay, reconnect all wiring per the original documentation. Torque power terminals to the manufacturer’s specification (typically 4–6 Nm for 50A class).

Step 6 — Functional Test: Re-energize under controlled conditions. Manually actuate the contactor via the control circuit and verify correct operation of main contacts and auxiliary contacts. Confirm motor rotation direction and check running current against nameplate FLA.

Step 7 — Documentation & Inventory Update: Record the replacement in the maintenance log, update your CMMS, and replenish your spare parts stock to maintain minimum inventory levels for the LC1D50M7C and associated components.
