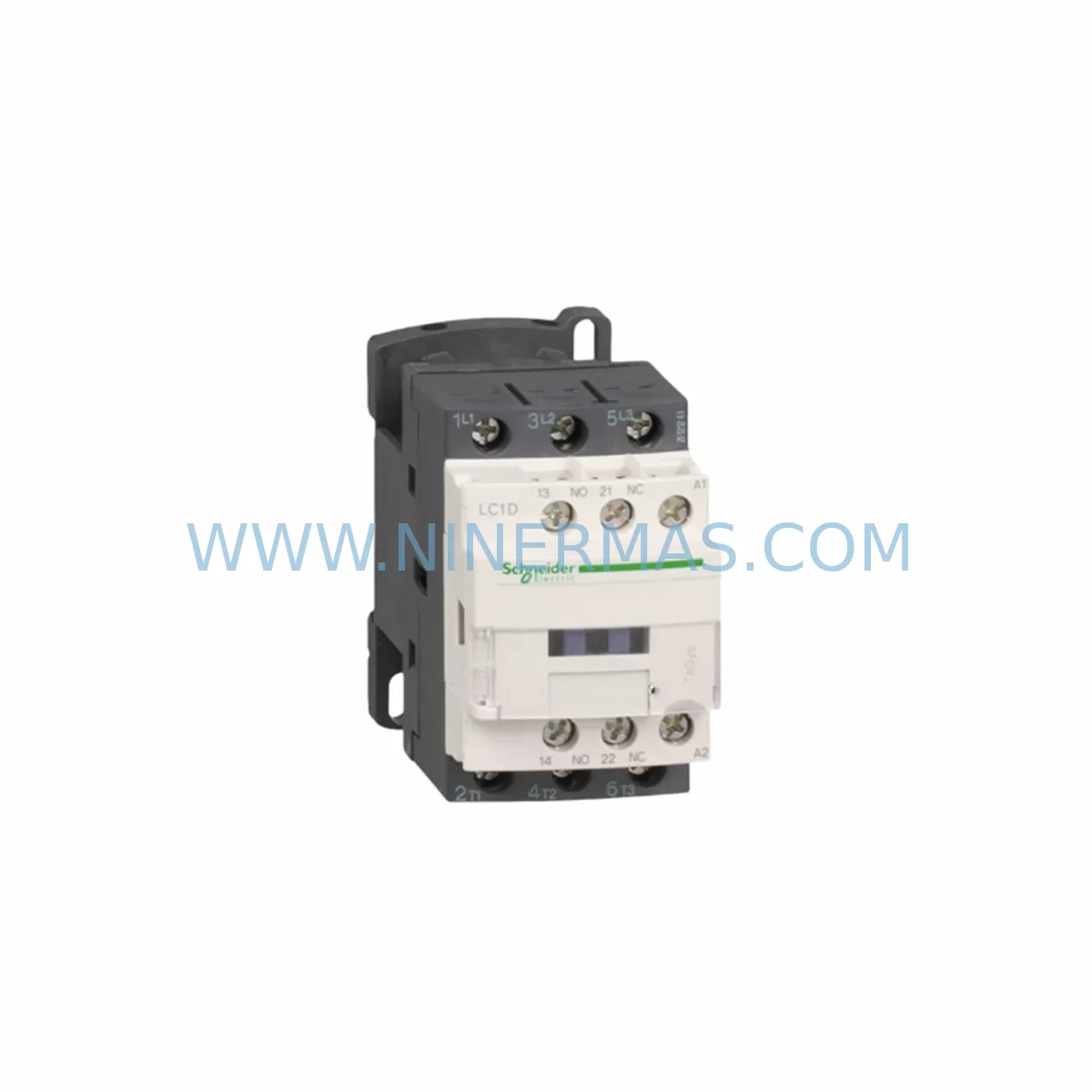

The Schneider Electric LC1D40M7C is a 3-pole AC contactor from the TeSys D series, rated at 40A (AC-3) with a 220V AC (M7) coil voltage. Designed for motor starting, reversing, and switching applications in industrial control panels, this contactor is a critical component in manufacturing lines, HVAC systems, water treatment facilities, and process automation environments. When a contactor fails unexpectedly, the result is immediate production downtime — making fast access to a verified, service-ready replacement essential for every maintenance team.

At NINERMAS, the LC1D40M7C is stocked as a tested, original-specification spare part, shipped with full inspection documentation and backed by a 12-month warranty. Whether you are responding to an emergency breakdown or building a preventive maintenance inventory, this unit is ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The LC1D40M7C sits at the heart of motor control circuits, and its failure typically cascades into broader system faults. A structured maintenance approach requires engineers to evaluate not just the contactor itself, but the entire electrical loop it operates within.

When replacing the LC1D40M7C, maintenance engineers should simultaneously inspect the LAD4RCU surge suppressor module mounted on the contactor coil — a worn suppressor accelerates coil degradation and causes erratic switching. The LA1DN11 auxiliary contact block should be checked for contact wear and proper seating, as auxiliary contacts feed feedback signals to the PLC input card. If the control circuit uses a Schneider LRD14 or LRD16 thermal overload relay paired with this contactor, verify the bimetal strip calibration and reset function before returning the circuit to service.

Upstream of the contactor, inspect the GV2ME16 or GV2ME22 motor circuit breaker for trip threshold accuracy and contact erosion. The 24VDC control power supply (e.g., ABL8REM24030 or equivalent PHASEO series unit) feeding the PLC output card that drives the contactor coil should be load-tested — an aging power supply with voltage sag under load is a common hidden cause of contactor chatter and premature coil failure.

At the PLC level, verify the Modicon M340 or Modicon M580 digital output module driving the contactor coil relay. Output channel leakage current or a failing solid-state output can cause the LC1D40M7C coil to hum without fully closing. If the system uses an intermediate RXM2AB2P7 plug-in relay between the PLC output and the contactor coil, replace it as a precautionary measure during any contactor swap — relay contacts in this position accumulate wear at the same rate as the contactor itself.

For panels with Preventa XPS safety relay modules controlling emergency stop circuits through the contactor, confirm the safety relay output contacts are within specification and that the LC1D40M7C auxiliary contact feedback loop is correctly wired to the monitoring input. Terminal blocks — particularly Linergy or Linergy DS busbar systems — should be torque-checked at the contactor power terminals, as loose connections generate heat and accelerate contact erosion on the new unit.

Procurement engineers building annual MRO budgets should consider stocking the LC1D40M7C alongside its most common companion parts: the LRD thermal overload relay, the LAD4RCU suppressor, and at least one spare LA1DN auxiliary contact block per panel. This three-component kit covers the majority of motor starter failures and reduces mean time to repair (MTTR) from hours to minutes.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the panel and apply LOTO (Lockout/Tagout) per site safety procedures. Verify zero voltage at the contactor power terminals with a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring layout, terminal labels, and auxiliary contact connections before removal. Cross-reference against the panel schematic to confirm the LC1D40M7C coil voltage matches the replacement unit (220V AC / M7 suffix).

Step 3 — Removal: Disconnect power cables (L1/L2/L3 and T1/T2/T3), control wiring from A1/A2 coil terminals, and auxiliary contact wiring. Release the DIN rail clip or unscrew the mounting screws and remove the old contactor.

Step 4 — Inspection: Before installing the new LC1D40M7C, inspect the busbar connections, cable lugs, and terminal block condition. Replace any discolored or heat-damaged components.

Step 5 — Installation: Mount the new contactor, reconnect all wiring per the documented layout, and torque power terminals to the manufacturer specification (typically 4–6 Nm for 40A class terminals).

Step 6 — Functional Test: Re-energize the control circuit only and verify coil pull-in at rated voltage. Confirm auxiliary contact state changes are correctly received by the PLC input. Then re-energize the power circuit and perform a loaded motor start test.

Step 7 — Documentation & Handover: Record the replacement in the maintenance log with the new unit’s serial number, installation date, and test results. Update the spare parts inventory accordingly.

The LC1D40M7C is a direct form-fit-function replacement for the same SKU from any production batch, and is also compatible with TeSys D mounting accessories, making it suitable for upgrading older LC1D25 or LC1D32 installations where a higher current rating is required for system expansion.

Spare Parts Support FAQ

Q1: Is the LC1D40M7C you supply an original Schneider Electric part or a compatible substitute?
All LC1D40M7C units supplied by NINERMAS are original Schneider Electric components sourced through authorized industrial distribution channels. Each unit is inspected and function-tested prior to shipment. We do not supply counterfeit, refurbished, or third-party compatible substitutes unless explicitly requested and clearly labeled as such.

Q2: What is the lead time and do you offer long-term supply agreements for this part?
Standard in-stock orders ship within 1–3 business days. For customers requiring scheduled deliveries, blanket purchase orders, or guaranteed stock reservation for annual maintenance programs, NINERMAS offers long-term supply agreements with fixed pricing and priority allocation. Contact our sales team to discuss your annual volume requirements.

Q3: How do I verify compatibility if my existing contactor has a different suffix (e.g., LC1D40B7C or LC1D40F7C)?
The suffix letters in TeSys D part numbers indicate coil voltage. The M7 suffix in LC1D40M7C denotes a 220V AC, 50/60 Hz coil. If your existing unit has a different coil voltage suffix, the mechanical frame and power contacts are identical — only the coil assembly differs. NINERMAS can supply the correct coil voltage variant for your application. Always confirm the control circuit voltage before ordering.

Q4: What warranty and post-shipment support does NINERMAS provide?
Every LC1D40M7C supplied by NINERMAS carries a 12-month warranty from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions. If a unit fails within the warranty period, we provide a free replacement or full refund. Our technical team is available to support installation verification, compatibility confirmation, and failure analysis upon request.
