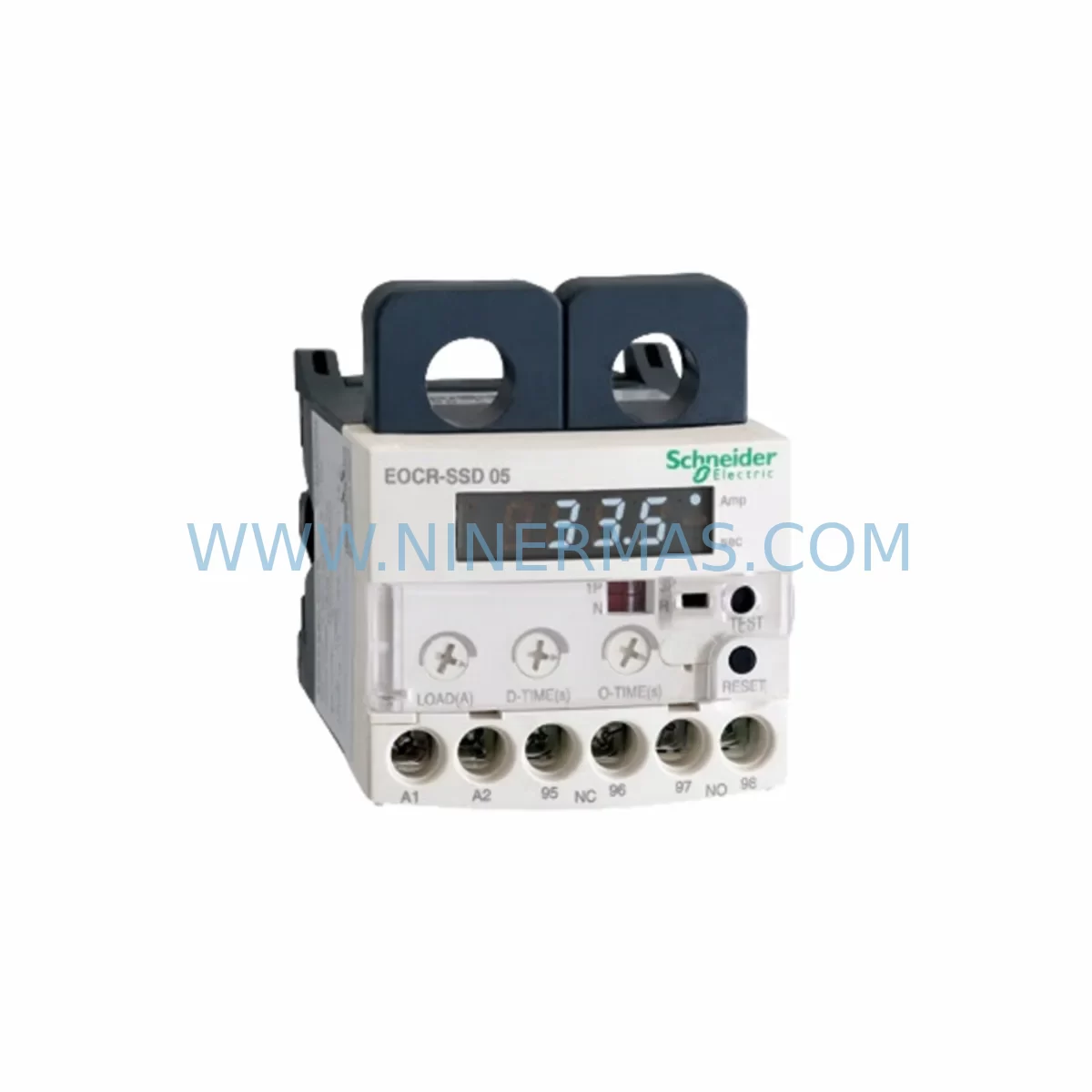

The Schneider EOCR-SSD 05 (EOCRSSD-05DF7) is an advanced electronic overload relay engineered for mission-critical motor protection in demanding industrial environments. Designed to replace and upgrade legacy thermal overload relays, this unit delivers precise, repeatable trip characteristics that safeguard motors, control circuits, and downstream equipment against overload, phase loss, phase imbalance, and locked-rotor conditions. In continuous production facilities where an unplanned motor trip can cascade into a full-line shutdown, the EOCR-SSD 05 provides the detection speed and reliability that plant engineers and maintenance teams depend on.

Built on Schneider Electric’s proven EOCR platform, the EOCR-SSD 05 integrates seamlessly into existing MCC (Motor Control Center) panels, control cabinets, and safety interlock circuits. Its solid-state sensing technology eliminates the mechanical wear inherent in bimetallic relays, ensuring consistent protection performance across thousands of operating cycles and years of field service. Whether installed in a petrochemical pump station, a mining conveyor drive, a water treatment blower circuit, or a steel mill rolling line, the EOCR-SSD 05 maintains stable trip thresholds even under high ambient temperatures, heavy vibration, and elevated electromagnetic interference — conditions that routinely degrade conventional protection devices.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered motor control cabinet, the EOCR-SSD 05 functions as the last line of defense before a motor fault escalates into equipment damage or a safety incident. It is typically installed downstream of a Schneider TeSys D LC1D contactor, which handles the switching duty, while the EOCR-SSD 05 monitors the load current continuously. When current exceeds the set threshold — whether from a mechanical jam, a failing bearing, or a phase loss event — the relay opens its output contact within the programmed trip class time, de-energizing the contactor coil and isolating the motor before thermal damage occurs.

For cabinet-level surge and transient protection, engineers frequently pair the EOCR-SSD 05 with Schneider Acti9 iC60N miniature circuit breakers on the incoming supply, ensuring that upstream short-circuit events do not expose the relay’s sensing circuitry to destructive energy. In high-EMI environments such as variable frequency drive (VFD) panels or arc furnace auxiliary circuits, adding a Schneider Acti9 iSW isolator and dedicated EMC line filters upstream of the relay further stabilizes the supply voltage and prevents nuisance trips caused by conducted interference.

Where the control architecture requires remote monitoring or integration with a PLC safety loop, the EOCR-SSD 05’s dry contact output connects directly to a Schneider Modicon M221 PLC digital input module, enabling the control system to log trip events, trigger alarms, and initiate safe-state sequences without operator intervention. In safety-instrumented systems (SIS) operating under IEC 61511, the relay’s output can feed into a Schneider Preventa XPS safety relay module, adding a certified safety layer to the motor protection circuit and satisfying SIL 1 or SIL 2 interlock requirements.

Power supply stability is equally critical. Pairing the EOCR-SSD 05 with a Schneider Phaseo ABL8 24 VDC power supply for the control circuit ensures that the relay’s coil voltage remains within specification even during mains voltage dips — a common cause of spurious resets in older installations. For applications where the motor drives a critical pump or compressor, adding a Schneider Zelio Logic SR3 smart relay to the control circuit allows engineers to implement automatic restart logic with configurable delay timers, reducing the risk of water hammer or process upset following a protective trip.

In retrofit projects involving legacy Schneider or third-party control panels, the EOCR-SSD 05 is a direct form-fit replacement for older bimetallic overload relays mounted on TeSys D or TeSys K contactor bases, eliminating the need for panel re-wiring and minimizing downtime during the upgrade. Its compact DIN-rail footprint also makes it compatible with Schneider Prisma G distribution boards and custom fabricated MCC cubicles where space is at a premium.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous-area pump and compressor motor circuits, the EOCR-SSD 05 provides reliable overload and phase-loss protection for motors driving crude transfer pumps, cooling water circulation systems, and flare gas compressors. Its solid-state design eliminates the risk of contact oxidation from hydrogen sulfide exposure that degrades conventional thermal relays in these environments.

Electric Power Generation & Transmission: Auxiliary motor circuits in thermal power stations — including boiler feed pumps, induced draft fans, and coal pulverizer drives — operate continuously at high load factors. The EOCR-SSD 05’s Class 10/20 selectable trip characteristic allows protection engineers to match the relay’s response curve precisely to each motor’s thermal withstand capability, preventing nuisance trips during legitimate high-inrush starting sequences while still catching genuine overload conditions within seconds.

Mining & Mineral Processing: Conveyor belt drives, crusher motors, and slurry pump circuits in underground and open-cut mining operations are subject to frequent overload events from material jams and variable feed rates. The EOCR-SSD 05’s locked-rotor detection function trips the motor within the programmed stall time, protecting the winding insulation and preventing the mechanical damage that results from a stalled rotor drawing six to eight times rated current.

Water & Wastewater Treatment: Submersible pump motors and aeration blower drives in municipal water treatment plants require protection devices that perform reliably in high-humidity, corrosive-atmosphere control rooms. The EOCR-SSD 05’s sealed electronic sensing circuit is unaffected by condensation and airborne chemical contaminants that cause bimetallic relay calibration drift over time.

Metallurgy, Port Cranes & Continuous Manufacturing: Rolling mill auxiliary drives, port crane hoist motors, and injection molding machine hydraulic pump motors all share a common requirement: protection that does not introduce false trips during normal duty-cycle variations. The EOCR-SSD 05’s phase imbalance detection identifies developing supply asymmetry — often the first sign of a failing upstream contactor or a deteriorating cable connection — before it progresses to a full phase-loss event and motor burnout.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Schneider EOCR-SSD 05?
All Schneider EOCR-SSD 05 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. If the unit exhibits any manufacturing defect or performance failure under normal operating conditions within this period, NINERMAS will arrange replacement or repair at no additional cost to the customer.

Q2: How is the EOCR-SSD 05 tested before shipment?
Every unit undergoes pre-shipment functional verification including continuity checks, output contact operation confirmation, and visual inspection for physical integrity. Units sourced directly from authorized Schneider Electric distribution channels are supplied with original manufacturer packaging and documentation, providing full traceability from factory to site.

Q3: Is the EOCR-SSD 05 compatible with existing TeSys D contactor installations?
Yes. The EOCR-SSD 05 is designed for direct mounting on Schneider TeSys D series contactors (LC1D range) and is also compatible with panel-mount and DIN-rail installations. It replaces legacy LRD and LR2 thermal overload relays in most applications without requiring panel re-wiring, making it the preferred choice for retrofit and life-extension projects on aging motor control equipment.

Q4: Can NINERMAS guarantee long-term supply of the EOCR-SSD 05 for ongoing maintenance programs?
NINERMAS maintains strategic stock of high-demand Schneider EOCR series components to support planned maintenance schedules, emergency breakdown requirements, and multi-year spare parts programs. Customers with recurring procurement needs are encouraged to contact our team to discuss framework agreements and reserved inventory arrangements that eliminate lead-time risk for critical spare parts.
