Schneider Electric BMH1403P06F2A Retrofit Servo Motor Legacy

Schneider Electric BMH1403P06F2A Retrofit Servo Motor for Legacy System Modernization

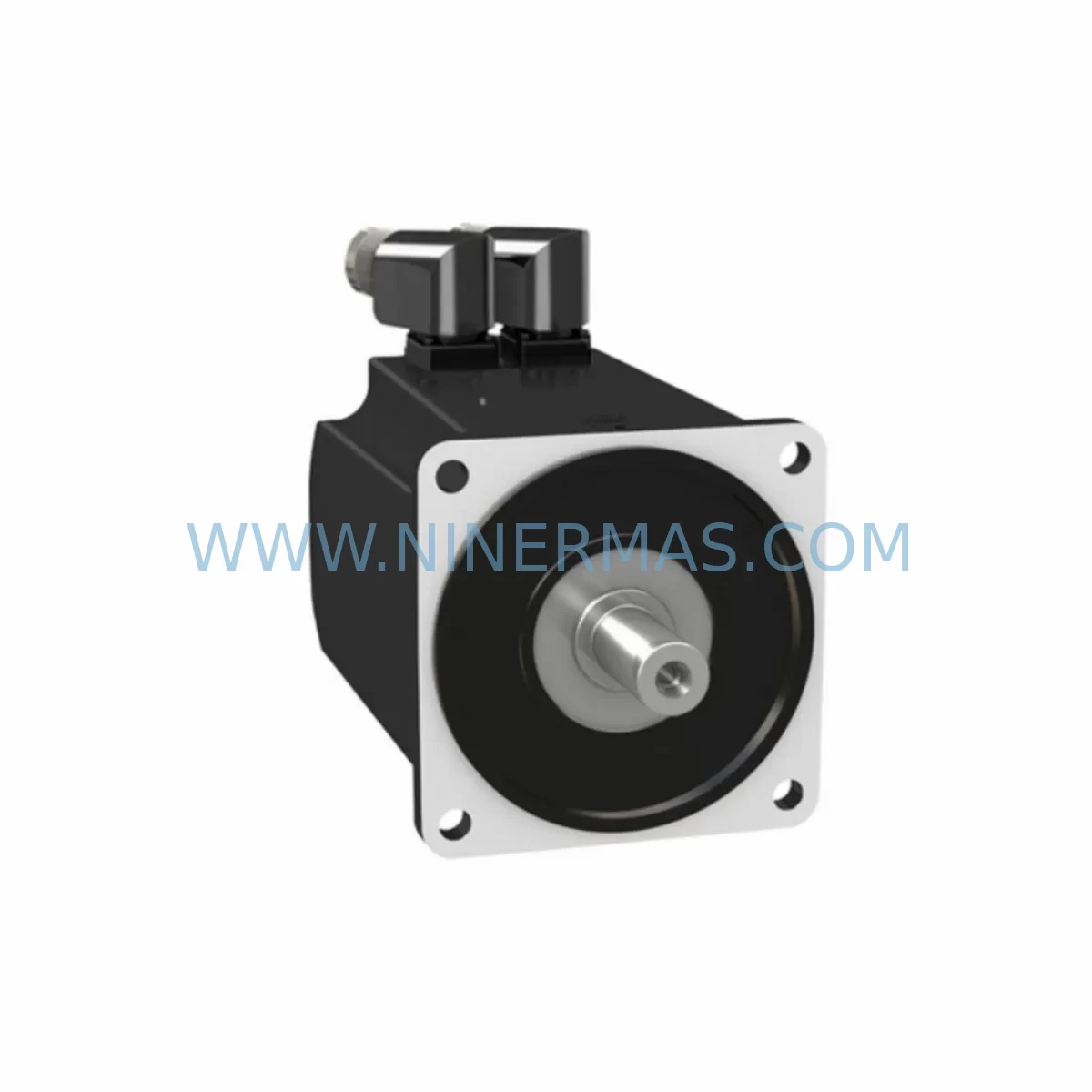

The Schneider Electric BMH1403P06F2A is a high-torque brushless servo motor from the Lexium series, engineered for precision motion control in demanding industrial automation environments. As legacy production lines face increasing pressure from discontinued component availability and end-of-life support cycles, the BMH1403P06F2A has become a critical retrofit and replacement solution for maintenance engineers managing aging Schneider Electric motion control platforms. NINERMAS maintains verified stock of the BMH1403P06F2A with full functional testing and a 12-month warranty, enabling procurement teams to source this component with confidence and minimize unplanned downtime.

The BMH1403P06F2A belongs to the Lexium BMH motor family, designed to operate in conjunction with Schneider Electric servo drives such as the Lexium 32 and Lexium 62 drive platforms. In retrofit scenarios, engineers replacing older Lexium 05 or Lexium 15 servo systems must carefully evaluate the motor-drive pairing to ensure compatibility with the existing feedback interface — typically a SinCos encoder or Hiperface protocol — before commissioning. The BMH1403P06F2A uses a standard M23 connector for power and feedback, which simplifies cable adaptation when migrating from earlier BMH or BSH motor variants that may have used different connector pinouts or feedback resolutions.

When integrating the BMH1403P06F2A into an existing control cabinet, engineers should verify available DC bus voltage capacity on the associated Lexium drive, confirm that the motor’s continuous stall torque and peak torque ratings align with the mechanical load profile, and check that the drive firmware version supports the motor’s encoder type. In multi-axis systems using a Lexium 62 ILM or a Modicon M340 or M580 PLC as the motion controller, axis parameter tables stored in the PLC program must be updated to reflect the new motor inertia, torque constant, and encoder resolution. Failure to update these parameters can result in oscillation, following error faults, or servo drive trips during commissioning.

Terminal wiring adaptation is a common challenge during BMH1403P06F2A installation in retrofit projects. Engineers migrating from a BSH1003P motor or an earlier BMH frame size must account for differences in shaft diameter, flange dimensions (IEC 72-1 standard), and keyway specifications. Mounting footprint verification against the existing motor bracket or servo gearbox input flange is essential before ordering. In applications where the BMH1403P06F2A replaces a motor coupled to a Lexium PB or Lexium DP planetary gearbox, the gearbox input shaft bore and coupling type must be confirmed to avoid mechanical interference during reassembly.

Communication and I/O architecture also requires attention during system migration. In Schneider Electric motion systems, the BMH1403P06F2A is typically controlled via CANopen, Sercos III, or EtherNet/IP motion bus depending on the Lexium drive variant in use. When upgrading from a legacy CANopen-based Lexium 05 system to a newer Lexium 32 or Lexium 62 platform paired with the BMH1403P06F2A, the motion bus topology, node addressing, and electronic cam or gearing function blocks in the SoMachine or EcoStruxure Machine Expert project must be reviewed and retested. I/O expansion modules such as the TM5 or TM7 distributed I/O blocks connected to the Modicon controller may also require firmware updates to maintain compatibility with the updated motion library.

HMI screen adaptation is another consideration in full system retrofit projects. Vijeo Designer or EcoStruxure Operator Terminal Expert projects referencing axis status words, servo ready signals, or fault codes from the legacy drive must be updated to map correctly to the new Lexium drive’s data model. Operators should be retrained on any changes to alarm displays or jog control panels that interact with the BMH1403P06F2A-driven axis. Where a Magelis HMIGTO or HMISCU panel is in use, project file version compatibility with the updated PLC firmware should be verified before going live.

Installation space confirmation is critical before committing to the BMH1403P06F2A as a drop-in replacement. The motor’s overall length including the encoder housing, connector exit direction, and cable bend radius must be assessed against the available clearance in the machine frame or control cabinet. In compact machine designs, a right-angle M23 connector adapter may be required to route power and feedback cables without exceeding minimum bend radius specifications. NINERMAS technical support can provide dimensional drawings and connector pinout documentation to assist pre-installation planning.

Prior to shipment, each BMH1403P06F2A unit supplied by NINERMAS undergoes functional verification including insulation resistance testing, encoder signal integrity check, and shaft runout measurement. Units are shipped with original or equivalent packaging to prevent transit damage to the encoder and shaft seal. The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions, providing procurement and maintenance teams with a reliable supply chain solution for long-term spare parts lifecycle management.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful BMH1403P06F2A retrofit begins with a structured audit of the existing motion system. Engineers should document the current motor nameplate data, drive model (Lexium 32A, Lexium 32M, or Lexium 62), PLC type (Modicon M340, M580, or LMC058 motion controller), and the motion bus in use. Where the existing system uses a Lexium 05 drive with a resolver-feedback BSH motor, the migration path to a BMH1403P06F2A with Hiperface feedback requires both a drive replacement and a feedback cable change. In contrast, systems already running a Lexium 32 drive may support the BMH1403P06F2A with only a motor parameter update in EcoStruxure Machine Expert.

The retrofit bill of materials typically includes the BMH1403P06F2A servo motor, a compatible VW3M3102 or VW3M3103 power and feedback cable set, a Lexium 32 or Lexium 62 servo drive, and where applicable, a TM5SDI4 or TM5SDO4 I/O expansion module for additional digital signals. In multi-axis gantry or conveyor systems, a Lexium 62 ILM integrated servo motor-drive may be evaluated as an alternative architecture, though the BMH1403P06F2A standalone motor configuration remains preferred where cabinet-mounted drives are already in place. A Magelis HMIGTO panel or HMISCU compact panel connected to the Modicon controller will require HMI project updates to reflect new axis status variables and alarm codes after the retrofit.

For systems using a Modicon Premium or Quantum PLC with a legacy motion card, the migration to a Modicon M580 with a BMECXM0100 CANopen master module provides a supported upgrade path that retains CANopen communication with the new Lexium drive paired to the BMH1403P06F2A. Programming cable VW3A8106 or USB-to-serial adapter may be needed for initial drive parameter upload during commissioning. Signal isolation between the PLC I/O and field devices should be reviewed, and where necessary, a Zelio Relay or dedicated signal isolator module should be inserted to protect the new drive inputs from legacy wiring noise.

Downtime Control During System Migration

Minimizing production downtime during a BMH1403P06F2A retrofit requires a phased approach. Prior to the maintenance window, engineers should complete all parameter preparation offline: export the existing PLC program from the Modicon controller using EcoStruxure Control Expert, update the motor axis parameters for the BMH1403P06F2A (inertia, torque constant, encoder resolution), and simulate the updated motion sequences in the SoMachine or EcoStruxure Machine Expert offline simulator. Drive parameter files should be pre-configured using the Lexium CT commissioning tool and saved to a USB key for rapid upload on site.

During the maintenance window, the sequence should follow: de-energize and lock out the control cabinet, disconnect the legacy motor power and feedback cables, remove the old motor, mount the BMH1403P06F2A (verifying flange torque to specification), connect the new VW3M3 cable set, restore power, upload the pre-configured drive parameters, download the updated PLC program, and perform a low-speed jog test before returning to production speed. Original program logic should be preserved in a backup file before any changes are made to the Modicon controller. HMI screens on the Magelis panel should be tested for correct axis status display and alarm acknowledgment before handing back to the production team. A structured commissioning checklist covering all of these steps reduces the risk of extended downtime and ensures the BMH1403P06F2A is operating within specification from first power-on.

Retrofit Support FAQ

Q1: Is the BMH1403P06F2A a direct drop-in replacement for BSH and earlier BMH motors?
The BMH1403P06F2A shares the IEC 72-1 flange standard with BSH and earlier BMH motors, but shaft diameter, overall length, connector type, and feedback protocol may differ depending on the specific legacy model being replaced. Engineers should compare dimensional drawings and encoder interface specifications before installation. NINERMAS can provide technical documentation to support pre-installation verification.

Q2: What commissioning steps are required after installing the BMH1403P06F2A?
After mechanical installation and cable connection, the paired Lexium drive must be configured with the BMH1403P06F2A motor parameters using EcoStruxure Machine Expert or the Lexium CT tool. The PLC motion axis object must be updated with the correct inertia and encoder resolution values. A low-speed jog test followed by a full-speed cycle test under load should be completed before returning the machine to production.

Q3: Does NINERMAS test BMH1403P06F2A units before shipment?
Yes. Each unit undergoes insulation resistance testing, encoder signal integrity verification, and shaft runout measurement prior to shipment. Units are packaged to prevent transit damage to the encoder housing and shaft seal. A 12-month warranty is provided covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability for the BMH1403P06F2A?
NINERMAS maintains active inventory of the BMH1403P06F2A to support urgent maintenance and planned retrofit projects. Lead time varies by order volume and destination. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for real-time stock confirmation and shipping timeline. Priority dispatch is available for emergency breakdown situations.
