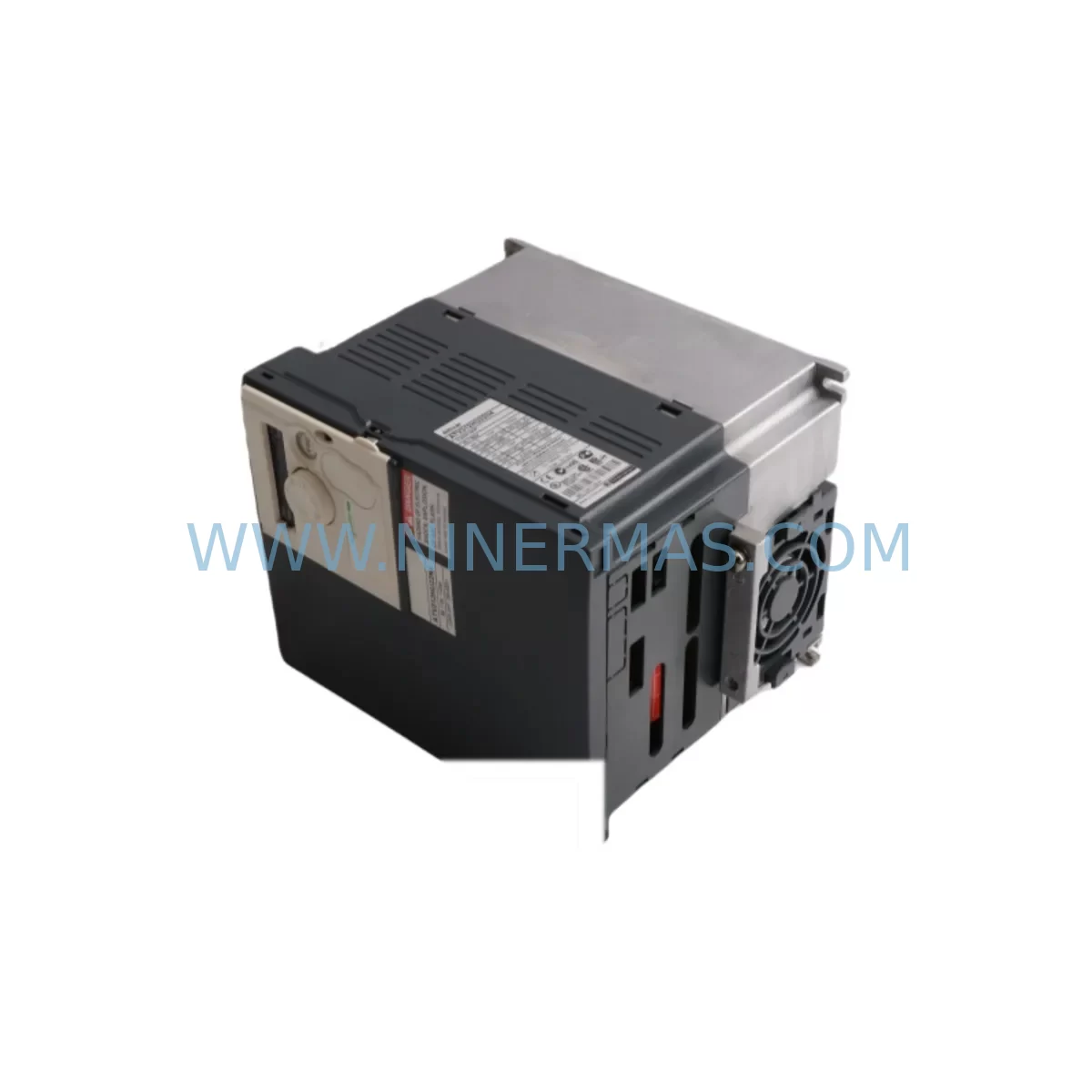

The Schneider Electric ATV312HU22N4 is a 2.2 kW (3 HP) three-phase 380–500 V variable frequency drive from the proven Altivar 312 series, engineered for demanding industrial environments where control reliability and operational safety are non-negotiable. Designed to meet the rigorous requirements of continuous production lines, critical interlock circuits, and heavy-duty motor control panels, this drive delivers consistent performance even under high electromagnetic interference, mechanical vibration, ambient temperature extremes, and dusty or humid field conditions. For industrial facilities that cannot afford unplanned downtime, the ATV312HU22N4 represents a trusted, field-proven solution backed by Schneider Electric’s global engineering heritage.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets serving petrochemical, power generation, and heavy manufacturing facilities, a single component failure can cascade into a full production halt. The ATV312HU22N4 is engineered to minimize this risk across multiple failure modes. Its integrated EMC filter suppresses conducted and radiated interference that would otherwise corrupt signals from Schneider Electric Modicon M340 PLCs or Magelis HMI panels sharing the same cabinet backplane. When paired with a Schneider Electric Acti9 iC60N circuit breaker on the input side, the drive is protected against short-circuit and overload events that could damage the motor winding or the drive’s IGBT output stage.

For applications where power quality is inconsistent — such as remote mining substations or port crane control rooms — installing a Schneider Electric Varlogic NR6 power factor correction unit upstream stabilizes the supply voltage and reduces harmonic distortion, extending the service life of the ATV312HU22N4’s DC bus capacitors. On the output side, a Schneider Electric VW3A4551 dV/dt output filter protects motor insulation from steep voltage rise times, particularly critical in long-cable installations exceeding 50 metres. For safety interlock circuits, the drive’s configurable digital inputs can be wired directly to Schneider Electric Preventa XPS safety relays, enabling STO (Safe Torque Off) equivalent functionality without additional external modules.

Communication reliability is maintained through the drive’s native Modbus RTU interface, which integrates seamlessly with Schneider Electric ConneXium managed Ethernet switches via a gateway, ensuring that SCADA systems receive real-time drive status, fault codes, and energy consumption data without communication dropouts. For cabinet thermal management in high-ambient environments, pairing the drive with a Schneider Electric ClimaSys cooling unit maintains internal temperatures within the drive’s safe operating range, preventing thermal derating and nuisance trips. Together, these components form a cohesive, safety-oriented control architecture that dramatically reduces the risk of unplanned motor stops, signal drift, and control loop interruptions.

Critical Industrial Safety Applications

The Schneider ATV312HU22N4 is deployed across a wide spectrum of safety-critical industrial environments. In petrochemical and refinery plants, it controls cooling water pumps and ventilation fans within hazardous area control buildings, where any motor trip can trigger a process safety event. Its robust EMC immunity ensures that high-frequency interference from nearby variable-speed compressors does not induce false fault trips. In electric power generation facilities, the drive manages auxiliary motor loads such as boiler feed pump pre-lubrication systems and cooling tower fans, where continuous availability is mandated by grid stability requirements.

In underground coal and metal mining operations, the ATV312HU22N4 drives conveyor belt motors and ventilation fans in environments characterized by coal dust, high humidity, and significant mechanical vibration. Its wide operating temperature range and vibration-rated design allow reliable operation without frequent recalibration or premature failure. Municipal water treatment and wastewater facilities rely on this drive for precise flow control of dosing pumps and aeration blowers, where consistent motor speed directly impacts effluent quality and regulatory compliance. In metallurgical and steel mill applications, the drive’s dynamic braking capability and fast current limiting protect against the high inertia loads typical of rolling mill auxiliary drives.

At port and bulk terminal facilities, the ATV312HU22N4 controls conveyor and hoist auxiliary motors in salt-laden, high-humidity coastal environments. Its IP20 chassis, when housed in a properly sealed Schneider Electric PrismaSeT enclosure, achieves the IP54 protection level required for outdoor or semi-outdoor installations. In continuous process manufacturing — including paper mills, cement plants, and food processing lines — the drive’s sensorless flux vector control delivers the torque accuracy needed to maintain product quality and prevent costly process deviations caused by motor speed instability.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the ATV312HU22N4?
All ATV312HU22N4 units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from our stocked inventory to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every ATV312HU22N4 undergoes a comprehensive outgoing quality inspection prior to dispatch, including power-on functional verification, output voltage balance check across all three phases, parameter default confirmation, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the ATV312HU22N4 compatible with existing Altivar 312 installations and Schneider programming tools?
Yes. The ATV312HU22N4 is fully compatible with the Altivar 312 product family and can be configured using the Schneider Electric SoMove software or the drive’s integrated keypad. It is a direct functional replacement for existing ATV312 series drives of the same power rating, requiring no modification to existing motor wiring, control wiring, or PLC program logic.

Q4: Can NINERMAS guarantee long-term supply continuity for this model?
NINERMAS maintains dedicated safety stock of the ATV312HU22N4 and key Altivar 312 series variants to support customers with ongoing maintenance, spare parts programs, and emergency replacement requirements. We provide stable, long-term supply assurance for industrial facilities that depend on this drive as a critical spare, with typical lead times of 3–7 business days for in-stock units.
