Schneider ATV312HU15N4 Safety-Reliable AC Drive

Schneider ATV312HU15N4 Safety-Reliable AC Drive for Critical Control Sites

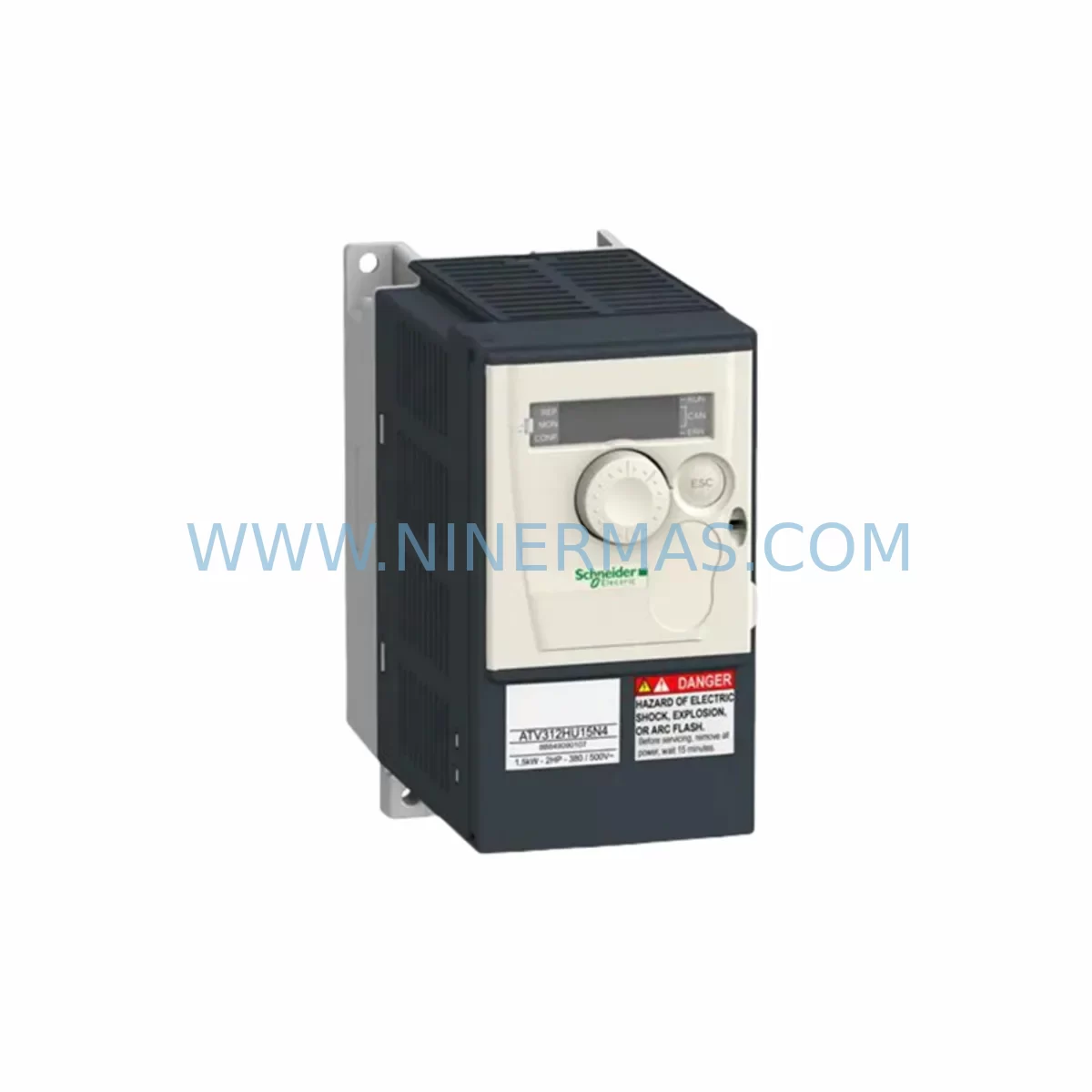

The Schneider Electric ATV312HU15N4 is a 1.5 kW / 2 HP three-phase 380–500 V AC variable frequency drive from the proven Altivar 312 series, engineered for demanding industrial environments where control continuity and operational safety are non-negotiable. Designed to regulate motor speed and torque with precision, the ATV312HU15N4 delivers consistent performance in continuous production lines, critical interlock circuits, heavy-duty control cabinets, and field installations exposed to high electromagnetic interference, dust, humidity, elevated temperatures, and mechanical vibration.

At NINERMAS, every ATV312HU15N4 unit undergoes rigorous pre-shipment functional testing — verifying power stage integrity, control board response, parameter retention, and communication interface stability — before dispatch. This quality assurance protocol ensures that replacement and new-installation units arrive field-ready, minimizing commissioning risk and unplanned downtime at critical sites.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet environments — such as those found in petrochemical process units, power generation auxiliaries, and heavy manufacturing lines — the ATV312HU15N4 serves as a core motor control element within a layered protection architecture. Its built-in Modbus RTU interface enables seamless integration with Schneider Electric Modicon M340 and Modicon M580 PLCs, allowing the drive to participate in coordinated safety interlocks and process control loops without additional protocol converters.

Surge and transient protection at the drive input is best reinforced by pairing the ATV312HU15N4 with a Schneider Electric Acti9 iC60N circuit breaker and a dedicated iPRD surge protective device, which together clamp voltage spikes from switching operations and external lightning events before they reach the drive’s power stage. On the DC bus side, the drive’s internal braking transistor can be connected to an external Altivar braking resistor to safely dissipate regenerative energy during rapid deceleration cycles — a critical requirement in hoist, conveyor, and centrifuge applications.

For installations where power quality is a concern, upstream deployment of a Schneider Electric Acti9 iEM3000 series energy meter provides real-time visibility into voltage imbalance and harmonic distortion levels that could otherwise cause nuisance trips or accelerated drive aging. In cabinets with multiple drives, the Altivar Process ATV600 series can be deployed alongside the ATV312 for higher-power motor loops, sharing the same Modbus network backbone and simplifying cabinet wiring and diagnostics.

Control signal integrity in high-EMI environments is maintained through proper cable segregation and the use of shielded twisted-pair wiring for analog inputs (AI1, AI2) and digital I/O. Where 24 VDC control power is required, a Schneider Electric Phaseo ABL8 power supply provides regulated, filtered DC power to the drive’s control circuit and connected safety relays, preventing control voltage sag from causing spurious fault trips. For safety relay functions — such as Safe Torque Off (STO) or emergency stop monitoring — the Schneider Electric Preventa XPS series safety relay integrates directly with the ATV312’s digital inputs to enforce IEC 62061 / ISO 13849 safety integrity requirements.

In distributed I/O architectures, the Schneider Electric TM3 expansion module family extends the PLC’s I/O reach to the drive’s installation zone, reducing long analog cable runs that are susceptible to signal drift and noise pickup. Collectively, this ecosystem of protection, power, communication, and safety components — anchored by the ATV312HU15N4 — forms a robust, field-proven control cabinet strategy that measurably reduces the risk of control interruption, false trips, signal drift, power fluctuation, communication anomalies, surge damage, and unplanned production stops.

Critical Industrial Safety Applications

The Schneider ATV312HU15N4 is deployed across a wide range of critical industrial sectors where motor control reliability directly impacts process safety and production continuity.

In petrochemical and refinery facilities, the drive controls cooling water pumps, compressor auxiliaries, and agitator motors in hazardous-area-adjacent control rooms, where any unplanned motor stop can trigger process upsets or safety system activations. Its comprehensive fault detection — including phase loss, ground fault, and motor thermal protection — provides early warning before failures escalate to safety events.

In electric power generation and substation auxiliary systems, the ATV312HU15N4 manages forced-draft fans, lube oil pumps, and cooling tower motors. Its ability to maintain stable speed control under fluctuating grid voltage conditions (380–500 V input range) ensures auxiliary systems remain operational during grid disturbances.

In mining and mineral processing operations, the drive is used on conveyor belt drives, slurry pump motors, and ventilation fan systems in environments characterized by heavy dust loading, vibration, and wide ambient temperature swings. The drive’s IP20 enclosure, combined with a properly sealed control cabinet, provides adequate protection when installed per IEC 61439 panel standards.

In municipal water and wastewater treatment plants, the ATV312HU15N4 controls submersible pump motors, aeration blowers, and sludge transfer pumps — applications where continuous operation is essential for regulatory compliance and public health. Its energy-saving V/f control mode reduces pump energy consumption during low-demand periods while maintaining minimum flow requirements.

In metallurgical and steel processing plants, the drive is applied to roller table motors, cooling bed drives, and auxiliary hydraulic pump motors, where high starting torque and precise speed ramp control are required to protect mechanical drive trains from shock loading.

In port and bulk material handling terminals, the ATV312HU15N4 is used in grab crane auxiliary drives, belt feeder motors, and dust suppression fan systems — environments where salt air, humidity, and vibration demand a drive with proven environmental resilience and straightforward field serviceability.

Safety and Quality FAQ

Q1: What warranty coverage does the ATV312HU15N4 carry when purchased from NINERMAS?
Every ATV312HU15N4 supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, component failures under normal operating conditions, and verified early-life failures identified during commissioning. Warranty claims are supported by our technical team with replacement dispatch or repair service as appropriate.

Q2: What pre-shipment testing is performed on each unit?
Each ATV312HU15N4 undergoes a documented full functional test prior to dispatch, including power-on verification, output voltage and frequency accuracy check, control terminal I/O response test, Modbus communication handshake verification, and fault code memory clearance. Test records are available upon request for quality-critical procurement processes.

Q3: Is the ATV312HU15N4 compatible with existing Altivar 312 installations and Schneider PLC systems?
Yes. The ATV312HU15N4 is a direct form-fit-function replacement for existing Altivar 312 series drives of equivalent power rating. It retains full parameter compatibility with the SoMove configuration software and communicates natively over Modbus RTU with Schneider Modicon PLCs. No hardware or software modifications are required for like-for-like replacement in existing control architectures.

Q4: Can NINERMAS support long-term and repeat supply of the ATV312HU15N4 for spare parts programs?
Yes. NINERMAS maintains a long-term spare parts supply program for the Altivar 312 series, including the ATV312HU15N4, to support lifecycle extension strategies at industrial facilities. Customers operating continuous production sites can establish standing supply agreements with committed lead times, ensuring spare drive availability without reliance on spot-market procurement. Contact our team at sale@ninermas.com to discuss volume and scheduling requirements.
