Schneider 140CRP93200C Retrofit-Compatible RIO Head for Legacy Systems

Schneider 140CRP93200C Retrofit-Compatible RIO Head Adapter for Legacy Modicon Quantum Systems

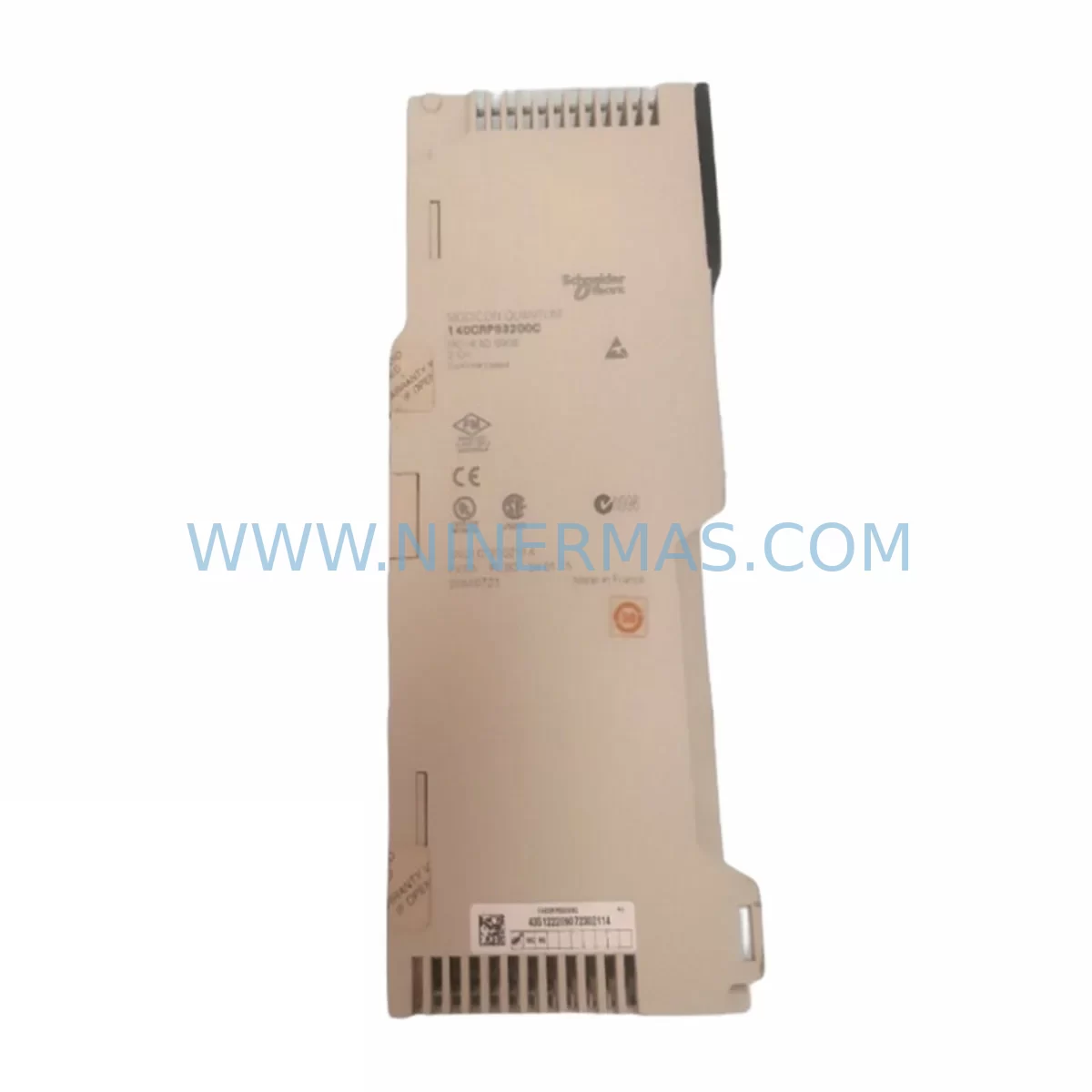

The Schneider Electric 140CRP93200C is a Remote I/O (RIO) Head Adapter module designed for the Modicon Quantum automation platform. As legacy Quantum-based control systems approach end-of-life or require capacity expansion, the 140CRP93200C serves as a critical bridge component — enabling engineers to extend, migrate, or modernize existing remote I/O drops without replacing the entire control architecture. NINERMAS maintains verified stock of this module with a 12-month warranty, supporting procurement teams managing long-cycle spare parts programs and unplanned downtime events.

The 140CRP93200C connects the Quantum RIO coaxial cable network to a remote drop, acting as the head-end controller for all I/O modules installed on that drop’s backplane. It supports the Modicon Quantum RIO coaxial bus at up to 1 Mbps, managing communication between the host Quantum CPU — such as the 140CPU65160 or 140CPU67160 — and field-level I/O modules including discrete input/output cards, analog signal modules, and specialty function modules mounted on the same 140XBP01600 or 140XBP00600 backplane.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or expanding a Modicon Quantum RIO drop requires careful pre-work to avoid configuration errors and extended downtime. Before removing the existing 140CRP93200C, engineers should document the current drop address (visible on the rotary switch), photograph all terminal wiring on adjacent I/O modules such as 140DDI35300 discrete input cards and 140DAO84000 discrete output cards, and export the active Unity Pro project to a backup file. This ensures the I/O map, variable addresses, and network topology are preserved before any hardware is disturbed.

On the backplane side, confirm that the 140XBP01600 backplane bus connectors are free of corrosion or mechanical damage. If the drop has been in service for more than ten years, it is advisable to inspect the 140CPS11420 power supply module for capacitor aging symptoms — output voltage ripple above 5% under load is a reliable indicator that a simultaneous PSU replacement should be planned alongside the RIO head swap. Carrying a spare 140CPS21400 redundant power supply to site is recommended for critical process lines where power continuity is non-negotiable.

For systems that also include analog signal conditioning, verify that 140ACI04000 analog input modules and 140ACO13000 analog output modules retain their calibration data after the RIO head is replaced — the 140CRP93200C does not store module-level calibration, so field recalibration may be required if modules were previously auto-calibrated through the CPU. Where the control cabinet also hosts a 140NOE77100 Ethernet communication module or a 140NOM21200 Modbus Plus network option module, confirm that network node addresses and routing tables are unaffected by the RIO drop swap, as these modules communicate independently over the backplane.

If the retrofit scope extends to migrating from the legacy RIO coaxial architecture toward an Ethernet-based distributed I/O topology, the 140CRP93200C can serve as a temporary stabilization measure — keeping the existing drop operational while a phased migration to Advantys STB or Modicon M340 distributed I/O islands is planned and budgeted. This approach minimizes capital expenditure in the short term while allowing engineering teams to validate the new architecture in parallel without disrupting production.

Downtime Control During System Migration

Minimizing unplanned downtime during a Quantum RIO head replacement begins with a structured pre-outage checklist. The replacement window for a 140CRP93200C swap on a healthy backplane is typically 30–60 minutes when all preparatory steps are completed in advance. Key actions include: confirming the replacement module’s drop address is pre-set to match the original before the outage begins; having the Unity Pro project file open and ready on the programming laptop with a TSXPCX3030 USB-to-serial programming cable connected to the CPU; and verifying that the HMI operator station running Vijeo Designer or a third-party SCADA system is in manual override mode to prevent spurious alarms during the communication interruption.

During the swap, power down only the affected remote drop by isolating its 140CPS11420 power supply — do not interrupt the main Quantum rack power unless the system architecture requires it. After seating the new 140CRP93200C in Slot 1 and restoring power, the CPU will automatically re-establish communication with the drop within 3–5 seconds under normal coaxial cable conditions. If the drop fails to come online, use Unity Pro’s I/O diagnostics screen to verify the drop address match and check for coaxial cable continuity faults before escalating to a full cable inspection. All NINERMAS-supplied 140CRP93200C units undergo functional communication testing prior to shipment, reducing the risk of a DOA module contributing to extended downtime.

Retrofit Support FAQ

Q1: Is the 140CRP93200C a direct drop-in replacement for an existing failed RIO head on a Quantum system?
Yes. The 140CRP93200C is a like-for-like replacement for any Quantum remote drop head adapter of the same model. No firmware update or CPU-side configuration change is required provided the drop address rotary switch is set to match the original module before installation. Verify the Unity Pro I/O configuration reflects the correct drop number to avoid address conflicts.

Q2: What pre-shipment testing does NINERMAS perform on the 140CRP93200C?
Every unit is powered on and subjected to functional communication verification on a Quantum-compatible test bench before dispatch. Units that fail communication handshake or show abnormal power draw are quarantined and not shipped. All shipped units carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the 140CRP93200C be used with non-Schneider I/O modules on the same backplane?
The 140CRP93200C is designed exclusively for the Modicon Quantum backplane ecosystem. All I/O modules installed on the same 140XBP01600 or 140XBP00600 backplane must be Quantum-series modules. Third-party or non-Quantum modules are not supported and may cause communication faults or backplane damage.

Q4: What is the lead time and stock availability for the 140CRP93200C?
NINERMAS maintains ready stock of the 140CRP93200C to support urgent spare parts requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity procurement or long-term spare parts program commitments, contact our sales team to discuss reserved stock arrangements and volume pricing.
