SAIA PCD2.M110 Service-Ready Spare Part for Industrial Maintenance

SAIA PCD2.M110 Service-Ready Spare Part for Industrial Maintenance

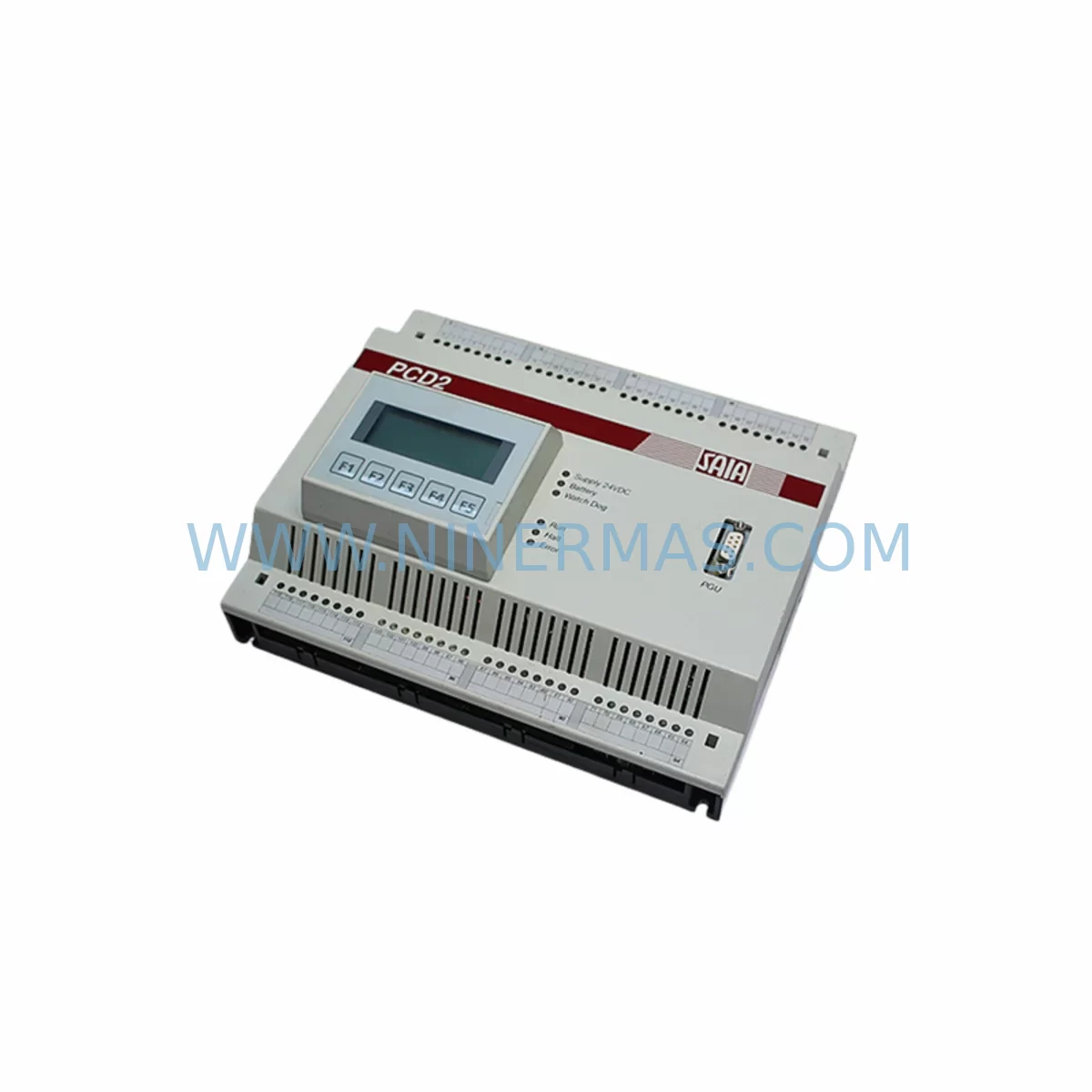

The SAIA PCD2.M110 is a central processing unit module designed for the SAIA-Burgess PCD2 programmable controller series — one of the most widely deployed compact PLC platforms in building automation, industrial process control, and utility management systems. As legacy PCD2 installations continue to operate well beyond their original design life, maintaining a verified stock of the PCD2.M110 CPU module is a critical element of any responsible spare parts strategy. Unplanned CPU failure in a PCD2 rack can halt an entire production line, HVAC zone, or water treatment process within seconds. Having a service-ready PCD2.M110 on the shelf eliminates the most dangerous variable in emergency recovery: lead time.

At NINERMAS, every PCD2.M110 unit is sourced from verified industrial supply channels, inspected prior to dispatch, and shipped with full documentation. Our 12-month warranty covers functional performance under normal operating conditions, giving maintenance engineers and procurement teams the confidence to stock this module as a long-term asset rather than a one-time emergency purchase.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PCD2.M110 CPU module is flagged for replacement during a scheduled inspection or emergency callout, experienced maintenance engineers know that the CPU is rarely the only component under stress. A thorough site assessment should extend to the entire PCD2 rack and its associated electrical environment.

Begin with the PCD2 backplane and rack assembly — connector oxidation or mechanical damage to the backplane bus can cause intermittent CPU faults that mimic module failure. Inspect the PCD2.W200 or PCD2.W300 power supply module for output voltage stability; an under-voltage condition on the 24 VDC rail is a common root cause of CPU resets and program corruption. If the installation uses a PCD2.F110 or PCD2.F120 I/O expansion module, verify that all I/O channels are responding correctly after CPU replacement, as a failed I/O module can generate false fault codes that implicate the CPU.

Communication integrity should be validated at the PCD2.F522 or PCD2.F527 communication module level — S-Bus and Modbus RTU links must be re-established and tested after any CPU swap. For installations with PCD7.D series HMI panels connected to the PCD2 network, confirm that the HMI re-establishes its data link to the new CPU without requiring a full project re-download. Check signal isolators and surge protection devices on analog input channels, particularly in environments with variable-frequency drives or high-inductive loads, as transient events that damage a CPU module often leave residual stress on connected signal conditioning components.

Terminal blocks and field wiring connections — especially on PCD2.E110 or PCD2.E160 analog input modules — should be inspected for loose terminations and insulation degradation. Relay output modules such as the PCD2.A400 should be tested for contact wear if the system has been operating in a high-cycle switching environment. Finally, review the 24 VDC distribution fusing within the control cabinet; a blown fuse on the CPU supply rail is sometimes the actual fault, with the CPU module itself remaining serviceable.

Stocking the PCD2.M110 alongside these complementary modules — power supplies, I/O cards, communication modules, and relay outputs — transforms a reactive maintenance posture into a proactive one, dramatically reducing mean time to repair (MTTR) across the entire PCD2 installation base.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before powering down, capture the current CPU program via the SAIA PG5 programming software. Save the project file, symbol table, and communication configuration to a secure backup location. Note the firmware version displayed in PG5 for reference during recommissioning.

Step 2 — Safe isolation: Follow site lockout/tagout (LOTO) procedures. Isolate the PCD2 rack from its 24 VDC supply. Discharge any residual voltage on the backplane before removing the PCD2.M110 module. Handle the module by its edges to avoid ESD damage to the processor and memory circuits.

Step 3 — Module installation: Seat the replacement PCD2.M110 firmly into the CPU slot of the PCD2 rack. Verify that the module locking mechanism is fully engaged. Reconnect the 24 VDC supply and observe the module’s LED status indicators during power-on self-test (POST).

Step 4 — Program download and verification: Using SAIA PG5, download the backed-up project to the new CPU. Confirm that all I/O modules are recognized, communication links are active, and the program enters RUN mode without fault. Perform a functional test of critical outputs before returning the system to automatic operation.

Step 5 — System handover: Update the site maintenance log with the replacement date, new module serial number, and technician details. Flag the replaced module for return-to-base evaluation or disposal per site procedures. Replenish the spare parts inventory with a new PCD2.M110 to maintain readiness for the next event.

This structured workflow minimizes downtime, preserves system compatibility, and ensures that the replacement is fully documented for audit and warranty purposes.

Spare Parts Support FAQ

Q1: Is the PCD2.M110 still available as a new original spare part?
Yes. NINERMAS maintains stock of the SAIA PCD2.M110 sourced from verified industrial supply channels. While SAIA-Burgess has transitioned newer installations to the PCD3 platform, the PCD2.M110 remains available as an original spare to support the large installed base of PCD2 systems still in active service. Contact our team to confirm current stock availability and lead time before your next scheduled maintenance window.

Q2: How do I verify compatibility between the PCD2.M110 and my existing PCD2 rack?
The PCD2.M110 is designed for use within the standard PCD2 modular rack system. Compatibility is determined by the rack type (PCD2.C100 or equivalent), firmware version, and the PG5 project configuration. We recommend providing your existing CPU firmware version and PG5 project version when placing an order so our technical team can confirm full compatibility before shipment.

Q3: What testing is performed before the PCD2.M110 is shipped?
Every PCD2.M110 unit dispatched by NINERMAS undergoes a pre-shipment functional check covering power-on self-test, communication port integrity, and memory verification. Units are packaged in anti-static protective materials and shipped with a test report. Our 12-month warranty from the date of shipment covers any functional defect identified under normal operating conditions.

Q4: Can NINERMAS support long-term supply of PCD2.M110 for multi-site maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts supply for legacy industrial control systems, including end-of-life and discontinued SAIA PCD2 series components. We can support blanket purchase orders, scheduled delivery programs, and multi-site inventory strategies. Contact our procurement team at sale@ninermas.com to discuss volume pricing and supply continuity agreements.
