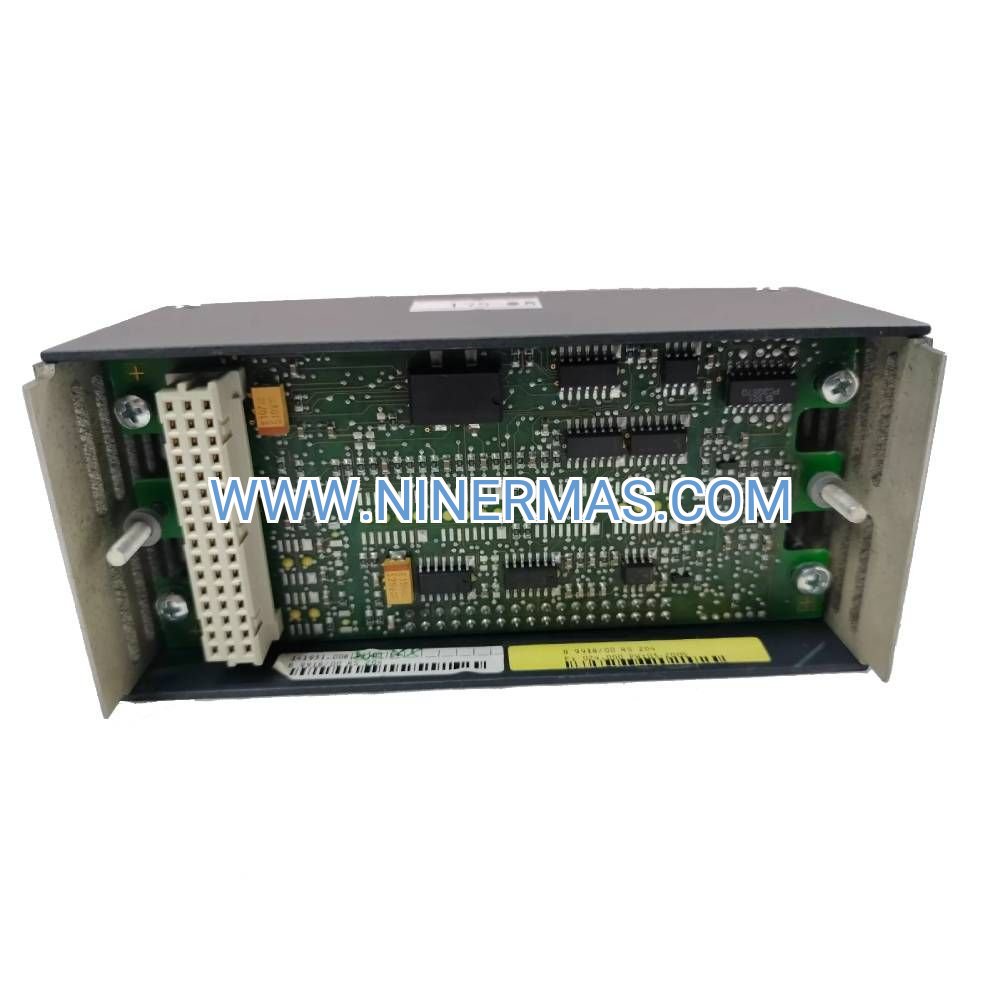

BACHMANN RS204 Serial Interface Module (Industrial-Grade Multi-Protocol Solution)

The BACHMANN RS204 is a high-performance serial interface module engineered for demanding industrial automation environments. Designed to seamlessly integrate with M1 controllers, this module delivers reliable multi-protocol communication across RS232, RS422, RS485, and TTY standards. Whether you're upgrading legacy systems or building new control architectures, the RS204 provides the connectivity backbone your operations demand.

Built for engineers and system integrators who require robust, scalable serial communication, the RS204 eliminates connectivity bottlenecks in process control, manufacturing automation, and distributed control systems. With galvanic isolation, automatic flow control, and field-proven reliability, this module ensures your critical data flows without interruption—even in electrically noisy industrial settings.

From single-machine control to plant-wide SCADA integration, the RS204 adapts to your application. Its modular design supports unlimited interface expansion per controller, while integrated terminating resistors and flexible configuration options reduce installation time and commissioning complexity.

Core Capabilities & Technical Advantages

✓ Quad-Port Architecture: Four independent serial interfaces on a single module reduce hardware footprint and simplify wiring. Each port operates autonomously with dedicated 128-byte FIFO buffers, preventing data loss during burst transmissions.

✓ Multi-Protocol Flexibility: Supports RS232, RS422, RS485, and TTY standards on the same module. Mix and match protocols per port to connect diverse equipment—PLCs, drives, sensors, HMIs—without additional converters.

✓ High-Speed Performance: Transfer rates up to 921.6 Kbaud (RS422/RS485) and 115.2 Kbaud (RS232) ensure responsive communication for time-critical control loops and high-throughput data acquisition.

✓ Galvanic Isolation (500V): Electrical isolation between system and field devices protects your controller from ground loops, voltage spikes, and EMI—critical for long cable runs and harsh electrical environments.

✓ Automatic Handshake Control: Built-in flow control manages data transmission without manual intervention, reducing programming overhead and ensuring reliable communication with legacy equipment.

→ Integrated Terminating Resistors: DIP-switch selectable termination for RS485/RS422 networks eliminates external components and simplifies troubleshooting during commissioning.

Industrial Application Scenarios

Process Manufacturing & Batch Control: Connect multiple weighing systems, barcode scanners, and recipe management terminals to a central M1 controller. The RS204's isolated ports prevent electrical interference from motor drives and VFDs, while high-speed RS422 links ensure real-time recipe downloads and production tracking. Typical installations reduce wiring costs by 40% compared to individual interface cards.

Building Automation & HVAC Systems: Interface M1 controllers with legacy BACnet/Modbus RTU devices, energy meters, and third-party climate control units. RS485 multi-drop capability allows up to 32 devices per port, while TTY support maintains compatibility with older proprietary protocols. Galvanic isolation protects against lightning-induced surges in distributed campus installations.

Water/Wastewater Treatment: Establish reliable communication with remote pump stations, flow meters, and chemical dosing systems across extended distances. RS422 differential signaling maintains signal integrity over 1200m cable runs, while the module's -30°C to +60°C operating range supports outdoor enclosure installations without additional climate control.

Material Handling & Logistics: Coordinate conveyor systems, sortation equipment, and RFID readers through a unified M1 control platform. The RS204's unlimited scalability per controller enables centralized management of 50+ serial devices, while FIFO buffering prevents data loss during peak throughput periods.

Energy Management & Substation Automation: Integrate protective relays, power quality analyzers, and RTU equipment using IEC 60870-5-101 or DNP3 serial protocols. The 500V isolation barrier meets utility-grade safety requirements, and ColdClimate variants (RS204❉) operate reliably in unheated substations down to -30°C.

Technical Parameters & Selection Guide

Selection Criteria: Choose the standard RS204 for general industrial applications requiring mixed RS232/422/485 connectivity. Opt for RS204/T when interfacing with legacy TTY equipment (one port dedicated to TTY, three configurable). Select RS204/R for applications needing an additional dedicated RS232 port. For outdoor installations or unheated environments below -30°C, specify the RS204❉ ColdClimate variant with extended temperature rating.

Extended Functionality & System Integration

Unlimited Scalability: Add multiple RS204 modules to a single M1 controller without architectural limitations. Each module operates independently, allowing incremental expansion as your system grows—from 4 ports to 40+ ports without controller replacement.

IoT Gateway Compatibility: Integrate with BACHMANN's M-Base IoT solutions to bridge serial devices to Ethernet/IP, MQTT, or OPC UA networks. The RS204 acts as a protocol converter, enabling legacy equipment to participate in Industry 4.0 data ecosystems.

Diagnostic & Monitoring: Real-time status indicators and software-accessible error flags simplify troubleshooting. Monitor transmission errors, buffer overruns, and isolation barrier integrity through the M1 controller's diagnostic interface.

Custom Configuration Services: NINERMAS offers pre-configured modules with customer-specific baud rates, parity settings, and protocol assignments. Reduce commissioning time with plug-and-play solutions tailored to your equipment specifications.

Delivery Timeline & Service Commitment

Standard Lead Time: 3–5 business days for in-stock configurations (RS204, RS204/R, RS204/T). Custom variants and ColdClimate models ship within 10–15 business days.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to BACHMANN-certified engineers for configuration assistance, protocol troubleshooting, and integration planning. Remote diagnostics support available during commissioning.

Documentation Package: Includes installation manual, wiring diagrams, DIP-switch configuration guide, and sample code for common protocols. CAD drawings and 3D STEP files provided for panel design integration.

Frequently Asked Questions

How do I connect the RS204 to my existing M1 controller system?
The RS204 mounts directly to the M1 backplane via the module bus connector. No external cabling is required between the module and controller—power and data transfer through the backplane. Field devices connect via screw terminals on the module's front panel. Configuration is performed through BACHMANN's SolutionCenter software.

What is the maximum cable distance for RS422 and RS485 connections?
RS422 supports point-to-point connections up to 1200 meters at lower baud rates (≤100 Kbaud). RS485 multi-drop networks can extend to 1200 meters with up to 32 devices per segment. For maximum distance, use 120Ω twisted-pair cable and enable the integrated terminating resistors at both network ends.

Can the RS204 reduce energy consumption in my control cabinet?
Yes. By consolidating four serial interfaces into a single module, the RS204 reduces overall power consumption compared to four separate interface cards. At 125mA @ 24V DC (3W total), the module's efficiency minimizes heat generation, potentially reducing cooling requirements in densely packed control cabinets by 15–20%.

What are the physical installation requirements and mounting options?
The RS204 requires one slot on the M1 backplane. Dimensions: 25mm width × 100mm height × 120mm depth. DIN rail mounting via M1 carrier system. Ensure 10mm clearance above and below for ventilation. Operating altitude: up to 2000m without derating.

Does the module support remote monitoring and diagnostics capabilities?
Yes. The M1 controller provides real-time access to RS204 status via Ethernet, including per-port transmission statistics, error counters, and isolation barrier health. SNMP traps and email alerts can be configured for fault conditions. Remote firmware updates are supported through the M1's web interface.

How does the RS204 handle protocol conversion between different serial standards?
The RS204 does not perform automatic protocol conversion—it provides physical/electrical layer connectivity. Protocol translation (e.g., Modbus RTU to Modbus ASCII) must be implemented in the M1 controller application logic or through BACHMANN's protocol gateway modules. Each port independently supports its configured electrical standard (RS232/422/485/TTY).

Get Your BACHMANN RS204 Interface Module Today

Upgrade your serial communication infrastructure with proven BACHMANN reliability. Contact our technical sales team for application-specific recommendations, volume pricing, or custom configuration services. We provide complete system integration support—from initial design consultation to post-installation optimization.

Ready to enhance your M1 controller's connectivity? Request a detailed datasheet, schedule a technical consultation, or place your order now. Our engineers are standing by to ensure your project success.
