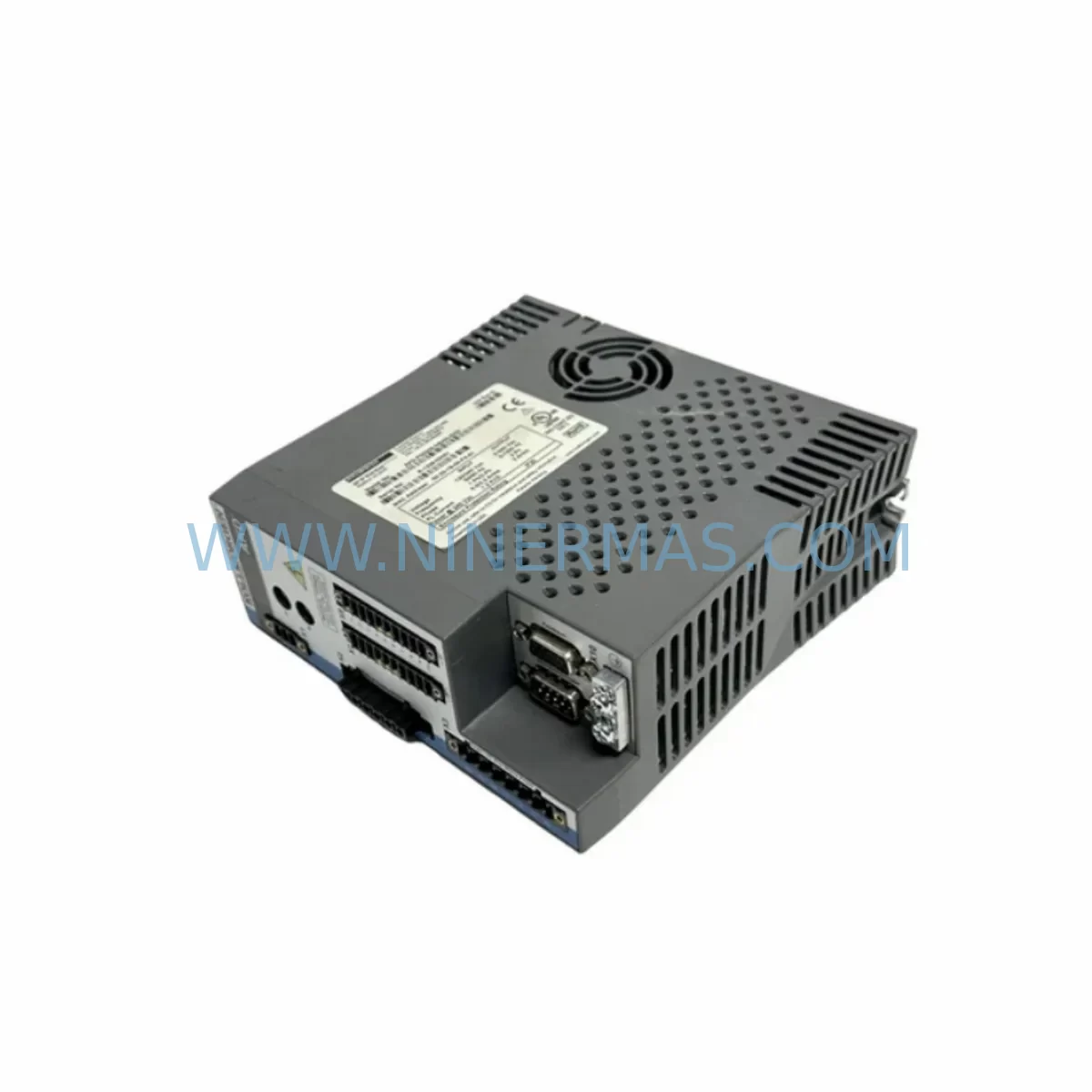

The ROFIN RCULX500 (part number 101110998, model RCU-LX-500-perform-sp02) is a ruggedized laser control module engineered for demanding industrial environments where legacy laser systems remain in active production service. As ROFIN’s installed base of CO₂ and solid-state laser platforms continues to age across automotive, semiconductor, medical device, and precision manufacturing facilities, the RCULX500 serves as a critical retrofit and replacement component — enabling engineers to extend the operational life of existing laser systems without committing to a full capital equipment replacement cycle.

Sourced from verified supply channels and subjected to pre-shipment functional testing, each RCULX500 unit shipped by NINERMAS is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Our inventory program is designed to support long-lifecycle spare parts requirements, with committed stock availability and documented lead times to support planned maintenance windows and emergency breakdown scenarios alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the RCULX500 within an operational laser system requires a structured approach that accounts for the interdependencies between the control module and the surrounding laser cabinet architecture. Before initiating a swap, engineers should document the existing wiring harness configuration, confirm the backplane slot address assigned to the RCU-LX-500, and verify that the replacement unit carries a compatible firmware revision relative to the host laser controller — typically a ROFIN DC 015 or DC 020 series resonator controller board.

Power supply integrity is a prerequisite for a successful module replacement. The ROFIN PSU-LX series power supply module feeding the control rack must be verified for stable DC rail output before the new RCULX500 is seated. Voltage deviations on the ±15 VDC or +5 VDC rails are a common root cause of premature control module failure and must be corrected upstream before the replacement unit is commissioned. If the existing power supply module shows signs of capacitor aging or output ripple, a concurrent PSU replacement is strongly recommended.

Terminal block wiring and I/O signal routing must be carefully mapped prior to removal of the legacy module. The RCULX500 interfaces with the laser’s interlock chain, beam shutter control signals, and external CNC or PLC command inputs — typically routed through a ROFIN I/O interface board or a dedicated signal conditioning module. Engineers should capture a full terminal diagram and verify continuity of the interlock loop before powering the replacement module for the first time. Where the existing installation uses a ROFIN RCI (Remote Control Interface) or an external Siemens S7-300 series PLC for laser command sequencing, the I/O address mapping and analog reference signals must be confirmed against the replacement module’s parameter set.

In systems where the RCULX500 communicates upstream to a CNC controller — such as a Fanuc 0i-series or a Beckhoff TwinCAT motion controller — the laser control handshake protocol and timing parameters stored in the CNC’s PMC or PLC program must be reviewed. Any firmware-level changes introduced in the replacement module may affect the ready signal timing or the laser-on command acknowledgment window, requiring a brief commissioning adjustment in the CNC ladder logic or structured text program.

For installations that include a ROFIN HMI panel or a third-party operator interface displaying laser power, pulse frequency, and fault status, the screen tag assignments linked to the RCU-LX-500’s register map should be verified post-replacement. HMI screens built on platforms such as Siemens WinCC or Weintek cMT series may require a tag refresh or minor address remapping if the replacement module’s internal register layout differs from the original unit.

Where the laser system is integrated into a broader production line controlled by a Schneider Electric Modicon M340 or M580 PLC, or a Rockwell Automation ControlLogix platform, the laser control module’s digital I/O interface board and associated signal isolators should be inspected as part of the retrofit scope. Signal isolation modules protecting the laser’s analog power command input from ground loop interference are frequently overlooked during module replacements and represent a common source of post-retrofit instability.

Finally, engineers planning a rack-level upgrade should assess whether the existing ROFIN control cabinet backplane and rack chassis can accommodate the replacement module without mechanical modification. In older DC-series laser cabinets, backplane connector wear and guide rail deformation can complicate module seating. A spare backplane connector set and a set of rack guide rail inserts should be included in the retrofit kit for installations where the cabinet has accumulated significant service hours.

Downtime Control During System Migration

Minimizing production downtime during an RCULX500 replacement requires advance preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure and bench-test the replacement module against a known-good parameter set — ideally a backup of the original module’s configuration captured during a prior scheduled maintenance event. ROFIN laser systems typically store resonator tuning parameters, power calibration curves, and interlock threshold values within the control module’s non-volatile memory; confirming whether these parameters can be transferred to the replacement unit, or must be re-entered manually, is a critical pre-work step that directly determines the length of the commissioning phase.

Where the original module’s parameter backup is unavailable, engineers should request the factory default parameter set from ROFIN service documentation or from NINERMAS’s technical support channel prior to the maintenance window. Having this data on hand eliminates the most common cause of extended downtime: parameter re-entry errors discovered only after the system is powered and the laser fails its initial self-test sequence.

The physical swap itself — disconnecting the legacy module, seating the replacement, and reconnecting the wiring harness — typically requires 30 to 90 minutes in a well-documented installation. The subsequent commissioning phase, including power-on self-test, interlock chain verification, beam alignment check, and output power calibration, adds an additional 1 to 3 hours depending on the complexity of the laser application and the experience level of the commissioning engineer. Planning the maintenance window around these realistic time estimates, rather than optimistic assumptions, is the single most effective downtime control measure available.

To protect the integrity of the existing PLC or CNC program logic during the replacement, the control program should be backed up to an offline storage device immediately before the maintenance window begins. This ensures that any inadvertent parameter change or communication fault introduced during the module swap can be recovered without requiring a full program reload from the original engineering workstation — which may not be available on-site during an unplanned breakdown scenario.

Retrofit Support FAQ

Q1: Is the ROFIN RCULX500 (101110998) a direct drop-in replacement for the original RCU-LX-500-perform-sp02?
A: The RCULX500 is designed as a form-fit-function replacement for the original RCU-LX-500-perform-sp02 control module. However, engineers should verify the firmware revision and backplane interface pinout against the specific laser cabinet serial number before installation, as minor hardware revisions were introduced across the production run of the DC-series laser platform.

Q2: What pre-shipment testing does NINERMAS perform on the RCULX500?
A: Each unit undergoes a functional burn-in test and parameter verification procedure prior to dispatch. Test records are available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q3: How do I confirm wiring compatibility before installing the replacement module?
A: Capture a full terminal diagram of the existing installation before removing the legacy module. Verify the interlock chain continuity, I/O signal routing, and power rail voltages at the backplane connector. NINERMAS can provide reference wiring documentation for the RCU-LX-500 platform upon request — contact sale@ninermas.com with your laser cabinet serial number.

Q4: What is the typical lead time and stock availability for the RCULX500?
