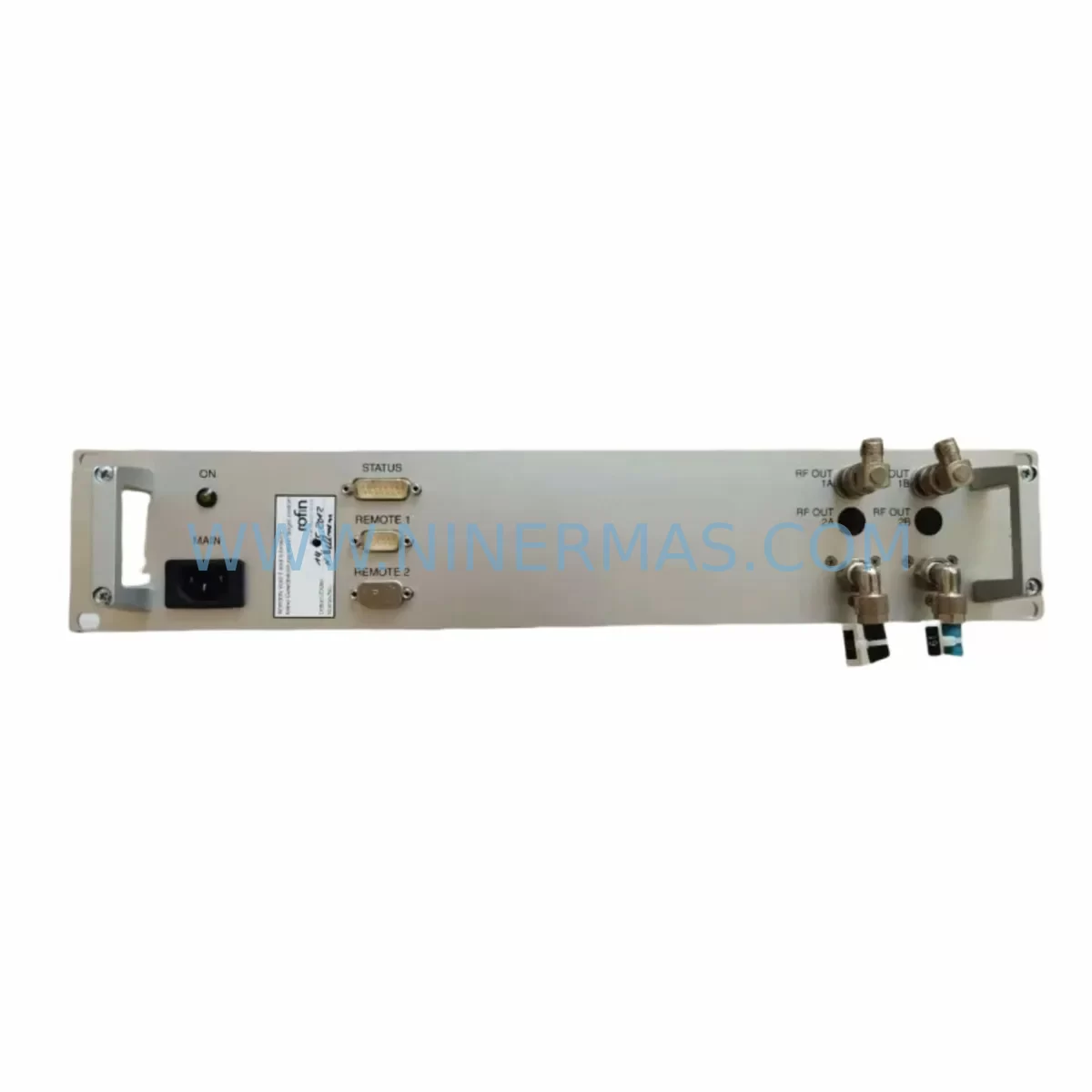

The Rofin S231-02 is a ruggedized controller module engineered for demanding industrial environments where reliability, thermal stability, and continuous operation are non-negotiable. Designed for laser processing systems and precision automation platforms, the S231-02 serves as a critical control node in production lines where unplanned downtime translates directly into lost output and costly recovery cycles. Whether you are managing a scheduled annual overhaul, responding to an unplanned fault, or building a strategic spare parts inventory, the Rofin S231-02 represents a high-priority line item for any maintenance engineer responsible for laser-based manufacturing or precision motion control systems.

Sourced from verified supply channels and subject to pre-shipment functional testing, each unit supplied by NINERMAS is inspected against original Rofin specifications before dispatch. A 12-month warranty is included with every shipment, providing procurement teams with the assurance needed to justify stock-holding decisions and reduce exposure to single-source supply risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for systems incorporating the Rofin S231-02 requires a holistic view of the control cabinet and laser processing chain. When a controller module reaches end-of-life or exhibits intermittent fault behavior, experienced maintenance engineers know that the root cause is rarely isolated to a single component. A thorough site inspection should accompany any S231-02 replacement.

Begin by auditing the 24 VDC power supply module feeding the controller rack — voltage ripple or insufficient current headroom is a common contributor to controller instability in aging systems. Inspect the backplane or rack assembly for oxidized connector pins, mechanical stress fractures, or contamination from coolant mist, which is particularly relevant in laser cutting environments. The I/O expansion modules connected to the S231-02 should be checked for address conflicts and signal integrity, especially if the system has undergone incremental hardware additions over its service life.

Communication integrity is equally important. If the S231-02 interfaces with a PROFIBUS DP network or an EtherCAT motion bus, verify that termination resistors are correctly placed and that cable shielding is intact throughout the cabinet. A degraded communication link can cause the replacement module to report faults that are actually upstream network issues, leading to misdiagnosis and extended downtime.

The HMI panel — whether a Rofin proprietary operator terminal or a third-party touch panel — should be checked for screen calibration, communication timeout settings, and alarm history logs. These logs frequently contain early-warning fault codes that predate the controller failure and can guide the maintenance team toward additional components requiring attention, such as laser power supply units, beam delivery shutter assemblies, or chiller interlock relay modules.

For sites running older Rofin laser systems, it is advisable to maintain a parallel stock of signal isolation modules and terminal block assemblies alongside the S231-02. Wiring terminations in high-vibration environments degrade over time, and a controller swap that reveals corroded or loose terminals will extend the maintenance window unnecessarily if replacement terminal hardware is not on hand. Similarly, fuse holders and protection fuses for the controller power rail should be inspected and replaced as a matter of course during any planned intervention.

Where the S231-02 is part of a multi-axis laser motion system, the servo drive modules and associated encoder feedback cables should be verified for continuity and correct parameter settings after the controller replacement. Parameter loss during a module swap is a known risk, and a pre-maintenance backup of all drive and controller parameters is strongly recommended before any hardware is removed from the cabinet.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Back up all controller parameters, PLC programs, and HMI screen configurations. Document current alarm states and record the firmware version of the installed S231-02. Photograph wiring harness routing and terminal assignments before disconnection.

Step 2 — Safe Isolation: Follow site lockout/tagout (LOTO) procedures. Isolate the laser system from mains power and confirm zero-energy state using appropriate test equipment. Allow capacitor banks in the laser power supply to discharge fully before opening the control cabinet.

Step 3 — Module Removal: Disconnect communication cables and I/O connectors in sequence, labeling each connection. Release the module retention mechanism and extract the S231-02 from the backplane slot. Inspect the vacated slot for debris, pin damage, or moisture ingress.

Step 4 — Replacement Installation: Verify that the replacement S231-02 carries the correct firmware revision for the host system. Seat the module firmly into the backplane slot and reconnect all cables in reverse order of removal. Confirm that all connector locks are fully engaged.

Step 5 — Commissioning and Verification: Restore controller parameters from backup. Power up the system in a controlled sequence — power supply first, then controller, then I/O and drives. Monitor the HMI for fault codes during initial startup. Perform a dry-run cycle without laser emission to verify motion control and I/O response before resuming production.

Step 6 — Documentation: Record the replacement date, new module serial number, and any observations from the commissioning process in the site maintenance log. Update the spare parts inventory to reflect stock consumption and initiate a replenishment order to maintain buffer stock levels.

Spare Parts Support FAQ

Q1: Is the Rofin S231-02 a direct drop-in replacement for the installed unit?
In most cases, yes — the S231-02 is designed for direct slot replacement within compatible Rofin controller racks. However, firmware version compatibility must be confirmed before installation. If the host system has been updated since the original module was installed, a firmware alignment step may be required. NINERMAS can advise on known firmware revision requirements based on your system configuration.

Q2: What pre-shipment testing is performed on each S231-02 unit?
Each unit undergoes functional verification against Rofin original specifications prior to dispatch. Testing covers power-on initialization, communication interface response, and I/O signal integrity. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should we manage long-term spare parts inventory for the S231-02?
Given the ruggedized nature of the S231-02 and its role as a critical control node, we recommend maintaining a minimum of one unit in on-site buffer stock for production-critical systems. For multi-machine facilities, a shared pool of two to three units is advisable. NINERMAS supports long-term supply agreements and can provide scheduled delivery programs to reduce procurement lead time risk for end-of-life or low-availability components.

Q4: What should we check if the replacement S231-02 reports faults immediately after installation?
Immediate post-installation faults are most commonly caused by parameter mismatch, firmware incompatibility, or a pre-existing issue in the backplane or communication network rather than a defect in the replacement module. Verify that parameters have been correctly restored from backup, check backplane connector integrity, and inspect the communication bus for termination and shielding issues. If faults persist, contact NINERMAS technical support with the fault code list and system configuration details for guided diagnosis.
