Allen-Bradley 1756-IB16IF Service-Ready Spare Part

Allen-Bradley 1756-IB16IF Service-Ready Spare Part: Minimizing Downtime Risk in ControlLogix Systems

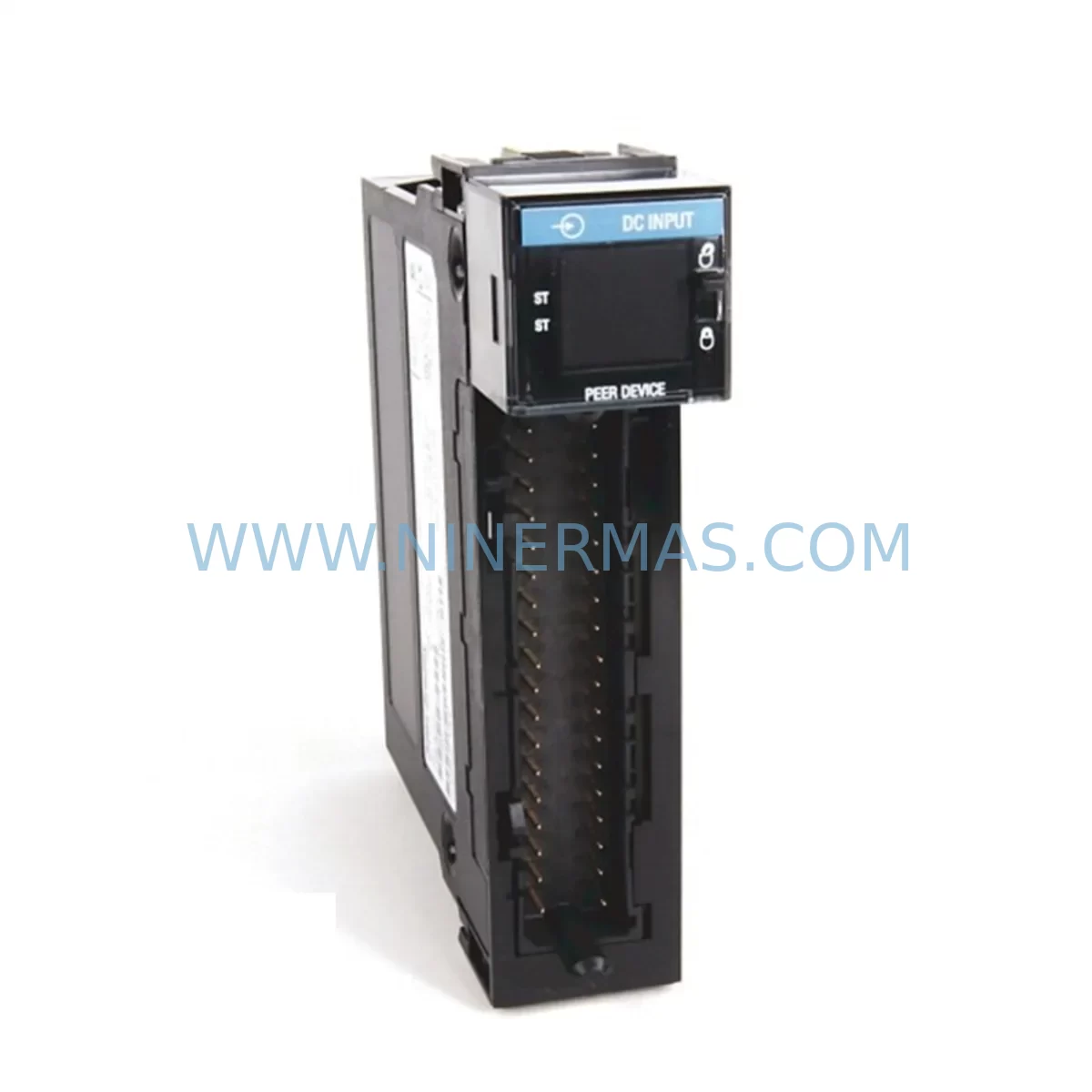

The Allen-Bradley 1756-IB16IF is a 16-point isolated DC input module designed for the ControlLogix 1756 series platform. As a service-ready spare part, it plays a critical role in maintaining continuous operation across discrete manufacturing lines, process control systems, and automated assembly environments. When a field failure occurs on an input module, every minute of unplanned downtime translates directly into production loss. Stocking a verified, original 1756-IB16IF ensures your maintenance team can execute a rapid swap and restore system operation without waiting on lead times from distribution channels.

From the perspective of a maintenance engineer, the 1756-IB16IF handles isolated 24V DC field signals and feeds them into the ControlLogix backplane for real-time processing by the L-series controller. Its isolated input architecture makes it particularly valuable in environments with high electrical noise, ground potential differences, or long cable runs from field devices. When this module shows signs of degradation — intermittent input faults, LED status anomalies, or diagnostic errors flagged in Studio 5000 — prompt replacement is essential to prevent cascading faults across the control loop.

For procurement engineers, sourcing the 1756-IB16IF through a reliable spare parts supplier with pre-shipment testing and a 12-month warranty eliminates the risk of receiving counterfeit or refurbished units that may fail prematurely. NINERMAS provides original, tested modules with full traceability, supporting both emergency replacement orders and planned annual maintenance stock replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1756-IB16IF in the field is rarely an isolated task. A thorough maintenance plan requires evaluating the surrounding components in the same control cabinet and electrical circuit to prevent repeat failures and ensure system integrity after the swap.

Begin with the 1756-PA75 or 1756-PB75 power supply module — the chassis power supply must deliver stable, within-spec voltage to all installed modules. A degraded power supply can cause intermittent input faults that mimic module failure. Verify output voltage and ripple before condemning the input module itself.

Next, inspect the 1756-A10 or 1756-A17 chassis backplane. Physical damage, corrosion on the backplane connector, or a cracked chassis can cause communication errors that appear as module faults. The 1756-IB16IF relies on a clean backplane connection for both power and data exchange with the L-series processor.

Check the field wiring and terminal blocks connected to the module’s I/O terminals. Loose terminations, corroded conductors, or undersized wire gauge are common root causes of input signal instability. In high-vibration environments, consider replacing standard terminal blocks with spring-clamp variants for improved long-term reliability.

Evaluate the 1756-L73 or 1756-L85E ControlLogix processor firmware version. Ensure the controller firmware is compatible with the replacement module’s revision level. Mismatched firmware can prevent the module from being recognized or cause unexpected behavior during commissioning.

If the system uses 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules, verify that the network configuration and I/O tree in Studio 5000 correctly reflects the replacement module’s slot assignment and connection parameters. An incorrect electronic keying setting will prevent the module from going online.

For systems with signal isolators or signal conditioners between field sensors and the 1756-IB16IF inputs, inspect these devices for drift or failure. A faulty isolator can inject noise or attenuate the input signal below the module’s threshold voltage, causing false OFF readings.

Review the 24V DC field power distribution feeding the input circuits. Check fuses, circuit breakers, and power distribution terminals for signs of overload or thermal damage. A shared field power rail that supplies multiple input modules should be verified for adequate current capacity after any module replacement.

Finally, if the control cabinet includes an HMI panel such as the PanelView Plus 7, confirm that any alarm or status display linked to the replaced module’s input tags is functioning correctly after the swap. Update any maintenance logs and reset diagnostic counters in the controller to establish a clean baseline for the new module.

Site Replacement Workflow

The 1756-IB16IF supports hot-swap replacement within the ControlLogix chassis, which significantly reduces downtime compared to older fixed I/O architectures. Follow this workflow to ensure a safe and efficient replacement:

Step 1 — Pre-Replacement Verification: Confirm the replacement module’s catalog number, series letter, and firmware revision match or are compatible with the existing configuration in Studio 5000. Check the electronic keying setting — if set to Exact Match, the replacement module must match the original exactly. Consider switching to Compatible Module keying if flexibility is required.

Step 2 — Field Signal Isolation: Before removing the module, isolate the field devices connected to the input terminals if process safety requires it. Document the current wiring configuration using the terminal block labeling or as-built drawings.

Step 3 — Module Removal: Press the top and bottom locking tabs on the 1756-IB16IF and slide it out of the chassis slot. Disconnect the removable terminal block (RTB) from the module face. The RTB retains all field wiring, eliminating the need to rewire during replacement.

Step 4 — New Module Installation: Attach the existing RTB to the new 1756-IB16IF. Slide the module into the chassis slot until the locking tabs engage. The controller will automatically detect the new module and attempt to establish a connection based on the configured keying and I/O parameters.

Step 5 — Commissioning and Verification: Monitor the module status LEDs and the I/O tree in Studio 5000 to confirm the module is online and all 16 input points are reading correctly. Perform a functional test by activating each field device and verifying the corresponding input tag state in the controller.

Step 6 — Documentation: Record the replacement date, module serial number, and any observations in the maintenance log. Update the spare parts inventory to trigger reorder of a replacement stock unit.

Spare Parts Support FAQ

Q1: Is the 1756-IB16IF still available as a new original spare part?
Yes. NINERMAS maintains stock of original Allen-Bradley 1756-IB16IF modules sourced through authorized supply channels. Each unit undergoes pre-shipment functional testing to verify input channel integrity, backplane communication, and LED status indication before dispatch. Long-term supply continuity is supported for customers with annual maintenance contracts or blanket purchase orders.

Q2: How do I confirm compatibility between the replacement 1756-IB16IF and my existing ControlLogix system?
Compatibility is determined by the chassis series (1756), the controller firmware version, and the electronic keying setting configured in Studio 5000. The 1756-IB16IF is compatible with all standard 1756 chassis sizes including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. Provide your controller catalog number and firmware revision when placing an order, and our technical team will confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and pre-existing faults not caused by improper installation or electrical overstress. If a warranty claim is required, contact NINERMAS with the order reference and a description of the fault. A replacement unit will be dispatched after fault verification, with return shipping of the defective module arranged by our support team.

Q4: Should I stock multiple 1756-IB16IF units, or is one sufficient as a critical spare?
For production-critical systems with multiple ControlLogix chassis, maintaining a minimum of two 1756-IB16IF units in your spare parts inventory is recommended. This covers simultaneous failures in multi-chassis architectures and provides a buffer during the replenishment lead time after a spare is consumed. For facilities with annual shutdown maintenance cycles, coordinate with NINERMAS for scheduled delivery of refreshed spare stock aligned to your maintenance calendar.
