ABB DSQC633 3HAC022286-001 Service-Ready Spare Part

ABB DSQC633 3HAC022286-001 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

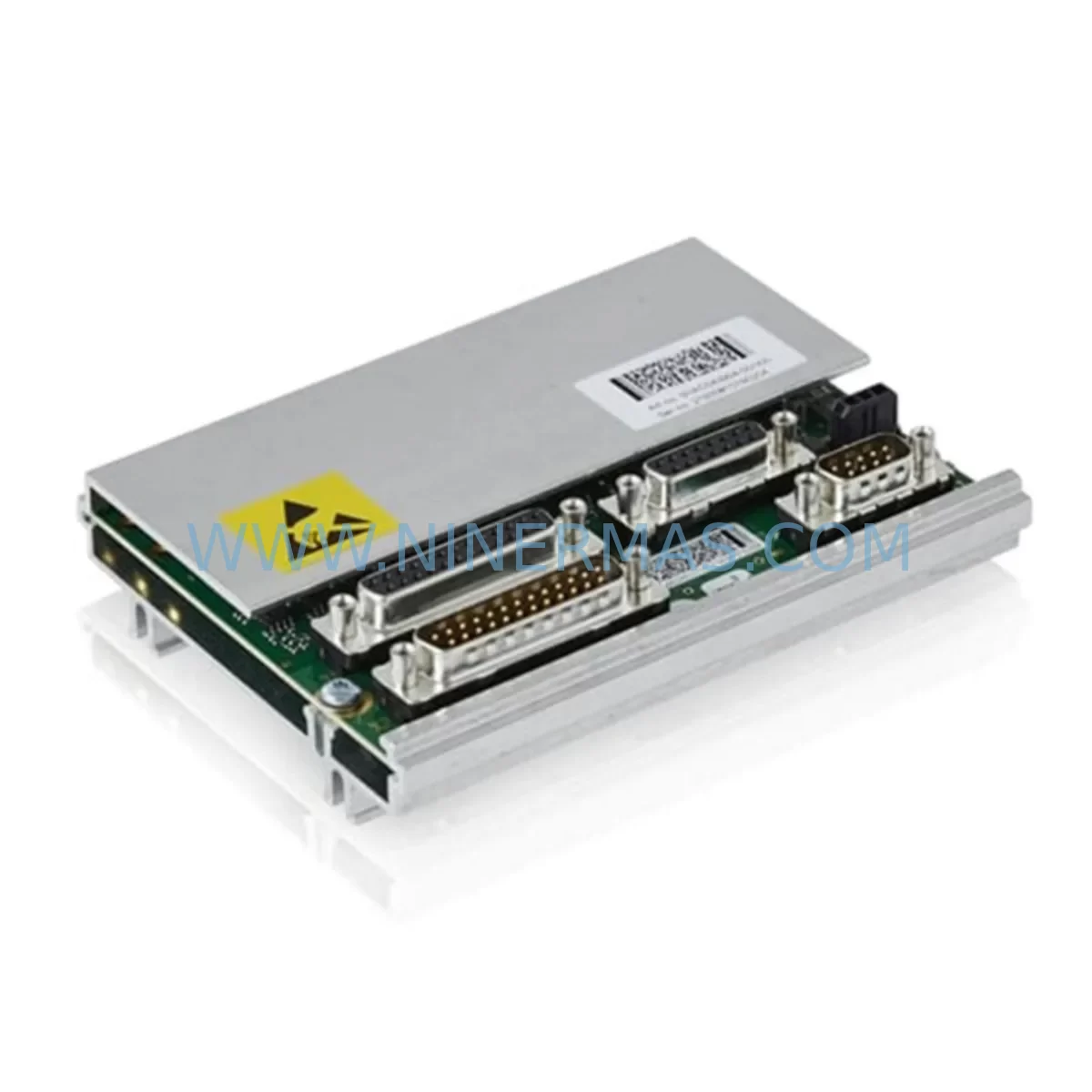

The ABB DSQC633 (part number 3HAC022286-001) is a fieldbus communication module designed for use in ABB IRC5 robot controller cabinets. As a critical communication interface between the robot controller and external fieldbus networks — including DeviceNet, PROFIBUS, and similar industrial protocols — this module plays a central role in maintaining uninterrupted production line communication. When this component fails or degrades, the entire robot cell can be brought offline, making rapid access to a verified service-ready spare part essential for any maintenance team managing ABB robotic systems.

At NINERMAS, we supply the DSQC633 3HAC022286-001 as a tested, original-grade spare part, backed by a 12-month warranty and pre-shipment functional verification. Our inventory is maintained to support both emergency breakdown replacements and planned annual maintenance cycles, ensuring that procurement engineers can secure stock without lead-time risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing ABB IRC5 robot cells, the DSQC633 3HAC022286-001 rarely fails in isolation. Fieldbus communication faults are often symptomatic of broader electrical or environmental stress within the controller cabinet. When replacing this module, a thorough inspection of the surrounding system is strongly recommended to prevent repeat failures and ensure a complete restoration of robot cell performance.

Begin by examining the IRC5 backplane assembly, as the DSQC633 interfaces directly with the controller’s internal communication bus. A damaged or corroded backplane connector can cause intermittent communication errors that mimic module failure. Alongside the backplane, the DSQC548 — ABB’s standard I/O module for IRC5 — should be checked for fault indicators, as I/O communication errors frequently accompany fieldbus disruptions. Similarly, the DSQC652 analog I/O module and DSQC651 digital I/O module are common co-inspection items during IRC5 cabinet servicing.

The 24 VDC power supply unit within the IRC5 cabinet, typically the DSQC661 or equivalent power distribution board, should be tested for voltage stability. Undervoltage conditions are a leading cause of communication module resets and data corruption. Inspect the internal fuse holders and terminal blocks for signs of heat stress or loose connections, as these are often overlooked during routine checks but can cause intermittent fieldbus dropouts.

If the robot cell uses a FlexPendant (IRC5 teach pendant), verify that the teach pendant cable and the DSQC679 teach pendant interface unit are functioning correctly, as HMI communication faults can cascade into fieldbus errors. For cells integrated into a larger PLC or DCS network, the external PROFIBUS or DeviceNet cable termination resistors and network topology should be validated after module replacement to confirm signal integrity.

Signal isolation barriers between the IRC5 controller and external sensors or actuators should also be inspected, particularly in environments with high electromagnetic interference. Surge protection devices on incoming power lines and fieldbus cable shielding continuity are additional checkpoints that experienced maintenance engineers include in their IRC5 cabinet inspection protocol. Documenting these checks as part of a structured preventive maintenance record reduces the risk of unplanned downtime and supports long-term system reliability.

Site Replacement Workflow

Replacing the DSQC633 3HAC022286-001 in an IRC5 controller cabinet is a structured process that, when executed correctly, minimizes robot cell downtime to under two hours for experienced technicians. Begin by safely powering down the IRC5 cabinet following ABB’s lockout/tagout procedure. Photograph the existing module’s cable connections and LED status indicators before disconnection — this documentation is invaluable for post-replacement diagnostics.

Remove the fieldbus communication cables from the DSQC633 module, noting the port assignments for DeviceNet or PROFIBUS connections. Slide the module out of its backplane slot and inspect the slot connector for debris or corrosion before installing the replacement unit. Insert the new DSQC633 3HAC022286-001 firmly into the backplane slot, ensuring the locking mechanism engages fully.

Reconnect all fieldbus cables in their original port positions and restore power to the IRC5 cabinet. Use the FlexPendant or RobotStudio software to verify that the fieldbus network is recognized and that all connected I/O nodes are communicating correctly. Run a short diagnostic cycle before returning the robot cell to production to confirm that motion programs and safety interlocks are operating as expected.

For facilities managing multiple IRC5 robot cells, maintaining at least one DSQC633 3HAC022286-001 as on-site buffer stock is a widely adopted best practice. This eliminates the lead-time risk associated with emergency procurement and allows maintenance teams to restore production within the same shift following an unexpected module failure. NINERMAS supports long-term supply agreements for this part, enabling procurement engineers to plan annual stock replenishment without exposure to market availability fluctuations.

Spare Parts Support FAQ

Q1: Is the DSQC633 3HAC022286-001 compatible with all IRC5 controller variants?
The DSQC633 is designed for use within the ABB IRC5 controller family, including single cabinet and dual cabinet configurations. Compatibility with specific IRC5 variants depends on the robot model and software version. We recommend confirming your IRC5 cabinet serial number and RobotWare version before ordering. Our technical team can assist with compatibility verification upon request.

Q2: What testing is performed before shipment?
Every DSQC633 3HAC022286-001 unit supplied by NINERMAS undergoes pre-shipment functional verification to confirm communication interface integrity and module identification. Units that do not pass inspection are not dispatched. A 12-month warranty is provided on all units, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module replace older or discontinued ABB fieldbus modules?
The DSQC633 is the designated replacement for earlier ABB IRC5 fieldbus communication modules within compatible controller generations. For older IRC5 systems running legacy fieldbus configurations, firmware and hardware compatibility should be verified against the ABB IRC5 product manual. NINERMAS can advise on cross-reference options for discontinued part numbers upon inquiry.

Q4: How does NINERMAS support long-term spare parts procurement for ABB IRC5 systems?
NINERMAS maintains standing inventory of high-demand ABB IRC5 spare parts, including the DSQC633 3HAC022286-001, to support both emergency replacement and planned annual maintenance procurement. We offer flexible order quantities, consistent lead times, and long-term supply agreements for facilities with ongoing maintenance requirements. All orders include pre-shipment testing documentation and are supported by a 12-month warranty.
