Red Lion IFMA0035 Service-Ready Spare Part for Industrial Maintenance

Red Lion IFMA0035 Service-Ready Spare Part for Industrial Maintenance

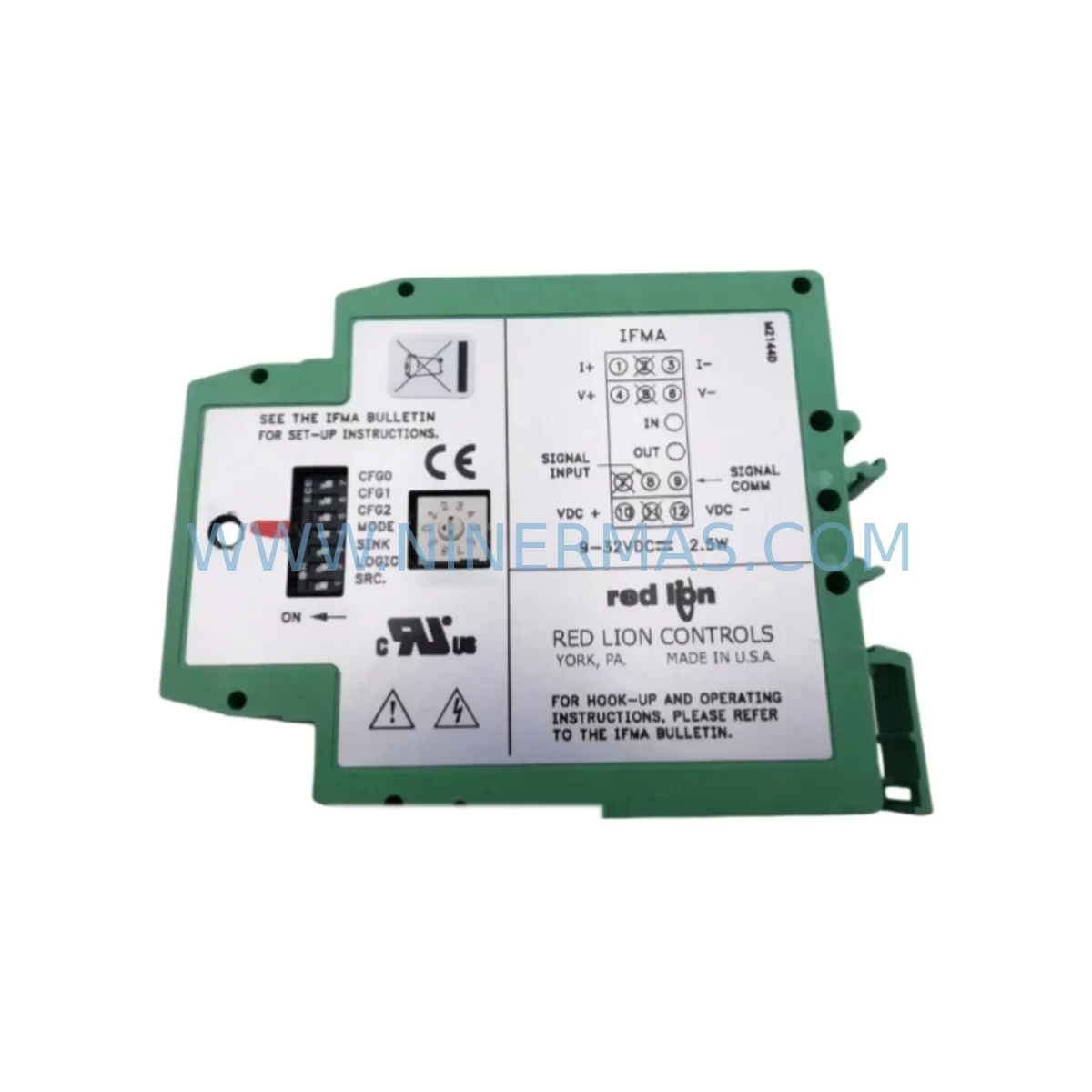

The Red Lion IFMA0035 is an original I/O module designed for use within Red Lion’s modular controller platform. As a critical field-replaceable unit, the IFMA0035 supports continuous industrial operations by enabling fast, verified spare part substitution during scheduled maintenance windows, emergency shutdowns, and annual overhaul cycles. Sourced and tested by NINERMAS, this module ships with a 12-month warranty and full pre-shipment functional verification.

For maintenance engineers managing aging control systems or expanding automation infrastructure, the IFMA0035 represents a reliable, long-term stocking solution. Its compatibility with Red Lion’s modular architecture means it can be integrated into existing control cabinets without firmware reconfiguration in most standard deployment scenarios, significantly reducing mean time to repair (MTTR) and minimizing unplanned downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the IFMA0035, the surrounding control architecture should be evaluated concurrently to prevent repeat failures and ensure system integrity. During a planned outage or emergency isolation event, it is best practice to inspect the Red Lion modular controller backplane for signs of oxidation, loose seating, or mechanical stress before re-inserting a new I/O module.

Power supply modules feeding the controller rack — such as Red Lion’s PSMA series or equivalent 24VDC industrial DIN-rail power supplies — should be load-tested to confirm stable voltage delivery, as undervoltage conditions are a common root cause of I/O module degradation. Alongside the power supply, the field wiring terminal blocks connected to the IFMA0035’s I/O channels should be inspected for loose terminations, corrosion, or insulation breakdown, particularly in high-vibration or high-humidity environments.

Communication modules within the same controller chassis — including Ethernet, serial RS-485, or Modbus RTU interface cards — should be verified for firmware compatibility with the replacement I/O module. If the control system includes a Red Lion HMI panel (such as the Crimson-configured G3 or G10 series), the I/O tag mapping should be confirmed post-replacement to ensure display accuracy and alarm integrity.

Signal isolation components, including DIN-rail signal isolators and loop-powered transmitters connected to analog I/O channels, should be checked for correct scaling and loop continuity. Relay output modules within the same cabinet — particularly those driving motor starters, solenoid valves, or safety interlocks — should be tested for contact resistance and coil response time as part of the same maintenance cycle.

Fuse protection for each I/O channel group, typically housed in modular fuse terminal blocks adjacent to the controller rack, should be inspected and replaced on a scheduled basis regardless of apparent condition. Surge protection devices (SPDs) on field signal cables entering the control cabinet are also a recommended inspection point, as transient events are a leading cause of I/O module failure in industrial environments.

For procurement engineers building or refreshing a spare parts inventory, stocking the IFMA0035 alongside compatible backplane units, power supply modules, and communication interface cards ensures that a complete controller restoration can be executed within a single maintenance shift, eliminating the need for emergency procurement under production pressure.

Site Replacement Workflow

Replacing the IFMA0035 in the field follows a structured isolation-and-restore sequence to protect both personnel and equipment. Begin by documenting the existing I/O channel assignments and signal types (digital input, digital output, analog input, or analog output) mapped to the module being replaced. This documentation is critical for verifying correct wiring reconnection after the new module is seated.

De-energize the controller rack using the appropriate isolation procedure per your site’s lockout/tagout (LOTO) policy. Remove the faulty IFMA0035 by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Seat the new IFMA0035 firmly until the latch engages, then restore power to the rack. Verify that the controller recognizes the module and that all I/O channel status indicators reflect expected states. Perform a point-to-point I/O test for each channel before returning the system to automatic operation. For systems running Red Lion Crimson software, confirm that the I/O configuration file matches the physical module type and channel count.

This workflow supports rapid recovery from unplanned failures while maintaining system compatibility and reducing the risk of secondary faults caused by incorrect reinstallation. Maintaining a pre-tested, shelf-ready IFMA0035 in your spare parts cabinet reduces average restoration time from hours to minutes.

Spare Parts Support FAQ

Q1: Is the IFMA0035 compatible with all Red Lion modular controller backplanes?
The IFMA0035 is designed for Red Lion’s IFMA-series modular controller platform. Compatibility depends on the specific backplane model and firmware revision in use. NINERMAS recommends confirming your backplane model number before ordering. Our technical team can assist with compatibility verification based on your existing system configuration.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every IFMA0035 unit shipped by NINERMAS undergoes functional verification prior to dispatch, including power-on testing and I/O channel continuity checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and expedited replacement dispatch.

Q3: Can NINERMAS support long-term or recurring supply of the IFMA0035?
Yes. NINERMAS maintains ongoing sourcing relationships for Red Lion spare parts, including the IFMA0035, to support customers with annual maintenance contracts, multi-site operations, and OEM service programs. Long-term supply agreements and blanket purchase orders are available upon request.

Q4: How should the IFMA0035 be stored as a shelf spare?
Store the IFMA0035 in its original anti-static packaging in a dry, temperature-controlled environment (typically 0–50°C, <90% RH non-condensing). Avoid storing near strong electromagnetic sources or in areas subject to mechanical vibration. Inspect the module annually for any signs of connector oxidation or packaging degradation, and rotate stock on a first-in, first-out basis to maintain readiness.
