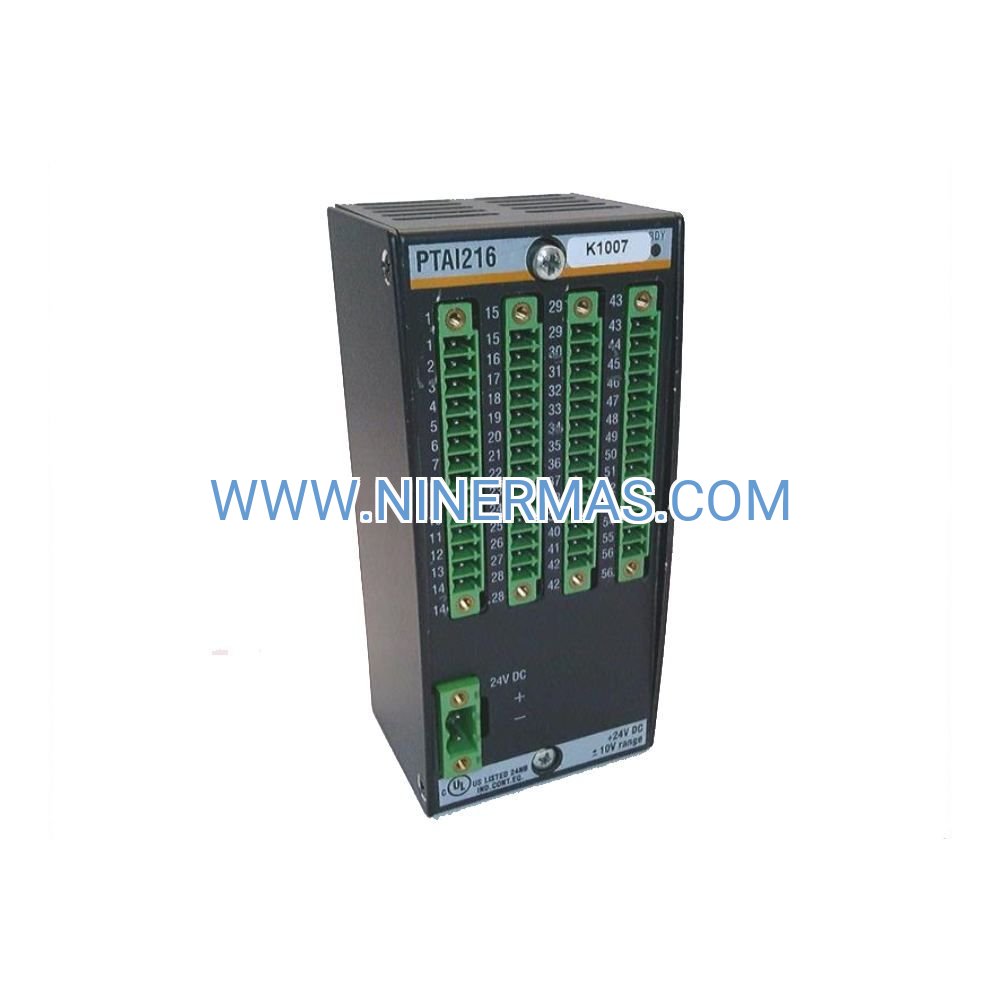

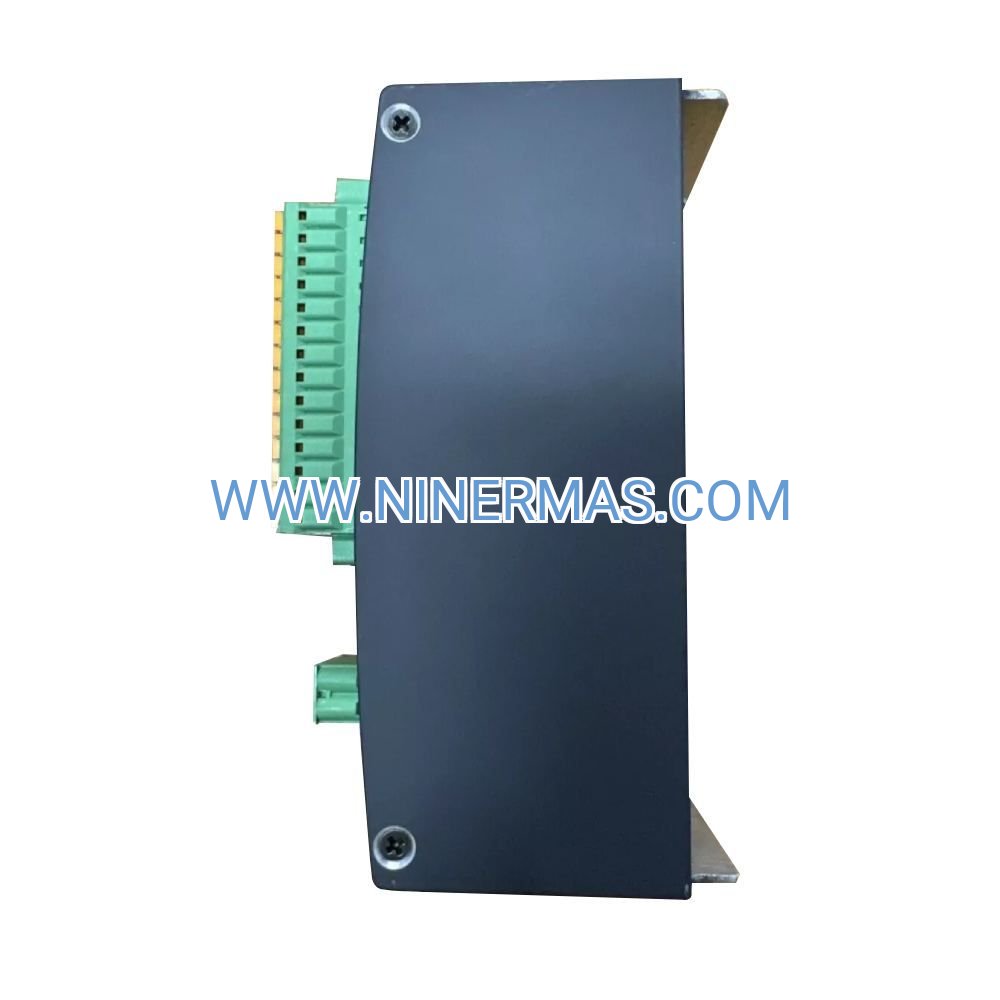

PTAI216 Analog Input Module – Industrial-Grade Multi-Channel Temperature & Signal Acquisition

The PTAI216 Analog Input Module from Bachmann represents a breakthrough in precision temperature measurement and analog signal processing for demanding industrial environments. This compact 4-channel acquisition system transforms raw sensor data from RTDs, thermocouples, and process transmitters into actionable intelligence for your automation infrastructure.

Built on the proven Bachmann M1 modular platform, the PTAI216 combines exceptional measurement accuracy with robust electrical isolation, making it the preferred choice for process engineers managing critical thermal control loops in chemical processing, power generation, and advanced manufacturing facilities.

Whether you're monitoring reactor temperatures, tracking heat exchanger performance, or validating pharmaceutical sterilization cycles, the PTAI216 delivers laboratory-grade precision in an industrial-hardened package designed for 24/7 operation in harsh environments.

Core Features & Technical Advantages

→ Flexible Multi-Range Inputs: Software-selectable ±1V, ±10V voltage ranges plus 0-20mA/4-20mA current loops eliminate the need for external signal conditioning. One module handles diverse sensor types, reducing spare parts inventory and simplifying system design.

→ 16-Bit Resolution with ±0.1% Accuracy: Capture temperature variations as small as 0.01°C with high-resolution A/D conversion. This precision enables early detection of process drift, reducing product waste and improving batch consistency by up to 15% in temperature-sensitive operations.

→ 500V Galvanic Isolation: Channel-to-bus isolation protects your control system from ground loops, electrical noise, and transient surges common in industrial power distribution networks. Maintain signal integrity even in electrically noisy environments with VFD drives and welding equipment.

✓ Extended Temperature Rating (-40°C to +70°C): Operate reliably in unheated control cabinets, outdoor enclosures, and extreme climate installations without derating or forced cooling systems.

✓ Hot-Swap Capability: Replace modules during live operation without shutting down critical processes, minimizing downtime costs and enabling predictive maintenance strategies.

✓ Low Power Consumption (2.5W): Reduce heat generation in densely packed control panels while lowering energy costs across distributed I/O networks with hundreds of measurement points.

Industrial Application Scenarios

Chemical Reactor Temperature Profiling: Deploy PTAI216 modules to monitor exothermic reaction temperatures across multiple zones in batch reactors. The module's fast sampling rate (configurable up to 1kHz) captures rapid thermal transients during catalyst addition or cooling jacket failures, triggering automated safety interlocks before runaway reactions occur. Pair with redundant modules for SIL-2 rated safety instrumented systems.

Food & Beverage Pasteurization Control: Ensure regulatory compliance in HTST pasteurization systems by continuously logging product temperatures with ±0.1% accuracy. The PTAI216's current loop inputs interface directly with sanitary RTD assemblies, while isolated outputs prevent contamination from electrical faults. Integrate with recipe management systems to automatically adjust heating profiles for different product formulations.

Power Plant Turbine Monitoring: Track bearing temperatures, lubricant conditions, and steam line thermal expansion across gas and steam turbines. The module's -40°C to +70°C operating range supports installation in outdoor switchgear and auxiliary buildings without environmental controls, reducing infrastructure costs by 30% compared to climate-controlled solutions.

Pharmaceutical Clean Room Environmental Monitoring: Validate GMP compliance by recording temperature and humidity (via 4-20mA transmitters) in sterile manufacturing areas. The PTAI216's digital calibration certificates and audit trail capabilities satisfy FDA 21 CFR Part 11 requirements for electronic records in validated systems.

Metal Heat Treatment Furnace Control: Achieve uniform hardening and tempering results by monitoring workpiece temperatures at multiple furnace zones. The module's thermocouple compatibility (via voltage inputs) supports Type K, J, and T sensors up to 1200°C, while fast response times enable closed-loop control of induction heating systems.

Technical Specifications & Selection Guide

Selection Criteria: Choose the PTAI216 when you need versatile analog acquisition supporting multiple sensor types in a single module. For dedicated RTD applications requiring 12+ channels, consider specialized temperature input modules. When mixing temperature and general-purpose analog signals (pressure, flow, level), the PTAI216's flexible input configuration reduces module count and simplifies wiring.

Advanced Integration & Customization Options

SCADA & HMI Connectivity: The PTAI216 seamlessly integrates with industry-standard protocols including Modbus TCP, OPC UA, and PROFINET through Bachmann M1 controller modules. Real-time data streaming enables predictive maintenance algorithms that analyze temperature trends to forecast equipment failures 2-4 weeks before critical breakdowns occur.

IIoT Edge Computing: Leverage onboard processing capabilities to perform local data aggregation, alarm filtering, and statistical analysis at the edge. Reduce network bandwidth requirements by 60% while improving response times for time-critical control loops in distributed manufacturing facilities.

Custom Linearization Tables: Upload sensor-specific calibration curves for non-standard thermocouples, custom RTD elements, or proprietary transmitters. The module's 1024-point linearization memory ensures accurate temperature conversion across the entire measurement range without external computation.

Redundancy & Failover: Deploy dual PTAI216 modules in hot-standby configurations for critical measurement points. Automatic switchover occurs within 100ms of primary module failure, maintaining process continuity in safety-critical applications like burner management and emergency shutdown systems.

Delivery, Warranty & Technical Support

Lead Times: Standard PTAI216 modules ship within 3-5 business days from our regional distribution centers. Expedited same-day shipping available for emergency replacements and critical project deadlines. Custom-configured modules with pre-loaded calibration data require 7-10 business days for factory programming and testing.

Warranty Coverage: Every PTAI216 module includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and electronic components. Extended warranty programs available for mission-critical installations requiring 3-5 year coverage with advanced replacement guarantees.

Technical Support Services: Our application engineering team provides complimentary pre-sales consultation, system architecture review, and integration planning. Post-installation support includes remote diagnostics, firmware updates, and on-site commissioning assistance for complex multi-module deployments.

Documentation Package: Each module ships with installation manuals, wiring diagrams, configuration software, sample PLC code libraries (IEC 61131-3 compliant), and calibration certificates traceable to NIST standards. Online knowledge base includes video tutorials, troubleshooting guides, and application notes for common industrial scenarios.

Frequently Asked Questions

How does the PTAI216 handle 3-wire RTD sensor connections for accurate temperature measurement?
The PTAI216's differential input architecture compensates for lead wire resistance in 3-wire RTD configurations by measuring the voltage drop across the sense leads. This technique eliminates errors caused by long cable runs (up to 500 meters) and temperature-induced resistance changes in copper wiring. For maximum accuracy in precision applications, 4-wire RTD connections are recommended, utilizing separate current source and voltage measurement paths.

What is the maximum cable distance for 4-20mA current loop transmitters connected to the PTAI216?
Current loop inputs reliably operate with cable lengths exceeding 1000 meters (3280 feet) when using shielded twisted-pair instrumentation cable (18-22 AWG). The module's 250Ω burden resistor and high input impedance minimize voltage drop, ensuring accurate signal transmission even in large industrial facilities with distributed field instrumentation. For cable runs beyond 1500 meters, consider loop-powered isolators to maintain signal integrity.

Can I mix different sensor types on a single PTAI216 module simultaneously?
Yes, each of the four input channels operates independently with software-selectable input ranges. You can simultaneously connect RTD sensors (voltage mode), 4-20mA pressure transmitters (current mode), and thermocouple amplifiers (±1V mode) to different channels on the same module. This flexibility reduces hardware costs and simplifies panel layout in multi-variable control applications.

Does the PTAI216 support hot-swapping during live system operation without process interruption?
The PTAI216 fully supports hot-swap replacement when installed in compatible M1 backplanes with redundant power supplies and controller firmware version 3.2 or later. The system automatically detects module insertion, loads configuration parameters from non-volatile memory, and resumes data acquisition within 2 seconds. Always follow proper ESD handling procedures and verify module seating with the diagnostic LEDs before returning to automatic control mode.

What diagnostic capabilities does the PTAI216 provide for troubleshooting sensor failures?
The module continuously monitors each input channel for open-circuit conditions, short-circuits, and out-of-range signals. Built-in diagnostics detect sensor failures, wiring faults, and calibration drift, generating timestamped alarm events transmitted to your SCADA system. LED indicators on the module faceplate provide instant visual status for each channel, accelerating troubleshooting during commissioning and maintenance activities.

How does the PTAI216 compare to competitive analog input solutions from other automation vendors?
Compared to generic analog modules, the PTAI216 offers superior noise rejection through 500V galvanic isolation and optimized input filtering for temperature sensor applications. The module's -40°C to +70°C operating range exceeds most competitors' specifications, eliminating the need for climate-controlled enclosures in harsh environments. When evaluating alternatives, consider total cost of ownership including reduced wiring complexity, lower spare parts inventory, and extended mean time between failures (MTBF > 200,000 hours).

Ready to Upgrade Your Temperature Monitoring System?

The PTAI216 Analog Input Module represents the intersection of precision measurement technology and industrial reliability. Whether you're designing a new process control system or modernizing legacy installations, this versatile module delivers the accuracy, flexibility, and durability demanded by today's competitive manufacturing environment.

Contact our technical sales team today to discuss your specific application requirements, receive customized system architecture recommendations, and access volume pricing for multi-module projects. Our engineers are ready to help you design optimal temperature monitoring solutions that integrate seamlessly with your existing automation infrastructure.
