Provib Tech PT2060/90-A1-B1-H Service-Ready Spare Part for Industrial Maintenance

Provib Tech PT2060/90-A1-B1-H Service-Ready Spare Part for Industrial Maintenance

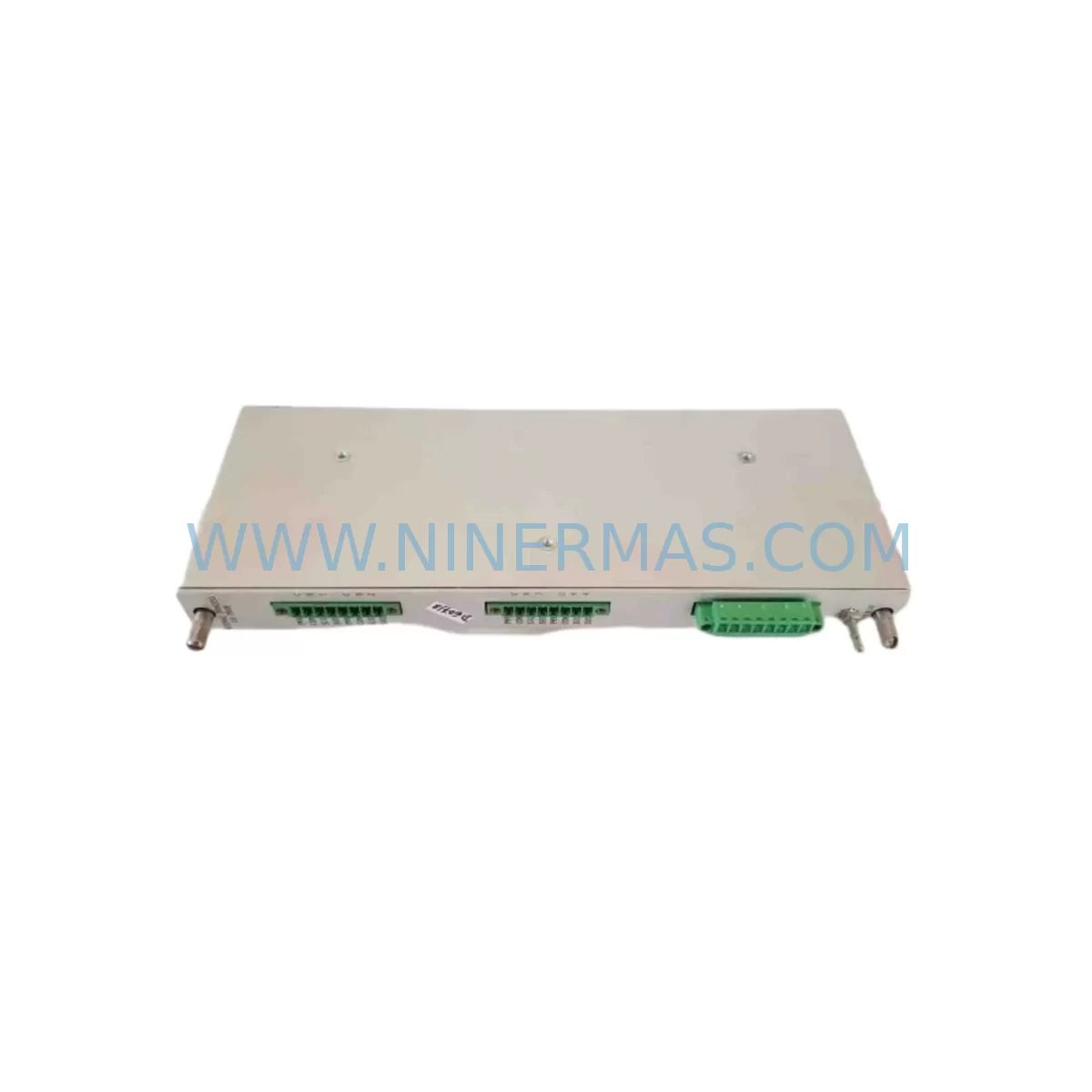

The Provib Tech PT2060/90-A1-B1-H is a ruggedized proximity module engineered for continuous vibration monitoring in demanding industrial environments. As a critical component in rotating machinery protection systems, this module provides reliable non-contact displacement and proximity sensing for turbines, compressors, pumps, and large motors operating under API 670-compliant monitoring architectures. When a proximity module fails or degrades, the consequences extend far beyond a single sensor — the entire vibration channel goes blind, leaving rotating assets unprotected and exposing the facility to unplanned shutdown risk. Sourcing a verified original replacement from a trusted supplier is the fastest path to restoring full monitoring integrity and returning the production line to safe operation.

At NINERMAS, every PT2060/90-A1-B1-H unit is sourced from authorized supply channels, subjected to pre-shipment functional verification, and dispatched with a 12-month warranty covering manufacturing defects and performance conformance. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times on end-of-life or long-cycle industrial components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity module replacement is rarely an isolated task. When a PT2060/90-A1-B1-H is pulled from service, a disciplined maintenance engineer will treat the event as a trigger for a broader channel audit. The proximity probe itself — the companion sensor that threads into the bearing housing — should be inspected for tip wear, contamination, and cable jacket integrity. If the probe shows any mechanical damage or the coaxial cable has been pinched or abraded near the conduit entry, both the probe and the extension cable should be replaced as a matched set to preserve calibration accuracy.

The extension cable connecting the probe to the PT2060/90-A1-B1-H module is a precision component: its electrical length is factory-matched to the driver circuit. Substituting a non-matched cable will shift the output scale factor and introduce measurement error that may not be immediately obvious during a quick functional check. Always verify cable part numbers against the OEM calibration certificate before reinstalling.

At the monitor rack level, the corresponding vibration monitor card — whether a Bently Nevada 3300 XL 8mm proximitor or a third-party equivalent — should be checked for input impedance conformance and alarm setpoint integrity. A degraded monitor card can mask a failing proximity channel or generate nuisance trips after a module swap. While the cabinet is open, inspect the terminal block connections on the I/O marshalling panel for corrosion, loose ferrules, and correct torque on the screw terminals. Vibration channel wiring runs at low signal levels and is susceptible to ground loops introduced by corroded terminations.

Power supply quality is another critical variable. The -24 VDC rail feeding the proximity loop should be verified with a calibrated multimeter; ripple exceeding 50 mV peak-to-peak can introduce noise into the proximity output and cause erratic gap readings. If the facility uses a dedicated vibration monitoring power supply module, this is an appropriate time to check its output regulation and replace the unit if it is approaching its rated service life.

For plants running integrated machinery protection systems, the replacement event should also prompt a review of the keyphasor module associated with the same shaft. The keyphasor signal is used for phase reference in synchronous vibration analysis; a degraded keyphasor driver will corrupt phase data across all channels on that shaft, making the PT2060/90-A1-B1-H replacement appear to underperform even when the module itself is functioning correctly. Similarly, any signal isolator or barrier in the hazardous-area installation should be tested for correct transfer function before the channel is returned to service.

Procurement teams building annual spare parts budgets for rotating machinery protection should consider stocking at minimum one PT2060/90-A1-B1-H per critical machine train, alongside matched extension cables, a spare monitor card, and a replacement keyphasor module. For facilities with multiple identical machine trains, a pooled spare strategy — with a single spare set covering two to four trains — is a practical approach to balancing inventory cost against downtime risk. NINERMAS supports long-term supply agreements and can provide committed stock allocation for customers with recurring annual demand.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or maintenance permit as required by site procedures. Isolate the vibration monitoring channel at the monitor rack by placing the channel in bypass mode to prevent a spurious trip during the swap. Do not de-energize the entire rack unless site procedures require it — other channels must remain in service.

Step 2 — Gap measurement before removal: Record the existing probe gap voltage from the monitor display before disconnecting the PT2060/90-A1-B1-H. This baseline reading confirms whether the outgoing module was still within calibration or had already drifted, and provides a reference for setting the replacement gap.

Step 3 — Module removal: Disconnect the extension cable from the module connector. Note the cable routing and any tie-wrap positions for reinstallation. Remove the module from its mounting bracket, taking care not to stress the probe cable at the conduit entry point.

Step 4 — Inspection of mating components: Before installing the replacement PT2060/90-A1-B1-H, inspect the probe tip, extension cable connector pins, and the mounting bracket for corrosion or mechanical damage. Clean connector mating surfaces with isopropyl alcohol and allow to dry completely.

Step 5 — Installation and gap setting: Mount the replacement module and reconnect the extension cable. Power the channel and measure the output voltage at the monitor card input. Adjust the probe gap to achieve the nominal gap voltage specified on the OEM calibration sheet — typically corresponding to a 1.0–2.0 mm air gap. Lock the probe in position with the locknut and re-verify the gap voltage after locking.

Step 6 — Functional verification: Remove the channel bypass at the monitor rack. Confirm that the gap voltage, vibration reading, and alarm setpoints are within specification. Document the as-left gap voltage and module serial number in the maintenance management system (CMMS) for traceability.

Step 7 — Return to service: Notify the control room that the channel is restored. Update the spare parts inventory record to reflect consumption of the PT2060/90-A1-B1-H unit and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the PT2060/90-A1-B1-H a direct drop-in replacement for older PT2060 variants without the H suffix?
The H suffix designates the high-temperature rated variant. In most ambient-temperature installations, the H-suffix module is fully interchangeable with standard-temperature variants and provides an additional margin of thermal robustness. However, always verify the calibration range and output scale factor against the monitor card configuration before finalizing the swap, as some legacy installations may have been calibrated to a specific module variant.

Q2: How does NINERMAS verify the condition of PT2060/90-A1-B1-H units before shipment?
Every unit undergoes a pre-shipment functional check covering output voltage linearity, supply current draw, and connector integrity. Units that do not meet OEM performance specifications are quarantined and not dispatched. A test report is available upon request for critical applications.

Q3: Can NINERMAS support long-term supply for facilities with annual maintenance schedules?
Yes. NINERMAS offers committed stock allocation and long-term supply agreements for customers with predictable annual demand. Contact our technical sales team to discuss volume pricing, lead time guarantees, and consignment stock options tailored to your maintenance cycle.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and confirmed performance non-conformance under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental ratings. Warranty claims are processed with full technical support from our engineering team.
