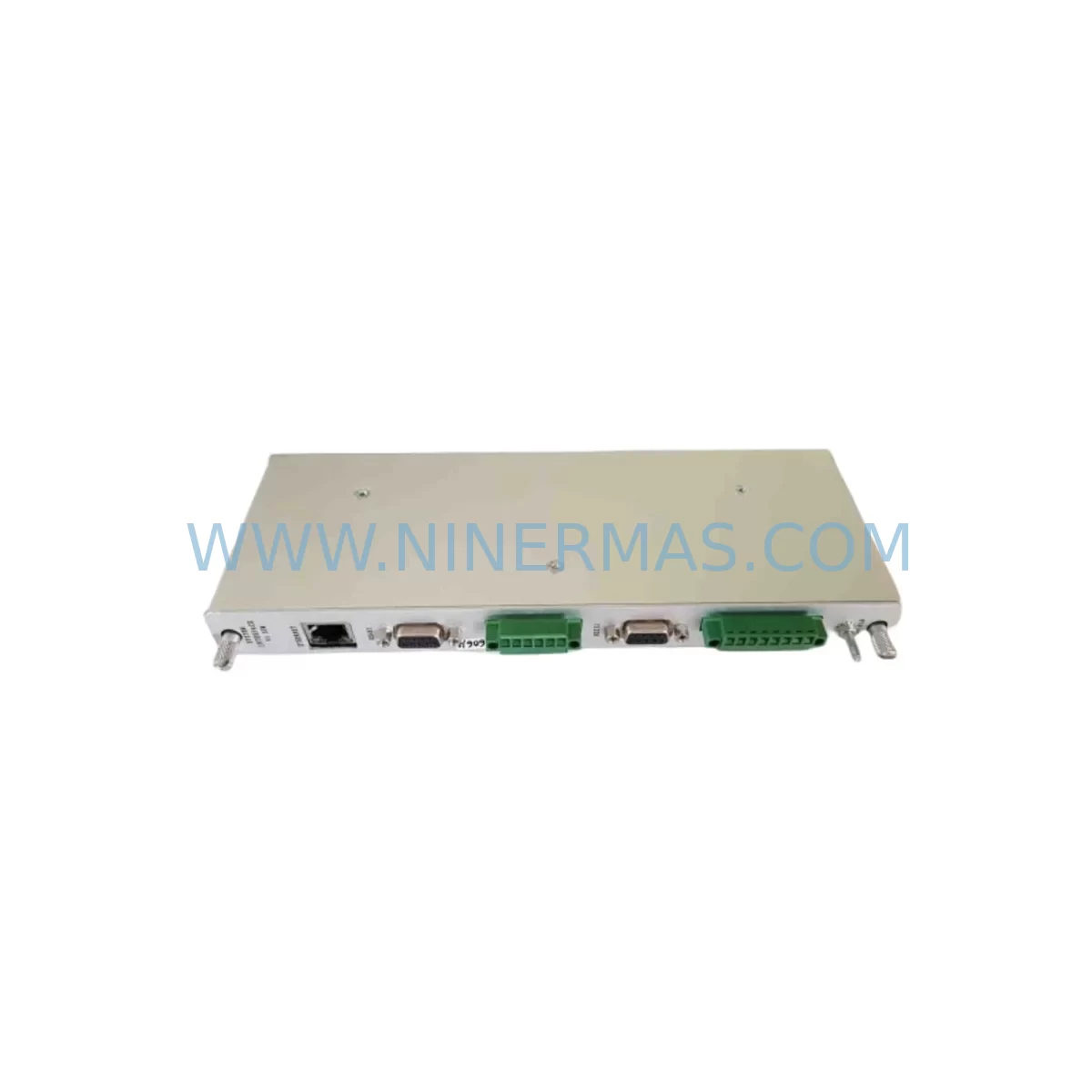

Provib Tech PT2060/91-A0-H Retrofit-Compatible Relay Output Module

Provib Tech PT2060/91-A0-H Retrofit-Compatible Relay Output Module for Legacy Systems

The Provib Tech PT2060/91-A0-H is a retrofit-compatible relay output module engineered for seamless integration into existing PT2060-series vibration monitoring and machinery protection systems. Designed with the demands of legacy system modernization in mind, this module enables plant engineers and maintenance teams to extend the operational life of installed control architectures without requiring full system replacement. The -H suffix confirms its suitability for harsh industrial environments, including high-vibration, high-humidity, and thermally demanding locations such as turbine halls, compressor stations, and rotating machinery enclosures.

When aging PT2060 relay output modules begin to exhibit contact degradation, intermittent trip signals, or communication anomalies, unplanned downtime becomes a critical risk. The PT2060/91-A0-H provides a verified drop-in replacement path that preserves existing terminal wiring, backplane addressing, and relay logic without requiring reprogramming of the host controller or reconfiguration of the associated PT2060/10-A0-H signal processing module. This compatibility-first design philosophy significantly reduces the engineering effort and commissioning time required during a planned maintenance window.

Retrofit projects involving the PT2060 platform typically require careful coordination across multiple system layers. Before installation, engineers should verify the available power budget on the existing PT2060 rack power supply unit, confirm that the backplane slot assignment matches the original module address, and review the terminal block wiring diagram to ensure relay output polarity and contact configuration are preserved. In systems where the PT2060/91-A0-H interfaces with a Bently Nevada 3500-series rack or a Emerson Ovation DCS I/O module via hardwired trip relay, the contact rating and response time must be validated against the receiving system’s input specifications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PT2060/91-A0-H retrofit begins well before the module arrives on site. The first step is a thorough audit of the existing PT2060 rack configuration. Engineers should document the current slot assignments for all installed modules — including the PT2060/10-A0-H signal processing module, any PT2060/20-series I/O expansion modules, and the PT2060 rack power supply — to confirm that the replacement slot is correctly identified and that no address conflicts exist.

In many legacy installations, the PT2060 rack communicates with a supervisory SCADA system or DCS via a Modbus RTU serial communication module or a dedicated vibration data concentrator. During the module swap, it is essential to verify that the relay output assignments mapped in the SCADA historian or Wonderware InTouch HMI screen remain consistent with the physical relay contacts on the replacement PT2060/91-A0-H. Any discrepancy between the HMI graphic and the physical wiring can result in incorrect alarm annunciation or missed trip events during post-commissioning testing.

For installations where the PT2060 system feeds trip signals into a safety instrumented system (SIS) logic solver — such as a Triconex TRICON controller or a Hima HIMatrix F60 — the relay contact integrity test must be performed in accordance with the site’s functional safety management plan. The PT2060/91-A0-H’s relay contacts should be exercised through a full open/close cycle and the response time logged against the SIS’s maximum allowable response time for the associated safety function.

Where the existing installation includes a signal isolator or galvanic separator between the PT2060 relay output and the DCS input card, the isolator’s input voltage range and contact wetting current requirements must be confirmed to be compatible with the PT2060/91-A0-H relay specifications. In some older installations, a Phoenix Contact PSR-series safety relay or a Pepperl+Fuchs KFD2-series isolator is used in this interface role, and these devices impose specific contact load requirements that must be respected.

Finally, the retrofit plan should include a pre-tested spare PT2060/91-A0-H module held in the site’s critical spares inventory. Given the end-of-production status of many PT2060-series components, securing a verified stock of tested modules — with confirmed 12-month warranty coverage — is a prudent risk mitigation strategy for any continuous process plant.

Downtime Control During System Migration

Minimizing unplanned downtime during a PT2060/91-A0-H module replacement requires a structured hot-swap or planned-outage procedure. For non-safety-critical relay outputs, some PT2060 rack configurations permit module replacement with the rack powered, provided that the associated trip relay is first inhibited at the DCS or SIS level and the inhibit is logged in the plant’s management of change (MOC) system. This approach allows the physical module swap to be completed within a single shift without requiring a full machinery shutdown.

Before removing the existing module, the original relay contact states — energized or de-energized — should be recorded and the associated field devices confirmed to be in a safe state. After installing the PT2060/91-A0-H, the relay outputs should be verified against the original wiring diagram, the module address confirmed via the PT2060 system diagnostic interface, and a functional trip test performed to validate end-to-end signal integrity from the vibration sensor input through to the final element.

Where a full shutdown is required — for example, in SIS-integrated applications — the replacement should be scheduled during a planned turnaround or maintenance window. Pre-staging the PT2060/91-A0-H with all required tools, terminal labels, and wiring documentation at the work site before the shutdown begins is critical to keeping the outage duration within the planned maintenance window. NINERMAS provides pre-shipment functional test reports for each PT2060/91-A0-H unit, which can be used to satisfy site acceptance test requirements and reduce on-site commissioning time.

Retrofit Support FAQ

Q1: Is the PT2060/91-A0-H a direct drop-in replacement for the standard PT2060/91-A0?
Yes. The PT2060/91-A0-H is the harsh-environment variant of the PT2060/91-A0 and is fully backward-compatible with the standard PT2060 rack. The terminal wiring, backplane interface, and relay output configuration are identical. The -H suffix indicates enhanced environmental protection and does not affect electrical compatibility.

Q2: What outgoing tests are performed before shipment?
Each PT2060/91-A0-H unit undergoes a 100% functional test prior to shipment, including relay contact continuity verification, coil energization test, and environmental stress screening where applicable. A test report is available upon request and can be used to support site acceptance testing.

Q3: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical diagnosis, repair or replacement, and application guidance for the PT2060 platform.

Q4: Can NINERMAS support long-term supply of PT2060/91-A0-H modules?
Yes. NINERMAS maintains a dedicated inventory of PT2060-series modules, including the PT2060/91-A0-H, to support long-term spare parts programs for plants operating legacy Provib Tech vibration monitoring systems. Customers with multi-year maintenance contracts or turnaround schedules are encouraged to contact our team to discuss volume pricing and reserved stock arrangements.
