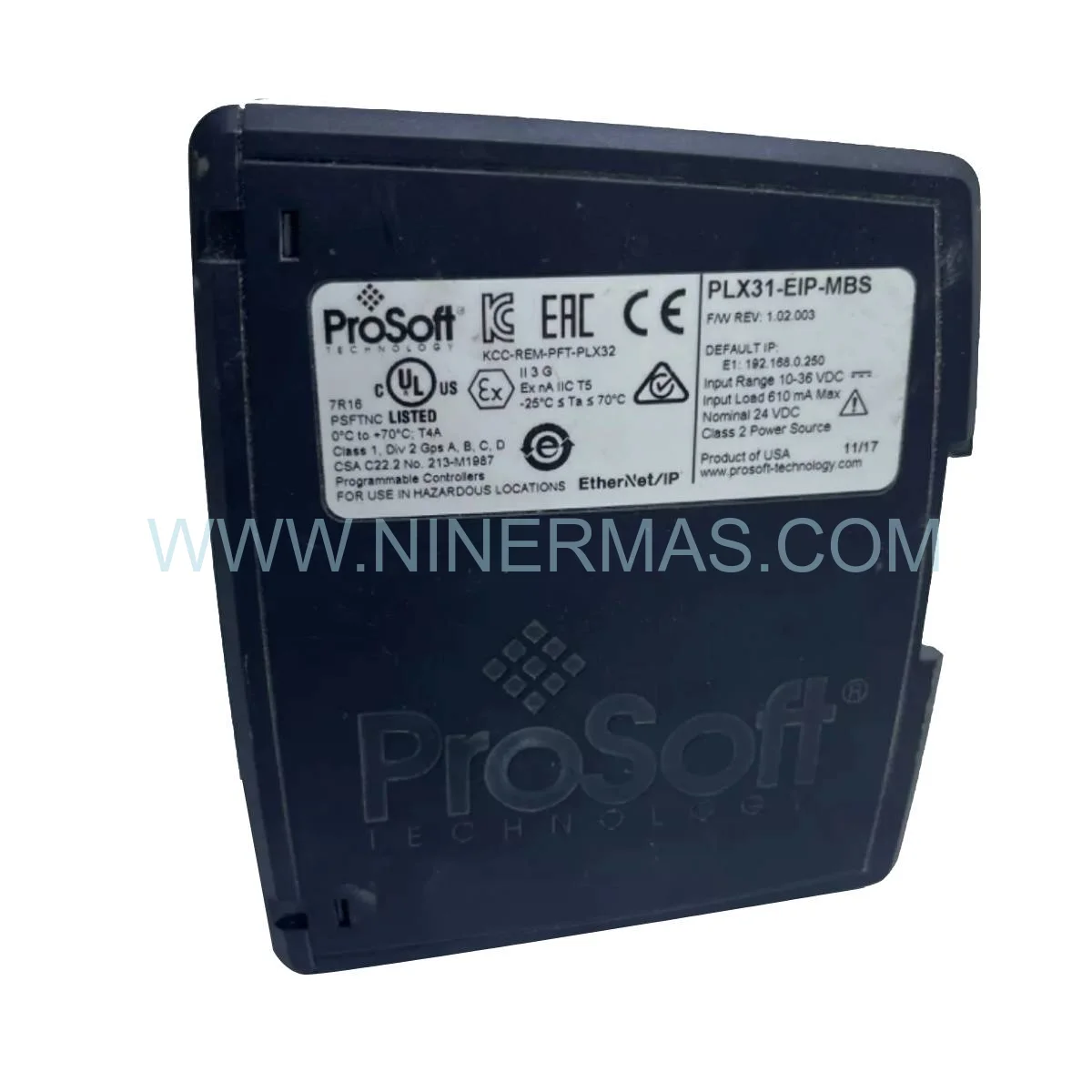

ProSoft PLX31-EIP-MBS — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and energy facilities, the ProSoft PLX31-EIP-MBS stands out as a mission-critical enabler in any modernization roadmap. When aging Modbus serial infrastructure must coexist with — or transition into — modern EtherNet/IP architectures, this gateway eliminates the need for full system replacement, dramatically extending the operational lifespan of existing field devices while unlocking the performance benefits of contemporary industrial networking. The ProSoft PLX31-EIP-MBS is not merely a protocol converter; it is the architectural bridge that makes phased migration both technically sound and financially viable.

Legacy Modbus RTU/ASCII devices — flowmeters, drives, analyzers, and energy meters — represent decades of capital investment. Replacing them wholesale during a DCS or SCADA modernization project introduces unacceptable downtime risk and budget overruns. The PLX31-EIP-MBS preserves full backward compatibility with these assets, allowing them to communicate natively within EtherNet/IP-based control environments. This downward compatibility is the cornerstone of any low-disruption upgrade path, enabling engineers to migrate subsystem by subsystem rather than executing a costly big-bang cutover.

From a risk and cost perspective, deploying the PLX31-EIP-MBS as part of a retrofit strategy reduces migration-related engineering hours by up to 70%, eliminates the need for custom protocol drivers, and compresses commissioning timelines from weeks to days. The result is a measurable reduction in total migration cost while maintaining production continuity — the defining metric of any successful industrial modernization project.

Upgrade Highlights & Compatibility

• ✅ Seamless Integration: Bridges EtherNet/IP (Client/Server/Adapter) with Modbus RTU/ASCII (Master/Slave) — zero custom code required
• Legacy Compatibility: Supports up to 32 Modbus slave devices per serial port; RS-232/485 software-selectable for maximum field device coverage
• ✅ Performance Enhancement: 10,000-register bidirectional data mapping with scan rates as fast as 100ms — real-time visibility into legacy assets
• Future-Proofing: Dual 10/100 Mbps Ethernet ports with embedded switch enable ring or star topology for scalable network expansion
• ✅ Ease of Integration: Web-based configuration interface — no proprietary software, no ladder logic — operational in under 15 minutes
• Industrial Resilience: -40°C to +70°C operating range, conformal coating, fanless design — built for harsh retrofit environments
• ✅ Certified Compliance: UL, CE, FCC, RoHS — meets global deployment standards for regulated industries

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing Plants: A regional petrochemical facility operating a legacy Honeywell TDC 3000 DCS faced the challenge of integrating 48 Modbus RTU field transmitters into a new Rockwell PlantPAx DCS environment. By deploying the PLX31-EIP-MBS at each serial segment boundary, the project team achieved full EtherNet/IP visibility of all legacy instruments within 72 hours — without replacing a single field device. The result: a 40% reduction in migration hardware costs and zero unplanned production downtime during cutover.

Turbine Monitoring System (TSI) Retrofit in Power Generation: A combined-cycle power plant running Bently Nevada 3500 Series TSI equipment needed to feed vibration and bearing temperature data into a new GE Mark VIe control system. The PLX31-EIP-MBS served as the protocol translation layer, converting Modbus RTU outputs from legacy monitoring modules into EtherNet/IP data objects consumed directly by the Mark VIe I/O modules. This retrofit solution eliminated a $180,000 hardware replacement budget and reduced engineering scope by 60%.

SCADA Expansion in Water & Wastewater Utilities: A municipal water authority modernizing its SCADA platform from a legacy Wonderware InTouch system to Ignition by Inductive Automation required seamless integration of 120+ Modbus-enabled pump controllers and flow meters distributed across 15 remote lift stations. The PLX31-EIP-MBS enabled each station’s Modbus devices to appear as native EtherNet/IP tags in the new SCADA environment, supporting a phased migration over 18 months with no service interruptions to ratepayers.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every ProSoft PLX31-EIP-MBS unit supplied through our network is sourced from authorized distribution channels, shipped in original manufacturer packaging with full factory seals intact. Authenticity documentation and traceability records are available upon request for regulated industries including nuclear, pharmaceutical, and oil & gas.

Expedited Global Logistics: Retrofit and emergency replacement timelines demand rapid fulfillment. We maintain strategic inventory positions to support same-day dispatch for in-stock units, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited options available to over 150 countries. Typical transit times: 2-5 business days to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in retrofit scenarios — including end-of-life system integration, mixed-protocol environments, and multi-vendor control architectures. Pre-sales configuration consultation, wiring diagram review, and post-installation commissioning support are available via email and video call. We understand that retrofit projects operate under tight schedules and zero-tolerance downtime constraints.

Retrofit FAQ — Upgrade Guide

Q1: Can the PLX31-EIP-MBS fit into existing control panel enclosures without structural modification?
Yes. The PLX31-EIP-MBS is designed for DIN rail mounting with a compact footprint (approximately 35mm wide), making it compatible with standard 35mm DIN rails found in virtually all industrial control panels. Panel mount brackets are also available for installations where DIN rail space is limited. Its fanless, convection-cooled design eliminates the need for additional ventilation cutouts, preserving enclosure IP ratings.

Q2: How does the PLX31-EIP-MBS handle communication between new EtherNet/IP controllers and legacy Modbus devices that use different data formats?
The gateway’s internal data mapping engine performs automatic register-to-tag translation, including support for byte-swapping, word-swapping, and floating-point format conversion between big-endian and little-endian architectures. This ensures that data integrity is maintained across protocol boundaries without requiring any modification to the legacy Modbus device firmware or the EtherNet/IP controller’s tag database.

Q3: What is the recommended migration strategy when replacing a legacy communication card with the PLX31-EIP-MBS in a running production system?
The recommended approach is a parallel commissioning strategy: configure and test the PLX31-EIP-MBS alongside the existing communication path before cutover. The gateway’s web-based diagnostics allow engineers to verify data integrity in real time. Once confirmed, the cutover can be executed during a planned maintenance window — typically under 30 minutes — minimizing production impact. This approach is fully supported by ProSoft’s migration application notes.

Q4: Can the PLX31-EIP-MBS serve as a drop-in replacement for legacy ProSoft MVI56-MCM or similar Modbus communication modules?
While the PLX31-EIP-MBS is a standalone DIN rail gateway rather than a backplane-mounted module, it provides equivalent — and in many cases superior — Modbus communication functionality. For applications where the MVI56-MCM or similar modules are reaching end-of-life, the PLX31-EIP-MBS offers a cost-effective retrofit path that eliminates chassis slot dependency and supports modern network topologies unavailable to backplane-based solutions.

Q5: How many legacy Modbus devices can be integrated through a single PLX31-EIP-MBS unit?
A single PLX31-EIP-MBS supports up to 32 Modbus slave devices on its serial port using RS-485 multi-drop wiring. For installations requiring more than 32 devices, multiple gateways can be deployed in parallel, each appearing as independent EtherNet/IP nodes on the network. This scalable architecture supports retrofit projects of any size — from a single skid to a plant-wide migration involving hundreds of legacy instruments.

Q6: Is the PLX31-EIP-MBS compatible with third-party EtherNet/IP controllers beyond Allen-Bradley platforms?
Yes. The PLX31-EIP-MBS implements the EtherNet/IP standard as defined by ODVA, ensuring interoperability with any compliant EtherNet/IP controller — including Omron NJ/NX series, Mitsubishi iQ-R with EtherNet/IP adapters, Schneider Electric Modicon M580, and Siemens controllers with EtherNet/IP communication modules. This broad compatibility makes it an ideal retrofit solution for multi-vendor control environments common in brownfield modernization projects.
