ProSoft ILX56-PBS PROFIBUS DPV1 Slave — ControlLogix Retrofit Module

ProSoft ILX56-PBS – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the ProSoft ILX56-PBS stands out as a pivotal hardware asset in any PROFIBUS-to-ControlLogix modernization initiative. When aging DCS or TSI architectures begin to constrain throughput, introduce latency risks, or simply reach end-of-support cycles, the ProSoft ILX56-PBS provides a structured, low-disruption pathway to extend operational life while simultaneously elevating system performance. Its role is not merely communicative — it is architectural, serving as the critical bridge that allows modern Allen-Bradley ControlLogix processors to absorb and command legacy PROFIBUS DP field devices without requiring wholesale infrastructure replacement.

One of the most compelling advantages of the ProSoft ILX56-PBS in retrofit scenarios is its robust backward compatibility with established PROFIBUS DP master controllers — including Siemens S7 series, ABB AC800M, and Schneider Quantum platforms. This Legacy Compatibility eliminates the need to retire functional field instrumentation prematurely, protecting capital investment while enabling a phased Hardware Upgrade strategy. Engineers can retain existing PROFIBUS wiring topologies and device configurations, mapping I/O data directly into ControlLogix tags via structured ladder logic or structured text routines.

From a migration risk and cost perspective, deploying the ProSoft ILX56-PBS as the cornerstone of a System Migration plan dramatically reduces both engineering hours and commissioning downtime. Rather than executing a full rip-and-replace, project teams can implement a parallel-run strategy — validating new ControlLogix logic against live PROFIBUS data before cutover. This approach compresses project timelines, minimizes production interruptions, and delivers measurable ROI within the first operational quarter post-migration.

Upgrade Highlights & Compatibility

✅ Seamless Integration: Mounts directly into the ControlLogix 1756 chassis backplane — zero additional hardware adapters required, enabling rapid deployment in brownfield environments.

High-Speed Data Exchange: Supports baud rates from 9.6 kbps up to 12 Mbps with auto-detection, ensuring deterministic communication even in high-cycle-rate process control loops.

✅ Legacy Compatibility Assured: Functions as a certified PROFIBUS DPV1 slave, maintaining full interoperability with existing PROFIBUS DP master infrastructure — no master-side reconfiguration needed.

Performance Enhancement via DPV1: DPV1 acyclic messaging support enables on-demand parameter reads and diagnostic uploads from intelligent field devices — a capability absent in older DP-only implementations.

✅ Future-Proofing Architecture: Field-upgradeable firmware ensures the module evolves with protocol revisions and ControlLogix platform updates, protecting the retrofit investment over a 10+ year horizon.

Redundancy-Ready: Compatible with redundant ControlLogix chassis configurations, supporting high-availability designs in critical process industries such as power generation and petrochemicals.

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing: A mid-scale chemical plant operating a legacy Siemens S7-400 DCS with 200+ PROFIBUS DP field devices required migration to an Allen-Bradley ControlLogix platform to leverage modern MES connectivity. By deploying the ProSoft ILX56-PBS as the PROFIBUS slave interface within the new ControlLogix chassis, the engineering team preserved all existing field wiring and device configurations. The result: a 60% reduction in migration engineering hours compared to a full I/O replacement approach, with zero unplanned downtime during cutover.

Turbine Supervisory Instrumentation (TSI) Upgrade: A power generation facility running a legacy TSI system needed to integrate vibration and speed monitoring data into a new ControlLogix-based plant historian and safety system. The ProSoft ILX56-PBS enabled the TSI master to continue operating its existing PROFIBUS DP scan cycle while simultaneously feeding real-time diagnostic data into the ControlLogix processor via DPV1 acyclic reads. This Performance Enhancement eliminated manual data transcription, reduced alarm response time by 40%, and established a foundation for future predictive maintenance analytics.

Automotive Assembly Line Retrofit: An automotive OEM modernizing a body-in-white welding line replaced aging PLCs with ControlLogix while retaining PROFIBUS-connected welding controllers and vision systems. The Retrofit Solution centered on the ProSoft ILX56-PBS, which allowed the new ControlLogix master to communicate with all legacy PROFIBUS slaves without any slave-side firmware changes — achieving full production restart within a single planned maintenance window.

Migration Technical Data Sheet

Supply Chain & Deployment Support

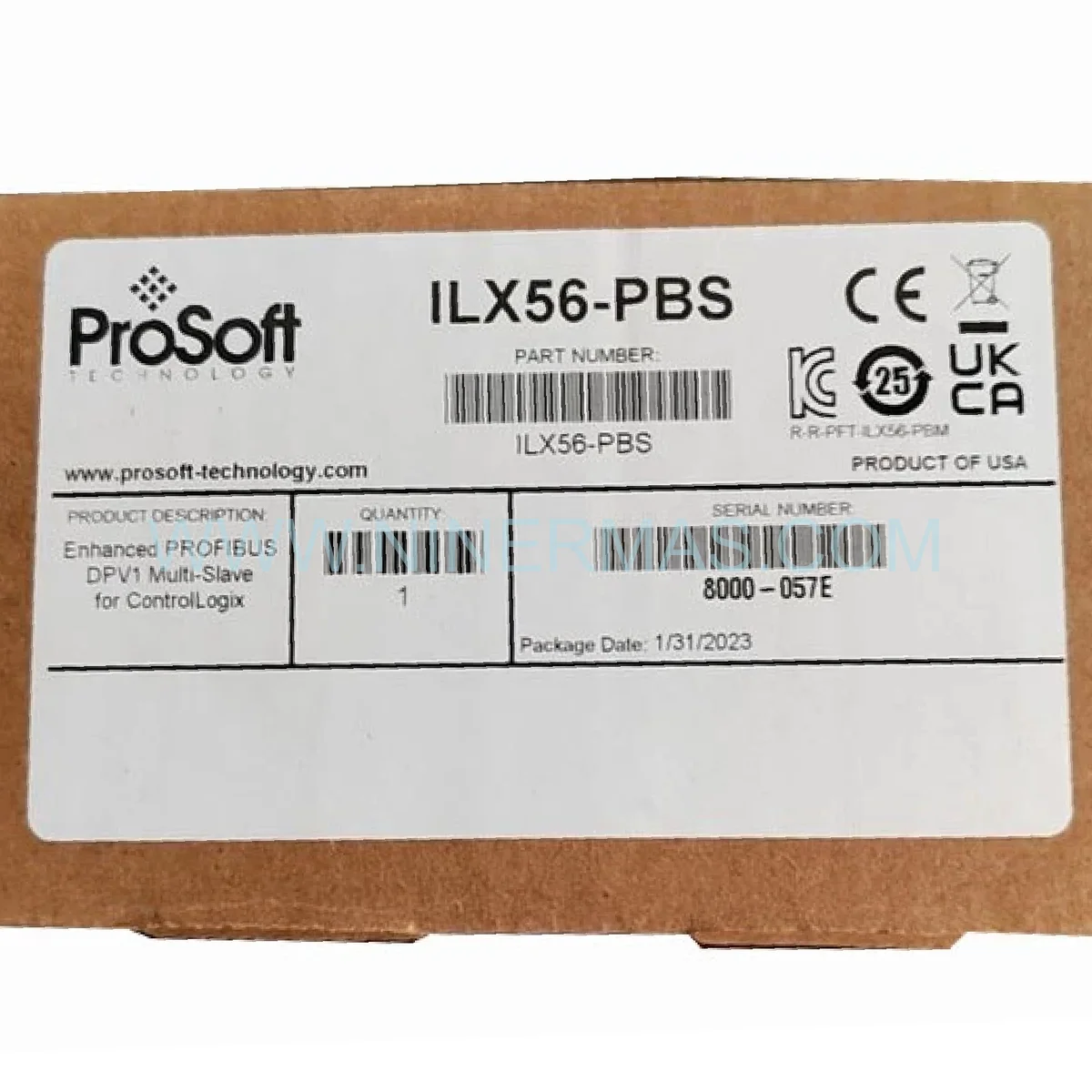

Original & Factory Sealed: Every ProSoft ILX56-PBS unit supplied through our channel is sourced directly from authorized ProSoft Technology distribution networks. All modules are shipped in original manufacturer packaging with factory seals intact, accompanied by full documentation sets including GSD files, configuration software licenses, and installation guides.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain strategic inventory positions enabling same-day dispatch to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific. DHL Express, FedEx International Priority, and UPS Worldwide Expedited services are available with full shipment tracking and customs documentation support.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in brownfield integration challenges. Whether you are migrating from a discontinued Siemens S5 PROFIBUS master, troubleshooting GSD file compatibility with an older DP master, or designing a phased cutover plan for a 24/7 continuous process facility, our retrofit specialists provide pre-sales configuration guidance, commissioning support, and post-deployment troubleshooting — at no additional charge for qualified retrofit projects.

Retrofit FAQ (Upgrade Guide)

Q1: Will the ProSoft ILX56-PBS fit into my existing ControlLogix chassis without mechanical modifications?
A: Yes. The ProSoft ILX56-PBS is a standard single-slot ControlLogix 1756 module. It occupies one slot in any 1756 chassis (4, 7, 10, 13, or 17-slot configurations) and requires no bracket modifications, panel cutouts, or external mounting hardware. Physical installation is identical to any other 1756-series module.

Q2: How does the ProSoft ILX56-PBS handle communication between a new ControlLogix system and an existing PROFIBUS DP master that I cannot replace?
A: The ProSoft ILX56-PBS operates as a PROFIBUS DPV1 slave on the network. Your existing PROFIBUS DP master — whether Siemens, ABB, Schneider, or another brand — continues to scan the network exactly as before. The module presents itself as a standard PROFIBUS slave device using a GSD file, requiring no changes to the master’s configuration beyond adding the new slave address. Data exchanged over PROFIBUS is simultaneously mapped into ControlLogix controller tags, enabling bidirectional data flow between the legacy master and the new ControlLogix processor.

Q3: Can the ProSoft ILX56-PBS support DPV1 acyclic messaging for intelligent field device parameterization during the retrofit?
A: Yes. The ProSoft ILX56-PBS fully supports PROFIBUS DPV1 Class 1 and Class 2 acyclic messaging. This enables the ControlLogix processor to read and write device parameters, retrieve extended diagnostics, and perform online configuration of intelligent PROFIBUS field devices — capabilities that are essential for modern predictive maintenance and asset management strategies in upgraded facilities.

Q4: What is the recommended spare parts strategy for a facility running ProSoft ILX56-PBS modules in a critical process environment?
A: For continuous process facilities (chemical, power, oil & gas), we recommend maintaining a minimum of one cold-standby ProSoft ILX56-PBS unit per installed chassis. Given the module’s Active lifecycle status and current production availability, procurement lead times are typically short — however, for facilities with zero-tolerance downtime requirements, a pre-positioned spare eliminates all supply chain risk. Our team can assist with consignment stock arrangements for large-scale retrofit deployments.

Q5: Is there a migration path from the ProSoft ILX56-PBS to EtherNet/IP-based architectures if we plan a further upgrade in the future?
A: Absolutely. The ProSoft ILX56-PBS is designed as a transitional Retrofit Solution — it preserves your existing PROFIBUS infrastructure while your ControlLogix platform matures. When your organization is ready for a full EtherNet/IP migration, ProSoft Technology offers complementary modules such as the ILX56-PBM (PROFIBUS DP Master) and EtherNet/IP-to-PROFIBUS gateway solutions that provide a structured, low-risk upgrade path without requiring simultaneous replacement of all field devices.

Q6: How do I configure the ProSoft ILX56-PBS for a system where the PROFIBUS master uses a non-standard GSD file or proprietary baud rate negotiation?
A: ProSoft Configuration Builder (PCB) software — included with every ProSoft ILX56-PBS — provides a graphical configuration environment where you can define custom I/O data block sizes, set fixed baud rates (bypassing auto-detect if required), and generate a customized GSD file tailored to your master’s requirements. Our technical support team maintains a library of pre-validated GSD configurations for common legacy master platforms and can provide application-specific configuration files upon request.
