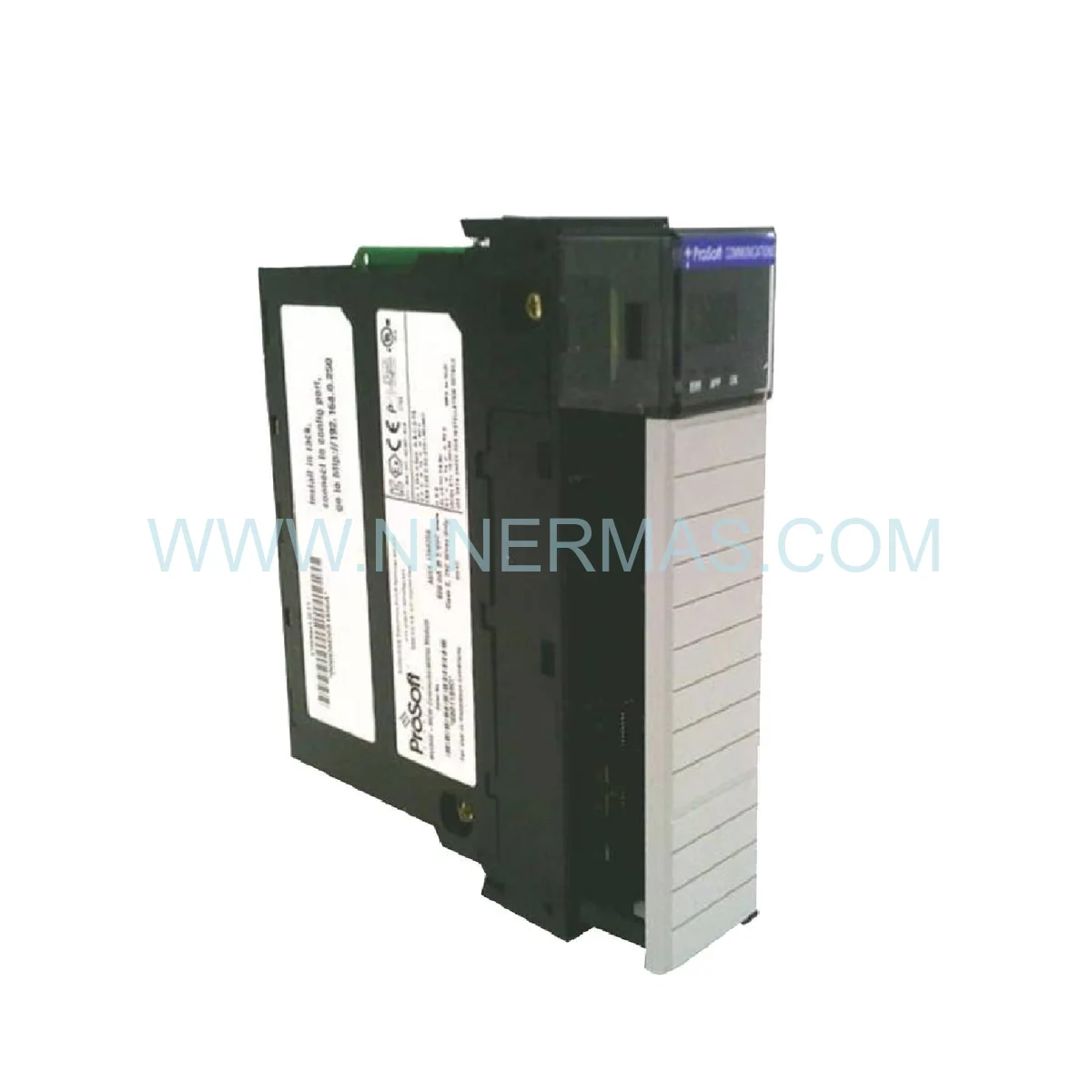

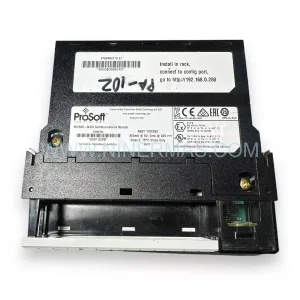

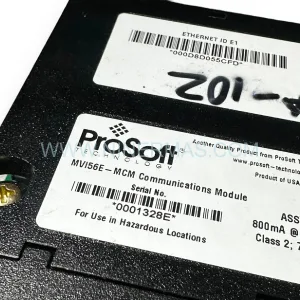

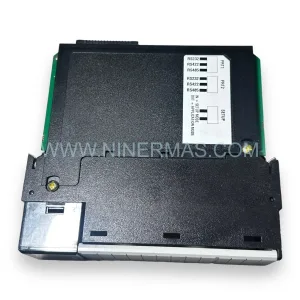

ProSoft MVI56E-MCM – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the ProSoft MVI56E-MCM stands out as a cornerstone hardware component for factories, power plants, and manufacturing facilities seeking to modernize aging automation infrastructure without full system replacement. The ProSoft MVI56E-MCM directly addresses the performance bottlenecks inherent in legacy Modbus environments by embedding protocol intelligence natively into the Allen-Bradley ControlLogix chassis — eliminating external converters, reducing latency, and dramatically improving data throughput across RTU, ASCII, and TCP/IP communication layers.

A critical advantage of this module lies in its backward compatibility with established Modbus device ecosystems. Whether your facility operates decades-old flow meters, legacy analyzers, or first-generation PLCs communicating over RS-232/RS-485, the MVI56E-MCM serves as the migration bridge — preserving existing field wiring investments while unlocking the full processing power of modern ControlLogix platforms. This downward compatibility makes it the preferred upgrade path for engineers who must maintain operational continuity during phased modernization projects.

From a total cost of ownership perspective, deploying the MVI56E-MCM as part of a retrofit strategy significantly reduces migration risk. Rather than executing a disruptive rip-and-replace overhaul, project teams can introduce this module incrementally — validating communication integrity at each stage, minimizing unplanned downtime, and protecting capital expenditure by extending the productive life of existing field instrumentation by 5-10 years.

Upgrade Highlights & Compatibility

✅ Multi-Protocol Mastery: Supports Modbus RTU, ASCII, and TCP/IP simultaneously — Master and Slave modes — enabling complex multi-drop networks with up to 247 devices per port without additional hardware.

Seamless Integration: Native ControlLogix backplane interface with RSLogix 5000 / Studio 5000 ladder logic — zero custom middleware required for Seamless Integration into existing PLC programs.

✅ Legacy Compatibility Assured: Dual RS-232/RS-485 serial ports plus Ethernet 10/100 Mbps — bridges old serial field devices with modern Ethernet-based SCADA and MES architectures.

Performance Enhancement: Processes up to 10,000 registers per scan cycle, delivering measurable Performance Enhancement over software-based protocol emulation solutions.

✅ Future-Proofing: Non-volatile configuration memory, automatic baud rate detection, and configurable timeout handling ensure the module adapts to evolving network topologies without firmware re-engineering.

Certified Industrial Grade: UL/cUL, CE, RoHS compliant — rated 0°C to 60°C operating range — engineered for continuous duty in harsh industrial environments.

Modernization Use Cases & Success Stories

DCS Retrofit in Chemical Processing Plants: A regional petrochemical facility operating a legacy DCS with hundreds of Modbus RTU field instruments faced escalating maintenance costs and obsolete spare parts. By integrating the MVI56E-MCM into a new ControlLogix backbone, the engineering team achieved a Hardware Upgrade that preserved all existing field wiring while migrating supervisory control to a modern Studio 5000 environment — reducing scan cycle time by 40% and eliminating three external protocol converters.

Turbine Monitoring System (TSI) Modernization: A power generation facility required System Migration of its turbine supervisory instrumentation from a proprietary serial network to an Ethernet-capable architecture. The MVI56E-MCM’s dual-port design allowed simultaneous legacy serial polling and new Ethernet data publishing — enabling a parallel-run validation period before full cutover, reducing commissioning risk to near zero.

Water Treatment SCADA Upgrade: Municipal water authorities managing aging pump stations deployed the MVI56E-MCM to interface Modbus-based level sensors and chemical dosing controllers with a centralized ControlLogix SCADA platform. The Retrofit Solution delivered real-time visibility across 12 remote stations, replacing manual data collection with automated alarm management and trend logging.

Manufacturing Execution Integration: An automotive components manufacturer used the MVI56E-MCM to connect legacy production line equipment to a new MES platform via the ControlLogix backbone — achieving Performance Enhancement in OEE reporting accuracy from 72% to 96% through real-time data acquisition replacing manual shift logs.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every ProSoft MVI56E-MCM unit supplied through our network is sourced from authorized distribution channels — factory sealed, serialized, and accompanied by original OEM documentation. No refurbished or remarked units.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under tight timelines, we maintain strategic inventory positions enabling same-day dispatch to major industrial hubs across Asia, Europe, and the Americas. DHL Express, FedEx Priority, and air freight consolidation services are available.

Technical Support for Legacy Hardware: Our engineering support team specializes in Obsolete and Legacy Hardware integration scenarios. Whether you need assistance mapping Modbus register tables, configuring dual-port master/slave topologies, or validating communication integrity during system cutover, dedicated technical resources are available pre-sale and post-deployment.

Documentation Package: Full configuration manual, wiring diagrams, sample ladder logic routines, and firmware update procedures provided with every unit — accelerating your retrofit project timeline from day one.

Retrofit FAQ (Upgrade Guide)

Q1: Will the ProSoft MVI56E-MCM fit into my existing ControlLogix chassis without mechanical modifications?
The MVI56E-MCM occupies a single slot in any standard 1756 ControlLogix chassis (4, 7, 10, 13, or 17-slot). No mechanical modifications are required. The module draws power directly from the backplane — eliminating the need for external power supply wiring. Installation space compatibility is confirmed for all current ControlLogix chassis generations.

Q2: How does the MVI56E-MCM handle communication between new Ethernet-based systems and legacy serial Modbus devices?
The module operates as a simultaneous protocol bridge — its dual serial ports communicate with legacy RS-232/RS-485 Modbus RTU/ASCII devices while its Ethernet port enables Modbus TCP/IP connectivity to modern SCADA, HMI, and MES platforms. Data is mapped transparently through the ControlLogix tag database, allowing new and legacy systems to exchange information without custom middleware or protocol conversion gateways.

Q3: Can the MVI56E-MCM replace an existing third-party protocol converter in my retrofit project?
Yes. In most retrofit scenarios, the MVI56E-MCM directly replaces standalone protocol converters or serial communication modules from other vendors. Its native ControlLogix backplane interface and comprehensive Modbus protocol stack cover the majority of legacy device communication requirements — consolidating multiple hardware components into a single chassis-mounted solution and reducing panel space requirements.

Q4: What is the recommended spare parts strategy for facilities running the MVI56E-MCM in critical applications?
For critical process applications, we recommend maintaining a minimum of one hot-spare MVI56E-MCM unit on-site. The module’s non-volatile configuration memory means a replacement unit can be configured and operational within minutes using a saved configuration file — minimizing mean time to repair (MTTR) during unplanned failures. Our expedited logistics network supports emergency replenishment within 24-72 hours globally.

Q5: Is the MVI56E-MCM compatible with both RSLogix 5000 and the newer Studio 5000 Logix Designer environment?
Full compatibility is confirmed for both RSLogix 5000 (v16 and above) and Studio 5000 Logix Designer (all current versions). ProSoft provides Add-On Instructions (AOIs) and sample ladder logic routines that integrate directly into your existing project files — significantly reducing engineering hours during the retrofit programming phase.

Q6: How does the MVI56E-MCM support a phased migration strategy where old and new systems must run in parallel?
The dual-port architecture is specifically advantageous for phased migration projects. Port 1 can maintain polling of legacy Modbus RTU devices on the existing serial network while Port 2 simultaneously communicates with new Ethernet-connected equipment — allowing parallel operation and data validation before full system cutover. This Seamless Integration approach eliminates the need for a hard cutover date, reducing project risk and enabling incremental commissioning validation.
