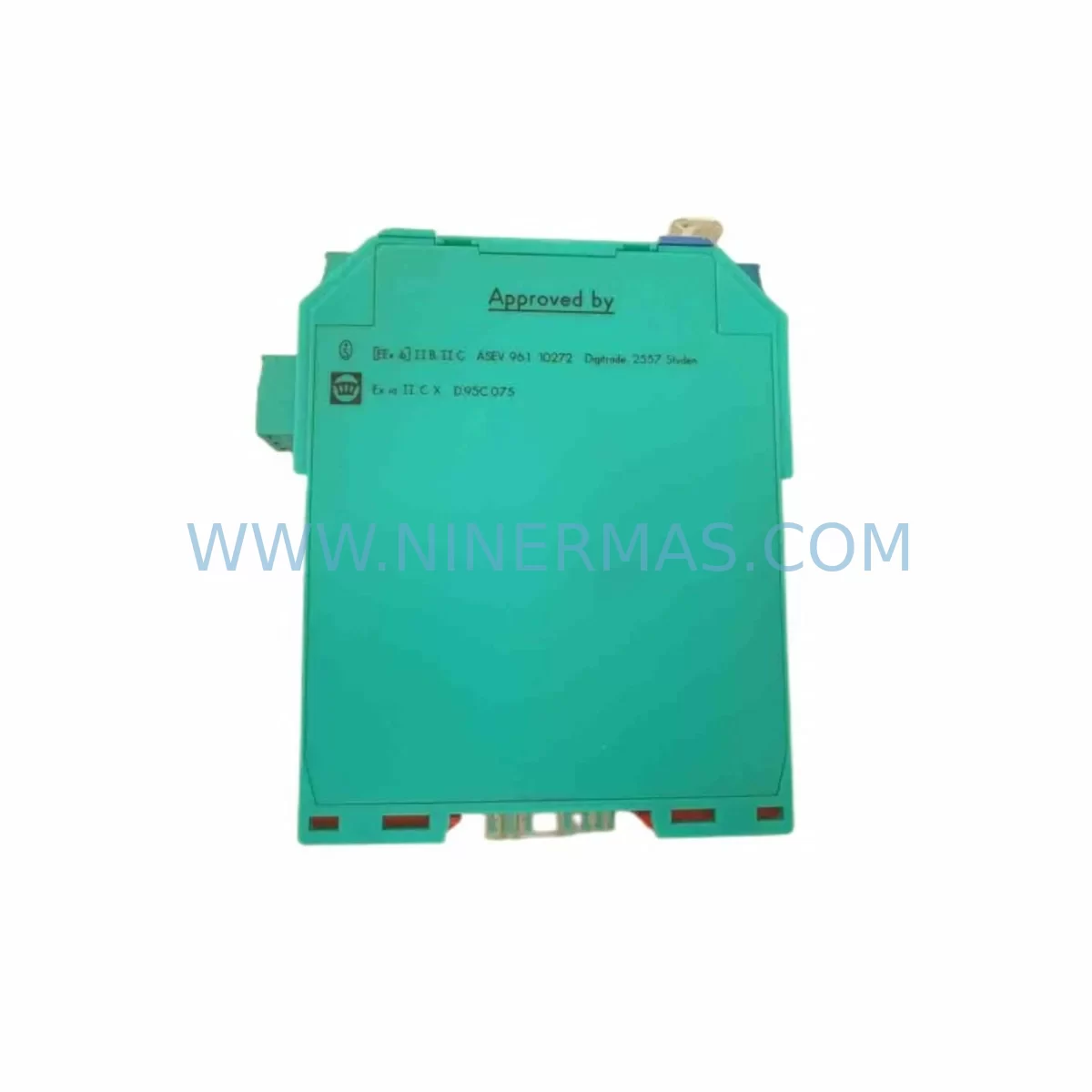

Pepperl+Fuchs KFD2-VM-EX1.35 Safety-Reliable Signal Conditioner

Pepperl+Fuchs KFD2-VM-EX1.35: Safety-Reliable Signal Conditioner for Critical Control Sites

The Pepperl+Fuchs KFD2-VM-EX1.35 is a precision voltage measuring signal conditioner engineered for deployment in Ex Zone 1 and Zone 2 hazardous locations. As part of the renowned KFD2 SMART series, this isolating amplifier delivers galvanic isolation, accurate signal transmission, and robust EMC protection — making it an indispensable component in safety-critical control loops across continuous process industries. Whether installed in a heavy-duty control cabinet in a petrochemical refinery, a power generation switchroom, or a mining extraction facility, the KFD2-VM-EX1.35 is designed to maintain signal integrity under the most demanding electrical and environmental conditions.

In modern industrial automation, signal drift, ground loops, and electromagnetic interference represent persistent threats to control loop reliability. The KFD2-VM-EX1.35 addresses these risks through its galvanically isolated three-port design, which separates the field circuit, power supply, and output circuit — eliminating common-mode interference and preventing fault propagation between zones. This architecture is particularly valuable in facilities where high-power drives, variable frequency drives (VFDs), and large motor starters generate significant conducted and radiated EMI that can corrupt 4–20 mA or voltage signals travelling to the DCS or PLC.

Unplanned shutdowns in continuous production environments — refineries, chemical plants, water treatment stations, and metallurgical facilities — carry enormous financial and safety consequences. A single corrupted measurement signal can trigger a spurious trip, cause a missed interlock activation, or lead to process deviation that endangers personnel and equipment. The KFD2-VM-EX1.35 mitigates these risks by providing stable, repeatable voltage measurement with high accuracy, ensuring that the control system receives a clean, reliable signal regardless of field-side disturbances.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A well-engineered hazardous-area control cabinet is only as reliable as its weakest signal path. The KFD2-VM-EX1.35 forms the backbone of a robust signal conditioning architecture, working in concert with complementary KFD2 SMART series modules to create a comprehensive protection strategy. In a typical safety-instrumented system (SIS) or basic process control system (BPCS) cabinet, the KFD2-VM-EX1.35 is often installed alongside the KFD2-STC4-Ex1 SMART transmitter power supply, which provides loop power and signal conditioning for 4–20 mA HART transmitters in the same Ex Zone 1 environment. Together, these modules share the KFD2 power rail, simplifying cabinet wiring and reducing the number of individual power supply connections.

For temperature measurement loops — common in petrochemical reactors and heat exchangers — the KFD2-UT2-Ex1 universal temperature converter complements the KFD2-VM-EX1.35 by handling thermocouple and RTD inputs, while the VM module manages voltage-based transmitter outputs. In cabinets where relay output switching is required for interlock or alarm functions, the KFD2-SR2-Ex2.W solenoid driver and relay module integrates seamlessly into the same DIN rail assembly, ensuring that control commands are executed with the same level of galvanic isolation and surge protection.

Power quality is a critical concern in heavy industrial environments. Voltage surges caused by lightning strikes, capacitor bank switching, or large motor starts can propagate through field wiring and damage unprotected signal conditioning equipment. The KFD2-VM-EX1.35’s internal surge protection, combined with external MTL Surge Protection Devices (SPDs) installed at the field terminal barrier, creates a layered defence against transient overvoltages. For facilities operating PROFIBUS PA or FOUNDATION Fieldbus networks, the KFD2-HMM-16 HART multiplexer and associated fieldbus segment couplers provide communication-layer protection, ensuring that network anomalies do not cascade into measurement errors at the KFD2-VM-EX1.35 input.

In applications where the control cabinet must interface with both Ex Zone 1 field devices and safe-area PLC/DCS systems, the KFD2-CD-Ex1.32 namur signal conditioner and KFD2-GU-Ex1 galvanic isolation amplifier provide additional signal path options, allowing engineers to standardise on the KFD2 SMART platform across the entire cabinet. This standardisation reduces spare parts inventory complexity, simplifies maintenance training, and ensures that replacement modules are always interchangeable — a significant operational advantage in remote or offshore installations where procurement lead times are long.

Critical Industrial Safety Applications

The KFD2-VM-EX1.35 is deployed across a wide spectrum of safety-critical industrial environments where measurement accuracy and signal isolation are non-negotiable.

Petrochemical and Refining: In crude distillation units, catalytic crackers, and hydrocracker control systems, the KFD2-VM-EX1.35 conditions voltage signals from pressure transmitters and level gauges located in Ex Zone 1 classified areas. Its galvanic isolation prevents ground potential differences between field instruments and the control room DCS from introducing measurement errors that could lead to incorrect valve positioning or missed high-pressure alarms.

Power Generation: Thermal power stations and combined-cycle gas turbine (CCGT) plants rely on precise voltage measurement for generator excitation monitoring, transformer tap-changer control, and auxiliary system supervision. The KFD2-VM-EX1.35 provides the signal conditioning interface between field-mounted transducers and the plant DCS, maintaining measurement integrity even in the presence of strong electromagnetic fields generated by high-voltage switchgear and bus bars.

Mining and Mineral Processing: Underground mining operations and surface processing plants present extreme challenges for signal conditioning equipment — high dust concentrations, humidity, mechanical vibration from crushers and conveyors, and frequent electrical transients from large drive systems. The KFD2-VM-EX1.35’s robust construction and high EMC immunity make it well-suited for these environments, where signal conditioner failure can halt production and create safety hazards for personnel.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the KFD2-VM-EX1.35 to interface voltage-output analytical instruments — including pH transmitters, dissolved oxygen sensors, and turbidity meters — with SCADA systems. The module’s isolation capability is particularly important in these applications, where electrochemical processes can create ground currents that corrupt sensitive analytical measurements.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mill control systems generate intense electromagnetic interference. The KFD2-VM-EX1.35 provides the signal isolation necessary to maintain reliable communication between field sensors and the process control system, preventing spurious trips and ensuring consistent product quality.

Port and Marine Applications: Shipboard automation systems and port terminal control infrastructure require signal conditioning equipment that can withstand salt-laden atmospheres, vibration from vessel motion or heavy machinery, and the electrical noise generated by large crane drives and ship propulsion systems. The KFD2-VM-EX1.35 meets these requirements, providing reliable signal conditioning in marine-grade control panels.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the KFD2-VM-EX1.35?
Every KFD2-VM-EX1.35 supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty against manufacturing defects and functional failure. If the unit fails to perform to specification within the warranty period under normal operating conditions, we will provide a replacement or repair at no additional cost. Our warranty support is backed by in-house technical expertise and a dedicated after-sales team.

Q2: How is the KFD2-VM-EX1.35 tested before shipment?
All units undergo full functional verification testing prior to dispatch. This includes input/output signal accuracy checks, isolation resistance measurement, and power supply compatibility verification. Test records are available upon request. We do not ship untested stock — every module is confirmed operational before it leaves our facility.

Q3: Is this a direct replacement for the original Pepperl+Fuchs KFD2-VM-EX1.35?
Yes. The KFD2-VM-EX1.35 we supply is a compatible replacement solution that matches the original module’s form factor, electrical specifications, and DIN rail mounting configuration. It is designed for direct installation into existing KFD2 SMART bus systems without modification to cabinet wiring or DCS configuration. For applications requiring OEM-certified parts, please contact our technical team to discuss your specific requirements.

Q4: Can long-term supply arrangements be made for ongoing maintenance programmes?
Absolutely. NINERMAS specialises in supporting long-term spare parts programmes for industrial facilities with ageing control systems. We maintain stock of KFD2 SMART series modules and can establish scheduled supply agreements to ensure your maintenance team always has critical spares available. Contact us to discuss volume pricing, consignment stock arrangements, and priority fulfilment for planned shutdown periods.
