Pepperl+Fuchs NJ1,5-8GM-N Service-Ready Spare Part

Pepperl+Fuchs NJ1,5-8GM-N Service-Ready Spare Part: Spare Parts Replacement & Downtime Risk Control

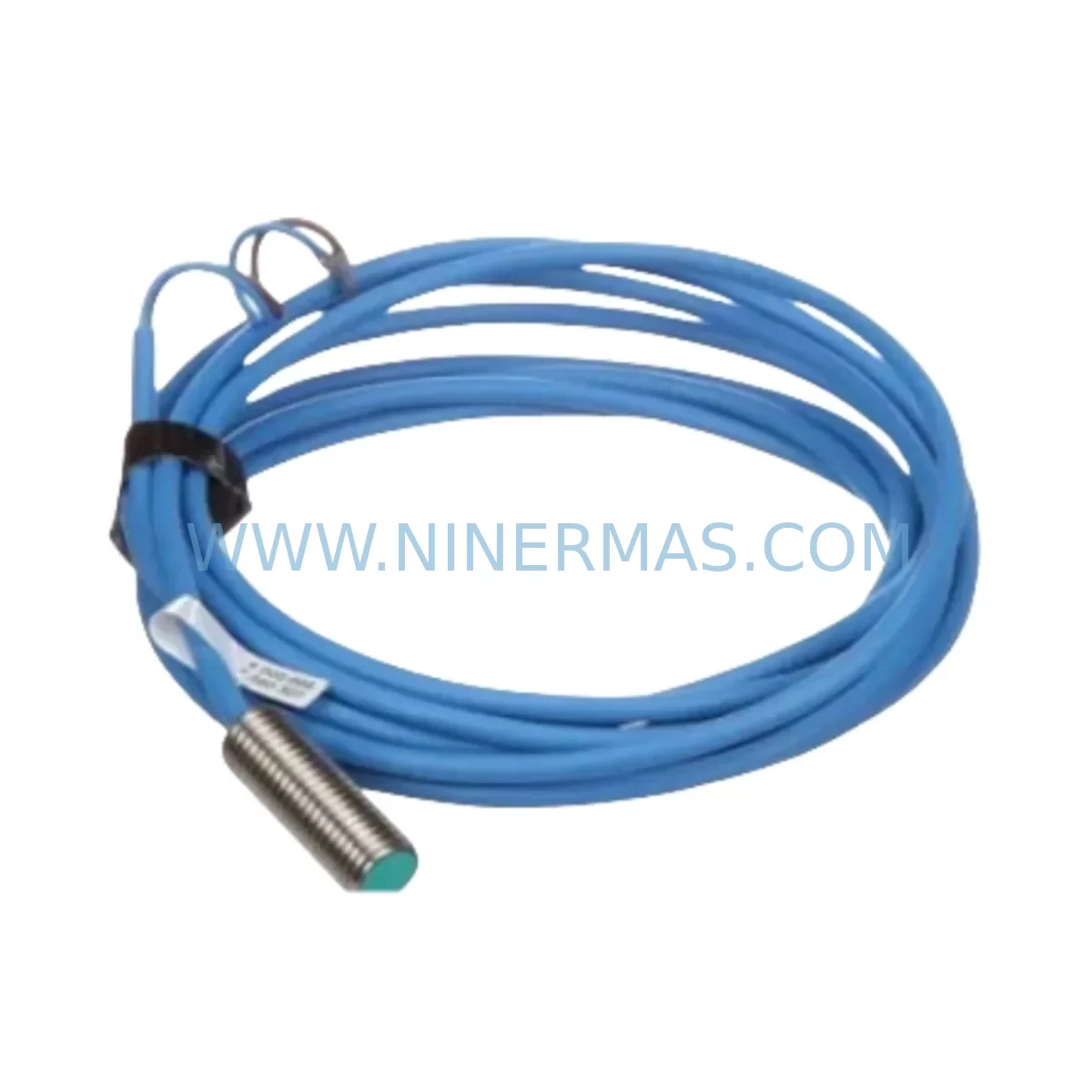

The Pepperl+Fuchs NJ1,5-8GM-N is a ruggedized M8 inductive proximity sensor engineered for demanding industrial environments. With a 1.5 mm sensing range, flush-mountable design, and NPN normally-open output, this sensor is a critical detection component in automated production lines, conveyor systems, robotic cells, and PLC-controlled machinery. When this sensor fails or degrades, the result is often an immediate line stop — making rapid spare part availability a top priority for maintenance and procurement engineers alike.

At NINERMAS, we supply the NJ1,5-8GM-N as a service-ready spare part, fully tested before shipment, backed by a 12-month warranty, and available for long-term supply agreements. Whether you are managing a planned annual overhaul, responding to an emergency breakdown, or building a preventive maintenance inventory, this sensor is stocked and ready to ship.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The NJ1,5-8GM-N is rarely the only component at risk when a sensor fault is detected. Experienced maintenance engineers know that a single sensor failure often signals broader wear across the detection circuit and associated control hardware. When replacing this sensor, a thorough site inspection should include the following components:

First, verify the integrity of the 24 VDC power supply rail feeding the sensor circuit — voltage fluctuations or ripple can accelerate sensor wear and cause intermittent faults. Check the associated Pepperl+Fuchs NBB or NJ series sensors installed in the same zone, as sensors in similar operating conditions tend to degrade at comparable rates. Inspect the digital input (DI) module on your PLC — whether a Siemens SM321, a Mitsubishi QX40, or an equivalent — for signs of input channel degradation caused by repeated switching transients.

Review the terminal blocks and field wiring connecting the sensor to the I/O module. Loose terminals, corroded contacts, or damaged cable shielding are common root causes of intermittent sensor signals that are often misdiagnosed as sensor failure. If the sensor is connected via an M8 or M12 connector and cordset, inspect the connector body for mechanical damage and replace the cordset if the outer jacket shows cracking or abrasion.

For installations where the NJ1,5-8GM-N feeds a safety or interlock circuit, also inspect the associated safety relay module (such as a Pilz PNOZ or Schmersal SRB series) and verify that the relay contacts remain within specification. In control cabinet environments, check the 24 VDC fuse or circuit breaker protecting the sensor supply branch — a nuisance trip history may indicate an underlying wiring fault rather than a sensor problem.

If the sensor is part of a larger Pepperl+Fuchs fieldbus or AS-Interface installation, inspect the AS-i power supply module and AS-i master gateway for firmware currency and communication error logs. Finally, for high-cycle applications, consider scheduling replacement of the NJ1,5-8GM-N alongside other M8 inductive sensors in the same production cell as part of a block replacement strategy — this approach minimizes future unplanned downtime and simplifies spare parts inventory management.

Site Replacement Workflow

Replacing the NJ1,5-8GM-N on-site is a straightforward process when the correct spare is on hand. Begin by isolating the machine or conveyor section and locking out the energy source per your site LOTO procedure. Disconnect the sensor cable or M8 connector and unscrew the M8 threaded body from its mounting bracket. Note the installation depth and any shim or spacer used to achieve the correct sensing gap.

Install the new NJ1,5-8GM-N to the same depth, reconnect the wiring in the correct polarity (Brown = +24V, Blue = 0V, Black = Output), and restore power. Use a steel target of appropriate size to verify the output switches at the expected sensing distance before returning the machine to service. If the replacement sensor is connected to a PLC DI module, confirm the input status in the PLC diagnostic screen or HMI before releasing the line.

For legacy systems where the original NJ1,5-8GM-N has been discontinued or is difficult to source, the NJ1,5-8GM-N remains a direct form-fit-function replacement for earlier Pepperl+Fuchs M8 NPN flush sensors in the same series. No parameter changes or PLC program modifications are required for a like-for-like swap, making this one of the lowest-risk spare part substitutions in the inductive sensor category.

Maintaining a minimum stock of two to four units per production line is recommended for facilities with high sensor utilization rates. NINERMAS supports long-term supply agreements with fixed pricing, ensuring your procurement team can plan annual MRO budgets without exposure to spot-market price volatility.

Spare Parts Support FAQ

Q1: Is the NJ1,5-8GM-N covered by a warranty, and what does it include?
Yes. Every NJ1,5-8GM-N supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is functionally tested before dispatch, and a test report is available upon request.

Q2: How do I confirm compatibility with my existing PLC or I/O system before ordering?
The NJ1,5-8GM-N is a standard NPN NO 3-wire sensor with a 10–30 V DC supply range, compatible with the vast majority of industrial PLC digital input modules. If you require confirmation for a specific DI module or safety relay circuit, send your system details to sale@ninermas.com and our technical team will verify compatibility before you place the order.

Q3: Can NINERMAS support long-term or repeat supply of this part?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation components, including sensors, power supplies, I/O modules, and communication hardware. We maintain stock of the NJ1,5-8GM-N and can establish a scheduled delivery agreement to support your annual maintenance plan or MRO inventory program.

Q4: What is the lead time, and how is the part packaged for shipment?
In-stock units are typically dispatched within 1–3 business days. Each sensor is shipped in its original manufacturer packaging or equivalent protective packaging to prevent transit damage. Express shipping options are available for emergency breakdown situations. Contact us at sale@ninermas.com or +0086 187 5021 5667 for urgent requirements.
