Pepperl+Fuchs KFD2-STC5-1 Retrofit SMART Transmitter Power Supply

Pepperl+Fuchs KFD2-STC5-1 Retrofit SMART Transmitter Power Supply: Legacy-Compatible Upgrade for Industrial Control Systems

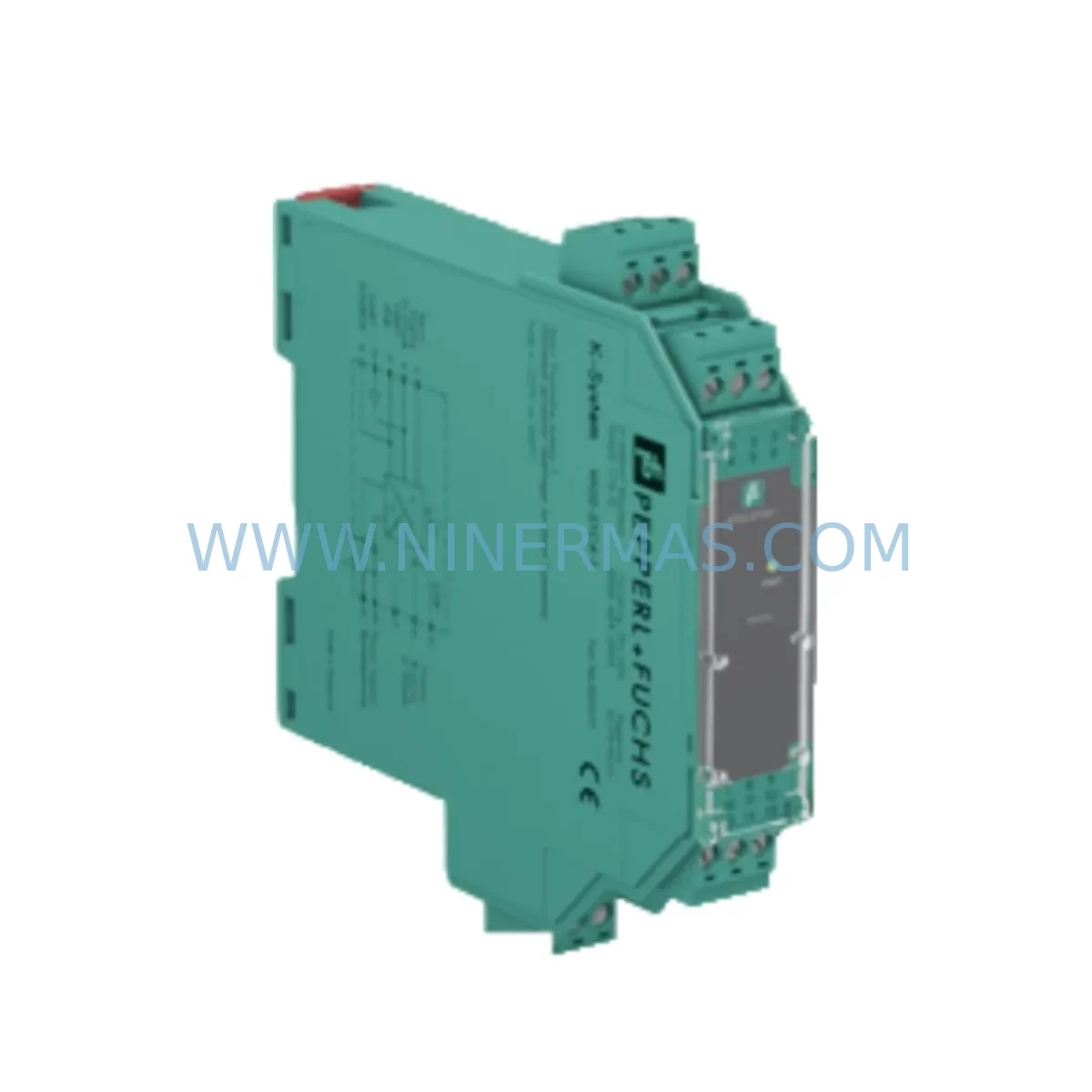

The Pepperl+Fuchs KFD2-STC5-1 is a ruggedized SMART transmitter power supply engineered for demanding process automation environments. As legacy KFD-series installations age and original components reach end-of-life, the KFD2-STC5-1 serves as a proven retrofit solution — enabling engineers to restore, upgrade, or migrate aging control architectures without full system replacement. Whether you are managing a brownfield plant modernization, replacing discontinued field barrier modules, or extending the service life of an existing DCS or PLC cabinet, this unit delivers the electrical performance and protocol compatibility required for a smooth transition.

NINERMAS maintains verified inventory of the KFD2-STC5-1 with full factory traceability, pre-shipment functional testing, and a 12-month warranty on every unit. Lead times are confirmed at order placement, and expedited dispatch is available for critical shutdown or emergency maintenance scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KFD2-STC5-1 into a legacy control system begins well before the module arrives on site. Engineers undertaking a retrofit project should start by auditing the existing KFD2 Power Rail capacity. Each KFD2-series module draws current from the shared Power Rail, and adding or replacing modules in a populated rack requires confirmation that the installed KFD2-GUT-Ex1.D power feed module or equivalent can sustain the combined load. If the rail is near capacity, a supplementary power feed point may be required before the KFD2-STC5-1 is commissioned.

Terminal wiring is typically the most time-sensitive task during a live-system swap. The KFD2-STC5-1 uses the standard KFD2 screw terminal layout, which means field cables from existing pressure transmitters, temperature transmitters, or level sensors can generally be reconnected without re-termination — provided the original installation followed the KFD2 wiring convention. Engineers should photograph and document terminal assignments before removal of the legacy module, particularly in cabinets where wire labeling has degraded over years of service.

For plants running HART-enabled field devices such as Endress+Hauser Cerabar pressure transmitters or Rosemount 3051 series instruments, the KFD2-STC5-1’s HART pass-through capability allows the host asset management system — whether running on a FieldCare, AMS Device Manager, or similar HART master platform — to continue communicating with field devices without reconfiguration. If the legacy barrier being replaced was a non-HART zener barrier, this upgrade also unlocks HART diagnostics for the first time, which can be a significant operational benefit.

In control cabinets where the KFD2-STC5-1 is installed alongside other KFD2-series modules — such as the KFD2-SCD-Ex1.LK solenoid driver, KFD2-UT2-Ex1 universal transmitter supply, or KFD2-SR2-Ex2.2S switch amplifier — backplane slot assignment should be reviewed to ensure adequate spacing for heat dissipation and future maintenance access. Modules in adjacent slots should be documented in the updated cabinet layout drawing.

Where the retrofit involves migrating from an older Pepperl+Fuchs KFD0 or KFA5 series installation to the KFD2 platform, additional planning is required. The KFD0 and KFA5 series use different backplane and power supply architectures, so a rack-level upgrade — including replacement of the backplane assembly and power feed module — is typically necessary before KFD2-STC5-1 modules can be installed. In these scenarios, NINERMAS can assist with bill-of-materials development to identify all required components for a complete rack migration.

For systems where the PLC or DCS analog input cards — such as Siemens SM 331 or Rockwell 1756-IF16 — are also being reviewed as part of a broader modernization, the 4–20 mA output of the KFD2-STC5-1 remains fully compatible with standard analog input ranges, eliminating the need for signal conditioning changes at the controller level. If a programming cable or laptop-based configuration tool is required for HART device reconfiguration during commissioning, this should be arranged in advance of the maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing field barrier modules in a live process plant. The KFD2-STC5-1 retrofit process is designed to support a controlled, low-risk swap procedure that protects existing program logic, preserves field signal continuity, and reduces the risk of process upset during the changeover.

The recommended approach is to perform the module swap during a planned maintenance window rather than under emergency conditions. Before the window opens, the replacement KFD2-STC5-1 should be bench-tested against a known-good 4–20 mA source to confirm output behavior, loop supply voltage, and HART communication — all before it enters the cabinet. NINERMAS performs pre-shipment functional testing on every unit, but a site-level incoming inspection adds a further layer of confidence, particularly for critical process loops.

During the swap, the field loop should be placed in manual mode at the DCS or PLC level to prevent false process alarms or automatic control responses triggered by the momentary signal interruption. If the host system supports HART loop current simulation, this can be used to hold the analog value steady at the controller while the physical module is exchanged. After the new KFD2-STC5-1 is seated and wired, the loop should be brought back to automatic control gradually, with the field device output verified against the DCS display before releasing the loop to full automatic operation.

For multi-loop cabinets where several KFD2-STC5-1 units are being replaced in a single maintenance window, a sequential swap approach — replacing one module at a time and verifying each loop before proceeding — is strongly recommended over a simultaneous bulk replacement. This approach limits the blast radius of any wiring error and allows the maintenance team to isolate and correct issues without affecting adjacent loops.

Original PLC or DCS program logic does not require modification when replacing a KFD2-STC5-1 on a like-for-like basis. The 4–20 mA signal range, loop impedance characteristics, and HART protocol behavior are preserved, so existing analog input scaling, alarm setpoints, and control loop parameters remain valid. HMI faceplates and SCADA trend displays will continue to function without tag reconfiguration.

Retrofit Support FAQ

Q: Is the KFD2-STC5-1 a direct replacement for older KFD2-series transmitter power supplies?
A: Yes. The KFD2-STC5-1 is designed as a plug-compatible replacement within the KFD2 backplane ecosystem. It uses the same DIN rail footprint, Power Rail interface, and terminal pinout as other KFD2-series modules, making it suitable for direct slot-for-slot substitution in existing racks. For replacements from KFD0 or KFA5 series, a rack-level migration plan is required.

Q: What pre-commissioning checks are required before installing the KFD2-STC5-1 in a live cabinet?
A: Key checks include: (1) Power Rail load capacity — confirm the existing power feed module supports the additional current draw; (2) terminal wiring documentation — photograph and record all field connections before removal of the legacy module; (3) HART master compatibility — verify the host system’s HART revision supports the field devices connected through the new barrier; (4) entity parameter verification — confirm the intrinsic safety entity parameters of the KFD2-STC5-1 are compatible with the connected field device’s input parameters.

Q: Does NINERMAS provide functional testing before shipment, and what does the 12-month warranty cover?
A: Every KFD2-STC5-1 unit shipped by NINERMAS undergoes pre-shipment functional testing to verify loop supply output, signal pass-through, and terminal integrity. The 12-month warranty covers manufacturing defects and functional failures occurring under rated operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or use outside the specified environmental range. Warranty claims are supported directly by NINERMAS with replacement unit dispatch upon fault confirmation.

Q: What is the typical lead time, and is expedited shipping available for emergency maintenance?
A: Standard lead time is confirmed at order placement based on current inventory status. NINERMAS maintains stock of the KFD2-STC5-1 and can support expedited dispatch for emergency maintenance and unplanned shutdown scenarios. Contact the sales team directly to confirm availability and arrange priority shipment.
