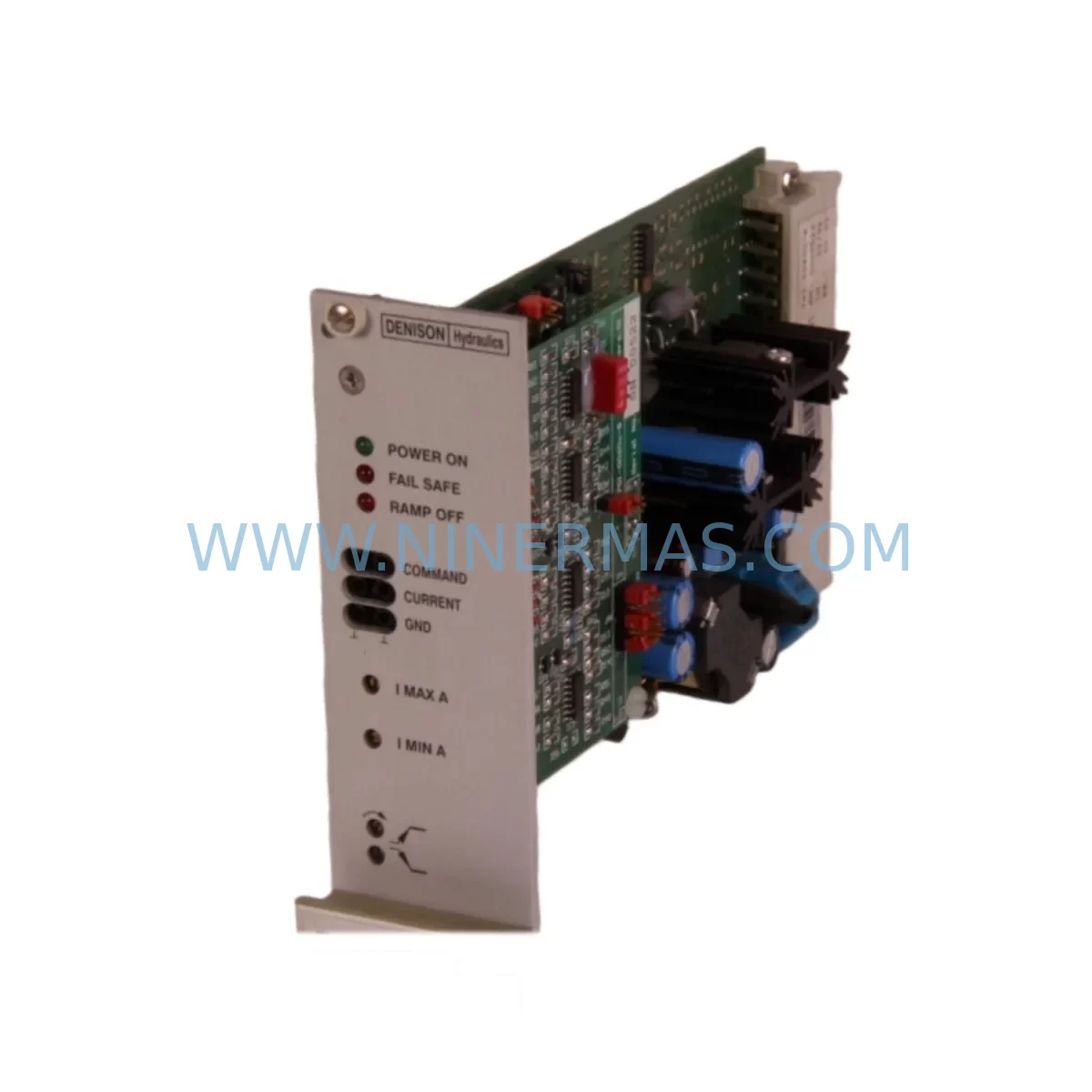

Parker Denison 701-00600-8 Retrofit Proportional Amplifier

Parker Denison 701-00600-8 Retrofit-Compatible Proportional Amplifier for Legacy Hydraulic Control Systems

The Parker Denison 701-00600-8 is a ruggedized proportional amplifier module engineered for demanding industrial environments. As legacy hydraulic and motion control systems age out of manufacturer support, the 701-00600-8 has become a critical component in retrofit projects, discontinued spare parts replacement programs, and control cabinet modernization initiatives across process industries, heavy manufacturing, and mobile equipment applications. Whether you are restoring a decommissioned production line, extending the service life of an existing Parker Denison proportional valve system, or migrating from an obsolete amplifier platform, the 701-00600-8 provides a reliable, field-proven upgrade path with minimal disruption to existing wiring and control architecture.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Parker Denison 701-00600-8 into an existing control system requires careful pre-installation planning. Engineers undertaking a retrofit should begin by auditing the existing control cabinet layout to confirm available DIN rail space and verify that the existing 24 VDC power supply — often a Siemens SITOP or Phoenix Contact QUINT series unit — can support the additional load of the replacement amplifier module without exceeding rated capacity.

Terminal wiring is a critical step. The original wiring diagram for the legacy amplifier must be located and cross-referenced against the 701-00600-8 terminal assignment. In many retrofit scenarios, the command signal originates from a PLC analog output module — such as a Siemens S7-300 SM 332 or an Allen-Bradley 1756-OF8 ControlLogix analog output card — and the signal type (voltage or current loop) must be confirmed before reconnection to avoid amplifier input damage.

Where the existing system uses a Parker Denison proportional directional control valve paired with an older amplifier card, the valve coil resistance and inductance characteristics should be verified to ensure the 701-00600-8 output stage is correctly matched. In systems where multiple proportional axes are controlled from a single rack, the adjacent I/O modules — including digital input cards, encoder feedback modules, and safety relay modules — should be inspected for compatibility with the updated amplifier’s enable and fault signal interfaces.

For systems that include an HMI — whether a legacy Siemens OP277, a Weintek MT8000 series panel, or a modern Rockwell PanelView Plus — the HMI screen associated with the proportional valve axis should be reviewed to confirm that the command scaling, feedback display, and alarm logic remain valid after the amplifier swap. In some cases, the HMI tag database will require minor scaling adjustments to reflect the new amplifier’s gain characteristics.

Communication links between the PLC and upstream SCADA or DCS systems should also be reviewed. Where the proportional valve control loop is supervised by a Modbus RTU or PROFIBUS DP network, the PLC program logic governing the analog output setpoint should be tested in simulation before live commissioning to confirm that the control loop response remains stable with the 701-00600-8 installed.

Installers working in environments where the original Parker Denison amplifier was mounted alongside a Rexroth VT-VSPA1 or a Moog D136 series amplifier in a multi-axis hydraulic press or injection molding machine should pay particular attention to cross-axis interference and shared power rail loading. A signal isolation barrier — such as a Phoenix Contact MCR-SL series isolator — may be advisable where long cable runs or noisy industrial environments are present.

All retrofit work should be completed with a documented pre-commissioning checklist covering power supply verification, terminal torque confirmation, enable signal sequencing, ramp time validation, and a full-stroke valve response test before returning the system to production.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any proportional amplifier replacement project. The 701-00600-8 retrofit process is designed to support a controlled, structured changeover that protects the integrity of the existing PLC program and preserves field control continuity throughout the migration.

Before beginning the physical swap, the existing PLC program should be backed up in full — including all data blocks, function blocks, and hardware configuration files — to a secure offline location. Where the control system uses a Siemens S7-400 or an Allen-Bradley ControlLogix chassis, the program backup should be verified by performing a compare against the online controller image to confirm no unsaved changes are present.

The proportional valve axis should be placed in manual override or safe-state hold before the amplifier is de-energized. In hydraulic press and clamping applications, this typically means retracting the cylinder to a safe mechanical stop and confirming that the hydraulic circuit is depressurized before disconnecting the amplifier output wiring. This step protects both personnel and tooling from uncontrolled actuator movement during the changeover.

Once the 701-00600-8 is physically installed and wired, a staged power-up sequence should be followed: enable the power supply first, confirm the amplifier status LED, then apply the PLC enable signal with the command setpoint held at zero. Ramp time and gain parameters should be set conservatively for the initial commissioning run and adjusted incrementally to match the original system response. This approach limits the risk of valve oscillation or pressure spike during the first live cycle.

Total planned downtime for a single-axis proportional amplifier replacement — including wiring, parameter setup, and functional test — is typically achievable within a two- to four-hour maintenance window when the retrofit is well-prepared. Stocking the 701-00600-8 as a certified spare in the plant maintenance inventory further reduces exposure to extended downtime in the event of an unplanned amplifier failure.

Retrofit Support FAQ

Q1: Is the Parker Denison 701-00600-8 a direct drop-in replacement for other 701-series amplifier variants?
The 701-00600-8 shares the same platform architecture as other Parker Denison 701-series proportional amplifier modules, but terminal pinout, gain range, and enable logic should be verified against the specific variant being replaced. We recommend cross-referencing the original amplifier’s wiring diagram and parameter sheet before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What commissioning steps are required after installing the 701-00600-8?
After physical installation and wiring, the amplifier requires gain, ramp, and dither parameter adjustment to match the response characteristics of the connected proportional valve. These adjustments are made via onboard potentiometers or, where applicable, a programming interface. A full-stroke valve response test under controlled conditions should be completed before returning the axis to automatic control.

Q3: Can the 701-00600-8 be used with both voltage and current command signals from the PLC?
The 701-00600-8 supports configurable analog command input. The signal type — ±10V voltage or 4–20mA current loop — must be confirmed and set correctly to match the PLC analog output module in use. Incorrect signal type configuration is a common source of commissioning issues in retrofit projects and should be verified before power-up.

Q4: What are the inventory availability and warranty terms for the 701-00600-8?
NINERMAS maintains stock of the Parker Denison 701-00600-8 to support urgent retrofit and breakdown replacement requirements. All units are subject to pre-shipment functional testing and are covered by a 12-month warranty from the date of shipment. Lead time and current stock levels can be confirmed by contacting our sales team directly.
