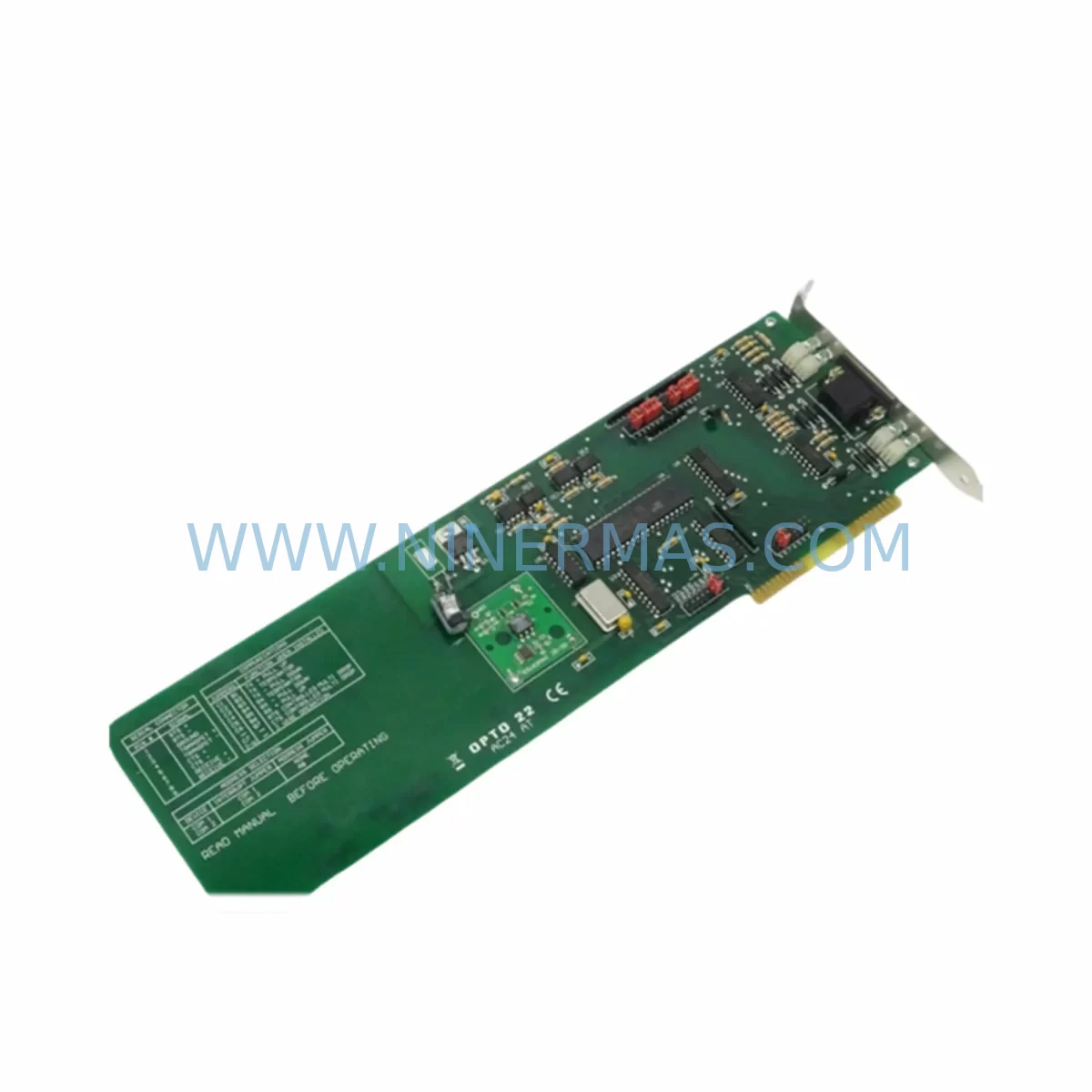

OPTO 22 001818K AC24 AT Safety-Reliable I/O Module for Critical Control Sites

OPTO 22 001818K AC24 AT Safety-Reliable I/O Module for Critical Control Sites

The OPTO 22 001818K AC24 AT is a solid-state I/O module engineered for the AC24 series rack system, delivering safety-reliable discrete control in the most demanding industrial environments. Designed for continuous production lines, critical interlock circuits, and high-density control cabinets, this module eliminates the mechanical wear and contact bounce associated with electromechanical relays — reducing the risk of control interruption, false actuation, and unplanned downtime in safety-critical field installations.

NINERMAS maintains verified in-stock inventory of the OPTO 22 001818K AC24 AT, supported by pre-shipment functional testing and a 12-month quality warranty. Each unit is inspected against OPTO 22 factory specifications before dispatch, ensuring field-ready reliability for replacement and lifecycle extension programs.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-density control cabinets serving continuous process industries, a single point of I/O failure can cascade into a full interlock trip or emergency shutdown. The OPTO 22 001818K AC24 AT addresses this risk through solid-state switching technology that eliminates contact degradation, reduces heat generation, and maintains signal integrity even under sustained load cycles.

When integrated into an AC24 rack alongside the OPTO 22 G4OAC5MA AC output module and the OPTO 22 G4IAC5A AC input module, the 001818K AC24 AT forms a complete, optically isolated I/O tier capable of handling both discrete sensing and actuation in the same cabinet footprint. For power conditioning upstream, pairing with a OPTO 22 PS5 power supply or equivalent 5 VDC logic supply ensures stable backplane voltage under fluctuating grid conditions — a common source of I/O lockup in remote substations and offshore platforms.

In installations where surge protection is critical — such as motor control centers near variable frequency drives or high-inrush transformer switching — the 001818K AC24 AT’s optical isolation barrier provides a 4,000 V dielectric boundary between field wiring and logic circuits. This is complemented by surge suppression devices such as the Phoenix Contact TRABTECH VAL-MS 230 AC or equivalent transient voltage suppressors installed at the cabinet entry point, protecting both the I/O module and the upstream OPTO 22 SNAP-PAC-R1 controller or legacy OPTO 22 OPTOMUX brain board from voltage spikes induced by inductive load switching.

For communication integrity in Modbus RTU or Ethernet/IP architectures, the 001818K AC24 AT operates transparently under the rack’s backplane protocol, reducing the risk of communication anomalies caused by noisy field wiring. When used alongside OPTO 22 SNAP-SCM-485 serial communication modules or SNAP-ENET-S64 Ethernet brain boards, the system maintains deterministic scan cycle performance even in high-EMI environments such as arc furnace control rooms or high-voltage switchgear buildings.

For safety loop integrity, the module’s zero-crossing switching characteristic minimizes inrush current to resistive and inductive loads — reducing thermal stress on contactors, solenoid valves, and motor starters that form part of the safety instrumented system (SIS). This is particularly valuable in SIL-rated interlock circuits where spurious trips caused by voltage transients must be minimized.

Critical Industrial Safety Applications

The OPTO 22 001818K AC24 AT is deployed across a broad range of critical industrial sectors where control reliability directly impacts personnel safety, environmental compliance, and production continuity:

Petrochemical and Refining: Used in emergency shutdown (ESD) panel I/O racks controlling actuated valves, blowdown systems, and flare ignition circuits. The module’s optical isolation prevents ground loop interference from long cable runs in hazardous area installations.

Power Generation and Transmission: Installed in turbine control panels and substation automation cabinets where AC output switching must be reliable across wide temperature ranges and under sustained vibration from rotating machinery. The solid-state design eliminates relay chatter that can cause false trip signals in generator protection relays.

Mining and Mineral Processing: Applied in conveyor interlock systems, crusher control panels, and ventilation fan control circuits where dust ingress and high ambient temperatures degrade electromechanical components. The 001818K AC24 AT’s sealed solid-state construction maintains performance in IP54 and higher enclosure environments.

Water and Wastewater Treatment: Controls pump motor starters, valve actuators, and chemical dosing systems in wet, corrosive environments. The module’s resistance to humidity and condensation makes it suitable for outdoor pump station control panels.

Metallurgy and Steel Production: Deployed in rolling mill control systems and furnace automation panels where high electromagnetic interference from induction heating equipment and large motor drives demands robust I/O isolation.

Port and Marine Applications: Used in crane control systems, mooring winch panels, and ship-to-shore power management where vibration, salt air, and wide temperature swings challenge conventional relay-based I/O.

Continuous Manufacturing: Integrated into packaging line PLCs, filling machine control panels, and conveyor sortation systems requiring high-cycle-rate switching without contact wear — supporting OEE improvement and reducing maintenance-related downtime.

Safety and Quality FAQ

Q1: Does the OPTO 22 001818K AC24 AT come with a warranty?
Yes. Every unit supplied by NINERMAS carries a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed on the 001818K AC24 AT?
Each module undergoes functional switching verification and dielectric isolation testing before dispatch. Test records are available upon request for quality-critical procurement programs. Units that do not meet OPTO 22 factory specifications are quarantined and not shipped.

Q3: Is the 001818K AC24 AT compatible with current OPTO 22 rack systems?
The 001818K AC24 AT is designed for the OPTO 22 AC24 rack series and is also compatible with G4 series racks and legacy PAMUX backplane systems. For specific rack-to-module compatibility confirmation, contact NINERMAS technical support with your rack model number before ordering.

Q4: Can NINERMAS support long-term spare parts supply for the 001818K AC24 AT?
Yes. NINERMAS specializes in lifecycle extension supply programs for aging industrial control systems. We maintain buffer stock of the 001818K AC24 AT and can support scheduled maintenance programs, annual blanket orders, and emergency replacement dispatch for critical plant operations.
