OMEGA DPF64-SQRT Service-Ready Spare for Industrial Maintenance

OMEGA DPF64-SQRT Service-Ready Spare Part for Industrial Maintenance

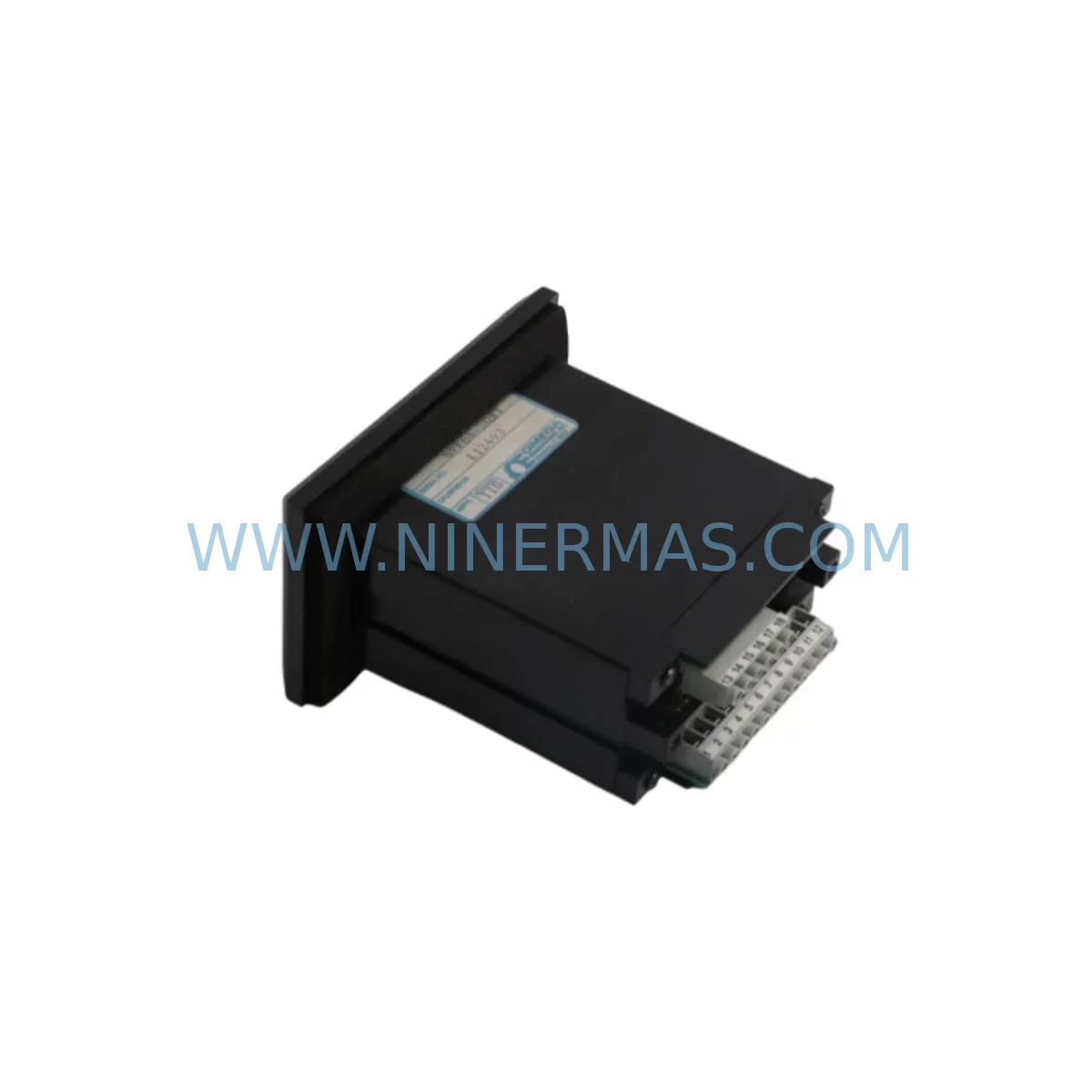

The OMEGA DPF64-SQRT is a ruggedized rate meter and totalizer module engineered for demanding industrial environments. Featuring built-in square root extraction, this unit is widely deployed in flow measurement applications across oil & gas, water treatment, chemical processing, and power generation facilities. As a direct service-ready spare, the DPF64-SQRT enables maintenance teams to execute rapid panel replacements, restore process visibility, and minimize unplanned downtime without requiring custom reconfiguration of the surrounding control architecture.

For facilities operating legacy OMEGA DPF-series instrumentation, maintaining a stocked DPF64-SQRT spare is a proven strategy for reducing mean time to repair (MTTR). The module accepts standard analog inputs and interfaces directly with existing panel cutouts, terminal blocks, and signal wiring — eliminating the need for mechanical modifications during emergency replacement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for systems incorporating the OMEGA DPF64-SQRT requires a holistic review of the surrounding instrumentation loop. When scheduling a replacement or annual inspection, maintenance engineers should simultaneously verify the condition of the OMEGA DPF64-AL alarm output module and the OMEGA DPF64-C24 24 VDC power supply card, as these components share the same backplane power rail and are subject to equivalent thermal aging cycles.

Signal integrity upstream of the DPF64-SQRT depends on the health of the flow transmitter loop. Engineers should inspect the OMEGA FMA series mass flow transmitter or equivalent 4–20 mA flow sensor feeding the meter input. A degraded transmitter will produce erratic rate readings even after a successful meter replacement, leading to unnecessary repeat callouts. Inline signal isolators — such as the OMEGA DRSL series DIN-rail signal conditioner — should be checked for drift and replaced on a 5-year cycle alongside the meter module.

Terminal block integrity is a frequently overlooked failure point. The screw terminals feeding the DPF64-SQRT input and relay output circuits should be inspected for oxidation, loose torque, and insulation degradation. Phoenix Contact or Weidmüller-compatible terminal blocks rated for the panel’s operating voltage are recommended replacements. Where relay outputs drive external contactors or solenoid valves, the OMEGA SS series solid-state relay can be evaluated as a longer-life alternative to mechanical SPDT contacts.

For panels with RS-485 communication links, the integrity of the serial bus connecting the DPF64-SQRT to a SCADA host or OMEGA DP25B-E Ethernet gateway should be confirmed. Cable shielding continuity, termination resistor values, and node addressing must be re-verified after any meter swap to prevent bus conflicts. Where legacy RS-232 links are in use, an OMEGA iSeries USB-to-serial programming cable simplifies re-parameterization without requiring a dedicated laptop COM port.

Procurement engineers managing MRO inventory for multi-site facilities should consider stocking the DPF64-SQRT alongside the OMEGA DPF700-R remote display module and the OMEGA CNi series process controller, which share compatible analog input architectures and are frequently co-located in the same control cabinet. Consolidating spare holdings across these compatible product families reduces per-unit carrying cost and simplifies annual inventory audits.

Site Replacement Workflow

Replacing the OMEGA DPF64-SQRT on an active production line follows a structured sequence designed to protect program logic, preserve setpoint configurations, and minimize panel downtime:

Step 1 — Pre-Replacement Documentation: Record all current setpoint values, scaling parameters, decimal point positions, relay trip points, and communication addresses displayed on the existing unit. Photograph the terminal wiring before disconnection. If the unit retains RS-485 node addressing, note the baud rate and parity settings from the existing configuration menu.

Step 2 — Loop Isolation: Place the upstream flow transmitter in manual hold or bypass mode at the DCS/PLC level to prevent false flow alarms during the swap. Notify the control room operator before proceeding. If the relay outputs drive critical interlock circuits, confirm that the interlock logic is in a safe state before de-energizing the meter.

Step 3 — Panel Removal: De-energize the panel section feeding the DPF64-SQRT. Disconnect the signal input wiring, relay output terminals, power supply leads, and communication cable in sequence. Release the panel-mount retaining clips and withdraw the unit from the front of the panel cutout.

Step 4 — Spare Installation: Insert the replacement DPF64-SQRT into the existing panel cutout. Reconnect all wiring in reverse order, verifying terminal torque to manufacturer specification. Restore power and confirm the display initializes correctly before re-entering configuration parameters.

Step 5 — Re-Parameterization and Verification: Enter all recorded setpoint, scaling, and communication parameters. Restore the upstream transmitter from bypass and verify that the displayed rate matches the expected process value. Confirm relay output operation against the interlock logic before returning the panel to normal service.

This five-step workflow typically achieves a complete panel restoration within 45–90 minutes, depending on the complexity of the relay interlock circuit and the number of communication parameters requiring re-entry. Pre-configuring the replacement unit on the bench before the maintenance window further reduces in-panel time.

Spare Parts Support FAQ

Q1: Is the DPF64-SQRT a direct drop-in replacement for other DPF64 series variants?
The DPF64-SQRT shares the same 1/8 DIN panel cutout dimensions and terminal layout as other DPF64 series models. The primary functional difference is the built-in square root extraction, which is required for differential-pressure-based flow measurement. If your existing installation uses a linear input signal, the DPF64-SQRT can be configured to bypass the square root function, making it a compatible substitute across the DPF64 product family.

Q2: What pre-shipment testing is performed before dispatch?
Each DPF64-SQRT unit undergoes functional verification prior to shipment, including power-on display test, analog input calibration check, relay output continuity verification, and communication port response confirmation where applicable. A test record is retained for quality traceability. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: Can long-term supply be guaranteed for this model?
We maintain dedicated inventory holdings for the OMEGA DPF64-SQRT to support ongoing MRO procurement requirements. For facilities with multi-unit installations or planned maintenance schedules, we recommend confirming availability and lead times in advance. Blanket purchase orders and scheduled delivery arrangements are available for high-volume or time-critical procurement programs.

Q4: What warranty coverage applies to this spare part?
All DPF64-SQRT units supplied carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team, with replacement or repair options available depending on fault diagnosis. The warranty period commences from the date of shipment confirmation.
