OMEGA DPF64-SQRT Retrofit-Compatible Flow Meter for Legacy Systems

OMEGA DPF64-SQRT Retrofit-Compatible Flow Meter: Legacy System Upgrade & Smooth Migration

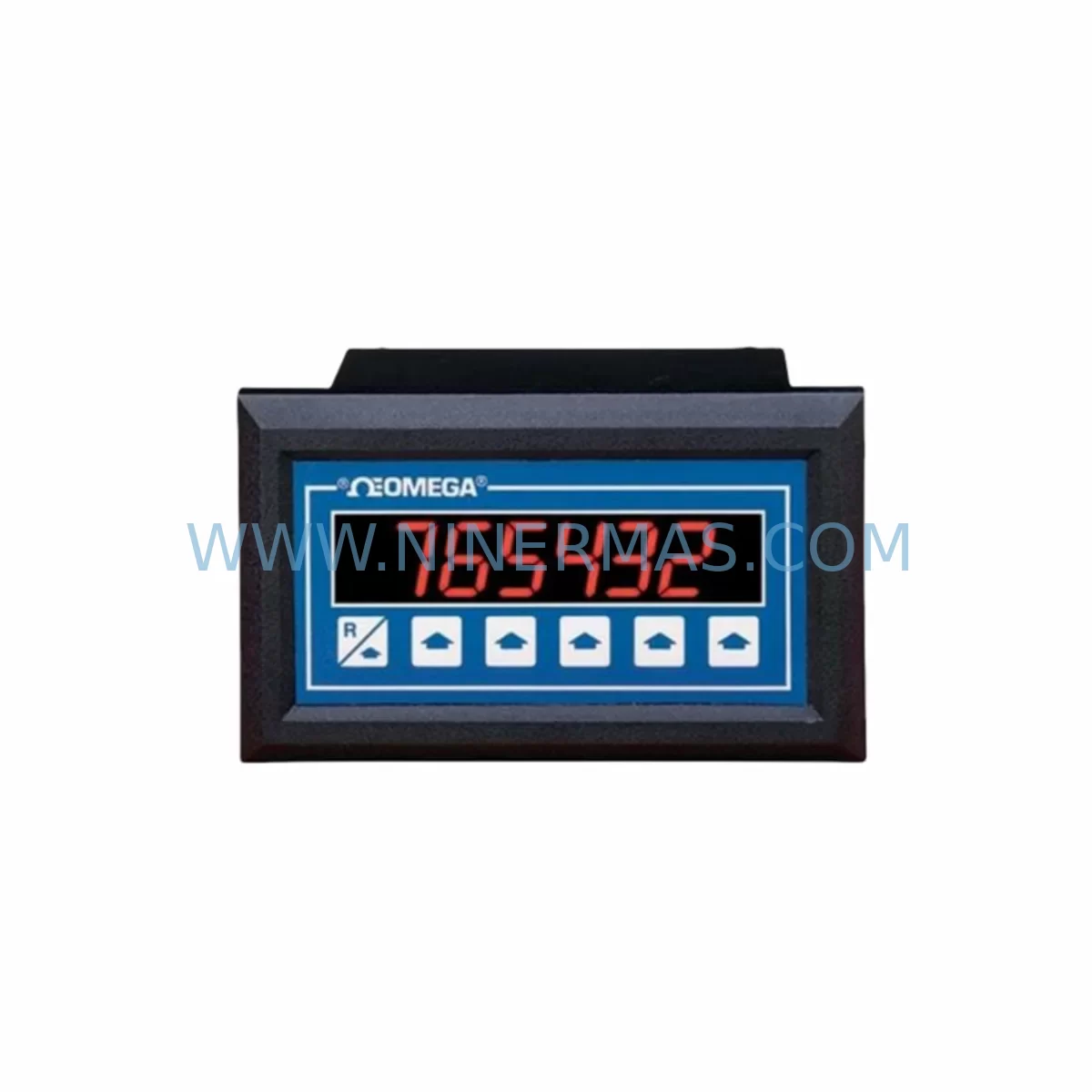

The OMEGA DPF64-SQRT is a high-performance digital flow panel meter with integrated square root extraction, engineered for accurate volumetric and mass flow measurement in industrial process environments. As legacy DPF Series installations age beyond their service life, the DPF64-SQRT provides a proven, retrofit-compatible replacement path that preserves existing panel cutouts, signal wiring, and operator interface conventions — minimising engineering rework and unplanned downtime during system modernisation.

Operating on a universal 110/220VAC power supply, the DPF64-SQRT accepts differential-pressure transmitter signals and applies a real-time square root algorithm to deliver linearised flow readings directly on its front-panel display. This makes it a direct functional replacement for discontinued OMEGA DPF Series meters and compatible alternatives from comparable panel-mount flow totaliser families. For facilities managing ageing control cabinets, the unit’s standard 1/8 DIN panel cutout (96 × 48 mm) eliminates the need for panel modification, reducing installation labour and preserving cabinet integrity.

Whether you are restoring a decommissioned flow measurement loop, upgrading a legacy SCADA-connected metering station, or consolidating multiple obsolete indicators into a standardised platform, the DPF64-SQRT delivers the measurement accuracy, display clarity, and signal compatibility required for critical process applications in oil & gas, water treatment, chemical processing, and power generation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the OMEGA DPF64-SQRT into an existing automation environment requires a structured pre-installation review. Begin by auditing the existing flow measurement loop: confirm the differential pressure transmitter model, its calibrated range, and the signal type it outputs. In many legacy installations, the transmitter may be an older OMEGA PX Series or equivalent DP cell wired directly to the panel meter — the DPF64-SQRT accepts this signal natively, but the square root extraction must be configured to match the transmitter’s span.

For cabinets that also house OMEGA DP25B or DP41 series process meters, the DPF64-SQRT can be installed in adjacent panel slots without electrical interference, provided each instrument has its own isolated power feed. If the cabinet includes an OMEGA CN Series temperature controller or a DP24-E process indicator on the same 24VDC bus, verify that the total current draw does not exceed the power supply’s rated output — a common oversight during panel upgrades that leads to nuisance trips.

Where the legacy system includes a programmable logic controller (PLC) — such as an older Allen-Bradley SLC 500 or a GE Series 90-30 — connected to the flow meter via a serial link, the DPF64-SQRT’s optional RS-485 Modbus RTU interface allows direct re-integration without replacing the PLC’s communication module. Update the Modbus register map in the PLC program to reflect the DPF64-SQRT’s register layout, and test the polling cycle under live process conditions before final commissioning.

If the installation includes an OMEGA RD100 series paperless recorder or a third-party data logger connected to the meter’s analogue retransmission output, confirm the retransmission signal range (typically 4–20 mA) and re-scale the recorder channel accordingly. For systems using OMEGA DAQPRO or OM-CP series data acquisition modules, the DPF64-SQRT’s pulse output can serve as a direct totaliser input, preserving batch counting logic without reprogramming.

In multi-loop control cabinets where space is constrained, the DPF64-SQRT’s compact 1/8 DIN form factor allows side-by-side installation with OMEGA CNi Series controllers or DP3002 series indicators, maintaining a consistent operator interface across the panel face. Label all terminal blocks clearly after rewiring, and photograph the original wiring before removal to support future maintenance reference.

Downtime Control During System Migration

Minimising process downtime during a flow meter replacement requires careful pre-staging and a disciplined cutover sequence. Before removing the legacy DPF Series meter, document all existing parameter settings: display scaling, alarm setpoints, relay assignments, communication addresses, and any custom engineering unit labels. These values should be pre-loaded into the replacement OMEGA DPF64-SQRT on the bench, verified against the original calibration sheet, and confirmed with the process engineer before the maintenance window opens.

During the physical swap, isolate the DP transmitter impulse lines and equalise the manifold before disconnecting signal wiring. Tag and photograph all terminal connections. The DPF64-SQRT’s terminal layout may differ from the original unit — use the wiring diagram supplied with the unit and cross-reference against the legacy meter’s terminal block labels. Where the original installation used a signal isolator or loop-powered barrier between the transmitter and the meter, retain this device in the new installation to protect against ground loops and electrical noise from adjacent variable frequency drives or motor starters.

Once the new meter is wired and powered, perform a live zero and span check using the transmitter’s built-in test function or a portable loop calibrator. Confirm that the displayed flow value matches the DCS or SCADA reading before releasing the loop to automatic control. If the system uses an OMEGA iSeries or CNi Series controller in cascade with the flow meter output, verify the cascade setpoint and output limits before switching from manual to automatic mode.

For facilities with strict change management requirements, complete a pre-commissioning checklist covering: power supply voltage confirmation, signal wiring continuity, display scaling verification, alarm relay function test, communication link test, and operator sign-off. All units supplied by NINERMAS undergo pre-shipment functional testing, and each DPF64-SQRT is covered by a 12-month warranty from the date of shipment, reducing the risk associated with spare parts procurement for critical measurement loops.

Retrofit Support FAQ

Q1: Is the OMEGA DPF64-SQRT a direct drop-in replacement for discontinued DPF Series meters?
In most cases, yes. The DPF64-SQRT uses the standard 1/8 DIN panel cutout shared by the DPF Series family, so no panel modification is required. Signal wiring and power connections should be verified against the new unit’s terminal diagram before installation. Pre-configure all parameters on the bench to minimise on-site commissioning time.

Q2: Can the DPF64-SQRT communicate with my existing SCADA or DCS via Modbus?
Yes, with the optional RS-485 Modbus RTU interface. You will need to update the register map in your SCADA or PLC program to match the DPF64-SQRT’s register layout. We recommend testing communication in a staging environment before the live cutover to confirm polling cycle integrity and data scaling.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every unit supplied by NINERMAS undergoes functional testing prior to shipment, including power-on verification, display check, and input signal response. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team at sale@ninermas.com.

Q4: Do you hold stock of the DPF64-SQRT, and what are typical lead times?
NINERMAS maintains inventory of the OMEGA DPF64-SQRT to support urgent replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and delivery timelines for your location. For critical spares programmes, we can discuss scheduled stock reservation arrangements.
