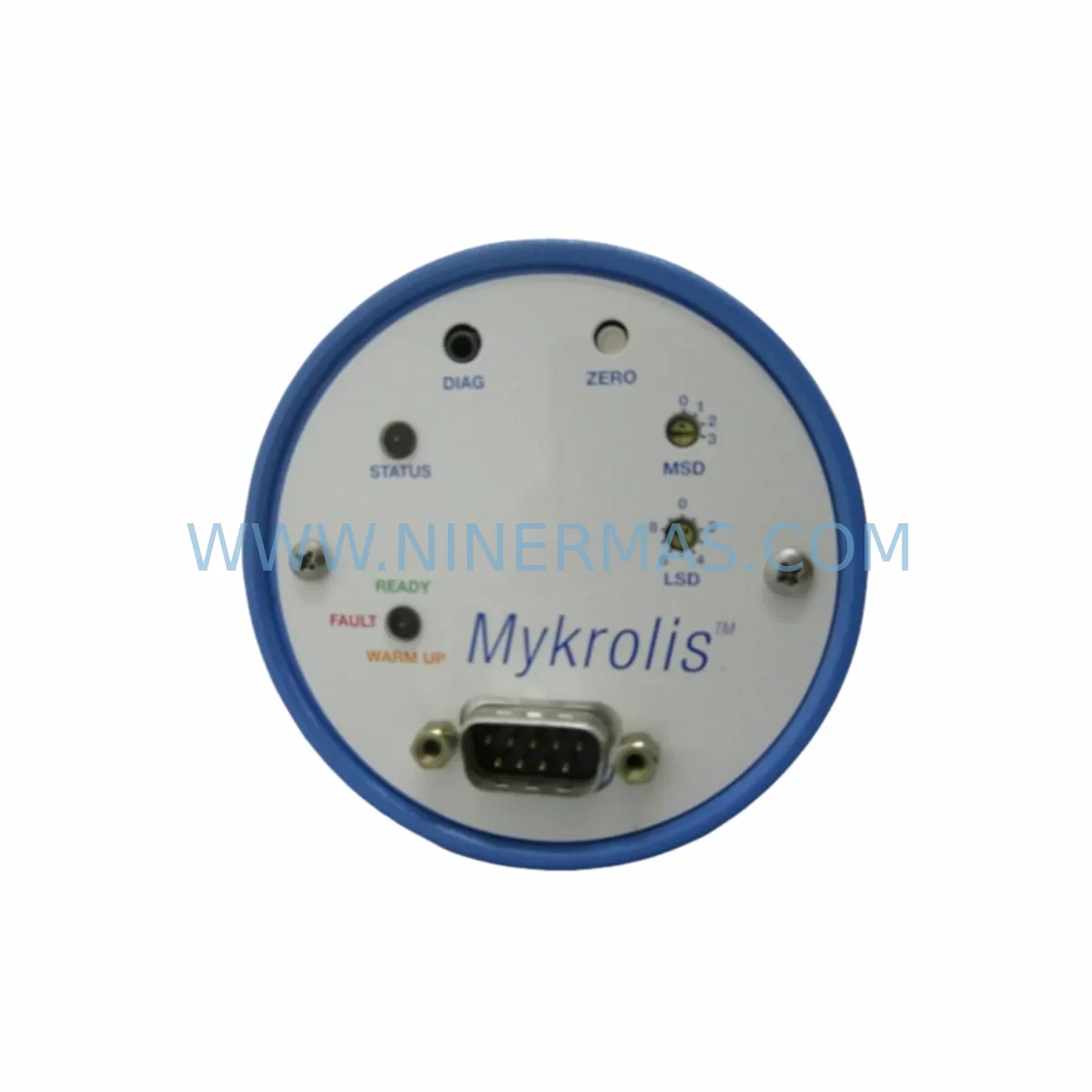

MYKROLIS CMX45 Retrofit-Compatible Pressure Module

MYKROLIS CMX45 Retrofit-Compatible Pressure Module: Legacy System Compatibility & Smooth Upgrade Path

The MYKROLIS CMX45 is a ruggedized safety pressure module engineered for demanding industrial environments where legacy automation infrastructure must remain operational during phased modernization programs. As a retrofit-compatible replacement unit, the CMX45 is widely deployed in control cabinet upgrades, old production line refurbishments, and safety-critical pressure monitoring applications where discontinuing the original hardware is not an option. NINERMAS maintains verified in-stock inventory of the CMX45 to support procurement teams managing spare parts lifecycle programs across semiconductor fabrication, chemical processing, and precision manufacturing facilities.

When integrating the CMX45 into an existing automation architecture, engineers must confirm several critical parameters before installation. Power supply capacity is the first checkpoint — verify that the existing 24 VDC rail or dedicated instrument power supply can sustain the CMX45’s operating current draw without affecting adjacent I/O modules or signal conditioners on the same distribution bus. If the original control cabinet uses a legacy MYKROLIS or third-party power supply module with marginal headroom, a supplementary DIN-rail power supply should be provisioned before commissioning.

Terminal wiring compatibility is the second critical area. The CMX45 uses a standard screw-terminal interface; however, legacy systems may have used push-in spring terminals or proprietary connector blocks. Field engineers should cross-reference the original wiring diagram against the CMX45 terminal assignment before re-terminating signal, power, and shield conductors. Where the original pressure transmitter used a 4-wire configuration and the CMX45 operates on a 2-wire 4–20 mA loop, loop resistance and cable length must be recalculated to ensure signal integrity at the receiving analog input card.

For systems using backplane-mounted I/O architectures — such as those built around modular rack systems with distributed analog input modules — the CMX45 interfaces via hardwired field termination rather than direct backplane insertion. This means the retrofit path typically involves preserving the existing analog input channel assignment on the controller side while replacing only the field-mounted pressure sensing element. Program logic referencing the original pressure tag does not require modification, which significantly reduces validation effort and minimizes downtime exposure.

In installations where the original pressure module communicated via HART protocol over the 4–20 mA loop, the CMX45 supports HART superimposed signaling, allowing existing HART-capable field communicators and asset management software to continue polling device diagnostics without reconfiguration. For facilities migrating from older proprietary fieldbus protocols to HART or Foundation Fieldbus, a HART multiplexer or protocol gateway may be required to bridge legacy communication links — a common requirement when upgrading control systems that originally used early-generation MYKROLIS pressure controllers alongside Profibus DP or DeviceNet I/O networks.

During control cabinet upgrade projects, the CMX45 is frequently installed alongside replacement components including updated DIN-rail terminal blocks, surge protection modules, and cable management systems. Engineers coordinating full cabinet refurbishments often source the CMX45 in parallel with replacement analog signal isolators, shielded instrumentation cable, and updated cable gland assemblies to complete the field wiring upgrade in a single planned outage window. Where the original cabinet housed a MYKROLIS pressure controller with integrated display, the replacement strategy may involve retaining the HMI screen and updating only the pressure sensing and signal conditioning chain, preserving operator familiarity with existing process displays.

For HMI screen compatibility, the pressure tag associated with the CMX45 channel should be verified against the existing SCADA or DCS faceplate configuration. If the original pressure module reported in units of kPa and the replacement CMX45 is scaled to PSI at the transmitter level, the HMI engineering unit display must be updated to prevent misinterpretation of process values by operators. This is a common oversight during fast-track retrofits and should be included in the pre-commissioning checklist.

Installation space confirmation is essential in compact control enclosures. The CMX45’s physical footprint and mounting orientation must be verified against available panel real estate, particularly in retrofit scenarios where the original pressure module occupied a non-standard mounting position. DIN-rail mounting adapters or custom bracket fabrication may be required in legacy enclosures that predate standardized 35 mm rail installations.

NINERMAS supplies the CMX45 with a 12-month warranty covering manufacturing defects and functional performance under specified operating conditions. Each unit undergoes pre-shipment functional testing to verify pressure response linearity, output signal accuracy, and terminal integrity before dispatch. Procurement teams managing long-term spare parts programs for critical production lines can contact NINERMAS to discuss volume commitments and lead-time planning for the CMX45 and associated pressure instrumentation components.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CMX45 retrofit begins with a comprehensive site survey of the existing automation architecture. In facilities running legacy MYKROLIS pressure control platforms, the CMX45 typically replaces discontinued pressure transmitter modules that are no longer available through the original equipment manufacturer’s supply chain. The retrofit scope commonly extends beyond the pressure module itself — field engineers frequently identify the need to replace aging analog input cards, update shielded instrumentation cable runs, and reconfigure signal isolators to match the CMX45’s output characteristics.

In multi-loop control systems, the CMX45 often operates alongside other instrumentation components including temperature transmitters, flow meters, and level sensors that share the same analog input rack or marshalling cabinet. When planning the retrofit, it is advisable to audit all instruments on the affected I/O loop to identify any that are approaching end-of-life, allowing the maintenance team to consolidate replacement activities into a single planned shutdown rather than multiple unplanned outages.

For control systems using distributed I/O architectures — where remote I/O stations communicate with a central controller via Profibus DP, Modbus RTU, or EtherNet/IP — the CMX45’s analog output feeds into a remote analog input module at the field junction box. The module address and channel assignment must be confirmed in the controller configuration before the retrofit is executed. In Siemens S7 or Allen-Bradley ControlLogix environments, this involves verifying the hardware configuration in the engineering workstation and confirming that the analog input module’s channel scaling parameters match the CMX45’s calibrated output range.

Where the original system included a MYKROLIS pressure controller with a dedicated operator interface, the retrofit plan should address how process operators will interact with the replacement instrumentation during the transition period. Temporary bypass instrumentation or portable pressure indicators may be required to maintain process visibility during the installation window. Programming cables and laptop-based configuration tools compatible with HART protocol should be on-site during commissioning to perform final loop trimming and device configuration.

Downtime Control During System Migration

Minimizing production downtime during a CMX45 retrofit requires disciplined pre-planning and staged execution. The recommended approach is to complete all preparatory work — terminal block labeling, cable identification, spare parts staging, and documentation review — during normal production hours, reserving the actual module swap for a planned maintenance window of the shortest possible duration.

Before the planned outage begins, the engineering team should export and archive the current PLC program, HMI project files, and controller configuration backups. This protects the original control logic and allows rapid restoration if the retrofit encounters unexpected compatibility issues. In systems where the pressure signal feeds a safety instrumented function, the safety system must be bypassed or placed in a defined safe state in accordance with the site’s management of change procedure before any field wiring is disturbed.

During the module swap, the sequence should follow: isolate the instrument loop, de-energize the field wiring, remove the legacy pressure module, install the CMX45, re-terminate field wiring per the updated wiring diagram, re-energize the loop, and perform a live loop check against a calibrated pressure source. The entire sequence for a single-loop CMX45 replacement can typically be completed within a two-to-four hour window by an experienced instrumentation technician, provided all materials and documentation are staged in advance.

Post-installation, the CMX45 should be verified against the process control system’s trend historian to confirm that the pressure signal is tracking correctly across the operating range. Any deviation from expected values should be investigated before the safety bypass is removed and normal production is resumed. NINERMAS’s pre-shipment functional testing reduces the risk of field failures, but on-site loop verification remains a mandatory step in any safety-critical pressure instrumentation retrofit.

Retrofit Support FAQ

Q1: Is the MYKROLIS CMX45 a direct drop-in replacement for the original discontinued pressure module?
The CMX45 is functionally compatible with the original MYKROLIS pressure module series in terms of signal output (4–20 mA / HART) and power supply requirements. Physical mounting dimensions and terminal assignments should be verified against the original installation drawing before ordering, as minor mechanical differences may require a mounting adapter or terminal rewiring. NINERMAS can provide technical comparison data upon request.

Q2: What commissioning steps are required after installing the CMX45?
After physical installation and wiring, the CMX45 requires a live loop check using a calibrated pressure source to verify zero and span accuracy. HART configuration should be confirmed using a field communicator or HART modem connected to a laptop running compatible asset management software. Engineering unit scaling should be verified at the controller and HMI level to ensure consistent process value display across all operator interfaces.

Q3: Does NINERMAS maintain stock of the CMX45 for urgent spare parts requirements?
Yes. NINERMAS maintains verified in-stock inventory of the CMX45 to support urgent spare parts procurement and planned maintenance programs. Units are available for immediate dispatch following order confirmation. For volume requirements or long-term supply agreements, contact NINERMAS at sale@ninermas.com or +0086 187 5021 5667 to discuss stock commitment and lead-time planning.

Q4: What warranty coverage applies to the CMX45 supplied by NINERMAS?
All CMX45 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional performance under the module’s specified operating conditions. Each unit undergoes pre-shipment functional testing before dispatch. Warranty claims should be directed to sale@ninermas.com with the order reference and a description of the observed fault.
