MITSUBISHI A68B Safety-Reliable Base Unit for Critical Control

MITSUBISHI A68B A68-B: Safety-Reliable PLC Base Unit for Critical Industrial Control Sites

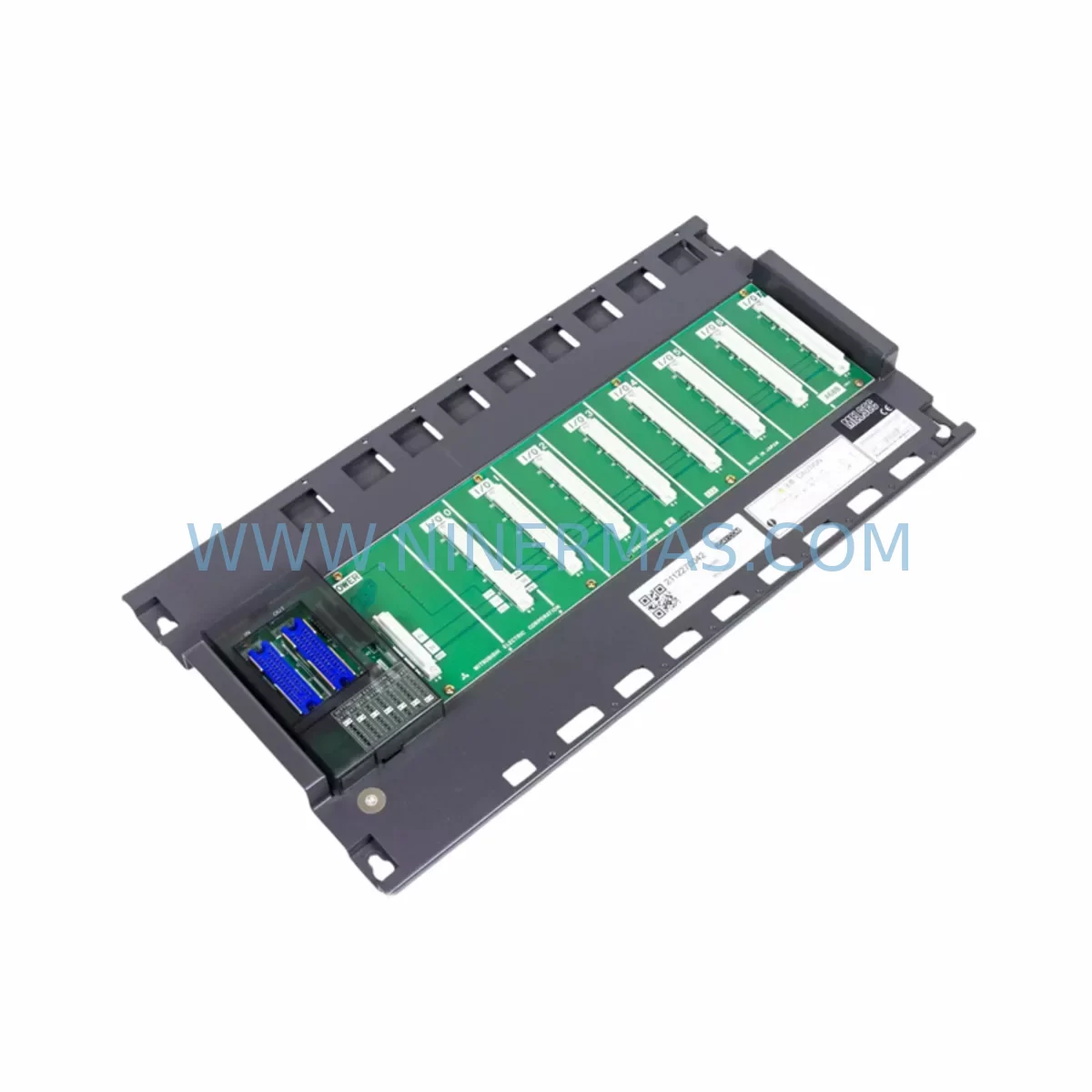

The MITSUBISHI A68B (A68-B) is an 8-slot base unit from the renowned MELSEC-A Series programmable logic controller platform — engineered to deliver uncompromising structural integrity and electrical stability at the heart of your control cabinet. Designed for continuous production environments where control interruption is not an option, the A68B provides a rigid, low-impedance backplane that ensures reliable signal transmission between the CPU module, I/O modules, power supply units, and communication modules across all installed slots.

In critical industrial applications — from petrochemical interlock systems and power plant auxiliary control to mining conveyor protection and metallurgical furnace automation — the base unit is the silent backbone of every control loop. A compromised or substandard base unit introduces risks of signal drift, inter-module communication anomalies, ground loop interference, and intermittent faults that are notoriously difficult to diagnose under live production conditions. The MITSUBISHI A68B eliminates these risks through precision-manufactured bus connectors, robust mechanical mounting, and full compatibility with the MELSEC-A Series ecosystem.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered MELSEC-A Series control cabinet, the A68B base unit serves as the structural and electrical foundation upon which all other modules depend. Its 8-slot architecture accommodates a full suite of protection, control, power, and communication modules — and the quality of the backplane directly determines the reliability of every signal passing through the system.

When paired with a MITSUBISHI A61P or A62P power supply module, the A68B ensures that voltage regulation and surge suppression are handled at the source, protecting downstream I/O modules from power fluctuation damage — a critical consideration in facilities with heavy motor loads, frequent switching operations, or unstable utility feeds. In high-load environments such as port crane control rooms or steel mill auxiliary panels, power quality events are a leading cause of unplanned PLC shutdowns, and a properly matched power supply module is the first line of defense.

For process control and safety interlock applications, the A68B is commonly populated with MITSUBISHI A1SX40 or A1SY10 digital I/O modules to handle discrete field signals from limit switches, pressure switches, and solenoid valve feedback — all of which must respond with deterministic timing in safety-critical sequences. In continuous chemical or refinery processes, a missed interlock signal due to a loose backplane connector or degraded bus contact can escalate rapidly into a process safety event. The A68B’s precision-machined slot connectors maintain contact integrity even under sustained vibration and thermal cycling.

Communication reliability is equally essential. When a MITSUBISHI A1SJ71UC24-R4 serial communication module or an A1SJ71QE71 Ethernet interface module is installed in the A68B, the backplane must provide stable, low-noise data pathways to prevent communication timeouts, CRC errors, and SCADA data loss. In water treatment facilities and power substations where remote monitoring is continuous, communication anomalies caused by a degraded base unit can trigger false alarms, operator confusion, and unnecessary process interventions.

For applications requiring analog process control — such as flow, temperature, or pressure regulation — the MITSUBISHI A68AD analog input module and A62DA analog output module installed in the A68B deliver the signal fidelity needed for stable PID loop performance. Signal drift caused by poor backplane grounding is a known failure mode in aging or counterfeit base units, leading to gradual setpoint deviation and product quality degradation in precision manufacturing environments.

In surge-prone environments such as outdoor substations, mining surface installations, or coastal port facilities, the A68B is often used alongside MITSUBISHI surge protection accessories and shielded cable assemblies to form a complete electromagnetic compatibility (EMC) strategy. The base unit’s grounded chassis provides the reference point for the entire cabinet’s shielding architecture, making its mechanical and electrical integrity non-negotiable.

For system expansion in large-scale automation projects, the A68B can be connected to MITSUBISHI A68B extension base units via the A1SC05NB or A1SC12NB extension cables, allowing the control system to scale without compromising backplane signal integrity across the expanded rack. This is particularly valuable in metallurgical and heavy industrial plants where a single PLC system may control dozens of field devices across multiple physical panels.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The A68B supports emergency shutdown (ESD) and process interlock systems where the base unit must maintain structural integrity under continuous high-temperature ambient conditions and exposure to corrosive atmospheres. Its compatibility with the full MELSEC-A CPU and I/O range makes it a trusted platform for legacy DCS migration and safety loop modernization projects.

Electric Power Generation & Transmission: In power plant auxiliary control systems — including boiler feed pump control, turbine protection, and switchgear automation — the A68B provides the stable backplane environment required for deterministic control response. Its resistance to high electromagnetic interference from large transformers and bus bars is essential in substation automation cabinets.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and humidity. The A68B, installed in sealed control enclosures, supports conveyor protection systems, crusher interlock circuits, and ventilation safety controls where unplanned downtime carries both safety and production cost consequences.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on MELSEC-A Series PLCs for pump sequencing, chemical dosing control, and alarm management. The A68B’s long-term availability as a spare part is critical for facilities that cannot afford to redesign their control architecture due to a single obsolete component.

Metallurgy & Steel Manufacturing: In electric arc furnace control, rolling mill automation, and continuous casting systems, the A68B must withstand intense electromagnetic fields, high ambient temperatures, and mechanical shock. Its robust construction and full MELSEC-A compatibility make it a preferred replacement base unit for aging steel plant control systems.

Port & Marine Applications: Ship-to-shore crane control systems, bulk material handling automation, and vessel engine room control panels operating in salt-air, high-humidity environments depend on reliable PLC base units. The A68B’s sealed backplane connectors and corrosion-resistant construction support long service life in these demanding coastal and marine installations.

Safety and Quality FAQ

Q1: What warranty does the MITSUBISHI A68B carry when purchased from NINERMAS?
All MITSUBISHI A68B units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation to assist with site maintenance records.

Q2: What pre-shipment testing is performed on the A68B before dispatch?
Every A68B unit undergoes a full functional inspection prior to shipment, including visual examination of backplane connectors, slot integrity verification, and compatibility checks against MELSEC-A Series module standards. Units that do not meet our quality benchmarks are quarantined and not dispatched. A test report is available upon request for critical project procurement.

Q3: Is the A68B compatible with all MELSEC-A Series CPU and I/O modules?
Yes. The MITSUBISHI A68B is fully compatible with the MELSEC-A Series platform, including A-series CPU modules (A2USCPU, A3UCPU, A1SCPU, A2SCPU), A-series power supply modules (A61P, A62P, A63P), and the full range of MELSEC-A digital, analog, and communication modules. If you require compatibility confirmation for a specific module combination, contact our technical team before ordering.

Q4: Can NINERMAS guarantee long-term supply of the A68B for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of MITSUBISHI MELSEC-A Series components, including the A68B, to support industrial facilities with long-term spare parts programs. We understand that production-critical sites cannot accept supply gaps, and our procurement team actively manages stock levels to ensure availability for repeat orders, annual maintenance contracts, and emergency replacement requirements.
