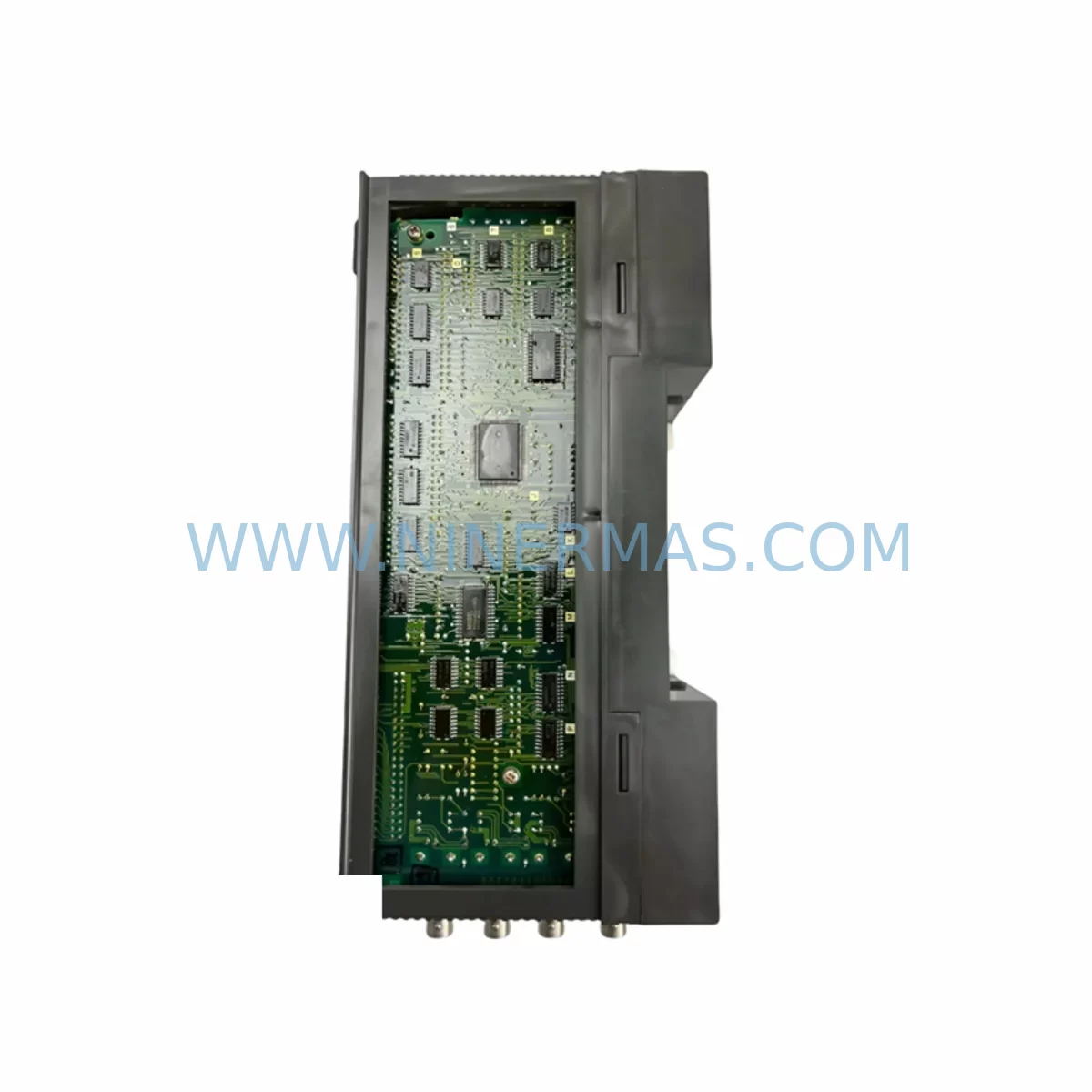

The Mitsubishi Electric A3NCPUR21 is a CPU module designed for the MELSEC-A series programmable logic controller platform — one of the most widely deployed control architectures in discrete manufacturing, process automation, and utility infrastructure across Asia-Pacific and beyond. As original production of the A3N series has been discontinued, the A3NCPUR21 has become a critical retrofit and replacement component for facilities that continue to operate legacy control panels built around the A3NCPUR21, A3NCPUR22, and related A3N-family processors.

For automation engineers and maintenance teams managing aging control systems, sourcing a verified, pre-tested A3NCPUR21 is often the difference between a controlled scheduled replacement and an unplanned production stoppage. This module supports direct installation into existing A3N-series base units and backplanes, preserving the original program logic, I/O mapping, and HMI communication links without requiring a full platform migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an A3NCPUR21 in a live production environment requires careful pre-work to avoid configuration loss and extended downtime. The first step is to back up the existing PLC program using GX Developer or the legacy GPP software via the SC-09 programming cable or a USB-SC09-A adapter. Once the backup is confirmed, engineers should document the current I/O module layout across the A38B or A35B base unit, noting the slot positions of any A1SX40, A1SY10, or A1SY40 output modules, as well as any A1SJ71UC24-R2 or A1SJ71E71-B2 communication modules installed in the rack.

Power supply capacity is a critical checkpoint. The A61P or A62P power supply modules that typically accompany A3N-series racks must be verified to have sufficient current headroom for the replacement CPU plus all installed I/O and communication modules. If the existing power supply is marginal or shows signs of aging, it is advisable to replace it concurrently with the CPU to avoid a secondary failure shortly after the retrofit.

For systems that include an A1SJ71UC24-R4 or A1SJ71AP21 MELSECNET/MINI-S3 communication module, the network station number and baud rate settings stored in the CPU must be re-confirmed after the swap. Similarly, if the control panel includes a GOT-A900 or GOT1000 HMI panel communicating over the A-compatible bus, the HMI project should be verified against the replacement CPU’s device map to ensure all screen tags and alarm references remain valid.

In multi-rack configurations using an A1SB37 or A1SB70 extension base unit, the CPU’s I/O assignment table should be reviewed to confirm that remote I/O addresses are correctly mapped. Any A1SI61 or A1SJ61BT11 CC-Link master modules in the rack will also need their parameter files verified post-swap to ensure the CC-Link network re-initializes correctly on power-up.

Signal isolation requirements should also be assessed during retrofit planning. Where analog input modules such as the A1S68AD or A1S62DA are present, shielding and grounding continuity should be checked to prevent noise-induced faults after the CPU replacement. In environments with high electromagnetic interference — common in motor drive cabinets and arc welding lines — additional signal isolators may be warranted between the PLC rack and field devices.

Downtime Control During System Migration

Minimizing production downtime during an A3NCPUR21 replacement begins with preparation, not execution. The physical swap itself typically takes under 30 minutes for an experienced technician; the majority of migration risk lies in program restoration, communication re-establishment, and first-scan verification.

Before powering down the panel, confirm that the GX Developer backup file is readable and complete. If the original program was created in GPP format, convert it to GX Developer format and verify the conversion on an offline simulation before the maintenance window. This eliminates the risk of discovering a corrupted or incomplete backup only after the old CPU has been removed.

During the swap, label all terminal wiring on any A1SX80 or A1SY80 I/O modules that may need to be disturbed to access the CPU slot. In tight control cabinet installations, the A3N-series base unit may be partially obstructed by cable ducts or DIN rail-mounted components; confirm physical access and tool clearance before scheduling the maintenance window.

After installing the replacement A3NCPUR21 and restoring the program, perform a controlled first-scan test with all field outputs inhibited where possible. Verify that the CPU enters RUN mode without error codes, that all I/O modules report correctly in the system monitor, and that any connected GOT-A900 or GOT1000 HMI panels re-establish communication within the expected timeout period. Only after these checks should field outputs be re-enabled and normal production resumed.

For facilities with strict change management requirements, the entire retrofit procedure — from backup verification through first-scan confirmation — should be documented and signed off before the maintenance window closes. This record also supports warranty claims and future audit requirements.

Retrofit Support FAQ

Q1: Is the A3NCPUR21 a direct drop-in replacement for the A3NCPUR22?
The A3NCPUR21 and A3NCPUR22 share the same physical form factor and backplane connector, but differ in program memory capacity and scan performance. In most retrofit scenarios, the A3NCPUR21 can substitute for the A3NCPUR22 provided the existing program fits within the A3NCPUR21’s memory capacity. A program size check in GX Developer is recommended before committing to the swap.

Q2: What programming cable is required to restore the program to the replacement CPU?
The A3NCPUR21 uses an RS-232C programming port. The SC-09 cable is the standard interface for direct PC connection using GX Developer. For modern laptops without a serial port, the USB-SC09-A USB-to-RS232 adapter provides a compatible alternative. Confirm driver installation and COM port assignment before the maintenance window.

Q3: Does the replacement unit come pre-tested?
Yes. Every A3NCPUR21 unit is powered on and functionally verified before shipment. A basic self-diagnostic cycle is completed to confirm CPU initialization, memory integrity, and communication port operation. Units that do not pass this verification are not dispatched.

Q4: What warranty and after-sales support is provided?
All units carry a 12-month warranty from the date of shipment. Warranty coverage applies to hardware defects identified under normal operating conditions. For technical support during installation or commissioning, contact our team directly. Replacement or repair arrangements are handled promptly to minimize any impact on your production schedule.
