Mitsubishi A1SY42 Retrofit-Compatible Digital Output Module

Mitsubishi A1SY42 Retrofit-Compatible Digital Output Module: Legacy System Compatibility & Smooth Upgrade

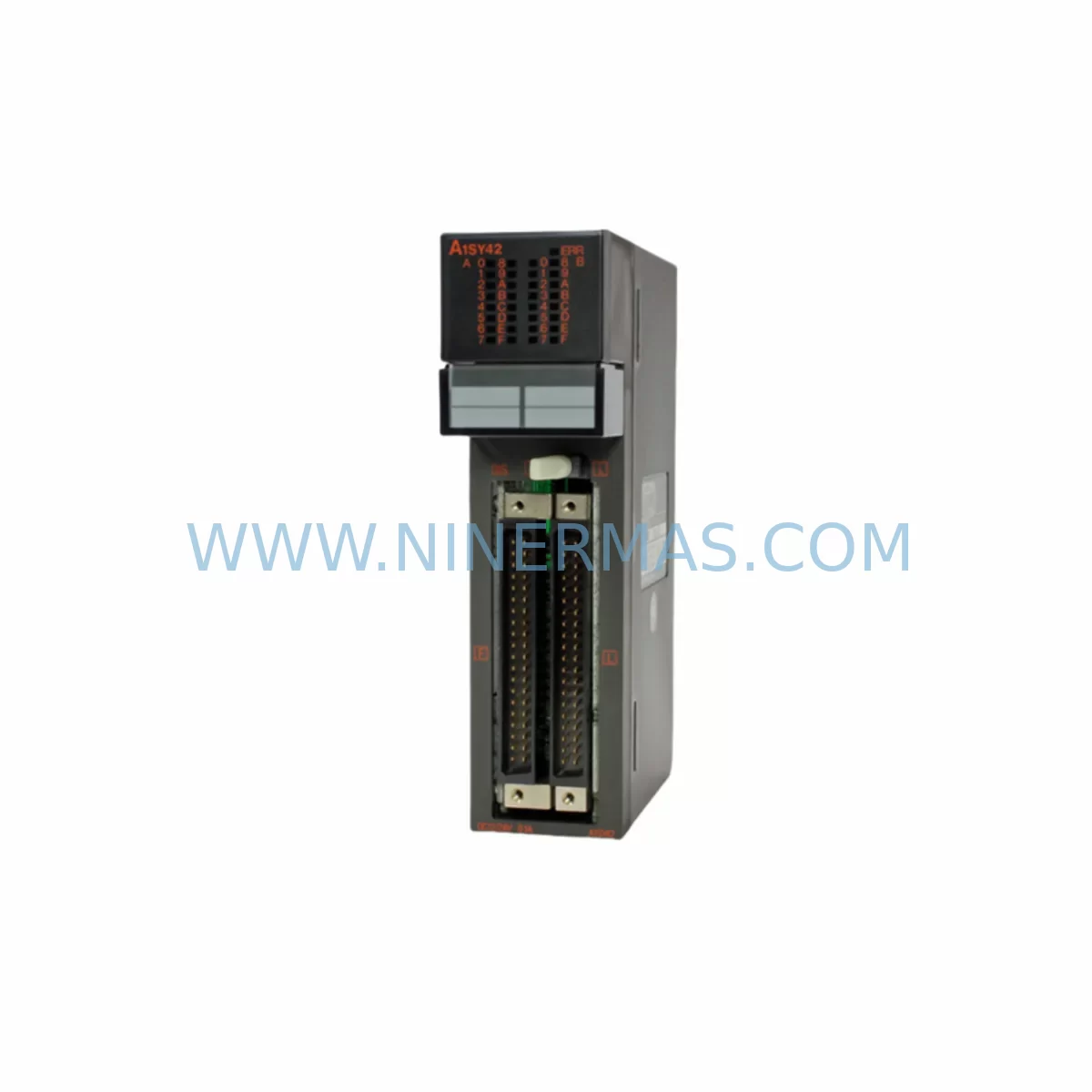

The Mitsubishi Electric A1SY42 is a 32-point transistor digital output module designed for the MELSEC-A Series programmable logic controller platform. As production lines built on legacy A-Series infrastructure age beyond their original service life, the A1SY42 remains a critical component for facilities that must maintain operational continuity while managing the transition toward modern control architectures. NINERMAS maintains verified stock of the A1SY42 to support retrofit projects, emergency spare parts replacement, and phased system upgrades — each unit ships with a 12-month warranty and pre-shipment functional testing.

Whether your facility is replacing a failed output module in an existing A1S-series rack, expanding I/O capacity in a legacy control cabinet, or executing a controlled migration from an A-Series CPU such as the A1SCPU or A2SCPU toward a Q-Series or iQ-R platform, the A1SY42 provides a verified drop-in solution that eliminates the need for immediate full-system replacement. Its compatibility with the A1S slim-line backplane and standard 40-pin connector interface means that field engineers can complete a module swap without rewiring terminal blocks or modifying existing ladder logic programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful A1SY42 retrofit begins well before the module arrives on site. Engineers responsible for legacy A-Series control systems should audit the existing rack configuration, documenting each slot’s module type, I/O address assignment, and wiring terminal layout. In a typical A1S-series cabinet, the A1SY42 shares the rack with components such as the A1SCPU central processing unit, an A1SX40 or A1SX42 digital input module, an A1S61PN power supply module, and potentially an A1SJ71UC24-R2 serial communication module for RS-232C or RS-422 host link connections. Each of these components must be accounted for in the retrofit plan to avoid address conflicts or power budget overruns.

Terminal block wiring is one of the most time-sensitive steps in any output module replacement. The A1SY42 uses a 40-pin connector interface, and field teams should photograph or document the existing wiring before disconnection. If the original terminal block is worn or corroded, this is an appropriate time to replace it with a new A6CON1 or A6CON4 connector to ensure reliable contact. Signal isolation requirements should also be reviewed at this stage — if the downstream field devices operate at different voltage levels or require galvanic isolation, a signal isolator or relay output intermediate module may need to be inserted in the signal path.

For facilities planning a longer-term migration from the A-Series platform to the Q-Series or iQ-R Series, the A1SY42 can serve as a bridge component during a phased upgrade. In this scenario, the A-Series CPU and I/O modules remain in service while communication infrastructure is upgraded — for example, by adding a QJ71C24N serial communication module or a QJ71E71-100 Ethernet module to a new Q-Series rack operating in parallel. The A1SY42 continues to handle field output signals during this transition period, reducing the scope of any single cutover event and allowing program logic to be validated in the new environment before the final switchover.

I/O expansion requirements should also be evaluated during retrofit planning. If the existing rack is fully populated and additional output points are needed, options include adding a second A1S-series rack connected via an A1SC07B extension cable, or migrating selected I/O to a CC-Link remote I/O station such as the AJ65SBTB1-16DT. Both approaches allow the A1SY42 to remain in service while expanding the system’s overall I/O capacity without requiring a full CPU replacement.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing output modules in active production environments. For the A1SY42, the recommended approach is to perform the module swap during a scheduled maintenance window, with the replacement unit pre-tested and confirmed functional before the line is taken offline. NINERMAS conducts pre-shipment functional testing on all A1SY42 units, providing documentation of output point verification so that field engineers can proceed with confidence.

Before powering down the rack, engineers should use GX Developer or GX Works2 to upload and save the current CPU program, including all I/O comments, device comments, and network parameter files. This backup protects against data loss in the event that the CPU battery has degraded — a common issue in legacy A-Series systems that have been in continuous service for more than five years. If the A1SCPU or A2SCPU battery is found to be low during this process, it should be replaced at the same time to prevent program loss during future power interruptions.

Once the A1SY42 is installed and the rack is powered on, the recommended commissioning sequence is to verify the module’s READY LED status, confirm I/O address recognition in the CPU’s module map, perform a forced output test on each of the 32 output points using GX Developer’s device test function, and then release the system back to automatic operation. If the system includes a GOT1000 or GOT2000 HMI panel, screen tag addresses should be verified against the updated I/O map to ensure that operator displays reflect the correct output states. This structured commissioning approach typically allows a single-module replacement to be completed within a two-to-four hour maintenance window, keeping production disruption to a minimum.

Retrofit Support FAQ

Q: Is the A1SY42 a direct replacement for the A1SY40?
A: The A1SY42 and A1SY40 are both 32-point transistor output modules for the MELSEC-A slim-line series, but they differ in output type — the A1SY42 is a sink output module while the A1SY40 is a source output module. Before substituting one for the other, verify the wiring polarity of your field devices and confirm compatibility with your load circuit configuration.

Q: What pre-shipment testing does NINERMAS perform on the A1SY42?
A: Each A1SY42 unit undergoes functional output point verification prior to shipment. Test documentation is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the A1SY42 be used in a rack alongside Q-Series modules during a phased migration?
A: No — the A1SY42 is designed exclusively for A1S-series slim-line racks and is not physically or electrically compatible with Q-Series base units. During a phased migration, the A-Series and Q-Series racks operate as separate systems, with communication between them handled via a serial or network link module such as the A1SJ71UC24-R2 or QJ71C24N.

Q: What is the typical lead time and stock availability for the A1SY42?
A: NINERMAS maintains inventory of the A1SY42 to support urgent retrofit and emergency replacement requirements. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 for current stock status and lead time confirmation. Orders are processed promptly, and expedited shipping options are available for critical downtime situations.
