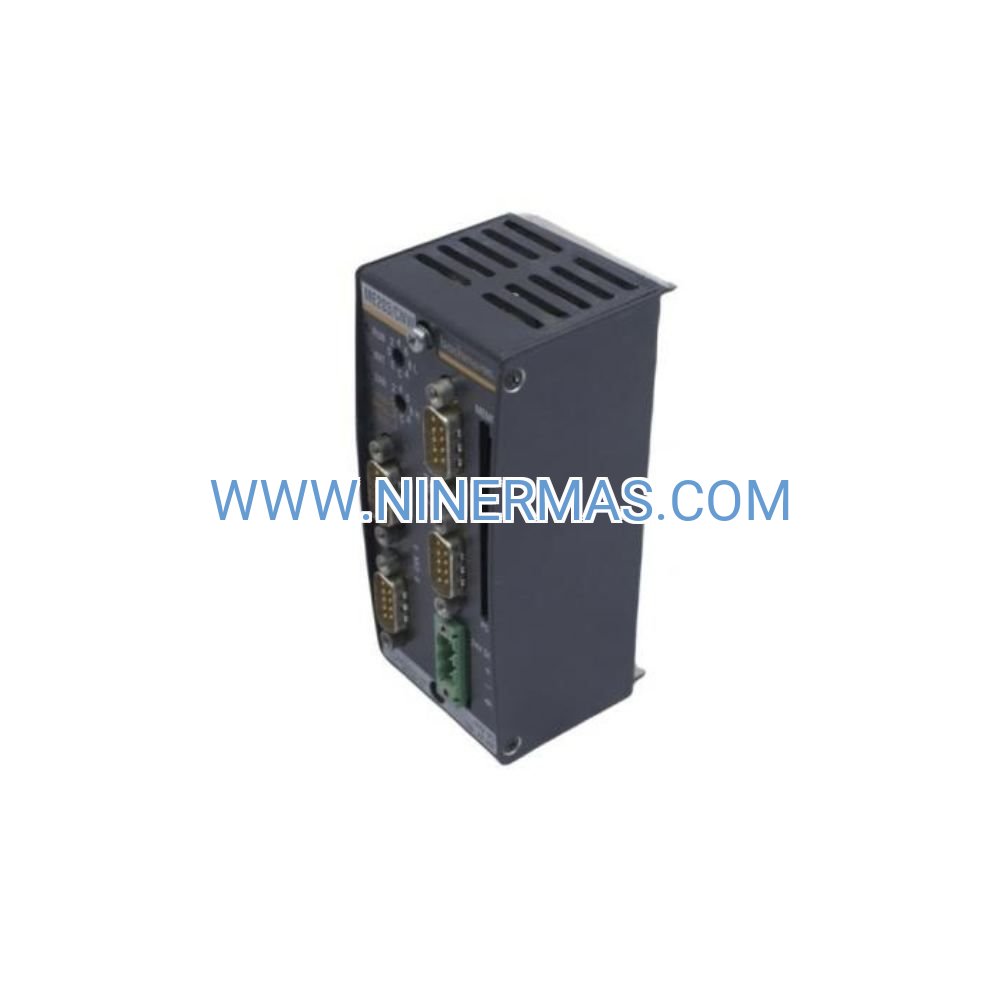

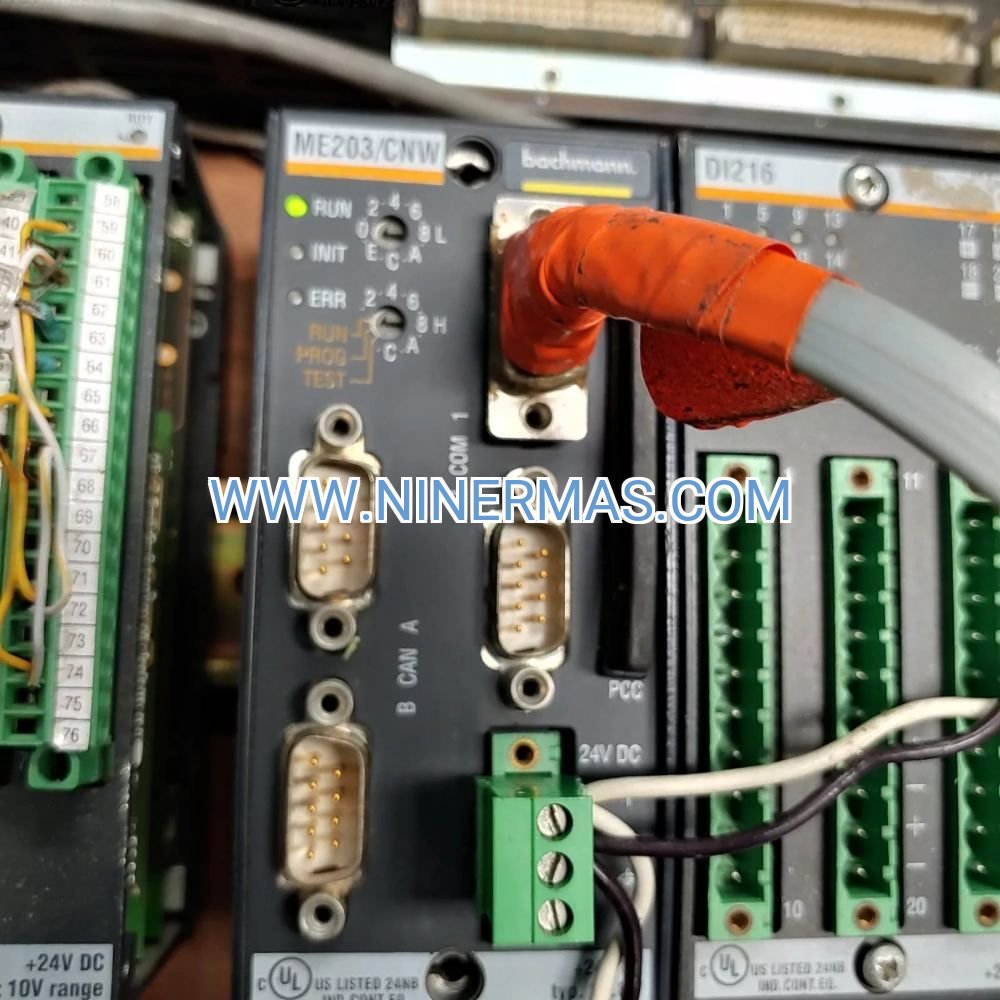

BACHMANN ME203/CNW Industrial-Grade CPU Module

The ME203/CNW represents BACHMANN's commitment to delivering robust, field-proven processing power for mission-critical industrial environments. Powered by the Intel 80386 EX processor with 8MB DRAM and 2MB flash storage, this controller excels in applications demanding deterministic response times, extended temperature tolerance, and multi-protocol connectivity.

Designed for system integrators and plant engineers managing distributed control architectures, the ME203/CNW eliminates common pain points: unpredictable latency, communication bottlenecks, and thermal instability. Whether you're retrofitting legacy systems or building greenfield installations, this module delivers the processing headroom and I/O flexibility required for complex automation tasks.

Key differentiators include native support for Ethernet and dual serial interfaces (RS232/RS485), DIN rail or M-Base backplane mounting, and certification for operation from -25°C to +60°C. With CE, UL, and ATEX compliance, the ME203/CNW meets global safety standards for deployment in Zone 2 hazardous locations.

Core Capabilities & Business Value

→ Deterministic Real-Time Performance
Intel 80386 EX architecture ensures predictable scan cycles and interrupt handling, critical for closed-loop control and safety interlocks. Reduces process variability and improves product quality in batch manufacturing.

✓ Multi-Protocol Communication
Integrated Ethernet port enables seamless SCADA integration, while RS232/RS485 serial interfaces support legacy fieldbus devices. Eliminates the need for external gateways, reducing hardware costs by 20-30%.

✓ Extended Environmental Tolerance
Operates reliably across -25°C to +60°C without forced cooling, ideal for outdoor enclosures, boiler rooms, and unheated facilities. Reduces HVAC requirements and lowers total cost of ownership.

✓ Modular Scalability
M-Base backplane architecture allows hot-swappable I/O expansion without system shutdown. Add analog inputs, digital outputs, or specialty modules as process requirements evolve.

✓ Long-Term Availability Guarantee
BACHMANN's 10+ year product lifecycle commitment protects your investment and simplifies spare parts management. Avoid costly redesigns due to component obsolescence.

Industry Applications & Problem Solving

Water & Wastewater Treatment
Control pump stations, filtration systems, and chemical dosing with sub-second response times. The ME203/CNW's corrosion-resistant housing and wide temperature range ensure reliable operation in humid, chemically aggressive environments. Typical deployment: 4-8 controllers per treatment plant managing 50-200 I/O points.

Chemical Processing & Batch Manufacturing
Execute complex recipe management, PID loop control, and safety interlocks for reactors, mixers, and distillation columns. Dual serial ports enable simultaneous connection to weigh scales and barcode scanners. Reduces batch cycle time by 15-25% through optimized sequencing.

Power Generation & Distribution
Monitor generator sets, switchgear, and UPS systems with millisecond-level data acquisition. ATEX certification permits installation in transformer vaults and fuel storage areas. Integrates with DNP3 and Modbus RTU protocols for utility SCADA networks.

Building Automation & HVAC
Manage chillers, boilers, air handlers, and lighting systems across multi-building campuses. Ethernet connectivity simplifies BACnet/IP integration, while low power consumption (24V DC) enables solar-powered remote sites.

Material Handling & Conveyor Systems
Coordinate sortation systems, palletizers, and AGVs with high-speed digital I/O. The ME203/CNW's compact footprint fits inside tight control panels, and DIN rail mounting accelerates installation by 40% versus rack-mount controllers.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the ME203/CNW when your application requires 100-500 I/O points, scan cycles under 50ms, and proven Intel architecture. For applications exceeding 500 I/O points or requiring floating-point math, consider the MPC265 with Pentium III processor. If space is constrained, evaluate the MX213/W compact variant.

Advanced Integration Features

IEC 61131-3 Programming Environment
Develop control logic using Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), or Sequential Function Chart (SFC) through BACHMANN's SolutionCenter IDE. Pre-built function libraries accelerate development for PID control, alarm management, and data logging.

Redundancy & High Availability
Deploy dual ME203/CNW controllers in hot-standby configuration for 99.9% uptime. Automatic failover occurs within 200ms, ensuring continuous operation during maintenance or component failure. Ideal for pharmaceutical clean rooms and critical infrastructure.

Remote Diagnostics & Firmware Updates
Access real-time diagnostics via web browser or SNMP. Upload firmware updates over Ethernet without removing the module from the backplane. Reduces service calls by 60% and enables predictive maintenance.

Third-Party System Integration
Native support for Modbus TCP/RTU, OPC UA, and PROFINET enables seamless connectivity to Siemens, Rockwell, and Schneider Electric ecosystems. JSON/REST API available for custom MES/ERP integration.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe)
Custom Configuration: 10-15 business days for pre-loaded firmware or special labeling
Warranty Period: 12 months from shipment date, covering defects in materials and workmanship
Technical Support: Email/phone support included; on-site commissioning available (quoted separately)
Documentation Package: User manual, wiring diagrams, sample code, and CAD drawings (STEP/DXF formats)

Frequently Asked Questions

What programming software is required for the ME203/CNW controller?
BACHMANN SolutionCenter (Windows-based IDE) supports all IEC 61131-3 languages. A free 30-day trial is available; full licenses start at $1,200. Runtime licenses are included with the controller purchase.

Can this module replace an Allen-Bradley SLC 500 or MicroLogix controller?
Yes, the ME203/CNW offers comparable I/O capacity and scan performance. Migration tools are available to convert RSLogix ladder logic to IEC 61131-3 format. Typical conversion projects require 40-60 hours of engineering effort.

How many expansion modules can be connected to a single ME203/CNW?
Up to 64 M-Base I/O modules per backplane, supporting 1,024 digital I/O points or 256 analog channels. For larger systems, use Ethernet-based distributed I/O with multiple controllers.

Is the ME203/CNW suitable for outdoor installations without climate control?
Yes, when installed in a NEMA 4X or IP65-rated enclosure with proper ventilation. The -25°C to +60°C operating range covers most outdoor environments. For extreme climates (below -40°C), consider adding enclosure heaters.

What cybersecurity features are built into the ME203/CNW platform?
Supports user authentication, role-based access control, and encrypted Ethernet communication (TLS 1.2). Firmware is digitally signed to prevent unauthorized modifications. Regular security patches are released quarterly.

Does BACHMANN offer training for the ME203/CNW and M-Base system?
Yes, 3-day hands-on training courses are available at regional training centers or on-site. Curriculum covers hardware installation, IEC 61131-3 programming, and troubleshooting. Certification exams are optional.

Start Your Automation Project Today

Ready to upgrade your control system with proven BACHMANN technology? Contact our application engineers for a free consultation on system architecture, I/O requirements, and ROI analysis. Volume discounts available for orders of 10+ units. Request a detailed quotation or schedule a live demo of the ME203/CNW in action.
