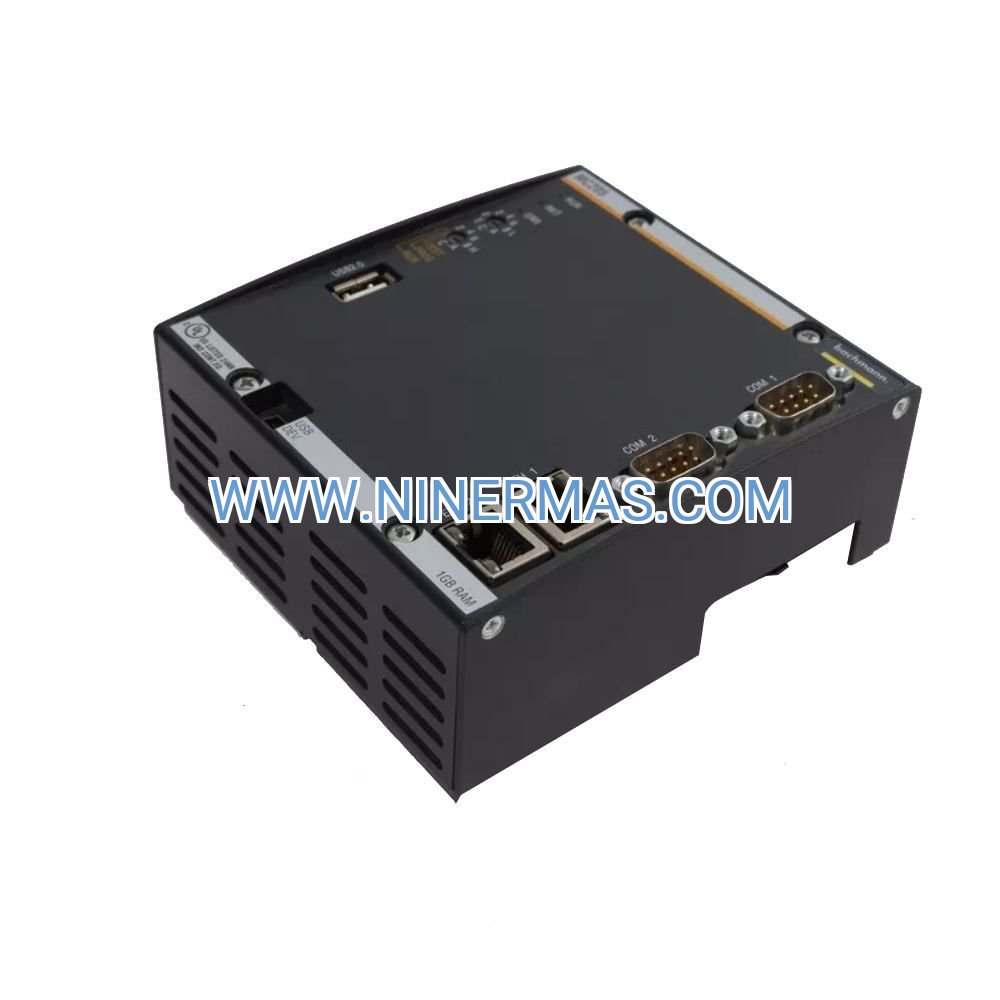

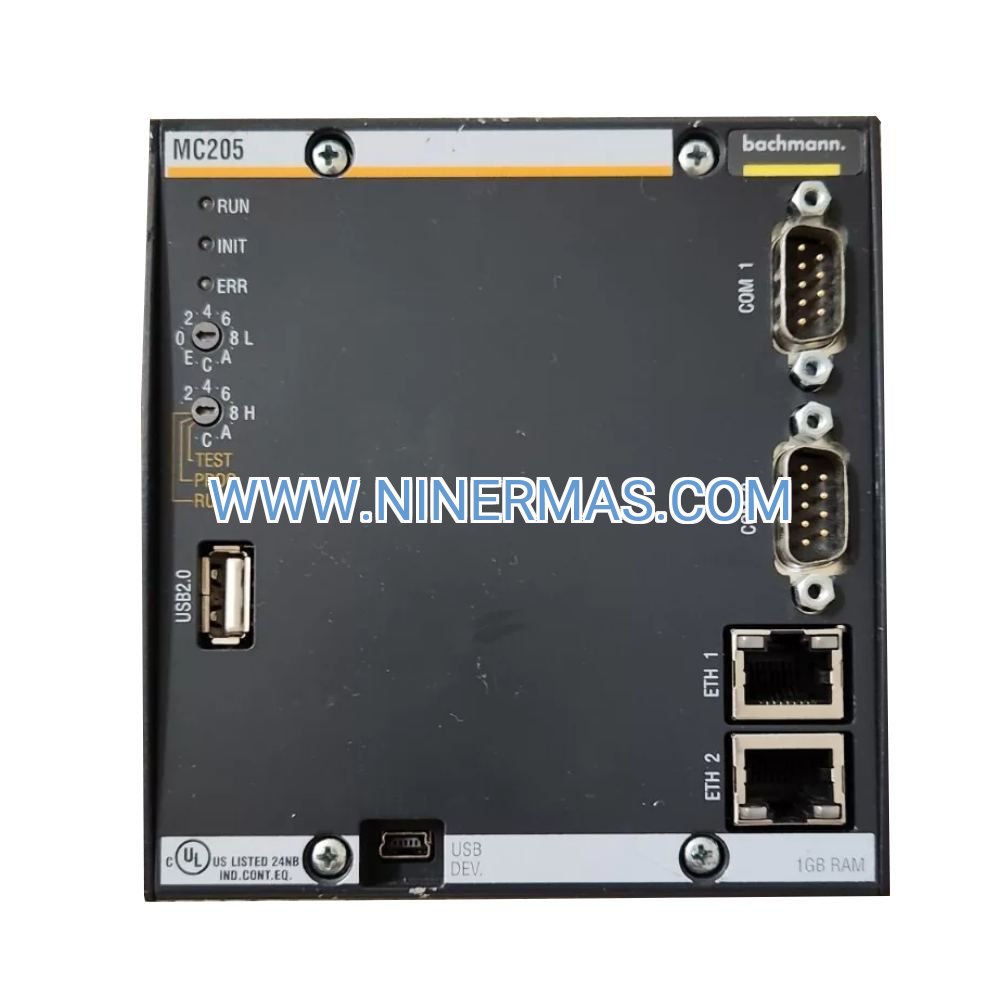

MC205 Industrial Processor Module (600MHz Intel ATOM E620 Architecture)

The BACHMANN MC205 represents a proven solution for industrial automation environments demanding reliable computational performance. Built around a 600 MHz Intel ATOM E620 processor core with 1 GB DDR2 system memory and 512 kB non-volatile RAM, this controller module delivers consistent execution for process control logic, distributed automation networks, and safety-critical applications across manufacturing, energy, and infrastructure sectors.

Designed for system integrators and automation engineers, the MC205 addresses challenges in legacy system modernization, multi-protocol communication requirements, and harsh environmental conditions. Its extended temperature rating (-40°C to +70°C) and industrial-grade construction ensure operational continuity in demanding installations where commercial computing platforms fail.

As a core component of the BACHMANN M1 automation ecosystem, the MC205 integrates seamlessly with digital I/O, analog signal conditioning, and specialty function modules, enabling scalable control architectures from compact machine controllers to distributed plant-wide systems. The module's hot-swap capability and diagnostic features minimize unplanned downtime while simplifying maintenance procedures.

Core Capabilities & Technical Advantages

→ High-Speed Processing Architecture: 600 MHz Intel ATOM E620 CPU executes complex control algorithms with scan times from 1-10 ms, supporting time-critical applications in motion control, batch processing, and coordinated multi-axis systems.

→ Robust Memory Configuration: 1 GB DDR2 DRAM accommodates extensive program logic, historical data buffering, and recipe management, while 512 kB nvRAM preserves critical parameters and process states through power interruptions without battery backup requirements.

→ Multi-Protocol Connectivity: Integrated Ethernet, serial (RS-232/RS-485), and USB interfaces enable simultaneous connections to SCADA systems, HMI panels, field devices, and engineering workstations, reducing gateway hardware costs and communication latency.

✓ Extended Environmental Tolerance: -40°C to +70°C operating range qualifies the MC205 for outdoor enclosures, unheated facilities, and high-temperature process areas without supplemental climate control, lowering installation costs and energy consumption.

✓ Modular System Integration: DIN rail and backplane mounting options support flexible cabinet layouts, while compatibility with BS203/BS206/BS208/BS209/BS210 backplanes enables configurations from 3 to 10 I/O modules per controller.

✓ Maintenance-Optimized Design: Hot-swappable architecture allows module replacement during operation without system shutdown, while comprehensive diagnostic LEDs and web-based status monitoring accelerate troubleshooting and reduce mean time to repair (MTTR).

Industrial Application Scenarios

Water & Wastewater Treatment Plants: The MC205 manages pump sequencing, chemical dosing control, and filtration processes in municipal treatment facilities. Its extended temperature rating handles outdoor lift stations and remote pumping sites, while Ethernet connectivity enables centralized SCADA monitoring across distributed infrastructure. Typical installations reduce operator intervention by 40% through automated process optimization.

Food & Beverage Processing Lines: Batch recipe management, temperature profiling, and CIP (clean-in-place) sequencing benefit from the MC205's generous memory capacity and deterministic scan performance. Integration with weight scales, flow meters, and temperature sensors via analog input modules ensures product consistency and regulatory compliance documentation.

Building Automation & HVAC Systems: Commercial facilities deploy the MC205 for chiller plant optimization, air handler scheduling, and energy demand management. The controller's ability to interface with BACnet, Modbus, and proprietary building protocols through serial and Ethernet ports eliminates protocol gateways, reducing system complexity and points of failure.

Material Handling & Conveyor Systems: Warehouse automation and distribution centers utilize the MC205 for sortation logic, zone control, and barcode tracking integration. Fast scan times support high-speed conveyor applications, while the module's compact footprint fits space-constrained control panels.

Renewable Energy Installations: Solar tracking systems, wind turbine pitch control, and battery energy storage systems leverage the MC205's environmental ruggedness and communication flexibility. Remote monitoring via cellular routers enables predictive maintenance and performance optimization across geographically dispersed installations.

Technical Parameters & Selection Guidance

Selection Criteria: Choose the MC205 when your application requires moderate computational performance (up to 10,000 I/O points), multi-protocol communication, and extended environmental tolerance. For applications demanding higher processing power or larger memory capacity, consider the MPC240 (128 MB) or MPC270 (256 MB) models. Systems requiring safety certification (SIL 2/3) should incorporate the SLC284 safety processor in redundant configurations.

Advanced Integration & Customization Options

Industrial IoT Connectivity: The MC205 supports OPC UA server functionality, enabling direct integration with cloud platforms, MES systems, and Industry 4.0 analytics tools without middleware. MQTT client capabilities facilitate edge computing architectures and predictive maintenance applications.

Redundancy Configurations: Pair two MC205 modules with redundancy communication modules (RCM) for hot-standby controller architectures, achieving system availability exceeding 99.9% in critical process applications. Automatic failover occurs within 100 ms, maintaining process continuity during controller faults.

Custom Programming Libraries: Beyond standard IEC 61131-3 languages (Ladder Logic, Structured Text, Function Block Diagram), the MC205 supports C/C++ function blocks for specialized algorithms, third-party protocol drivers, and mathematical modeling applications requiring floating-point performance.

Cybersecurity Features: Integrated firewall, user authentication, and encrypted communication channels (TLS/SSL) protect against unauthorized access and cyber threats, meeting IEC 62443 industrial cybersecurity standards for connected automation systems.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock MC205 modules ship within 24-48 hours via express courier services (DHL, FedEx, UPS). Typical transit times: 3-5 business days to North America/Europe, 5-7 days to Asia-Pacific, 7-10 days to other regions.

Custom Configuration Services: Pre-programmed modules with customer-specific firmware, I/O configurations, and network settings available with 5-7 business day lead time. Includes factory testing documentation and configuration backup files.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Advance replacement service available for critical applications, minimizing downtime during warranty claims.

Technical Support: Lifetime technical assistance includes application engineering consultation, programming support, and troubleshooting guidance via email, phone, and remote desktop sessions. Response time: 4 hours for critical issues, 24 hours for general inquiries.

Documentation Package: Each MC205 includes installation manual, programming reference guide, communication protocol specifications, CAD drawings (DXF/STEP formats), and sample application programs for common control scenarios.

Frequently Asked Questions

What programming software is compatible with the MC205 processor module?
The MC205 requires BACHMANN SolutionCenter development environment, supporting all five IEC 61131-3 programming languages plus C/C++ extensions. The software includes integrated simulation, debugging tools, and version control integration. A free 30-day trial license is available for evaluation purposes.

How does the MC205 compare to Allen-Bradley CompactLogix or Siemens S7-1200 controllers?
The MC205 offers comparable processing performance to CompactLogix 5370 L1 and S7-1200 CPU 1214C models, with advantages in extended temperature rating and modular I/O scalability. BACHMANN's open communication architecture simplifies multi-vendor system integration compared to proprietary ecosystems.

Can the MC205 handle motion control applications with servo drives?
Yes, the MC205 supports coordinated motion control for up to 8 servo axes via EtherCAT or CANopen communication modules. Position control loop times of 1-2 ms are achievable for applications such as packaging machines, pick-and-place systems, and material handling equipment.

What is the maximum I/O capacity supported by a single MC205 controller?
A single MC205 can manage up to 10,000 digital I/O points and 2,000 analog channels when using distributed I/O via Ethernet/IP, Modbus TCP, or PROFINET protocols. Local backplane configurations support 3-10 I/O modules depending on backplane selection.

Does the MC205 require periodic battery replacement for memory retention?
No, the MC205 uses non-volatile RAM (nvRAM) technology that retains data without battery backup. This eliminates maintenance costs and prevents data loss from depleted batteries, a common issue with older PLC platforms.

Is the MC205 suitable for outdoor installations in extreme climates?
The MC205's -40°C to +70°C operating range qualifies it for outdoor enclosures with appropriate IP65/NEMA 4X cabinets. Conformal coating options provide additional protection against humidity, salt spray, and corrosive atmospheres in marine or chemical processing environments.

Ready to Optimize Your Automation System?

Contact our automation specialists to discuss your specific control requirements, receive application engineering support, and obtain detailed quotations for MC205-based system configurations. We provide complete solutions including controller modules, I/O hardware, power supplies, programming services, and commissioning assistance.

Request a Technical Consultation: Our engineers will analyze your process requirements, recommend optimal hardware configurations, and provide estimated project timelines and budgets within 24 hours.
