Description

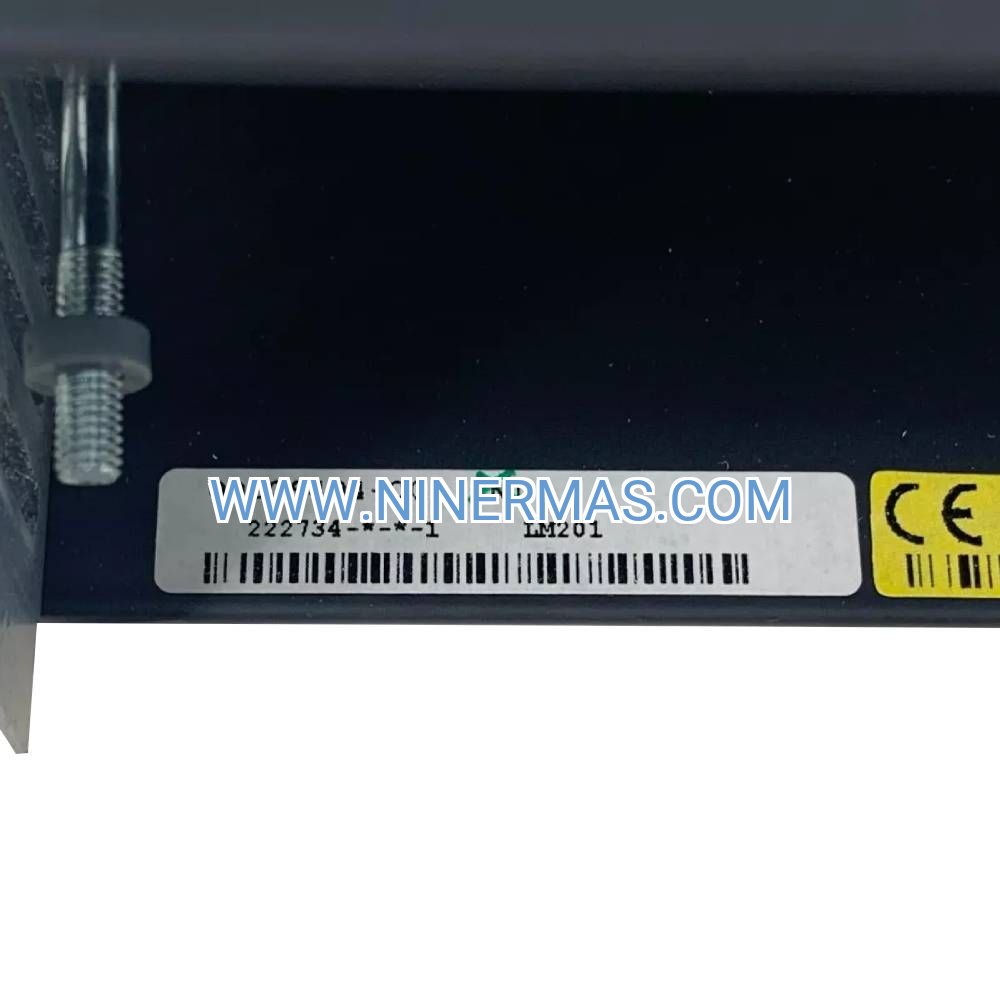

ABB IMDSO15 Digital Output Module (Industrial-Grade 16-Channel Control Interface)
The ABB IMDSO15 represents a field-proven digital output solution engineered for mission-critical process control applications. As an integral component of ABB's Bailey Infi 90 and Net 90 distributed control system architecture, this module delivers 16 independent, galvanically isolated output channels designed to interface with solenoid valves, motor starters, alarm circuits, and actuator systems across oil & gas, chemical processing, power generation, and water treatment industries.
Built to withstand the harshest industrial environments, the IMDSO15 addresses common automation challenges including electromagnetic interference, thermal stress, and system downtime through advanced isolation technology, comprehensive diagnostics, and hot-swappable architecture. Process engineers and control system integrators rely on this module to maintain operational continuity in applications where output signal integrity directly impacts safety, product quality, and production efficiency.
With proven compatibility across legacy Bailey systems and modern DCS platforms, the IMDSO15 enables seamless modernization projects while protecting existing infrastructure investments. Its robust design, backed by extensive certifications (CE, UL, ATEX) and a mean time between failures exceeding 200,000 hours, makes it the preferred choice for facilities requiring 24/7 uptime and regulatory compliance.
Core Capabilities & Technical Advantages
→ 16 Independent Isolated Output Channels
Each channel features 1500V AC isolation barrier protecting control systems from field-side electrical faults, ground loops, and transient voltage spikes. Solid-state switching technology eliminates mechanical relay wear while supporting up to 10 Hz switching frequency for pulse-width modulation applications.
→ Hot-Swap Maintenance Architecture
Field-replaceable design with keyed connectors and automatic module recognition enables technicians to replace failed units during live operation without process interruption. This capability reduces mean time to repair (MTTR) by 75% compared to traditional I/O systems requiring full shutdown procedures.
✓ Advanced Per-Channel Diagnostics
Built-in self-test routines continuously monitor each output for open-load conditions, short-circuit faults, and thermal overload. Real-time status feedback to HMI/SCADA systems with sub-100ms update rates enables predictive maintenance strategies and reduces unplanned downtime by up to 40%.
✓ Extended Environmental Operating Range
Qualified for -40°C to +70°C ambient operation with 5-95% relative humidity tolerance (non-condensing). Industrial-grade EMI/RFI filtering meets IEC 61000-6-2 immunity standards, ensuring reliable operation in proximity to variable frequency drives, welding equipment, and high-power switching devices.
✓ Flexible Load Compatibility
Supports inductive loads (solenoid valves, relay coils), resistive loads (indicator lamps, heaters), and capacitive loads with integrated flyback diode protection. Software-configurable output characteristics accommodate 24V DC nominal loads (18-30V operating range) with 0.5A continuous current rating per channel.
✓ Backward-Compatible Modernization Path
Drop-in replacement for legacy Bailey IMDSO modules with identical mounting footprint, terminal arrangement, and electrical specifications. Enables phased system upgrades without costly panel redesign or field wiring modifications, protecting capital investments in existing control infrastructure.
Industrial Application Solutions
Chemical Batch Processing & Reactor Control
Drives pneumatic control valves and motorized isolation valves in multi-stage batch reactors where precise sequencing prevents hazardous material mixing. Integrated interlock logic with deterministic timing accuracy ensures compliance with OSHA PSM and EPA RMP safety requirements.
Oil & Gas Pipeline & Wellhead Automation
Controls remote actuated ball valves, emergency shutdown (ESD) systems, and pump starter circuits across distributed SCADA networks. ATEX Zone 2 certification and conformal coating options enable deployment in classified hazardous locations with explosive atmosphere risk.
Power Generation Turbine & Boiler Systems
Manages fuel valve positioning, damper actuators, and auxiliary equipment sequencing in combined-cycle plants and cogeneration facilities. SIL-rated diagnostic coverage supports IEC 61508 functional safety requirements for critical shutdown systems.
Water & Wastewater Treatment Plants
Operates chemical dosing pumps, clarifier mechanisms, and filtration system valves with coordinated start/stop sequences. Corrosion-resistant terminal blocks and IP20-rated enclosure withstand high-humidity environments typical of treatment facilities.
Food & Beverage CIP Systems
Controls sanitary valve manifolds, spray ball circuits, and tank agitator motors in clean-in-place (CIP) automation. Meets FDA 21 CFR Part 11 electronic record requirements through comprehensive audit trail logging of output state changes.
Technical Specifications & Selection Guide
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | IMDSO15 |
| Module Type | Digital Output (DO) |
| System Platform | Bailey Infi 90, Net 90 DCS |
| Output Channels | 16 independent channels |
| Output Technology | Solid-state relay (SSR) / transistor switching |
| Voltage Rating | 24V DC nominal (18-30V DC range) |
| Current Capacity | 0.5A per channel (continuous) |
| Switching Speed | Up to 10 Hz per channel |
| Isolation Voltage | 1500V AC (channel-to-backplane) |
| Diagnostic Features | Open-load, short-circuit, over-temperature detection |
| Status Indication | Per-channel LED indicators |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Method | DIN rail (35mm standard) |
| Dimensions (L×W×H) | 178mm × 51mm × 330mm |
| Weight | 0.5 kg |
| Certifications | CE, UL/cUL, ATEX Zone 2, IEC 61131-2 |
| MTBF | >200,000 hours @ 40°C |
Selection Criteria: Choose the IMDSO15 when your application requires (1) high-density digital output in limited panel space, (2) galvanic isolation for noise immunity in electrically harsh environments, (3) hot-swap capability for high-availability systems, or (4) backward compatibility with existing Bailey Infi 90/Net 90 infrastructure. For applications requiring higher current capacity (>0.5A per channel), consider relay-based output modules or external interface relays.
Advanced Features & Integration Options
IoT & Industry 4.0 Connectivity: Integrate with ABB Ability™ digital platforms for cloud-based asset performance monitoring, predictive maintenance analytics, and remote diagnostics. OPC UA server functionality enables seamless data exchange with MES/ERP systems and third-party analytics tools.
Redundancy & High-Availability Configurations: Deploy in redundant controller architectures with automatic failover and bumpless transfer capabilities. Dual-channel output configurations support 1oo2 (one-out-of-two) voting logic for SIL 2/3 safety instrumented systems.
Custom Firmware & Application Profiles: Factory-programmable output timing profiles, pulse train generation, and custom diagnostic thresholds available for OEM applications and specialized process requirements. Contact engineering services for application-specific customization options.
Delivery Timeline & Service Commitment
Standard Lead Time: 3-5 business days for in-stock units (North America/Europe); 7-10 business days for Asia-Pacific regions. Expedited same-day/next-day shipping available for critical outage situations (subject to inventory availability).
Custom Configuration Lead Time: 2-3 weeks for factory-programmed firmware, extended temperature range (-55°C to +85°C), or conformal coating options.
Warranty Coverage: 18-month manufacturer warranty from shipment date covering defects in materials and workmanship. Extended 3-year and 5-year service agreements available with advanced replacement and on-site support options.
Technical Support: Complimentary pre-sales application engineering assistance, post-sales commissioning support via phone/email, and access to comprehensive documentation library including CAD drawings, configuration software, and troubleshooting guides.
Included Documentation: Installation manual, wiring diagrams, configuration parameter reference, calibration certificate (NIST-traceable), and factory test report with serial number traceability.
Frequently Asked Questions
Q: Can the IMDSO15 digital output module interface with non-ABB PLC systems?
A: Yes, the IMDSO15 can integrate with third-party PLCs (Siemens, Allen-Bradley, Schneider Electric) through Modbus RTU/TCP or PROFIBUS DP communication gateways. However, native integration with Bailey Infi 90/Net 90 DCS platforms provides optimal performance and diagnostic capabilities.
Q: What is the maximum cable distance between the IMDSO15 module and field devices?
A: For 24V DC loads, recommended maximum cable run is 100 meters using 18 AWG shielded twisted-pair wiring. Longer distances may require voltage drop compensation or local power supplies at the actuator end. Consult application engineering for site-specific cable sizing calculations.
Q: Does the IMDSO15 support pulse-width modulation (PWM) for proportional valve control?
A: Yes, software-configurable PWM output mode supports frequency ranges from 0.1 Hz to 10 Hz with adjustable duty cycle (0-100%). This enables proportional control of variable-position valves, variable-speed fans, and analog actuators without external signal conditioning hardware.
Q: How do I replace a failed IMDSO15 module without shutting down the entire control system?
A: The hot-swap procedure involves: (1) Verify replacement module firmware matches existing configuration, (2) Remove module retaining clips while system remains powered, (3) Slide out failed module from DIN rail, (4) Insert replacement module until keyed connectors engage, (5) Verify green "RUN" LED and check diagnostic status via HMI. Total replacement time typically under 2 minutes with zero process interruption.
Q: What safety certifications does the IMDSO15 hold for use in hazardous area applications?
A: The module carries ATEX Zone 2 (Group IIC) certification for installation in control rooms adjacent to classified areas. For Zone 1/Division 1 field mounting, the module must be installed in approved purged/pressurized enclosures meeting IEC 60079-2 or NFPA 496 standards.
Q: Can I monitor individual output channel status remotely through SCADA systems?
A: Absolutely. Each output channel reports real-time status (ON/OFF state, fault condition, diagnostic alarms) to the DCS controller with sub-100ms refresh rates. This data is accessible via standard SCADA protocols (OPC DA/UA, Modbus, DNP3) for remote monitoring, historical trending, and alarm management.
Get Expert Application Support Today
Our industrial automation specialists are ready to assist with IMDSO15 module selection, system integration planning, and technical specifications review. Contact us for:
- Custom configuration quotes for volume orders or OEM applications
- Compatibility verification with your existing Bailey Infi 90/Net 90 system
- Replacement part cross-reference for obsolete legacy modules
- On-site commissioning and training services
Request a quote now or speak with an application engineer to ensure optimal module selection for your process control requirements.
