Lenze MDSKSRS036-13 Service-Ready Spare Part for Industrial Maintenance

Lenze MDSKSRS036-13 Service-Ready Spare Part for Industrial Maintenance

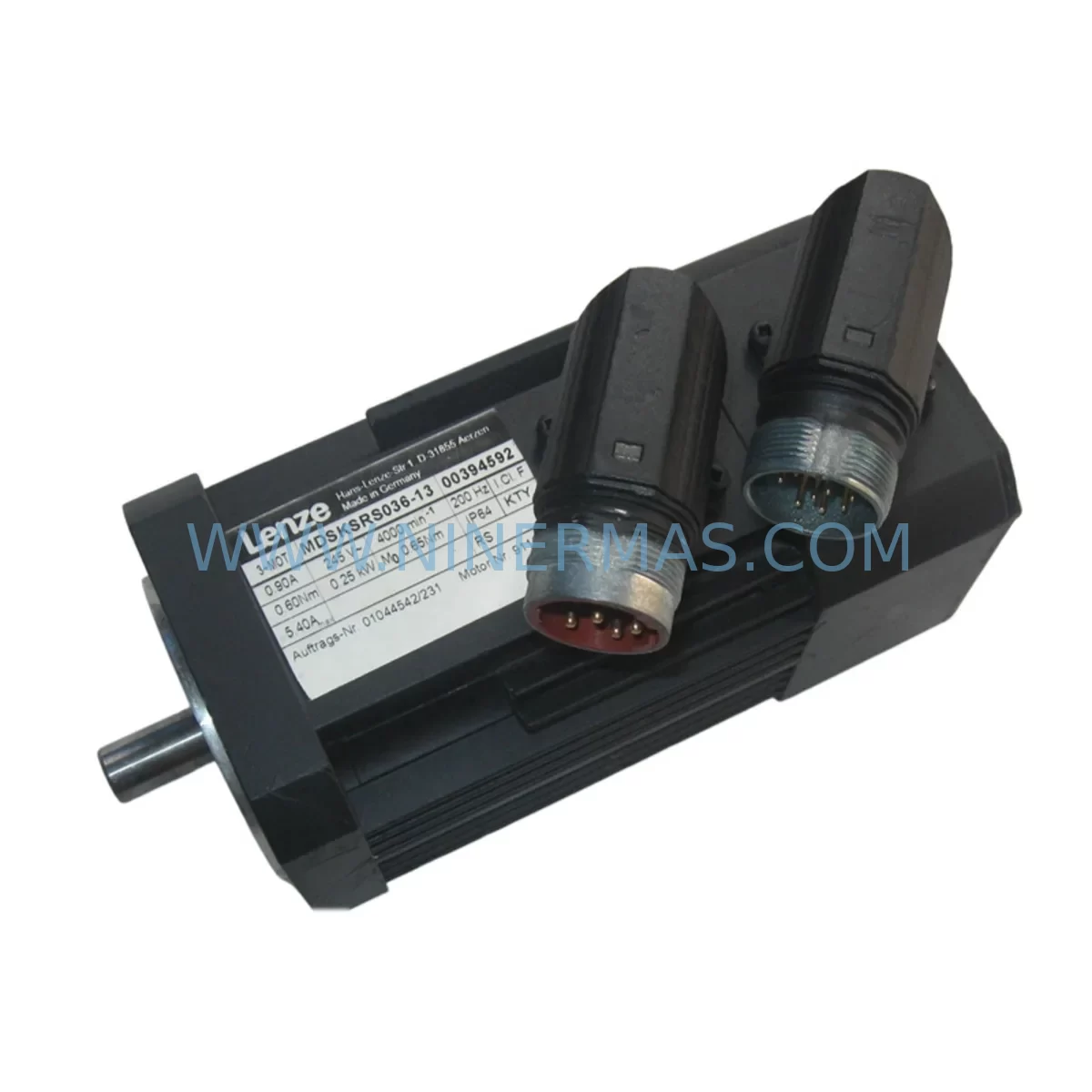

The Lenze MDSKSRS036-13 is a ruggedized servo motor module engineered for demanding industrial environments where reliability, precision, and continuous uptime are non-negotiable. As a service-ready original spare part, this unit is a critical component in preventive maintenance programs, emergency breakdown recovery, and long-term asset management strategies across manufacturing, packaging, material handling, and process automation sectors. Sourced and tested to OEM specifications, the MDSKSRS036-13 is stocked to support immediate dispatch and reduce mean time to repair (MTTR) for maintenance engineers managing Lenze servo-driven systems.

For procurement engineers, the MDSKSRS036-13 represents a low-risk, high-confidence spare part investment. Its compatibility with the Lenze 9300 servo inverter series and associated drive topologies means it integrates directly into existing control architectures without requiring firmware reconfiguration or mechanical adaptation. Whether you are building a first-line spare parts inventory, replenishing a depleted maintenance kit, or sourcing a direct replacement following an unplanned failure, this module delivers the original performance envelope your system was designed around.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Lenze MDSKSRS036-13 servo motor module is flagged during routine inspection or fails under load, the replacement event should be treated as a broader system health checkpoint. Maintenance engineers are advised to simultaneously inspect the associated Lenze 9300 servo inverter for DC bus voltage stability and IGBT thermal performance, as servo motor failures are frequently preceded by inverter-side anomalies. The Lenze ECSxS servo controller and its feedback interface should also be verified for encoder signal integrity and parameter consistency before the replacement module is commissioned.

Power supply quality is a common root cause of premature servo module degradation. Inspect the Lenze PSL/PSU series power supply modules for output ripple and voltage regulation under dynamic load conditions. Upstream protection should include verification of motor circuit breakers and line fuses rated to the drive’s input current specification. In multi-axis control cabinets, the Lenze EMB9352-E braking resistor and associated chopper circuit should be checked for thermal stress indicators, particularly if the application involves frequent deceleration cycles.

I/O integrity is equally important. The Lenze EPM-S100 I/O extension module and any connected digital or analog I/O terminal blocks should be inspected for loose wiring, oxidized contacts, and correct signal levels. If the system uses PROFIBUS or CANopen communication modules for coordinated motion control, verify bus termination, node addressing, and cycle time settings after the servo module swap to prevent communication faults during restart. For systems with Lenze HMI operator panels, confirm that drive parameters and fault history are backed up before the replacement procedure begins.

Signal isolation is a frequently overlooked maintenance item. Signal isolators and analog input conditioners in the speed reference or torque command circuit should be tested for drift, particularly in environments with high electromagnetic interference. Finally, inspect the control cabinet backplane and DIN rail mounting hardware for corrosion, mechanical fatigue, and proper grounding continuity — factors that directly affect the long-term reliability of the replacement MDSKSRS036-13 and the surrounding drive system.

Site Replacement Workflow

Replacing the Lenze MDSKSRS036-13 on-site follows a structured procedure designed to minimize downtime and ensure system compatibility. Begin by isolating the drive system from mains power and discharging the DC bus capacitors in the associated 9300 servo inverter — this step is mandatory for personnel safety and to prevent damage to the replacement module during installation. Document the existing motor cable routing, encoder feedback connector pinout, and any mechanical coupling alignment before disassembly.

Remove the failed module by disconnecting the power and feedback cables in sequence, noting torque specifications for terminal screws. Install the MDSKSRS036-13 into the same mounting position, reconnect all cables to their original terminals, and verify encoder phasing and cable shielding integrity. Before energizing, cross-reference the drive parameter set — particularly motor nameplate data, current limits, and speed controller gains — against the replacement module’s rated specifications. If the previous module had been auto-tuned, a new identification run may be required to optimize performance.

Power up the system in a controlled sequence: enable the servo inverter first, confirm no fault codes are present, then enable the axis and perform a low-speed jog test before returning to full production speed. This workflow is applicable whether the MDSKSRS036-13 is replacing an identical failed unit or substituting an older, discontinued Lenze servo motor model with equivalent electrical and mechanical characteristics. Proper documentation of the replacement event — including date, technician, fault code history, and post-installation test results — supports future maintenance planning and warranty claim processing.

Spare Parts Support FAQ

Q1: Is the Lenze MDSKSRS036-13 a direct replacement for older Lenze MDS series servo motors?
Yes. The MDSKSRS036-13 is designed as a service-ready replacement within the Lenze MDS servo motor family. It maintains mechanical and electrical compatibility with the 9300 servo inverter series. For cross-reference verification against specific legacy part numbers, contact our technical team with your existing motor nameplate data.

Q2: What pre-shipment testing is performed on the MDSKSRS036-13?
Each unit undergoes functional and electrical verification prior to dispatch, including insulation resistance testing, encoder signal output confirmation, and mechanical rotation check. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for Lenze servo systems?
For critical production lines, we recommend maintaining at least one MDSKSRS036-13 as a first-line spare, supplemented by a stocked servo inverter module and encoder feedback cable set. Procurement engineers should review spare parts lists annually against system age and historical failure rates. We offer long-term supply commitments and can support scheduled replenishment programs to prevent stockout risk.

Q4: Can the MDSKSRS036-13 be used in environments with high vibration or temperature extremes?
Yes. The MDSKSRS036-13 is specifically rated for ruggedized industrial environments, including applications with elevated vibration, shock loading, and wide ambient temperature ranges. Confirm that installation complies with Lenze’s environmental rating specifications for the MDS series, and ensure adequate cabinet ventilation or cooling is maintained to preserve module longevity.
