LENZE E82EV751K4C Retrofit-Compatible AC Drive for Legacy Systems

LENZE E82EV751K4C Retrofit-Compatible AC Drive for Legacy Systems

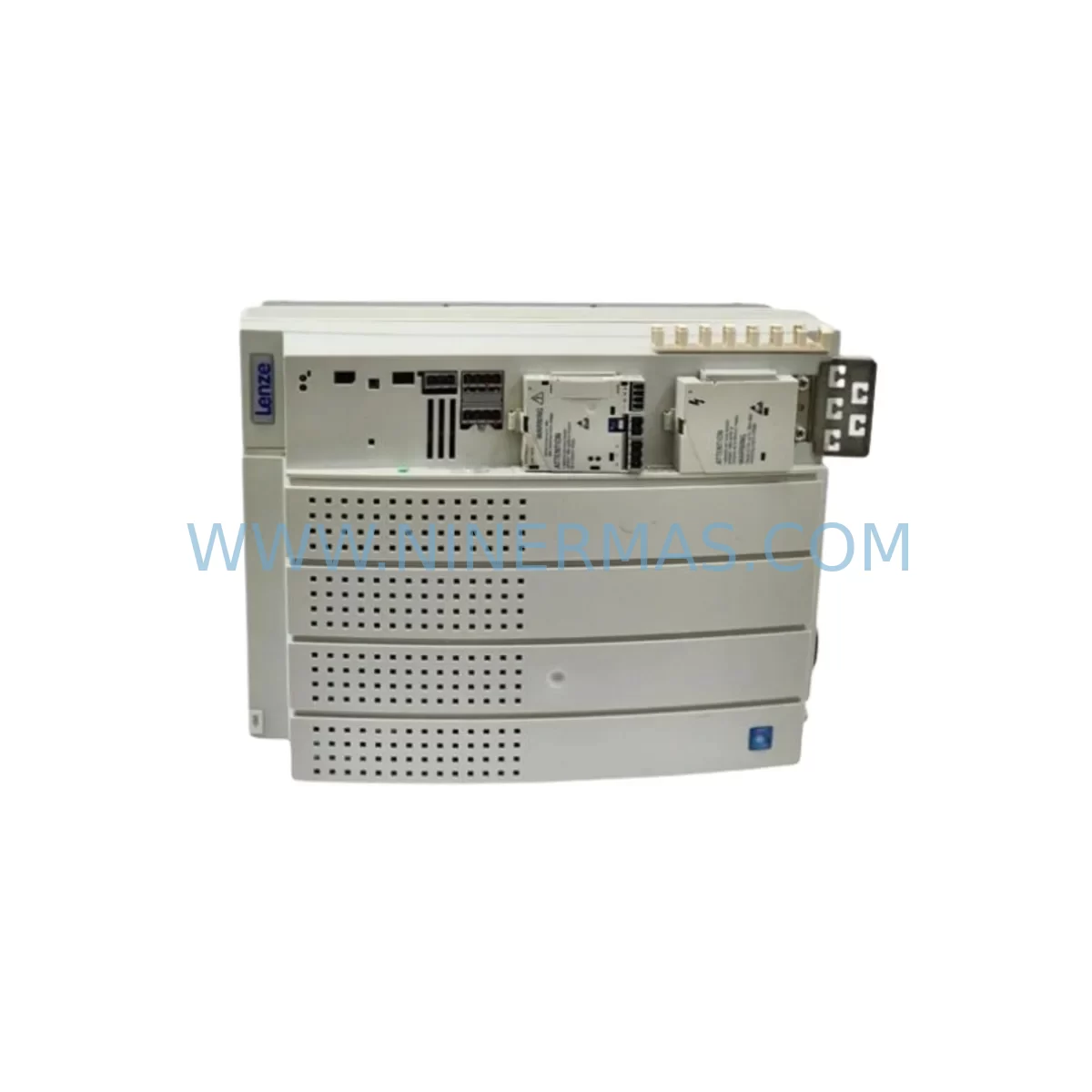

The LENZE E82EV751K4C is a 7.5 kW AC variable frequency drive from the proven E82EV series, widely deployed across European and Asian manufacturing lines since the early 2000s. As original equipment reaches end-of-life and spare parts become increasingly scarce, the E82EV751K4C remains one of the most sought-after retrofit-compatible inverter units for legacy control cabinets. Whether you are replacing a failed drive on a bottling line, upgrading a conveyor system, or migrating a multi-axis motion platform to a modern control architecture, this unit provides a reliable, dimensionally compatible, and electrically equivalent solution that minimises engineering rework and commissioning time.

Each unit supplied by NINERMAS undergoes pre-shipment functional testing covering power-on self-diagnostics, output voltage symmetry, control terminal continuity, and keypad communication verification. A 12-month warranty is included from the date of dispatch, covering manufacturing defects and component failure under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the E82EV751K4C into an existing automation environment requires a structured approach that accounts for both electrical compatibility and software continuity. In most legacy installations, the drive is wired into a control cabinet alongside a LENZE 9300 servo controller or an older E82EV series unit sharing the same 24 V DC bus supplied by a LENZE EZV power supply module. Before removing the failed unit, engineers should photograph the full terminal wiring layout and export the parameter set using the E82ZBK keypad module or the Global Drive Control (GDC) software via the LECOM interface.

On the PLC side, the E82EV751K4C is commonly controlled via a Siemens S7-300 or S7-400 CPU communicating over PROFIBUS DP, with the drive connected through a LENZE E82ZAFA PROFIBUS adapter module. If the existing installation uses a Siemens ET 200S distributed I/O rack for local signal conditioning, the terminal assignments for enable, setpoint, fault reset, and speed feedback must be verified against the original function block in STEP 7 or TIA Portal before the new drive is powered on. In installations where the communication backbone has already been migrated to PROFINET, a protocol gateway or a replacement adapter such as the E82ZAFP PROFINET module may be required.

For analogue setpoint control applications — common in older pump and fan systems — the X3 terminal block on the E82EV751K4C accepts a 0–10 V or 4–20 mA reference signal. If the upstream controller is a LENZE 8400 TopLine or a third-party PLC with analogue output cards, the signal scaling parameters (C0011, C0012, C0034) must be re-entered to match the original ramp and speed range settings. Where the original installation included a LENZE EMF2178IB keypad for local manual override, the same keypad is compatible with the E82EV751K4C and can be reused without modification.

In multi-drive cabinet configurations, the E82EV751K4C shares a common DC bus arrangement with adjacent drives such as the E82EV551K4C (5.5 kW) and E82EV152K4C (1.5 kW). Engineers should verify that the total regenerative energy budget does not exceed the braking resistor capacity — typically a LENZE ERBD047 or equivalent — before commissioning. Where a shared braking resistor is used, the wiring between the DC+ and DC- bus bars must be inspected for corrosion and rated for the combined peak current of all connected drives.

Signal isolation is another critical consideration in retrofit projects. If the original installation used LENZE signal isolators or third-party DIN-rail isolators between the PLC analogue outputs and the drive control terminals, these should be retained and tested for correct output range before the new drive is energised. Replacing the drive without verifying isolator output can result in incorrect speed references and unexpected motor behaviour during the first run.

Downtime Control During System Migration

Minimising production downtime during a drive replacement is the primary concern for maintenance engineers working on live manufacturing lines. For the E82EV751K4C, the recommended approach is a staged swap procedure: first, isolate the drive from the supply using the upstream circuit breaker or fused disconnect, then discharge the DC bus capacitors by waiting a minimum of five minutes after isolation before touching any internal terminals. The motor cable should be disconnected at the drive output terminals (U, V, W) and labelled before removal.

The original parameter set — including ramp times (C0012, C0013), minimum and maximum frequency limits (C0010, C0011), motor data (C0081–C0089), and any application-specific function block assignments — should be documented and transferred to the replacement unit before the first test run. If the original keypad is functional, the parameter upload can be completed in under ten minutes using the E82ZBK keypad clone function, significantly reducing the risk of misconfiguration during commissioning.

For installations where the E82EV751K4C controls a critical process — such as a cooling tower fan, a hydraulic pump, or a conveyor drive on a continuous production line — it is advisable to pre-stage the replacement unit in the workshop, load the parameter set, and perform a no-load motor test before bringing it to the field. This approach reduces on-site commissioning time to less than 30 minutes in most cases and allows the maintenance team to verify correct rotation direction, acceleration ramp behaviour, and fault response before reconnecting the load.

Where the original PLC program references drive status words or fault codes via the fieldbus, the engineer should confirm that the GSD file version loaded in the PLC project matches the firmware version of the replacement drive. A mismatch between GSD file and firmware can cause communication faults that appear as drive errors but are in fact configuration issues resolvable without hardware changes. Keeping a copy of the original GSD file and the drive firmware version on record is a best practice that significantly reduces troubleshooting time during future maintenance cycles.

Retrofit Support FAQ

Q1: Is the E82EV751K4C a direct drop-in replacement for the E82EV751K4B?
In most installations, yes. The E82EV751K4C is the successor revision to the E82EV751K4B and shares the same frame dimensions, terminal layout, and parameter structure. Minor differences in firmware revision may require a parameter review for applications using advanced function blocks. We recommend comparing the parameter lists using GDC software before commissioning.

Q2: Does each unit undergo testing before shipment?
Yes. Every E82EV751K4C supplied by NINERMAS is subject to pre-shipment functional testing including power-on diagnostics, output phase balance verification, and control terminal continuity checks. A test report is available upon request. All units are covered by a 12-month warranty from the date of dispatch.

Q3: What communication options are available for PROFIBUS or PROFINET integration?
The E82EV751K4C supports RS-485 LECOM-A/B natively. For PROFIBUS DP integration, the E82ZAFA adapter module is required and mounts directly onto the drive’s communication slot. For PROFINET, the E82ZAFP module provides the same physical interface. Both adapters are available separately and are compatible with existing GSD/GSDML files used in Siemens TIA Portal and STEP 7 projects.

Q4: What is the typical lead time and do you hold stock?
NINERMAS maintains buffer stock of the E82EV751K4C to support urgent replacement requirements. Standard orders are dispatched within 3–5 business days. For large-quantity or project-based procurement, please contact our sales team directly to confirm availability and lead time. Emergency same-day dispatch may be available for critical production line failures — contact us to discuss your requirements.
