KUKA KSD1-16 Service-Ready Spare Part for KR Series

KUKA KSD1-16 Service-Ready Spare Part for KR Series Robots

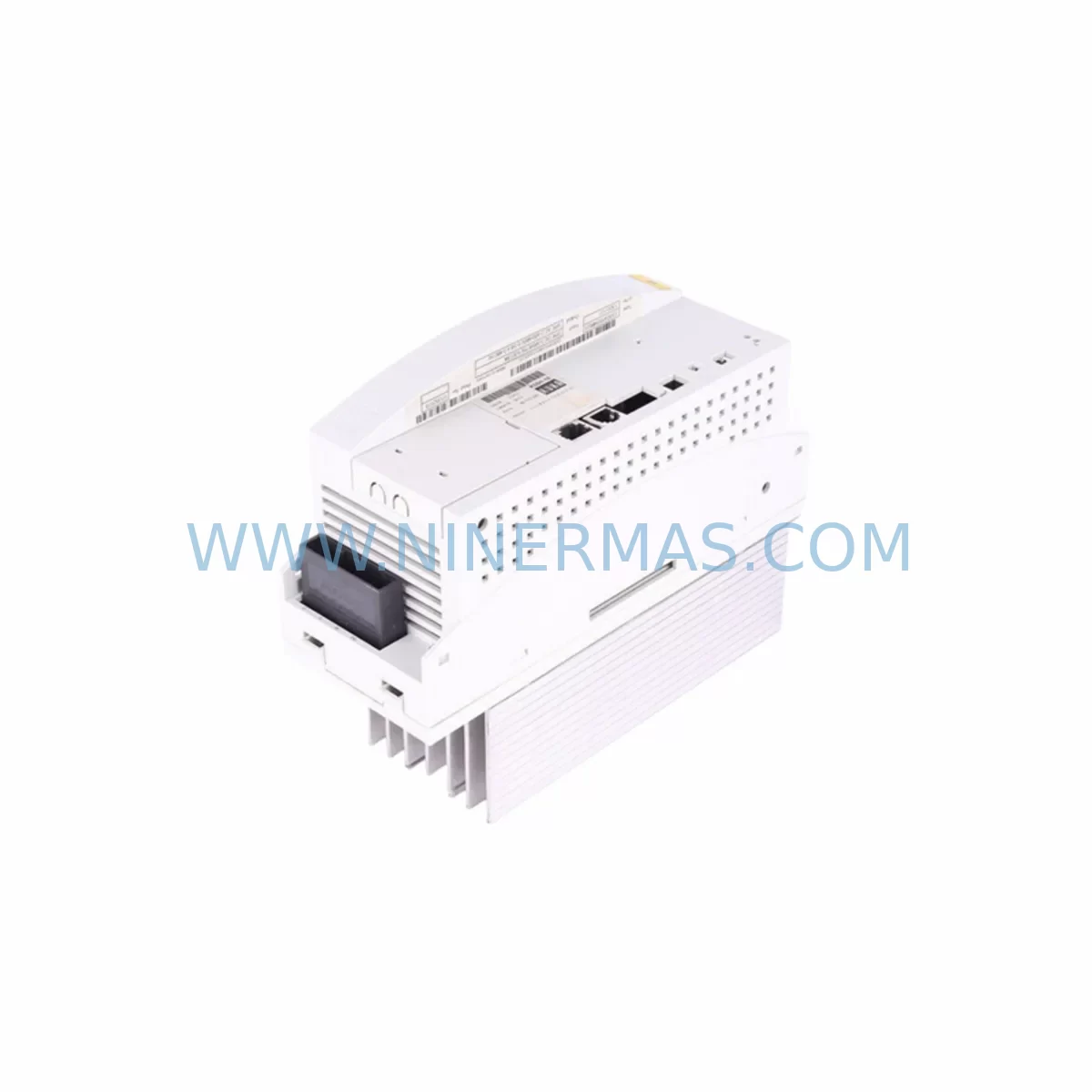

The KUKA KSD1-16 is a servo drive unit designed for use within the KUKA KR series industrial robot platform, including KR 6, KR 16, KR 30, and KR 60 variants operating under the KR C2 and KR C3 controller architectures. As a critical power and motion control component, the KSD1-16 governs axis-level servo amplification, translating controller commands into precise motor torque and velocity outputs. When this unit fails or degrades, the robot arm loses positional accuracy, triggers drive fault codes, or halts entirely — making rapid, verified replacement essential to restoring production continuity.

At NINERMAS, the KSD1-16 is held in ready stock and dispatched only after full functional testing. Each unit ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to plan replacements without the risk of receiving untested or counterfeit components. Whether you are responding to an unplanned fault or building a preventive spare parts inventory for a multi-robot cell, the KSD1-16 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KSD1-16 in a live production environment requires more than swapping the drive module. Maintenance engineers should treat this as an opportunity to inspect the full servo power chain within the KR C2 or KR C3 cabinet. The KPS600/20 or KPS600/41 power supply unit, which feeds the DC bus shared by all KSD axis drives, should be checked for output voltage stability and capacitor health — a degraded KPS can cause premature KSD failures even after a fresh replacement. Similarly, the KSP600/3×41 servo pack modules on adjacent axes should be inspected for thermal stress or fault history logged in the controller.

The DSE-IBS interface board, which manages INTERBUS communication between the KR C2 controller and the drive bay, is another component that maintenance teams frequently overlook. A faulty DSE-IBS can generate drive communication errors that mimic KSD hardware faults, leading to unnecessary drive replacements. Verifying the INTERBUS ring integrity before and after KSD1-16 installation is a recommended step in any structured replacement workflow.

Within the control cabinet, the terminal strip wiring and 24 VDC logic supply to the drive bay should be inspected for loose connections, corrosion, or insulation degradation — particularly in environments with high vibration or temperature cycling. The KR C2 cabinet’s internal fan assembly and air filter should also be serviced during any drive replacement, as thermal management directly affects drive longevity. If the robot is equipped with an external axis or a KL positioner, the corresponding KSD drive for that axis should be cross-checked as well.

For facilities running multiple KUKA robots, it is advisable to maintain at least one KSD1-16 unit per robot cell as a cold standby spare. Pairing this with a spare KPS power supply unit and a set of pre-terminated motor power cables (X20 and X30 connectors) ensures that the full drive replacement can be completed within a single maintenance window. NINERMAS supports long-term supply agreements for facilities requiring guaranteed stock availability across extended maintenance cycles.

Site Replacement Workflow

Before removing the KSD1-16, the maintenance engineer should power down the KR C2 or KR C3 controller using the correct shutdown sequence — never interrupt DC bus power abruptly, as residual charge in the bus capacitors can damage the replacement unit during installation. After confirming the cabinet is de-energized and the DC bus voltage has discharged to safe levels (typically below 50 VDC, verified with a multimeter at the bus terminals), the faulty KSD1-16 can be extracted from its drive bay slot.

The replacement KSD1-16 should be inserted firmly into the drive bay, ensuring the backplane connector is fully seated. All motor power connectors (X20 series) and resolver or encoder feedback cables must be reconnected in the correct axis assignment — mismatch will cause axis identification errors on controller startup. After physical installation, the KR C2 or KR C3 controller should be powered up in a controlled sequence: first the 24 VDC logic supply, then the main AC input to the KPS, allowing the drive bay to initialize before the servo enable signal is asserted.

Post-installation, the maintenance engineer should clear any stored fault codes using the KUKA smartPAD or KCP teach pendant, then perform a mastering check on the affected axis. If the robot has been stationary for an extended period or the resolver cable was disturbed, a full axis mastering procedure using the KUKA EMT (Electronic Mastering Tool) or mastering gauge may be required. A slow-speed test run across the full axis range should be completed before returning the robot to automatic production mode.

NINERMAS provides pre-shipment functional test documentation with each KSD1-16 unit, reducing the risk of installing a defective spare and extending unplanned downtime. All units are dispatched with original connector covers and protective packaging to prevent transit damage.

Spare Parts Support FAQ

Q1: Is the KSD1-16 compatible with both KR C2 and KR C3 controllers?
Yes. The KSD1-16 is designed for use within the KUKA KR C2 and KR C3 controller drive bays. It operates on the shared DC bus supplied by the KPS power unit and communicates via the internal INTERBUS backplane. Compatibility should be confirmed against the robot’s axis configuration and rated motor current before ordering.

Q2: Does NINERMAS test the KSD1-16 before shipment?
Yes. Every KSD1-16 unit dispatched by NINERMAS undergoes functional testing prior to shipment. A test report is included with the delivery. All units are covered by a 12-month warranty from the date of receipt.

Q3: How quickly can the KSD1-16 be shipped for emergency maintenance situations?
NINERMAS maintains ready stock of the KSD1-16 and can arrange priority dispatch for urgent maintenance requirements. Contact our sales team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and lead time for your location.

Q4: Can NINERMAS support long-term supply agreements for the KSD1-16?
Yes. NINERMAS offers long-term supply programs for facilities requiring guaranteed stock of critical spare parts such as the KSD1-16. These agreements include reserved inventory, fixed pricing, and priority fulfillment to support annual maintenance planning and multi-site procurement strategies.
