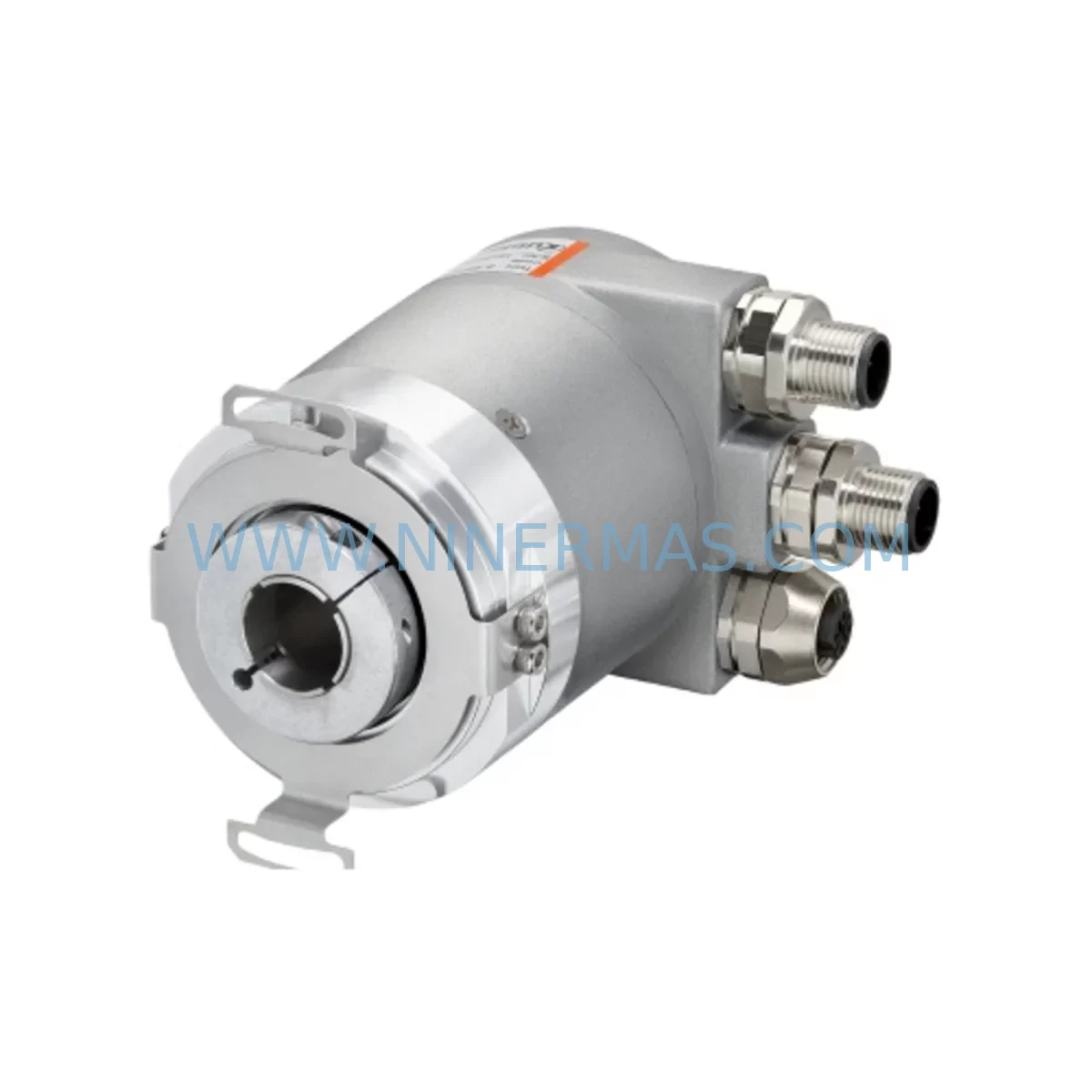

KUBLER 8.5888.5431.3112 Retrofit-Compatible Encoder for Legacy Systems

KUBLER 8.5888.5431.3112 Retrofit-Compatible Encoder for Legacy Systems

The KUBLER 8.5888.5431.3112 is a high-resolution incremental encoder from the renowned Sendix series, engineered for demanding industrial environments where precision, durability, and long-term availability are non-negotiable. As legacy automation lines face increasing pressure to modernize without full system overhauls, the 8.5888.5431.3112 has become a critical retrofit component for engineers managing aging control architectures across packaging, material handling, printing, and process automation sectors.

NINERMAS maintains verified stock of the KUBLER 8.5888.5431.3112 with a 12-month warranty, supporting procurement teams that require reliable spare-parts supply for multi-year maintenance contracts. Whether you are replacing a failed unit on an existing line or pre-stocking for planned lifecycle extension, this encoder is shipped with full factory-equivalent specifications and pre-delivery functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the KUBLER 8.5888.5431.3112 into an existing control architecture requires a structured pre-replacement audit. Begin by documenting the current encoder’s wiring diagram, including the A, B, and Z channel assignments at the PLC high-speed counter module — commonly a Siemens FM350-1, a Beckhoff EL5101 incremental encoder terminal, or an equivalent counter input card. Confirm that the supply voltage rail feeding the encoder circuit is stable and within the 8.5888.5431.3112’s rated input range before powering the new unit.

On the mechanical side, measure the existing encoder’s shaft diameter, flange type, and overall installation depth within the control cabinet or machine housing. The Sendix series uses standardized flange dimensions, but legacy brackets may have been custom-machined — retain the original coupling or flexible bellows coupling to absorb any minor shaft misalignment and protect the encoder’s bearing from radial load. If the original encoder used a hollow-shaft design, a shaft adapter may be required to mate with the 8.5888.5431.3112’s solid shaft configuration.

For systems running Siemens S7-300 or S7-400 PLCs, the encoder’s incremental signals feed directly into FM350 or FM351 counter modules. Verify that the existing module’s input filter frequency is set appropriately for the new encoder’s maximum pulse frequency at full operating speed. On Allen-Bradley ControlLogix or CompactLogix platforms, the HSC (High-Speed Counter) module configuration — including filter frequency, count mode, and Z-pulse reset behavior — must be reviewed and updated in Studio 5000 before the replacement encoder is energized.

Where the legacy system includes a PROFIBUS DP network, the encoder itself does not participate in the bus — but associated drives, such as a Siemens SINAMICS G120 or a SEW MOVITRAC frequency inverter, may use encoder feedback for closed-loop speed control. In these cases, the encoder signal is typically split between the drive’s encoder input terminal block and the PLC counter module. Confirm that the signal splitter or encoder distributor module in the control cabinet is rated for the new encoder’s output voltage level (HTL vs. TTL) to avoid signal degradation or input damage.

If the system includes a PROFINET or EtherNet/IP backbone, the encoder itself remains a hardwired incremental device, but the PLC’s counter module may publish position data as a process variable over the network to an HMI panel — such as a Siemens SIMATIC TP700 Comfort or a Weintek cMT series touchscreen. After replacement, verify that the HMI’s position display and any associated alarm thresholds reflect the correct scaling based on the encoder’s PPR value. Recalibrate the zero-reference position in the HMI project if the Z-pulse offset has changed.

For systems that include a signal isolator or galvanic separator between the encoder and the PLC input — such as a Phoenix Contact MCR-SL or a Weidmüller WAS4 signal conditioner — confirm that the isolator’s frequency bandwidth is sufficient for the 8.5888.5431.3112’s maximum output frequency. Undersized isolators are a common source of missed pulses and position drift in retrofit projects. Similarly, if a programming cable or handheld programmer is used to access the PLC during commissioning, ensure the laptop or programmer is grounded to the control cabinet’s PE rail to prevent electrostatic discharge events during encoder signal verification.

Downtime Control During System Migration

Minimizing production downtime during an encoder replacement on a live automation line requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure and bench-test the replacement KUBLER 8.5888.5431.3112 before the line is stopped. Connect the encoder to a portable 24 V DC power supply and verify A, B, and Z channel outputs with an oscilloscope or a dedicated encoder tester. Confirm that the PPR output matches the specification recorded during the pre-replacement audit.

Back up the PLC program — including all data blocks, counter module configurations, and HMI project files — before any physical work begins. For Siemens S7 platforms, use SIMATIC Manager or TIA Portal to create a full project archive. For Allen-Bradley systems, use Studio 5000 to export the controller project. Store the backup on a local drive and a network share to ensure recovery is possible if the commissioning process encounters an unexpected fault.

During the physical swap, label all encoder wiring before disconnection using cable markers that reference the terminal block addresses in the control cabinet. Photograph the original wiring layout. Reconnect the 8.5888.5431.3112 following the same terminal assignments, then power up the encoder circuit before restarting the PLC in RUN mode. Monitor the counter module’s diagnostic buffer for any input frequency errors or wiring faults during the first jog cycle. Perform a slow-speed test run to verify direction of rotation and Z-pulse position before returning the line to full production speed.

For critical processes where even a brief interruption is unacceptable, consider a parallel installation strategy: mount the new encoder on a secondary shaft coupling and verify its output against the live encoder’s signal before the final cutover. This approach is particularly effective on conveyor systems and rotary indexing tables where a second encoder mounting point can be temporarily accommodated.

Retrofit Support FAQ

Q1: Is the KUBLER 8.5888.5431.3112 a direct replacement for other Sendix series encoders?
A: The 8.5888.5431.3112 is part of the KUBLER Sendix family and shares the same mechanical envelope and electrical interface conventions as other Sendix incremental models. Direct replaceability depends on matching the PPR value, shaft diameter, flange type, and output voltage level (HTL or TTL) of the original unit. NINERMAS can assist with cross-reference verification before order confirmation.

Q2: What commissioning steps are required after installation?
A: After mechanical installation and wiring, power up the encoder and verify A, B, and Z channel signals at the PLC counter module input terminals. Reset the Z-pulse reference position in the PLC program if the encoder’s physical mounting angle differs from the original. Perform a slow-speed jog to confirm correct direction of rotation and pulse count scaling before returning to full production speed.

Q3: Does NINERMAS provide pre-shipment testing for the 8.5888.5431.3112?
A: Yes. All KUBLER encoders supplied by NINERMAS undergo functional output verification prior to dispatch. Each unit is tested for A, B, and Z channel signal integrity and supply current draw. A test report is available upon request for quality-critical procurement processes.

Q4: What warranty and stock availability does NINERMAS offer?
A: NINERMAS provides a 12-month warranty on the KUBLER 8.5888.5431.3112 from the date of shipment. Stock is maintained to support both immediate replacement orders and long-term spare-parts programs. For volume commitments or scheduled delivery agreements, contact our sales team to discuss inventory reservation options.
