IXYS MCD255-16I01 Retrofit Thyristor Module for Legacy Systems

IXYS MCD255-16I01 Retrofit Thyristor Module for Legacy Systems

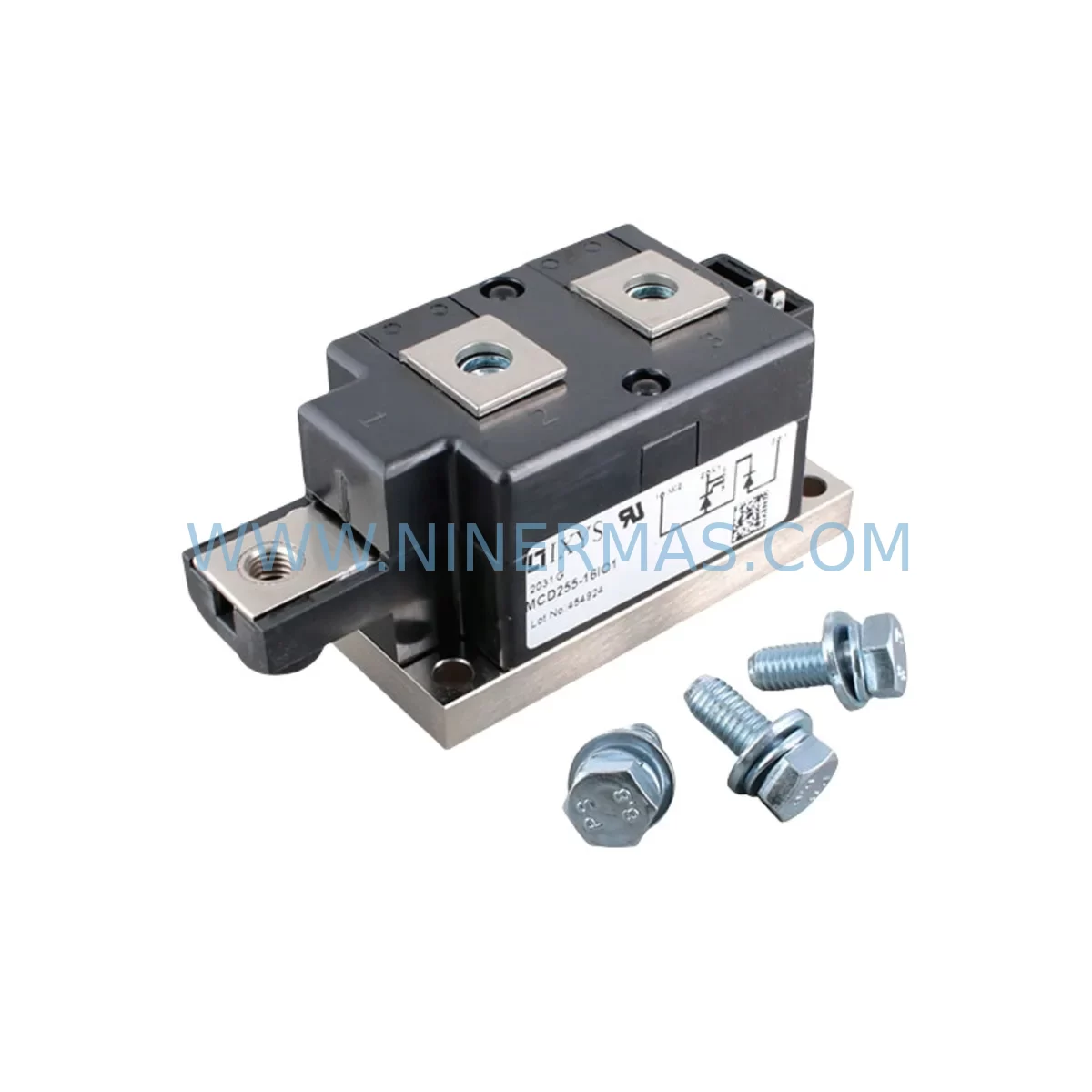

The IXYS MCD255-16I01 is a dual thyristor (SCR) power module rated at 255 A average current and 1600 V repetitive peak reverse voltage. Designed for high-power AC/DC conversion, motor drive front-ends, soft-starter assemblies, and industrial rectifier bridges, this module has been widely deployed across legacy automation platforms in steel mills, paper lines, chemical processing, and heavy-drive applications. As the MCD255 series approaches end-of-life availability from the original manufacturer, procurement teams and maintenance engineers are actively seeking retrofit-compatible replacements that preserve original circuit topology, mounting footprint, and gate-drive compatibility without requiring a full control-cabinet redesign.

NINERMAS maintains reserved inventory of the MCD255-16I01 and closely related MCD255 variants to support long-term spare parts programs. Each unit undergoes pre-shipment functional testing covering forward voltage drop, gate trigger current, holding current, and leakage current verification before dispatch. A 12-month warranty is provided on all supplied modules, covering manufacturing defects and parametric conformance to the original IXYS datasheet specification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the MCD255-16I01 in a live production environment requires a structured approach that accounts for the full power conversion stack. In a typical legacy DC motor drive or soft-starter cabinet, the thyristor module sits at the heart of the rectifier bridge, working in conjunction with a firing board, a current feedback module, and a DC bus capacitor bank. Before ordering a replacement, engineers should document the existing gate driver board model — common companions in IXYS-based drives include the IXYS IXDP630 gate driver IC and associated pulse transformer assemblies — and confirm that the replacement module’s gate trigger current (IGT) falls within the driver’s output capability.

On the AC input side, the MCD255-16I01 is frequently paired with line reactors, fusing, and RC snubber networks. When the module is replaced, the snubber capacitor and resistor values should be inspected and replaced if aged, as degraded snubbers are a leading cause of premature thyristor failure in retrofit scenarios. The MCD255-16I01 shares its I-type package with other IXYS high-current modules such as the MDD255-16N1 (SCR-diode pair), the MCC255-16I01 (common cathode dual SCR), and the MCD162-16I01 (lower current 162 A variant), all of which use the same bolt pattern and terminal pitch, simplifying cross-referencing during cabinet audits.

For systems where the original firing board has also failed or is no longer available, the retrofit scope expands to include the control layer. In such cases, engineers often source a compatible IXYS or third-party firing card that accepts a 4–20 mA or ±10 V speed reference from the existing PLC or DCS. If the upstream controller is a legacy Siemens S5 or early S7-300 series PLC, the analog output module — such as a 6ES7 332-series card — can typically remain in service, as the interface to the firing board is analog rather than digital. This avoids the need for a full PLC migration and preserves the original program logic stored in the CPU.

Where the control cabinet includes an HMI panel for speed reference and fault display, the retrofit of the power stage alone does not require any HMI screen modification, provided the fault relay outputs from the drive remain wired to the same PLC input card. Engineers should verify that the fault output relay on the new module or firing board matches the original contact rating to avoid nuisance trips or missed fault signals. In larger multi-drive systems, the DC bus may be shared across several thyristor bridges; in this case, the replacement of one MCD255-16I01 should be coordinated with a bus voltage check to confirm that the remaining modules are not operating at elevated stress levels due to imbalanced firing angles.

I/O wiring to the firing board — including enable signals, fault reset lines, and speed reference inputs — should be photographed and labeled before disconnection. Terminal block layouts in legacy cabinets are rarely documented in current engineering drawings, and accurate field records reduce commissioning time significantly. Where the cabinet uses a backplane-style firing board rack, confirm that the replacement board’s slot address and DIP switch settings match the original configuration before powering up.

Downtime Control During System Migration

Minimizing unplanned downtime during a thyristor module replacement is a primary concern in continuous-process industries. The recommended approach is to pre-stage the replacement MCD255-16I01 alongside all ancillary materials — thermal compound, M6 hardware, snubber components, and a calibrated gate tester — before the maintenance window begins. A well-prepared team can complete a single-module swap in under two hours, including thermal interface preparation, gate continuity verification, and a graduated load test sequence.

To protect the original program logic, the PLC CPU should remain powered throughout the mechanical replacement if the control voltage is isolated from the power stage. This is standard practice in drives with separate control and power supply rails, and it ensures that the program, data blocks, and communication parameters are retained without requiring a reload from a backup. If the drive uses a combined power supply, a full program backup to a memory card or programming device (such as a SIMATIC S7 MPI/PPI cable or equivalent) should be completed before the maintenance window.

After module installation, the commissioning sequence should follow a stepped load profile: bring the drive to 10% speed, verify gate firing symmetry on both thyristors using a current clamp, then step to 25%, 50%, and 75% load with a five-minute hold at each level. Thermal imaging of the module and heatsink at 75% load confirms adequate heat dissipation before returning to full production duty. This approach controls risk, preserves field control continuity, and provides documented evidence of successful commissioning for maintenance records.

Retrofit Support FAQ

Q1: Is the MCD255-16I01 a direct replacement for the MCD255-12I01 or MCD255-14I01?
The MCD255-16I01 shares the same I-type package and terminal layout as the MCD255-12I01 (1200 V) and MCD255-14I01 (1400 V). The only difference is the voltage rating. If the original application used a 1200 V or 1400 V module and the system voltage and transient levels are within the 1600 V rating, the MCD255-16I01 can be used as a direct mechanical and electrical substitute. Confirm snubber sizing with the original drive documentation before installation.

Q2: What pre-shipment testing is performed on each MCD255-16I01?
Each unit supplied by NINERMAS is tested for forward voltage drop (VT), gate trigger current (IGT), gate trigger voltage (VGT), holding current (IH), and off-state leakage current (IDRM/IRRM) prior to dispatch. Test results are available on request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the MCD255-16I01 be used in an inverse-parallel (anti-parallel) configuration for AC control?
The MCD255-16I01 contains two independent SCR elements in a common package, suitable for dual-converter or back-to-back rectifier topologies. For inverse-parallel AC switching (AC controller / soft-starter), the MCC255-16I01 (common cathode) or a matched pair of MCD255-16I01 modules wired in anti-parallel may be used, depending on the original circuit design. Confirm the original schematic before substitution.

Q4: What is the lead time and inventory availability for the MCD255-16I01?
NINERMAS maintains reserved stock of the MCD255-16I01 to support urgent maintenance and planned retrofit programs. Standard lead time for in-stock units is 3–7 business days for international shipment. For long-term supply commitments covering multiple units or multi-year maintenance contracts, contact our sales team to discuss reserved inventory arrangements and volume pricing.
