IXYS MCC95-16IO1B Retrofit-Compatible Thyristor Module

IXYS MCC95-16IO1B Retrofit-Compatible Thyristor Module: Legacy System Upgrade & Smooth Migration

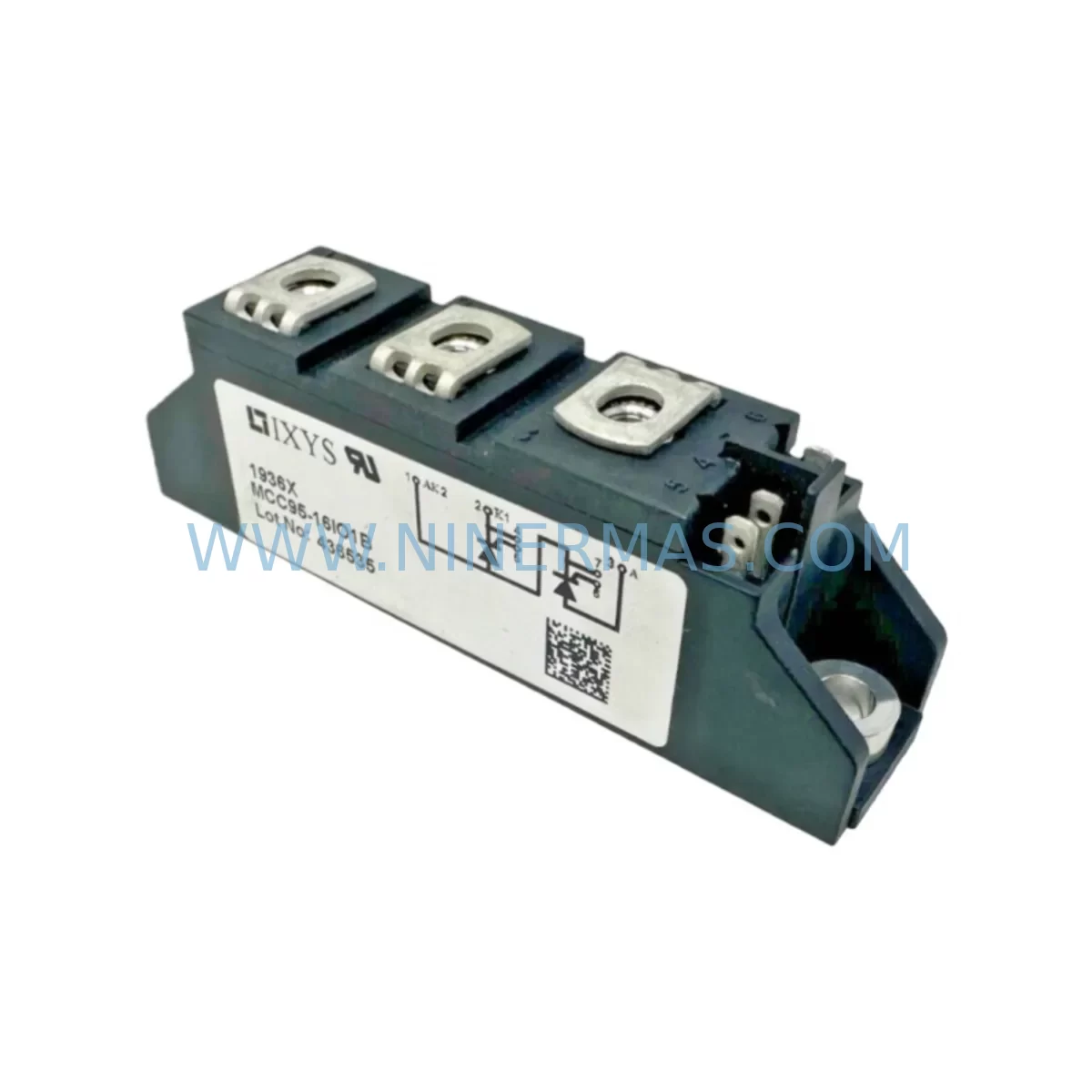

The IXYS MCC95-16IO1B is a high-performance thyristor module engineered for industrial power control applications, and it stands as one of the most reliable retrofit solutions for aging automation and drive systems. Whether you are replacing a discontinued component in a legacy DC drive cabinet, upgrading a phase-controlled rectifier assembly, or restoring a critical production line that depends on obsolete power semiconductors, the MCC95-16IO1B delivers the electrical compatibility, mechanical fit, and thermal performance required for a seamless transition — with minimal downtime and maximum confidence.

Rated at 95A average on-state current and 1600V repetitive peak reverse voltage, this module is purpose-built for demanding industrial environments including steel mills, paper machines, crane drives, marine propulsion controls, and chemical process lines. Its compact dual thyristor (back-to-back SCR) configuration in the industry-standard IO1B package makes it a direct mechanical and electrical substitute for a wide range of legacy thyristor modules from IXYS and compatible third-party manufacturers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the MCC95-16IO1B into an existing automation system requires a structured approach that accounts for the full power conversion stack — not just the thyristor module itself. In a typical DC drive retrofit, the thyristor module sits at the heart of a three-phase fully controlled bridge rectifier, and its replacement must be coordinated with the surrounding components to ensure system integrity.

Begin by auditing the firing control board — often an analog pulse transformer card or a digital firing unit such as those found in legacy Eurotherm, Siemens, or ABB DC drive platforms. The gate trigger pulse width, amplitude, and timing must be verified against the MCC95-16IO1B’s gate specifications. In many retrofit scenarios, the existing firing card remains serviceable and requires only minor gate resistor adjustment to match the new module’s IGT characteristics.

Next, inspect the snubber circuit (RC network) connected across each thyristor. Aging snubber capacitors are a common cause of premature thyristor failure and should be replaced as part of any module swap. Similarly, check the fuse protection — semiconductor fuses rated for the correct I²t value must be in place to protect the new MCC95-16IO1B from fault currents. Fast-acting semiconductor fuses from manufacturers such as Bussmann or Ferraz Shawmut are commonly used in this application.

The heatsink assembly deserves careful attention. Remove all residual thermal compound from the heatsink surface, inspect for flatness and corrosion, and apply a fresh layer of high-performance thermal interface material before mounting the new module. Torque the mounting hardware to the specified value — over-tightening can crack the ceramic base, while under-tightening increases thermal resistance and leads to overheating.

For systems that include a current transformer (CT) feedback loop or a DC bus voltage sensor, verify that the signal conditioning circuitry is functioning correctly before commissioning. In older drive cabinets, the armature current regulator and field excitation controller boards may also require inspection, as degraded components in these circuits can stress the replacement thyristor module during startup transients.

If the retrofit involves migrating from an older analog control platform to a modern digital drive controller — for example, transitioning from a legacy Siemens SIMOREG or ABB DCS400 to a current-generation platform — the MCC95-16IO1B can serve as the power stage in a hybrid architecture while the control layer is upgraded in phases. This approach allows the production line to remain partially operational during the migration, reducing the total capital outlay and minimizing the impact on output schedules.

In cabinet-level upgrades, also account for busbar reconfiguration, terminal block rewiring, and cable lug sizing. The IO1B package uses standard M6 or M8 stud connections depending on the variant; confirm the busbar hole pattern matches before installation. Where the original wiring used aluminum conductors, transition to copper at the module terminals to avoid galvanic corrosion over time.

Downtime Control During System Migration

Unplanned downtime is the primary risk in any thyristor module replacement project. A disciplined migration methodology can reduce the outage window to as little as two to four hours for a single-bridge rectifier swap, provided all preparatory work is completed in advance.

Pre-shutdown preparation is the most critical phase. Before the planned maintenance window, gather all replacement components — including the MCC95-16IO1B module, snubber capacitors, semiconductor fuses, thermal compound, and any gate resistors identified during the pre-audit. Prepare a wiring diagram that maps the existing terminal connections, and photograph the original installation from multiple angles. If the drive controller stores a parameter set, back up the configuration to a laptop or USB drive using the manufacturer’s commissioning software.

During the shutdown, follow a strict lockout/tagout (LOTO) procedure and allow sufficient time for DC bus capacitors to discharge before touching any power terminals. Use a calibrated multimeter to verify that the bus voltage has fallen to a safe level before proceeding.

After installing the MCC95-16IO1B, perform a cold gate test using a low-voltage DC source and a current-limited gate pulse to verify that both thyristors in the module trigger correctly before applying mains power. This step catches wiring errors and defective modules before they can cause damage to the surrounding circuit.

On first power-up, bring the system up at reduced load — typically 25% of rated current — and monitor the module temperature, firing angle waveform, and DC output voltage with an oscilloscope. Gradually increase the load in steps, pausing at each level to confirm stable operation. This staged commissioning approach protects both the new module and the connected load equipment, and it provides the data needed to complete a commissioning record for the maintenance file.

For critical production lines where even a planned outage is costly, consider maintaining a hot spare MCC95-16IO1B in the site stores. With a tested spare on hand, the mean time to repair (MTTR) for a thyristor failure drops from days to hours, dramatically reducing the financial impact of an unplanned event.

Retrofit Support FAQ

Q1: Is the MCC95-16IO1B a direct replacement for my existing thyristor module?
The MCC95-16IO1B is a direct mechanical and electrical replacement for any thyristor module in the IO1B package with a current rating of 95A and a voltage rating of 1600V. Before ordering, confirm the package footprint, stud spacing, and electrical ratings of the module being replaced. If you are unsure, provide us with the original part number and we will confirm compatibility.

Q2: Has this module been tested before shipment?
Yes. Every MCC95-16IO1B unit is tested for gate trigger function, forward voltage drop, and leakage current before dispatch. A test report is available on request. All units are shipped in anti-static packaging with protective end caps to prevent mechanical damage in transit.

Q3: What is the warranty coverage and what does it include?
All MCC95-16IO1B modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions. The warranty does not cover damage caused by incorrect installation, overvoltage events, or operation outside the rated parameters. In the event of a warranty claim, contact our technical team with the installation details and we will arrange a replacement or refund promptly.

Q4: Do you maintain stock for immediate shipment?
Yes. We maintain a dedicated inventory of MCC95-16IO1B modules to support urgent retrofit and breakdown recovery requirements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or long-term supply agreements, please contact our sales team to discuss pricing and lead times.
