INDUSTRONIC 341-710-200 Service-Ready Spare Part

INDUSTRONIC 341-710-200 Service-Ready Spare Part for Industrial Maintenance

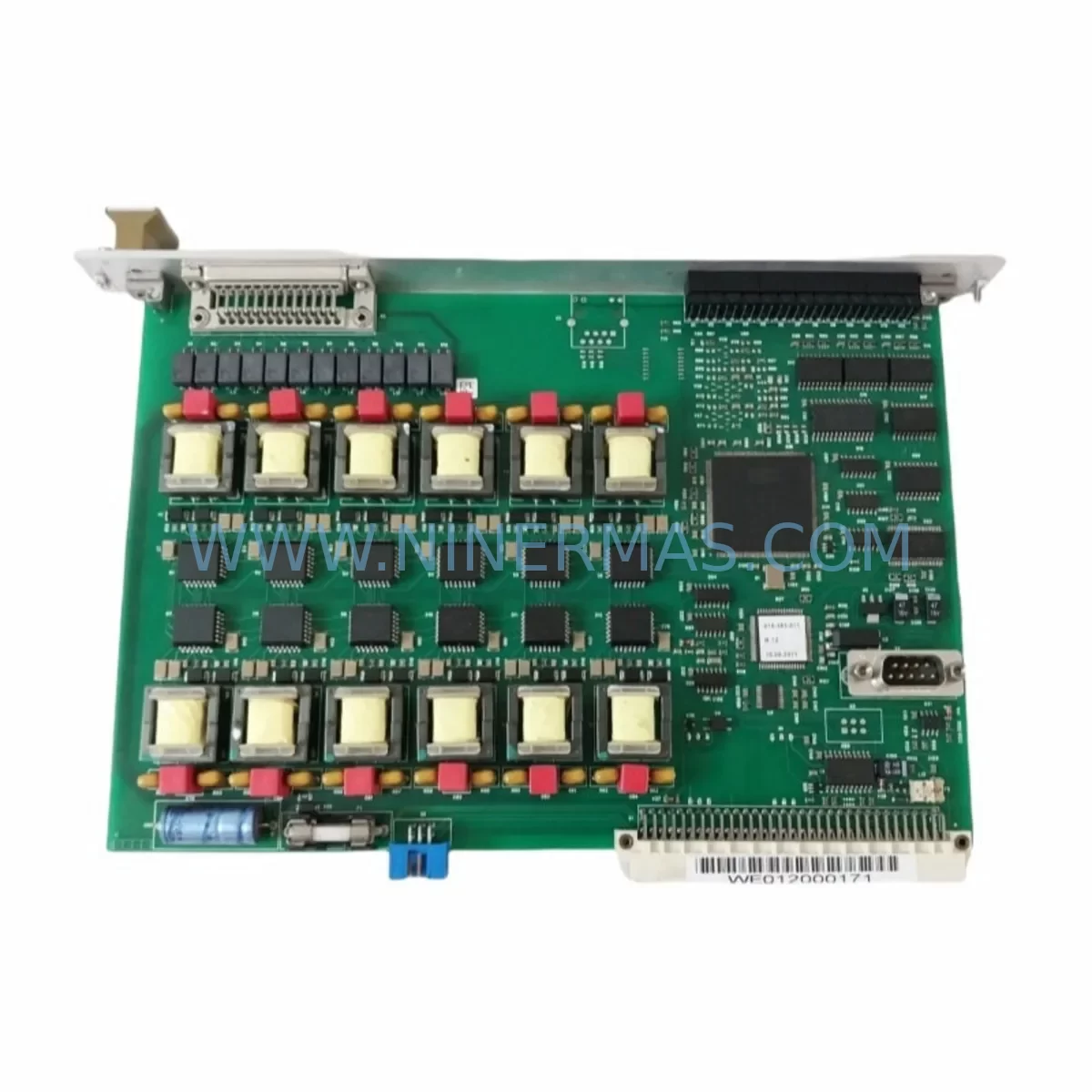

The INDUSTRONIC 341-710-200 is an original-grade PCB card designed for industrial automation environments where system uptime and process continuity are non-negotiable. As a service-ready spare part, this module supports rapid field replacement, minimizing unplanned downtime and enabling maintenance engineers to restore control system functionality with confidence. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts inventory, the 341-710-200 delivers the compatibility, reliability, and traceability required in demanding industrial settings.

Sourced and tested to meet OEM-equivalent performance standards, this PCB card is suitable for integration into existing INDUSTRONIC control architectures. Each unit undergoes pre-shipment functional verification, ensuring that what arrives on-site is ready for immediate installation without additional bench testing delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the INDUSTRONIC 341-710-200 PCB card in the field is rarely an isolated task. Experienced maintenance engineers understand that a board-level fault often signals stress across adjacent components within the same control cabinet or electrical loop. To ensure a complete and lasting repair, the following associated components should be inspected or replaced concurrently during any scheduled or emergency intervention involving the 341-710-200.

Begin with the power supply module feeding the PCB card rack. Voltage irregularities or ripple on the DC bus are a leading cause of premature board failure, and a degraded power supply unit within the INDUSTRONIC 341 Series cabinet may have contributed to the original fault. Verify output voltage stability under load before reinstalling any new board.

Next, inspect the backplane or motherboard connector into which the 341-710-200 seats. Oxidized or mechanically stressed edge connectors can cause intermittent contact faults that mimic board failure. Clean or replace the backplane connector assembly as part of the restoration workflow.

The I/O terminal blocks and field wiring connected to the card should be checked for loose terminations, insulation breakdown, or moisture ingress — particularly in environments with vibration or thermal cycling. Replacing worn terminal strip assemblies at this stage prevents repeat call-outs.

If the 341-710-200 interfaces with a communications module — such as a PROFIBUS DP adapter, Modbus RTU interface card, or industrial Ethernet gateway — verify that the communication link is re-established and error-free after board replacement. Communication faults can persist if the network configuration stored on the replaced board is not correctly restored.

For systems incorporating signal isolators or signal conditioners between field instruments and the PCB card inputs, confirm that isolation barriers are functioning within specification. A failed isolator can expose the new board to damaging transient voltages from the field side.

Inspect protective fuses and circuit breakers on the card’s supply rail. A blown fuse that caused the original shutdown may indicate an upstream overcurrent event; replacing the fuse without identifying the root cause risks repeat failure of the new 341-710-200.

Where the control system includes an HMI panel or operator workstation linked to the INDUSTRONIC controller, confirm that the HMI communication is restored and that any alarm or fault logs are cleared and documented after the board swap. Residual fault states in the HMI can mask new faults during the post-replacement commissioning check.

Finally, review the relay output modules and contactor interfaces driven by the 341-710-200. Relay contacts that have experienced excessive switching cycles or arc erosion should be replaced during the same maintenance window to avoid a secondary failure shortly after the primary repair is completed.

Building a structured spare parts kit around the 341-710-200 — including a spare power supply module, a set of terminal blocks, replacement fuses, and a communication interface card — is a best practice for facilities operating aging INDUSTRONIC systems where OEM support may be limited.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the control cabinet following your site LOTO procedure. Confirm zero-energy state on all supply rails before opening the enclosure.

Step 2 — Documentation: Photograph the existing board orientation, wiring connections, and any DIP switch or jumper settings on the 341-710-200 before removal. This reference is critical for correct reinstallation.

Step 3 — ESD Precautions: Use a grounded wrist strap and anti-static mat when handling the PCB card. INDUSTRONIC boards are sensitive to electrostatic discharge; improper handling can cause latent damage that only manifests under operational load.

Step 4 — Board Removal: Release any retention clips or screws securing the 341-710-200 to the backplane or card cage. Withdraw the board with a straight, even pull to avoid bending edge connector pins.

Step 5 — Inspection and Cleaning: Before installing the replacement board, inspect the card slot for debris, corrosion, or damaged connector pins. Clean with appropriate electronics-grade contact cleaner if required.

Step 6 — Configuration Transfer: Replicate any DIP switch, jumper, or address settings from the removed board onto the replacement 341-710-200. Refer to the INDUSTRONIC 341 Series technical manual for configuration details.

Step 7 — Installation and Re-energization: Seat the new board firmly into the backplane connector. Restore power in sequence per the system startup procedure and monitor for fault indicators during initial power-on.

Step 8 — Functional Verification: Confirm all I/O points, communication links, and control outputs are operating correctly. Document the replacement in the site maintenance log with the board serial number and date of installation.

This workflow supports a controlled, repeatable replacement process that reduces mean time to repair (MTTR) and maintains system compatibility across the INDUSTRONIC 341 Series platform.

Spare Parts Support FAQ

Q1: Is the INDUSTRONIC 341-710-200 compatible with all variants of the INDUSTRONIC 341 Series?
The 341-710-200 is designed for use within the INDUSTRONIC 341 Series control architecture. Compatibility should be verified against your specific system revision and cabinet configuration. If you are unsure, please contact our technical team with your system documentation and we will confirm compatibility before shipment.

Q2: What testing is performed before the 341-710-200 is shipped?
Each unit undergoes a pre-shipment functional verification to confirm basic electrical integrity and operational readiness. This process reduces the risk of receiving a non-functional board and supports faster on-site commissioning. A 12-month warranty from the date of shipment covers defects in materials and workmanship.

Q3: Can you support long-term or repeat supply of the 341-710-200 for ongoing maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including legacy and discontinued INDUSTRONIC products. We can support blanket purchase orders, scheduled deliveries, and strategic stock-holding arrangements to ensure your maintenance program is never interrupted by parts availability.

Q4: What is the recommended inventory strategy for the 341-710-200 in a critical production environment?
For facilities where the INDUSTRONIC 341 Series is part of a critical process or safety system, we recommend holding a minimum of one spare 341-710-200 on-site at all times. For multi-line or multi-cabinet installations, a ratio of one spare per three installed units is a common industry benchmark. Pairing this with spares for the associated power supply module, communication interface, and I/O terminal assemblies provides comprehensive coverage against unplanned downtime.
