INDUSTRONIC 341-702-100 1DXC 03 Service-Ready Spare Part

INDUSTRONIC 341-702-100 1DXC 03 Service-Ready Spare Part: Rapid Replacement for Industrial Control System Downtime Recovery

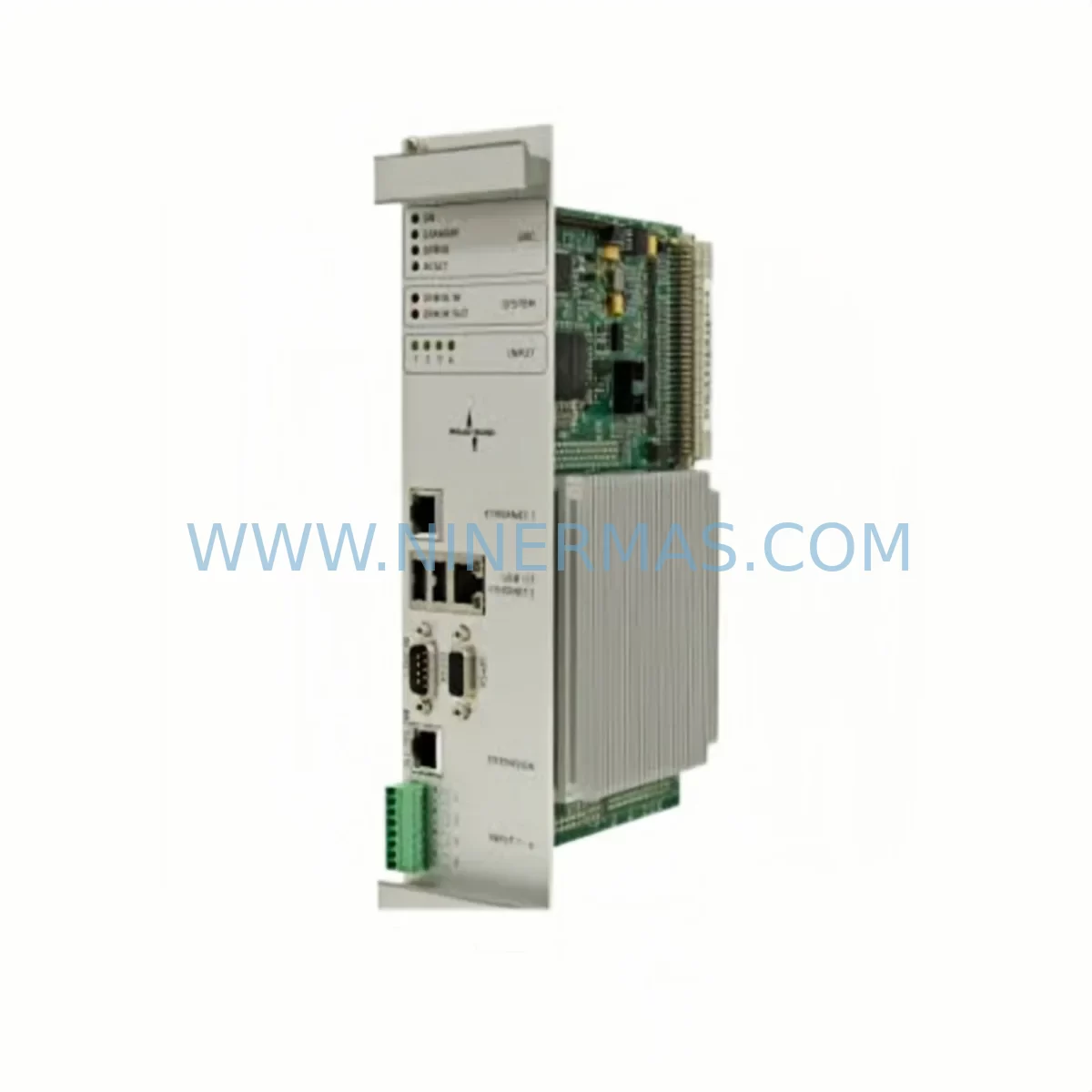

The INDUSTRONIC 341-702-100 1DXC 03 is an original exchange control board engineered for industrial automation and fire detection control systems. For maintenance engineers managing aging control cabinets or executing planned annual overhauls, sourcing a verified, tested spare of this board is critical to minimizing unplanned downtime and ensuring system continuity. NINERMAS supplies this unit as a service-ready spare — inspected, functionally tested, and dispatched with a 12-month warranty, supporting both emergency replacement and long-term inventory stocking strategies.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 341-702-100 1DXC 03 control board fails or is flagged during a scheduled inspection, the replacement workflow rarely ends with the board alone. Experienced maintenance engineers know that a board-level fault in an INDUSTRONIC 1DXC system is often accompanied by stress on adjacent components. Before returning the panel to service, it is best practice to inspect and — where service life is approaching — proactively replace the following associated components:

The 24 VDC power supply module feeding the control board should be load-tested; a degraded PSU is a common root cause of board-level faults in fire detection panels. Similarly, the loop driver card or zone interface module connected to the 1DXC 03 board should be checked for communication errors and address conflicts. If the system uses a 1DXC series backplane or rack assembly, inspect the edge connector contacts for oxidation or mechanical damage — poor backplane contact is a frequent cause of intermittent board faults that are misdiagnosed as board failure.

On the I/O side, review the relay output modules and input monitoring cards in the same cabinet. These components share the same power rail and are subject to the same thermal and electrical stress cycles. Fuse holders and miniature circuit breakers (MCBs) protecting the board’s supply circuit should be inspected and replaced if showing signs of heat discoloration or contact wear. Terminal blocks and wiring harnesses connecting the 341-702-100 1DXC 03 to field devices should be torque-checked and visually inspected for insulation degradation.

For systems with an HMI or operator panel integrated into the INDUSTRONIC cabinet, verify that the communication link between the HMI and the control board is re-established correctly after board swap — firmware version mismatches can cause silent communication failures. If the installation includes signal isolators or galvanic separation modules on loop circuits, these should be tested for correct isolation resistance after the board replacement. Finally, review the battery backup unit for the panel: a board replacement is an ideal time to verify battery health and replace if the unit is approaching its recommended service interval.

Stocking a small buffer of these associated components alongside the 341-702-100 1DXC 03 spare significantly reduces mean time to repair (MTTR) and eliminates secondary procurement delays during emergency callouts.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Before removing the 341-702-100 1DXC 03, isolate the panel from mains supply following your site’s lockout/tagout (LOTO) procedure. Photograph the existing wiring, connector positions, and any DIP switch or jumper settings on the board. Record the firmware version and parameter configuration if accessible via the HMI or service tool.

Step 2 — Board Removal: Discharge any residual capacitor voltage per INDUSTRONIC service guidelines. Carefully disconnect all connectors and remove the board from the backplane or mounting rail. Inspect the vacated slot for debris, corrosion, or damaged connector pins before installing the replacement.

Step 3 — Installation of Replacement Unit: Install the new 341-702-100 1DXC 03 board, ensuring all connectors are fully seated and locking tabs engaged. Restore DIP switch and jumper settings to match the documented configuration of the removed board. Reconnect all field wiring per the original documentation.

Step 4 — Commissioning and Verification: Restore power and observe the board’s startup sequence. Re-parameterize the board using the INDUSTRONIC service software if required. Verify all loop zones, relay outputs, and communication links are operating correctly. Conduct a functional test of the fire detection or control logic before returning the system to normal operation.

Step 5 — Documentation and Spare Replenishment: Update the maintenance log with the replacement date, board serial number, and test results. Immediately initiate a purchase order for a replacement spare to restore your buffer stock — single-point-of-failure components like this board should never be left without a standby unit.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios, and is designed to minimize total system downtime while maintaining full audit traceability.

Spare Parts Support FAQ

Q1: Is the INDUSTRONIC 341-702-100 1DXC 03 supplied as a new or refurbished unit?
NINERMAS supplies this board as an original spare — units may be new old stock (NOS) or professionally refurbished exchange units, depending on availability. All units undergo functional testing prior to dispatch. The condition is clearly stated in the order confirmation, and all units carry a 12-month warranty regardless of condition grade.

Q2: How do I verify compatibility before ordering?
Compatibility should be confirmed against the full part number including revision suffix (e.g., 341-702-100 1DXC 03). If you are unsure of the revision fitted in your system, photograph the existing board’s label and share it with our technical team at sale@ninermas.com before ordering. We can cross-reference against known revision histories for INDUSTRONIC 1DXC series boards.

Q3: What is your long-term supply commitment for this part?
NINERMAS maintains ongoing sourcing relationships for INDUSTRONIC spare parts, including legacy and discontinued models. If the 341-702-100 1DXC 03 is not currently in stock, we can provide an estimated lead time and offer a reservation against incoming stock. For customers managing multi-site installations, we recommend discussing a blanket order or consignment stock arrangement to guarantee supply continuity.
