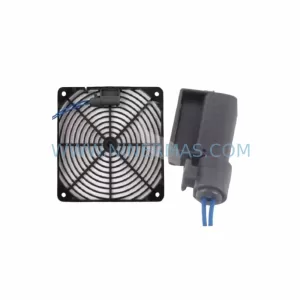

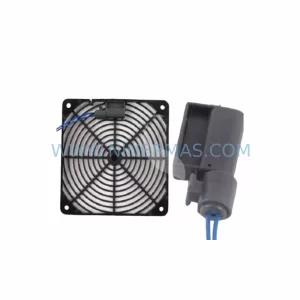

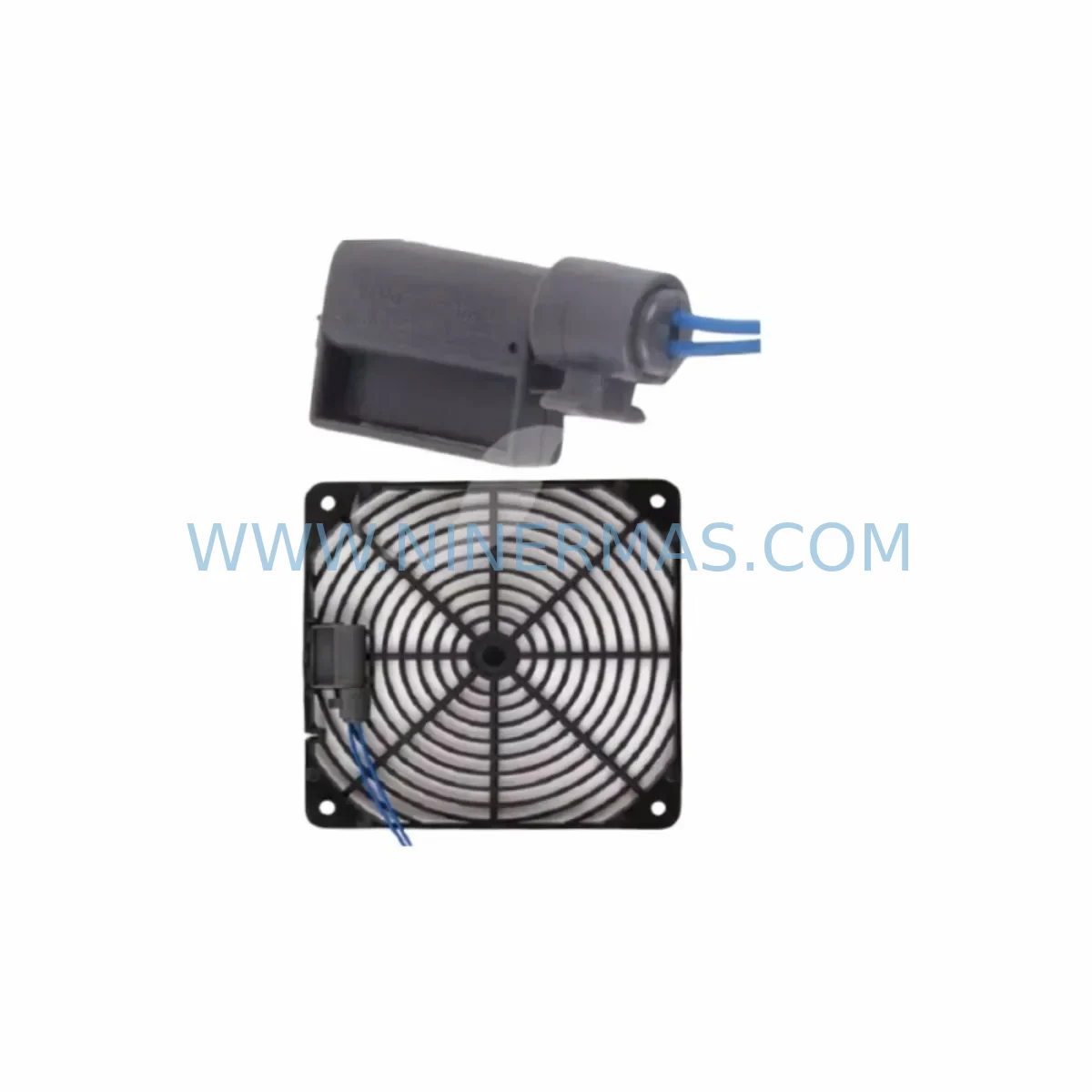

LCF-013 Retrofit-Compatible Airflow Monitor

NINERMAS LCF-013 Retrofit-Compatible Airflow Monitor for Legacy Systems

The NINERMAS LCF-013 is a retrofit-compatible airflow monitoring module engineered to replace discontinued and end-of-life airflow control components in legacy automation environments. Whether you are modernizing an aging HVAC control panel, upgrading a building management system (BMS), or restoring a production line that relies on obsolete airflow sensing hardware, the LCF-013 provides a reliable, drop-in-compatible solution that minimizes engineering rework and reduces total downtime during migration.

Sourced and stocked by NINERMAS COMPANY LIMITED, the LCF-013 is available with full pre-shipment testing, a 12-month warranty, and dedicated retrofit support for system integrators, maintenance engineers, and procurement teams managing legacy infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the LCF-013 into an existing control architecture requires careful pre-migration planning. Before removing the legacy airflow monitor, engineers should document the full terminal wiring layout, confirm the backplane slot assignment if the unit is rack-mounted, and verify that the replacement module’s signal output type matches the analog input card on the host PLC — commonly a module such as an SM 331 analog input card in Siemens S7-300 environments, or an equivalent 1756-IF16 analog input module in Allen-Bradley ControlLogix systems.

Power supply capacity is a frequent oversight during panel upgrades. If the existing 24VDC power supply module is already operating near its rated load, adding the LCF-013 alongside other upgraded components — such as a new communication gateway module for Modbus RTU to Profibus DP protocol migration — may require a supplementary PSU or load redistribution across the control cabinet.

For systems using older programmable logic controllers with fixed I/O racks, confirm that the LCF-013’s output signal is compatible with the existing digital or analog I/O expansion module before committing to the replacement. In many legacy panel retrofits, a signal isolator or signal conditioner is inserted between the new sensor module and the existing PLC input to bridge voltage or current range differences without modifying the control program.

If the facility uses an HMI panel — such as a Siemens TP700 Comfort, Weintek MT8000, or equivalent — retain the original tag names and variable addresses mapped to the airflow monitoring function. Renaming tags or reassigning data blocks during a retrofit unnecessarily extends commissioning time and increases the risk of screen logic errors. Where the legacy system used a serial communication module (RS-232 or RS-485) to relay airflow data to a SCADA host, verify that the LCF-013’s output can be read by the existing communication processor or that a protocol converter is available.

Rack and backplane compatibility should also be confirmed for systems where the airflow monitor is installed in a modular control rack alongside other I/O modules, relay output cards, or CPU modules. Slot addressing and module configuration in the PLC software (Step 7, TIA Portal, RSLogix 5000, or equivalent) must reflect the physical installation position of the LCF-013 to avoid address conflicts during startup.

For facilities managing a broader panel upgrade — replacing multiple discontinued components simultaneously — NINERMAS recommends staging the retrofit in phases: replace and commission the LCF-013 first, validate airflow signal integrity at the PLC level, then proceed with adjacent upgrades such as replacing the temperature transmitter module, updating the fieldbus coupler, or migrating the programming cable interface from a legacy RS-232 adapter to a modern USB-to-MPI or Ethernet-based programming connection.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any facility undertaking a legacy airflow monitor replacement. The LCF-013 is pre-tested at NINERMAS before shipment, reducing the risk of DOA failures that would extend unplanned outages. To further protect operational continuity, engineers should prepare a complete backup of the existing PLC program — including all data blocks, function blocks, and hardware configuration files — before beginning physical disassembly.

Where possible, schedule the LCF-013 installation during a planned maintenance window rather than responding to an emergency failure. Pre-stage all replacement components, including terminal ferrules, DIN rail sections, and any required signal conditioning hardware, so that the physical swap can be completed within a single shift. If the legacy airflow monitor shares a terminal block with adjacent wiring, use numbered terminal markers and photograph the original wiring before removal to eliminate reconnection errors.

After installation, perform a cold-start sequence on the PLC and verify that the airflow signal appears correctly in the controller’s I/O diagnostic view before enabling automatic control loops. If the system uses a PID control block for airflow regulation, manually verify the process variable reading against a calibrated reference instrument before returning the loop to automatic mode. This step protects both the process and the newly installed LCF-013 from operating outside its calibrated range during the initial commissioning period.

For multi-site operations or facilities with limited on-site engineering resources, NINERMAS can provide pre-configured units with application-specific settings applied prior to shipment, further reducing on-site commissioning time and the risk of configuration errors during a time-sensitive retrofit.

Retrofit Support FAQ

Q1: Is the LCF-013 a direct drop-in replacement for my existing airflow monitor?
The LCF-013 is designed as a retrofit-compatible replacement for discontinued airflow monitor variants within the NINERMAS Airflow Monitor Series. In most cases, the physical form factor, terminal layout, and signal output are compatible with legacy installations. However, we recommend confirming the original part number and wiring diagram with our technical team before ordering to ensure full compatibility with your specific panel configuration.

Q2: What commissioning steps are required after installing the LCF-013?
After physical installation and terminal reconnection, power up the module and verify the output signal at the PLC analog input. Compare the live reading against a reference instrument to confirm calibration accuracy. If the system uses a PID loop or alarm threshold tied to the airflow signal, validate setpoints before returning the control loop to automatic operation. No special programming tools are required for basic commissioning.

Q3: Can the LCF-013 work with my existing PLC and communication protocol?
The LCF-013 outputs a standard analog signal (4–20mA or 0–10V depending on variant) compatible with most PLC analog input modules. For systems using digital fieldbus protocols such as Profibus DP, Modbus RTU, or DeviceNet, a protocol gateway or signal converter may be required. Contact NINERMAS to confirm compatibility with your specific control platform.

Q4: What does the 12-month warranty cover, and how quickly can replacement stock be shipped?
The 12-month warranty covers manufacturing defects and DOA failures from the date of shipment. NINERMAS maintains in-stock inventory of the LCF-013 to support urgent retrofit and emergency replacement requirements. Standard lead times are confirmed at the time of order. For time-critical projects, expedited shipping options are available. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 for current stock status and delivery schedules.
