SIEMENS 6SL3120-1TE23 Service-Ready Spare Part for Industrial Maintenance

SIEMENS 6SL3120-1TE23 Service-Ready Spare Part for Industrial Maintenance

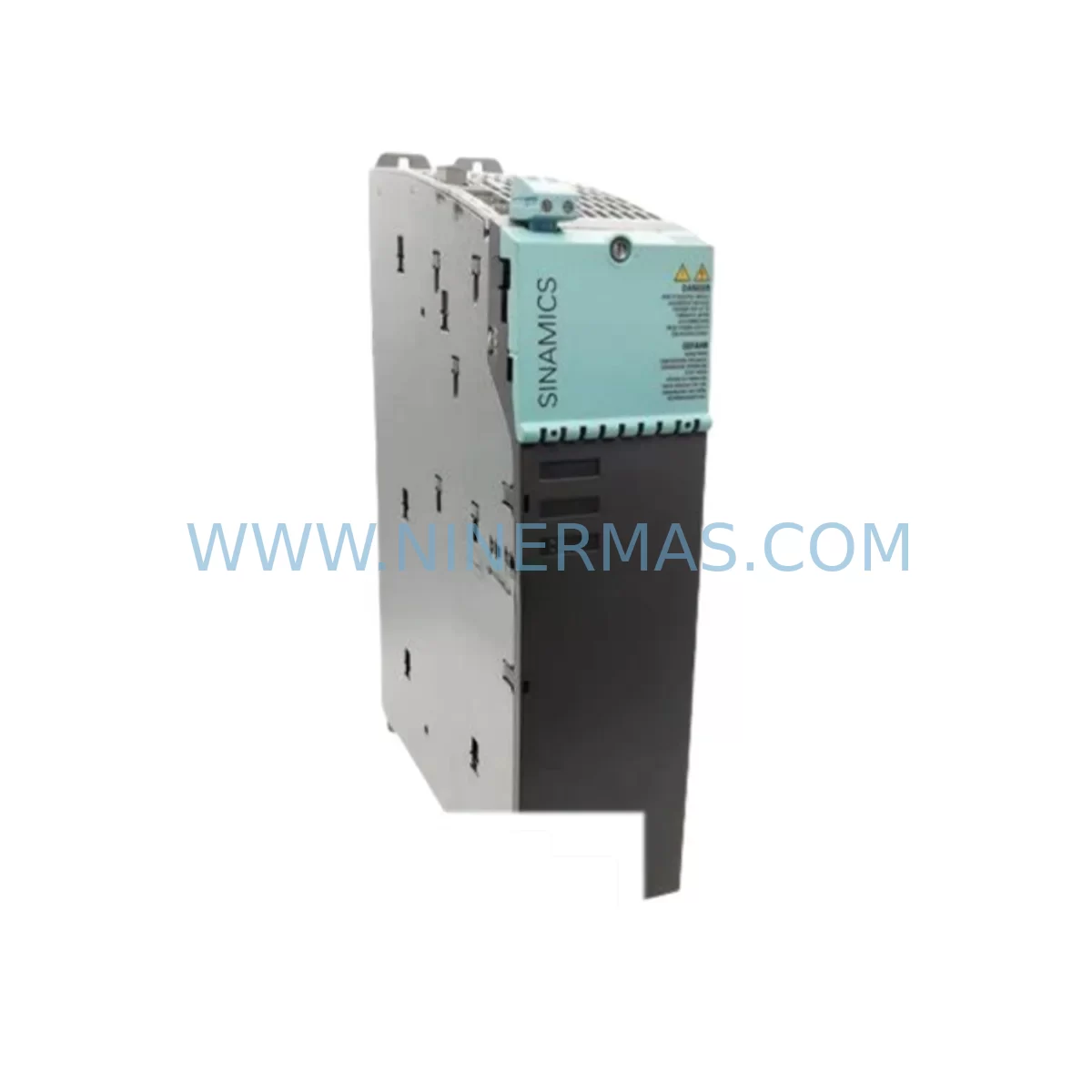

The SIEMENS 6SL3120-1TE23 is a Single Motor Module within the SINAMICS S120 booksize drive system, engineered for precision vector control of AC servo and induction motors in demanding industrial automation environments. Whether you are managing a scheduled annual overhaul, responding to an unplanned drive fault, or building a strategic spare parts inventory for a multi-axis CNC or robotic production line, the 6SL3120-1TE23 represents a critical node in your drive cabinet that demands immediate, verified replacement availability.

Downtime caused by a failed motor module can cascade rapidly across a production line. A single axis fault in a SINAMICS S120 multi-axis configuration can halt an entire machining center, packaging line, or press system. Sourcing a service-ready, tested 6SL3120-1TE23 from a reliable supplier with documented 12-month warranty coverage is the most effective way to compress mean time to repair (MTTR) and restore production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SL3120-1TE23 Single Motor Module is flagged for replacement during a routine control cabinet inspection or after a fault code event (e.g., F30001, F07801, or A07850 on the SINAMICS S120 platform), experienced maintenance engineers know that the motor module is rarely the only component that warrants attention. A thorough site assessment should extend to the entire drive chain and cabinet environment.

Begin with the Line Module (Active Line Module or Basic Line Module) that feeds the shared DC bus — a degraded line module can cause repeated motor module faults and is frequently overlooked during reactive maintenance. Inspect the DRIVE-CLiQ cables connecting the motor module to the Control Unit (CU320-2 or CU310-2); damaged or intermittently connected DRIVE-CLiQ links are a leading cause of encoder feedback loss and axis faults. The Control Unit itself — whether a CU320-2 DP or CU320-2 PN — should be checked for firmware version compatibility and CompactFlash card integrity before the replacement module is commissioned.

On the power side, verify the condition of the 24 V DC SITOP power supply feeding the control electronics. An aging or undersized SITOP unit can cause intermittent logic faults that mimic motor module failures. Check the braking resistor or Braking Module (6SL3100 series) if dynamic braking is part of the application — a failed braking circuit can cause DC bus overvoltage trips that stress and ultimately damage motor modules. Inspect all terminal blocks and PE (protective earth) connections on the motor output side; loose or corroded terminals generate heat and introduce resistance that degrades drive performance over time.

For multi-axis systems, review the Double Motor Module (6SL3120-2TE series) units in the same cabinet — if one single motor module has failed, adjacent double motor modules sharing the same DC bus rail may have been exposed to the same fault conditions. Examine the Sensor Module Cabinet-Mounted (SMC) units used for encoder signal conditioning; a faulty SMC30 or SMC20 can produce encoder errors that are misdiagnosed as motor module faults. Finally, assess the Cabinet Bus Adapter (CBE20) or PROFINET/PROFIBUS communication interface cards if the drive is integrated into a broader DCS or SCADA network — communication faults can trigger protective shutdowns that appear as drive hardware failures.

Proactive spare parts inventory planning for a SINAMICS S120 installation should include at minimum: one spare Single Motor Module (6SL3120-1TE23), one spare DRIVE-CLiQ cable set, one spare CompactFlash card with current firmware, and a replacement SITOP 24 V power supply. This baseline inventory supports same-shift fault recovery without waiting for expedited freight.

Site Replacement Workflow

Replacing the 6SL3120-1TE23 in a live production environment requires a structured approach to minimize downtime and avoid commissioning errors. Begin by documenting the current drive parameters using STARTER or TIA Portal — export the project file and save the drive dataset to the CompactFlash card before powering down. This ensures that parameter sets, motor data, and encoder configurations are preserved and can be restored to the replacement module without manual re-entry.

After safe isolation and LOTO (Lockout/Tagout) procedures are confirmed, disconnect the DRIVE-CLiQ cables, motor power cables (U2/V2/W2), and DC bus connectors in sequence. Note the cable routing and labeling before removal — SINAMICS S120 booksize systems use a shared DC bus bar that must be correctly re-engaged during installation of the replacement module. Slide the new 6SL3120-1TE23 onto the booksize rail, reconnect all cables, and verify that the DRIVE-CLiQ topology is correctly recognized by the Control Unit before re-energizing.

On power-up, use the STARTER commissioning tool or TIA Portal to perform a drive identification sequence and confirm that the replacement module’s firmware is compatible with the existing project. Upload the saved parameter set and run a no-load test before reconnecting the motor load. This workflow typically achieves full axis restoration within 2–4 hours for a prepared maintenance team, compared to 8–24 hours for teams without pre-staged spare parts and saved parameter backups.

For legacy SINAMICS S120 systems running older firmware versions, confirm that the replacement 6SL3120-1TE23 is compatible with the installed Control Unit firmware before ordering. NINERMAS provides pre-shipment compatibility verification on request, ensuring that the spare part delivered matches your system’s firmware baseline and hardware revision requirements.

Spare Parts Support FAQ

Q1: Is the 6SL3120-1TE23 covered by a warranty, and what does it include?
Yes. Every 6SL3120-1TE23 supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes function verification testing prior to dispatch to ensure it meets original SIEMENS performance specifications.

Q2: How do I confirm compatibility between the 6SL3120-1TE23 and my existing SINAMICS S120 system?
Compatibility depends on your Control Unit firmware version, DC bus configuration, and motor output current requirements. Provide your full system configuration — including Control Unit model, firmware version, and motor nameplate data — and our technical team will verify compatibility before shipment. We recommend cross-referencing the SINAMICS S120 hardware installation manual (6SL3097-4AA00-0BP6) for booksize component compatibility matrices.

Q3: Can NINERMAS support long-term or repeat supply of the 6SL3120-1TE23 for ongoing maintenance programs?
Yes. NINERMAS maintains stock and sourcing channels for SINAMICS S120 series components to support annual maintenance contracts, multi-site spare parts programs, and emergency replenishment. Contact our sales team to discuss volume pricing, reserved stock arrangements, and lead time commitments for your maintenance schedule.

Q4: What should I do if the replacement 6SL3120-1TE23 triggers a fault code after installation?
First, verify that all DRIVE-CLiQ connections are fully seated and that the DC bus connectors are correctly engaged. Check that the Control Unit has recognized the new module in the drive topology (visible in STARTER or TIA Portal). If fault codes persist, export the fault buffer log and contact NINERMAS technical support with the fault code list, firmware version, and system configuration. Our team will assist with remote diagnostics and, if necessary, arrange a replacement unit under warranty.
