ICS Triplex T3481A Retrofit-Compatible Output Module for Legacy Systems

ICS Triplex T3481A Retrofit-Compatible Output Module for Legacy Systems

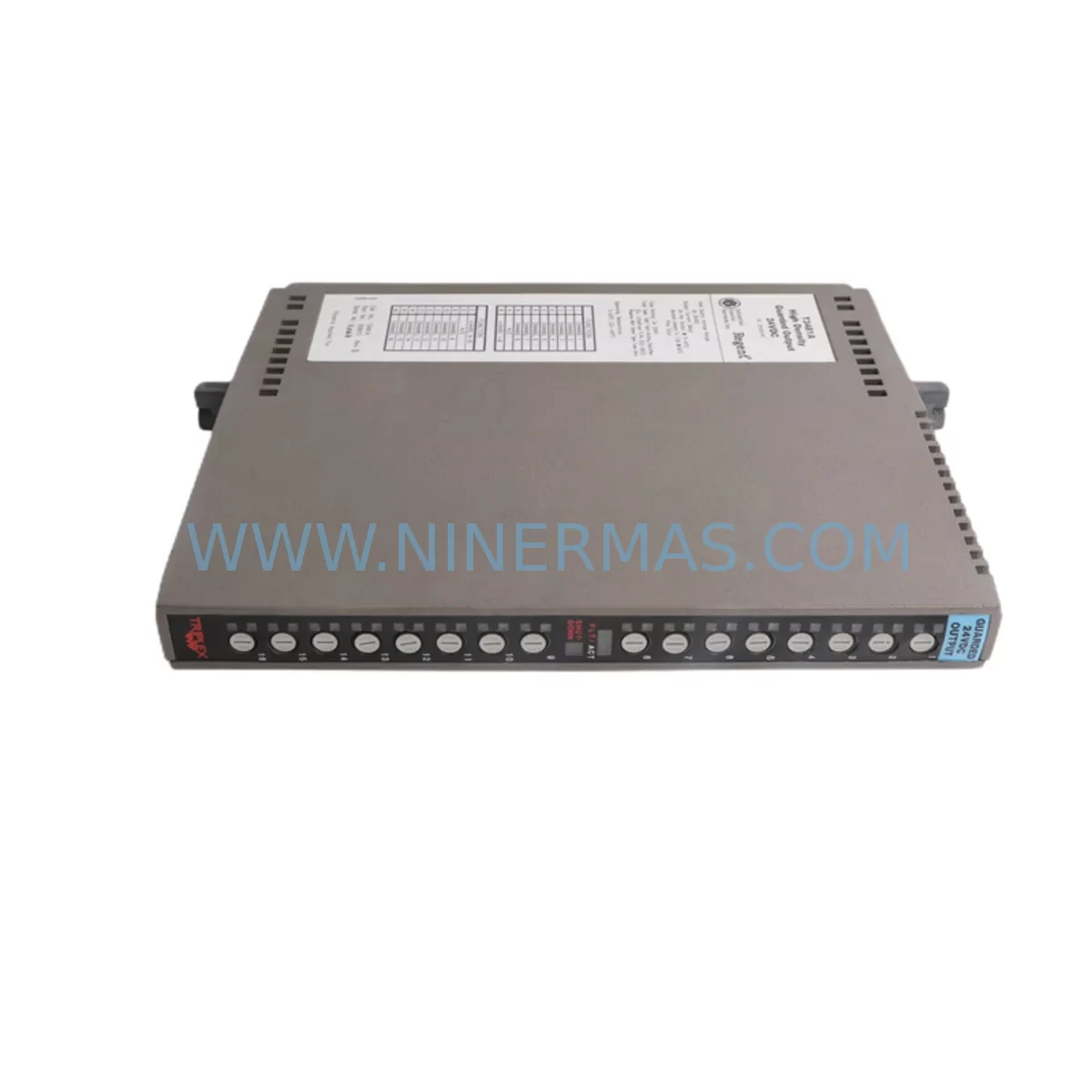

The ICS Triplex T3481A is a High Density Guarded Output module rated at 24VDC, designed for use within the ICS Triplex TMR (Triple Modular Redundancy) safety control platform. As legacy Triplex systems approach end-of-life and original spare parts become increasingly scarce, the T3481A remains one of the most sought-after retrofit components for engineers tasked with sustaining, upgrading, or migrating aging safety instrumented systems (SIS) in oil & gas, petrochemical, power generation, and offshore platform environments.

NINERMAS maintains verified stock of the T3481A to support planned turnarounds, emergency replacements, and phased system modernization projects. Each unit is subject to pre-shipment functional testing and ships with a 12-month warranty, giving procurement and maintenance teams the confidence needed to proceed with retrofit planning without compromising system integrity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the T3481A within an operational or recently shut-down TMR safety system requires careful pre-engineering to avoid configuration errors and unplanned downtime. The module occupies a defined slot within the Triplex chassis or rack assembly, and its physical installation must be coordinated with the system’s I/O map and the associated safety logic running on the Triplex controller processor.

Before removal of the legacy module, engineers should document the existing terminal wiring using the original loop drawings. The T3481A’s field-side terminals connect to actuators, solenoid valves, and motor starters — all of which must be de-energized and isolated prior to module extraction. Where the original wiring uses marshalling panels or junction boxes, terminal labeling should be verified against the as-built drawings to prevent cross-wiring during reinstallation.

On the backplane side, the T3481A interfaces with the Triplex TMR chassis through a dedicated backplane connector. Engineers should inspect the backplane for signs of corrosion, bent pins, or mechanical damage before inserting the replacement module. In systems where the chassis also houses modules such as the T3401 Digital Input Module, T3431 Analogue Input Module, or T3461 Relay Output Module, care must be taken not to disturb adjacent modules during the swap. The T3484 Power Supply Module feeding the chassis should also be checked for output voltage stability before the new T3481A is powered up.

For sites running the Trusted TMR platform — the successor architecture to the original Triplex system — the T3481A may be used as an interim solution while a full migration to Trusted I/O modules is planned. In such cases, the engineering team should review the Trusted system’s I/O configuration tool to confirm that the replacement module’s channel count and output type align with the existing safety function definitions. Where a protocol migration is also underway — for example, transitioning from a proprietary Triplex communication link to Modbus RTU or PROFIBUS DP — the T3481A’s role in the output chain must be mapped against the new communication architecture before cutover.

In control cabinets where space is constrained, the physical dimensions of the T3481A should be confirmed against the available rack space. If the cabinet also houses a Triconex or Yokogawa ProSafe-RS safety controller as part of a hybrid or transitional architecture, the T3481A’s installation footprint must be planned to avoid interference with adjacent equipment. Programming cable access for the Triplex engineering workstation should also be maintained throughout the retrofit to allow online diagnostics and configuration verification without requiring a full system shutdown.

Downtime Control During System Migration

Minimizing production downtime during a T3481A replacement is a primary concern for operations teams, particularly in continuous-process industries where even a brief loss of safety system availability can trigger a plant trip or require a formal management of change (MOC) procedure.

Where the TMR architecture permits, the T3481A can be replaced under a partial bypass condition, with the affected output channel placed in a defined safe state while the remaining two legs of the triple-redundant system maintain control continuity. This approach requires coordination between the safety engineer, the DCS operator, and the field technician to ensure that the bypass is formally authorized, time-limited, and documented in the site’s permit-to-work system.

Prior to the replacement, the original application program should be backed up from the Triplex engineering workstation. This backup preserves the existing logic, output assignments, and safety function parameters, and serves as the reference for post-replacement verification. After the new T3481A is installed and the system is powered up, the engineering team should perform a full channel-by-channel output test, confirming that each field device responds correctly to the commanded output state. HMI screens associated with the affected output group should be reviewed to confirm that status indications and alarm setpoints remain consistent with the pre-replacement configuration.

For sites where a like-for-like replacement is not feasible due to hardware obsolescence, a structured migration to a current-generation safety platform may be the preferred long-term solution. In this scenario, the T3481A serves as a bridging component, maintaining system availability while the migration project is engineered and scheduled. NINERMAS can support this approach by providing verified T3481A stock with short lead times, allowing maintenance teams to stabilize the existing system before committing to a full platform upgrade.

Retrofit Support FAQ

Q: Is the T3481A a direct replacement for other ICS Triplex output modules?
A: The T3481A is a High Density Guarded Output module rated at 24VDC and is specific to the ICS Triplex TMR platform. For like-for-like replacement, the original module’s part number and slot address must be confirmed. Related variants such as the T3480A and T3482A differ in channel density or output configuration and may not be interchangeable without engineering review.

Q: What commissioning steps are required after installing a replacement T3481A?
A: After physical installation, the module should be powered up and its status indicators checked for normal operation. A channel-by-channel output test should be performed using the Triplex engineering workstation, with each output verified against the field device response. The system’s diagnostic log should be reviewed for any fault codes, and the HMI display should be confirmed to reflect the correct output states before the bypass condition is lifted.

Q: How is the T3481A wired to field devices?
A: Field wiring connects to the T3481A’s terminal block, with each output channel assigned to a specific actuator or solenoid valve as defined in the I/O list. Terminal assignments should be verified against the original loop drawings before reconnection. Where marshalling panels are used, the wiring path from the marshalling terminal to the module terminal should be traced and confirmed to avoid cross-wiring.

Q: What warranty and testing does NINERMAS provide with the T3481A?
A: Each T3481A supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing is performed to verify module operation, and a test certificate is available upon request. NINERMAS maintains inventory of the T3481A to support both planned maintenance and emergency replacement requirements, with short lead times to minimize system downtime.

—
