ICH 20F1ANF015JN0NNNNN Retrofit-Compatible AC Drive for Legacy Systems

ICH 20F1ANF015JN0NNNNN Retrofit-Compatible AC Drive for Legacy Systems

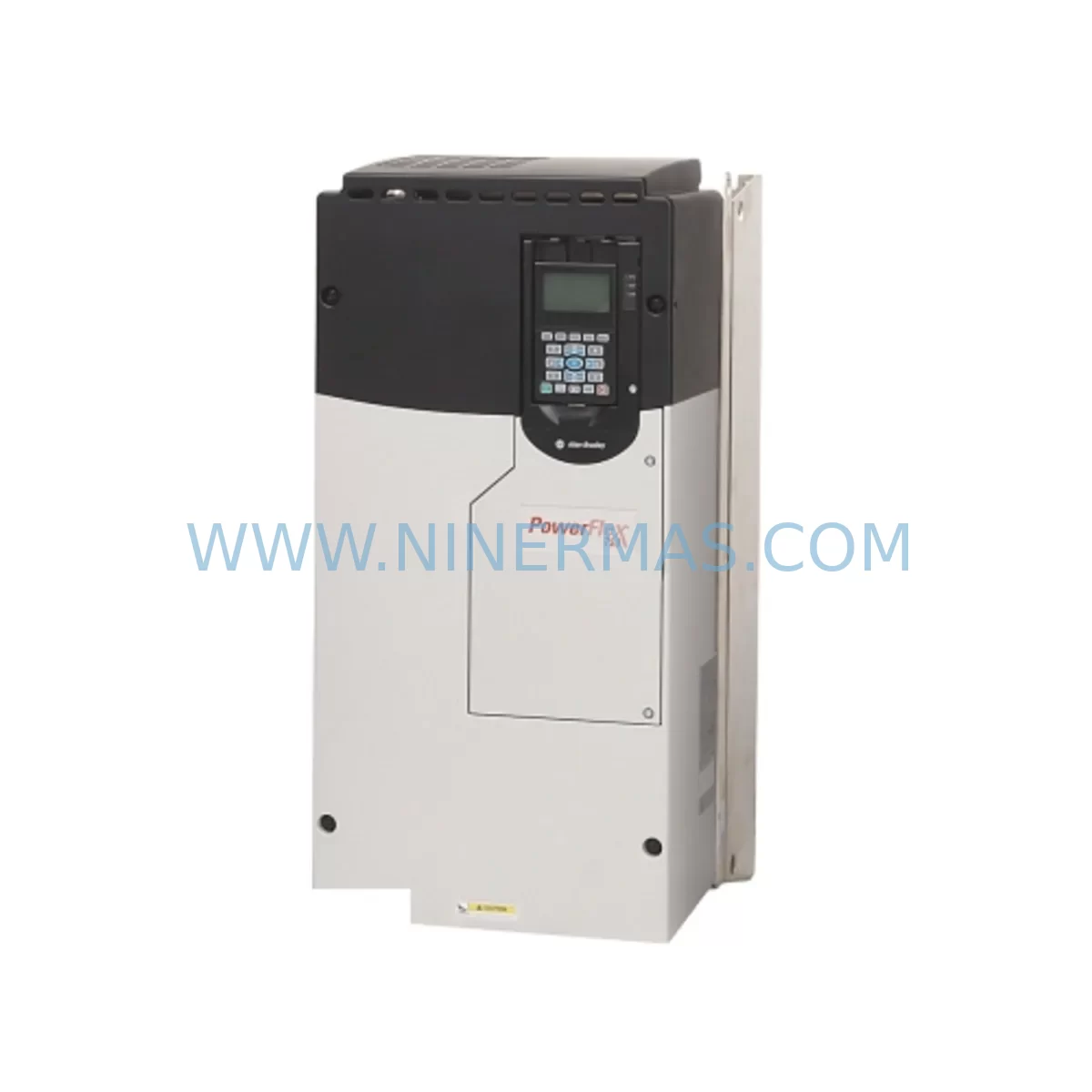

The ICH 20F1ANF015JN0NNNNN is a retrofit-compatible AC variable frequency drive engineered to serve as a reliable replacement and upgrade solution for legacy automation systems built around the Allen-Bradley PowerFlex 753 platform. Distributed by NINERMAS (ICH) and available through NINERMAS COMPANY LIMITED with a 12-month warranty and verified in-stock supply, this drive is purpose-built for engineers and maintenance teams managing aging control infrastructure across continuous manufacturing, process industries, and critical utility applications.

When a legacy PowerFlex 753 drive reaches end-of-life or becomes unavailable through standard channels, the consequences for production continuity can be severe. Unplanned downtime, extended lead times for OEM spares, and the risk of cascading failures in motor control circuits make a qualified retrofit solution essential. The 20F1ANF015JN0NNNNN addresses this challenge directly — offering a compatible upgrade path that preserves existing wiring infrastructure, control logic, and HMI integration while restoring full drive functionality with minimal disruption to the production schedule.

Before committing to a retrofit installation, engineers should systematically verify several critical compatibility parameters. Power supply capacity must be confirmed against the drive’s input voltage and current draw specifications — the 20F1ANF015JN0NNNNN operates on a three-phase AC input and must be matched to the existing panel transformer or MCC bus rating. Terminal wiring should be cross-referenced against the original drive’s I/O terminal block layout; in most PowerFlex 753 retrofit scenarios, the control wiring for analog speed reference (0–10 VDC or 4–20 mA), digital start/stop commands, and fault relay outputs can be retained with minimal re-termination. Where a 20-HIM-A6 Human Interface Module or 20-HIM-C6S remote HMI panel was previously installed, the replacement drive must support the same HIM communication interface to avoid HMI screen reconfiguration or reprogramming.

Backplane and rack compatibility is another key consideration in multi-drive control cabinet environments. If the existing installation includes a PowerFlex 755 series drive or a mixed rack with 1756-L71 ControlLogix processors, the retrofit plan must account for EtherNet/IP or DeviceNet communication topology. The 20F1ANF015JN0NNNNN supports standard Rockwell communication protocols, enabling integration into existing RSLogix 5000 or Studio 5000 Logix Designer programs without requiring full program rewrites — a critical factor in minimizing commissioning time and reducing the risk of logic errors during migration.

For installations where the original drive communicated via 20-COMM-E EtherNet/IP adapter or 20-COMM-D DeviceNet adapter, these peripheral communication modules can typically be retained and remounted on the replacement drive, preserving the existing network node address and eliminating the need for PLC program modifications related to drive I/O mapping. Engineers should confirm adapter slot compatibility and firmware revision alignment before finalizing the retrofit bill of materials.

Physical installation space is a frequent constraint in legacy control cabinet retrofits. The 20F1ANF015JN0NNNNN maintains dimensional compatibility with the PowerFlex 753 frame size for this power rating, allowing direct mounting in the existing enclosure without structural modification. Where thermal management was previously handled by a 20-AFE-2P2 active front end module or dedicated drive cooling fan assembly, the existing airflow path and heat dissipation design should be validated against the replacement drive’s thermal specifications prior to energization.

Signal integrity during the transition is equally important. In applications where the drive interfaces with 1734-IE4C POINT I/O analog input modules or 1769-IF4 CompactLogix analog input cards for process feedback, the analog signal scaling and filtering parameters configured in the PLC program must be verified against the replacement drive’s output signal characteristics. Any deviation in signal range or impedance can cause process upsets or false fault conditions during initial commissioning.

NINERMAS supplies the ICH 20F1ANF015JN0NNNNN with full pre-shipment functional testing, including power-on verification, parameter upload/download validation, and I/O channel continuity checks. Each unit ships with documentation supporting traceability and quality assurance requirements for regulated industries. Long-term spare parts inventory is maintained to support multi-year procurement planning for customers managing large fleets of legacy drives across multiple plant sites.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 20F1ANF015JN0NNNNN into an existing control system begins with a structured pre-engineering review. The first step is to retrieve the original drive’s parameter file — typically stored in a DriveExecutive or Connected Components Workbench project — and verify that all motor nameplate data, speed reference scaling, acceleration/deceleration ramp settings, and fault response configurations are documented before the old unit is removed from service.

In control cabinets where the PowerFlex 753 operates alongside a 1756-L71 ControlLogix processor and communicates via a 1756-EN2T EtherNet/IP bridge module, the drive’s IP address, slot assignment, and Add-On Profile (AOP) version must be confirmed in the Studio 5000 project before the replacement drive is commissioned. Mismatched AOP versions are a common source of communication faults during retrofit commissioning and can be resolved by updating the AOP library prior to download.

For legacy installations using 20-COMM-D DeviceNet adapter modules, the node address and baud rate settings stored in the adapter must be re-entered on the replacement unit. Where the control network also includes 1769-SDN DeviceNet scanner modules in a CompactLogix rack, the scanner’s I/O configuration table should be exported and verified against the replacement drive’s I/O data format to prevent data mapping errors.

Terminal block wiring in the original installation typically includes connections to 1734-OB8 POINT I/O digital output modules for drive enable and fault reset signals, and to 1734-IE4C analog input modules for speed feedback or process variable monitoring. These wiring connections can generally be preserved during the retrofit, reducing re-termination labor and the risk of wiring errors. A point-to-point wiring verification against the original panel drawings is recommended before energization.

Where the existing installation includes a 20-HIM-A6 operator interface mounted on the drive door or a remote 20-HIM-C6S panel-mount HMI, these modules can be transferred directly to the replacement drive. The HIM cable length and connector type should be verified to ensure compatibility with the replacement unit’s HIM port. If the HIM firmware requires an update to match the replacement drive’s firmware revision, this should be completed before the drive is placed in service.

For multi-drive installations where the 20F1ANF015JN0NNNNN operates in a coordinated motion or process control architecture alongside PowerFlex 755 drives or Kinetix 5500 servo drives, the system integrator should verify that the replacement drive’s response time and control loop tuning are compatible with the existing coordinated control strategy. Parameter tuning adjustments may be required to match the dynamic performance of the original drive.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive retrofit requires a disciplined pre-commissioning workflow. NINERMAS recommends the following approach for the 20F1ANF015JN0NNNNN retrofit:

1. Pre-Staging and Parameter Preparation: Before the maintenance window begins, retrieve the original drive’s full parameter set using DriveExecutive or Studio 5000. Pre-load these parameters into the replacement drive at the NINERMAS facility or in a staging area, and verify motor control mode, speed reference source, and I/O assignments. This eliminates parameter entry time during the live maintenance window.

2. Wiring Documentation Review: Cross-reference the existing panel wiring drawings against the replacement drive’s terminal block layout. Identify any wiring adaptations required for control terminals, power terminals, or communication adapter connections. Prepare any required terminal adapters or jumper modifications in advance.

3. Communication Network Preparation: If the drive communicates via EtherNet/IP, pre-assign the replacement drive’s IP address and verify network connectivity before the maintenance window. For DeviceNet installations, pre-configure the 20-COMM-D adapter node address and baud rate. This ensures that PLC communication is restored immediately after drive installation without network troubleshooting delays.

4. Controlled Energization and Verification: After physical installation and wiring reconnection, perform a controlled energization sequence: verify DC bus voltage, confirm I/O signal states, and execute a no-load motor rotation test before returning the drive to automatic control. This sequence protects the motor, driven equipment, and process from unexpected behavior during the first run after retrofit.

5. Post-Commissioning Documentation: Update the panel wiring drawings, PLC program backup, and maintenance records to reflect the retrofit. Record the replacement drive’s serial number, firmware revision, and parameter file version for future reference. NINERMAS provides shipment documentation to support traceability requirements.

Retrofit Support FAQ

Q1: Is the ICH 20F1ANF015JN0NNNNN a direct drop-in replacement for the Allen-Bradley PowerFlex 753 with the same catalog number?
The 20F1ANF015JN0NNNNN is a retrofit-compatible AC drive distributed by NINERMAS, designed to replace PowerFlex 753 units with equivalent power and control specifications. Customers should verify input voltage class, output current rating, and communication adapter compatibility against their specific installation requirements before ordering. NINERMAS technical support can assist with compatibility confirmation prior to purchase.

Q2: Can I reuse my existing HIM module, communication adapters, and control wiring during the retrofit?
In most cases, yes. The 20-HIM-A6 and 20-HIM-C6S operator interface modules, 20-COMM-E EtherNet/IP adapters, and 20-COMM-D DeviceNet adapters used with the original PowerFlex 753 can be transferred to the replacement drive. Existing control terminal wiring for analog speed reference, digital I/O, and fault relay outputs is typically compatible without re-termination. A wiring verification against the replacement drive’s terminal block layout is recommended.

Q3: What pre-shipment testing does NINERMAS perform on the 20F1ANF015JN0NNNNN?
Each unit undergoes power-on functional testing, I/O channel continuity verification, and parameter upload/download validation before shipment. Units are inspected for physical integrity and packaged to prevent transit damage. Shipment documentation supporting quality traceability is included with each order.

Q4: What warranty and long-term supply support does NINERMAS provide?
NINERMAS provides a 12-month warranty on the ICH 20F1ANF015JN0NNNNN covering manufacturing defects and functional failures under normal operating conditions. Long-term spare parts inventory is maintained to support multi-year procurement planning. For customers managing large fleets of legacy drives, NINERMAS offers stock commitment programs to ensure supply continuity. Contact sale@ninermas.com or +0086 187 5021 5667 for volume pricing and long-term supply agreements.
