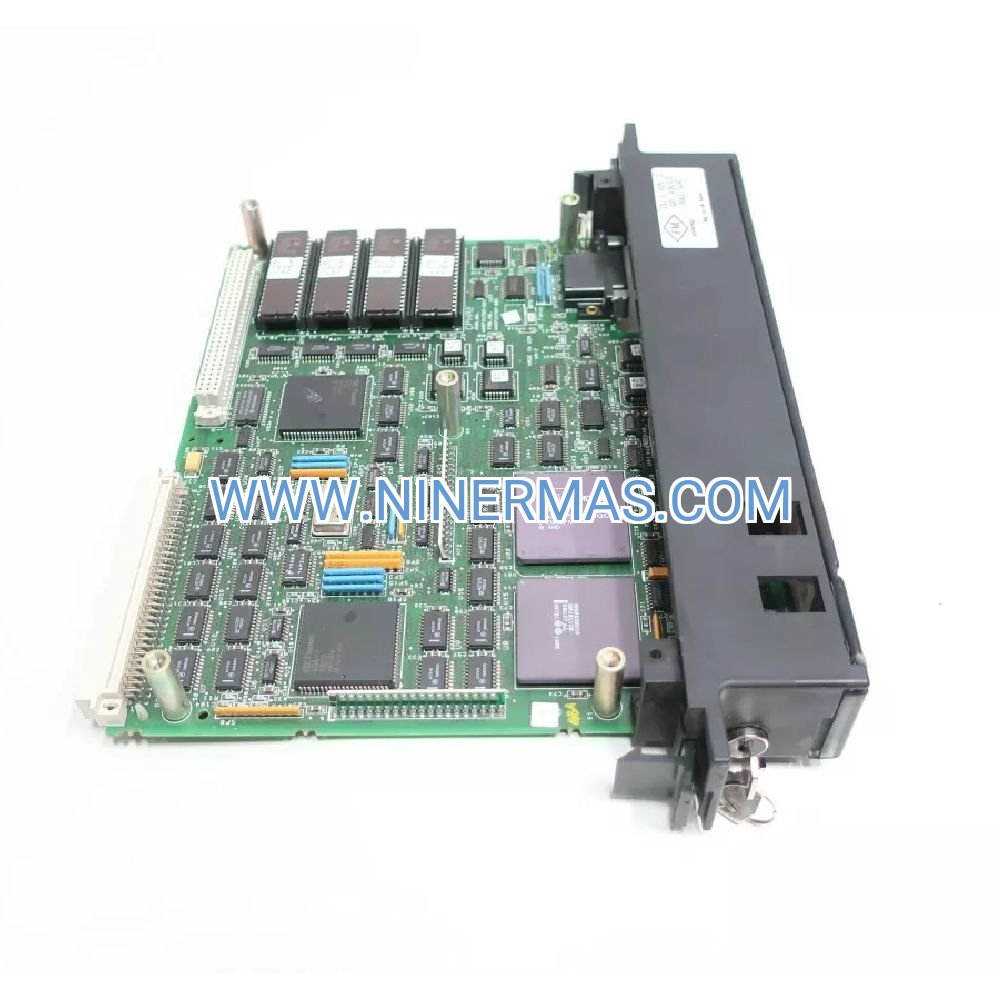

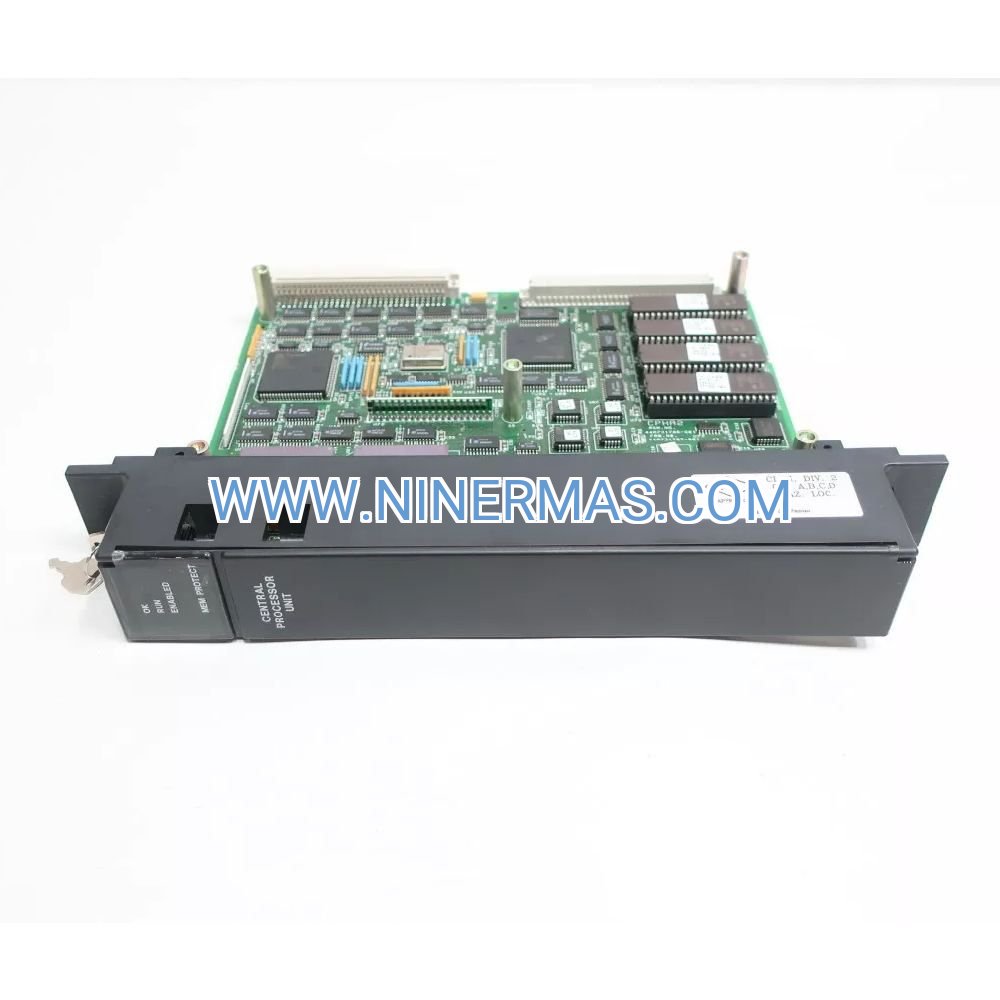

IC697CPU780 Industrial-Grade CPU Module (Series 90-70 Platform)

The IC697CPU780 is a high-performance central processing unit engineered for mission-critical automation within GE Fanuc's Series 90-70 programmable logic controller ecosystem. Built around an Intel 80486DX4 microprocessor and equipped with 512KB of user-programmable memory, this CPU module excels in applications demanding rapid scan cycles, extensive data manipulation, and deterministic real-time control.

Designed for industrial environments where reliability cannot be compromised, the IC697CPU780 addresses the challenges of complex sequencing, batch processing, and multi-axis coordination. Target users include process engineers, system integrators, and maintenance teams managing legacy automation infrastructure or expanding existing Series 90-70 installations. Its proven architecture delivers consistent uptime in manufacturing, energy, and utilities sectors.

Key advantages include lightning-fast 0.22ms scan time per 1K Boolean operations, multi-language programming support (Ladder Logic, Structured Text, C), and seamless integration with VME-based I/O racks. The module's robust design withstands harsh conditions (0-60°C operating range, 5-95% humidity), while built-in serial ports enable direct connectivity to HMI systems and SCADA networks.

Core Features & Benefits

→ Superior Processing Power: 80486DX4 architecture delivers 4x faster execution versus earlier CPU generations, enabling real-time response to process changes and reducing cycle times in high-speed packaging and assembly operations.

→ Generous Memory Capacity: 512KB user memory accommodates complex control strategies, recipe storage for up to 200 product variants, and historical data buffering—eliminating the need for external data loggers in many applications.

→ Flexible Programming Environment: Support for IEC 61131-3 languages (Ladder, ST, C) allows engineering teams to leverage existing code libraries and choose the optimal programming paradigm for each control task.

→ Deterministic Performance: Guaranteed scan time consistency ensures predictable I/O updates critical for synchronized motion control, batch sequencing, and safety-interlocked processes.

✓ Hot-Standby Ready: When paired with redundancy modules, supports failover configurations for 99.99% uptime requirements in continuous process industries.

✓ Legacy System Compatibility: Drop-in replacement for IC697CPU771/772 models with program migration tools, protecting existing automation investments while gaining performance headroom.

Typical Application Scenarios

Automotive Assembly Lines: Coordinates robotic welding cells, conveyor systems, and quality inspection stations across 12+ zones. Solves the challenge of maintaining ±50ms synchronization between paint booth entry and curing oven timing. Delivers 15% throughput improvement through optimized motion profiles and reduced inter-station dwell time.

Water Treatment Facilities: Manages multi-stage filtration, chemical dosing, and pump sequencing for municipal plants serving 500K+ residents. Addresses the complexity of variable flow rates and regulatory compliance logging. Provides automated alarm escalation and remote diagnostics, reducing operator response time by 40%.

Pharmaceutical Batch Processing: Controls reactor temperature ramping, ingredient addition sequences, and CIP (clean-in-place) cycles per FDA 21 CFR Part 11 requirements. Eliminates manual recipe entry errors through centralized formula management. Ensures batch-to-batch consistency with ±0.1°C temperature control and full audit trail generation.

Food & Beverage Packaging: Orchestrates filling, capping, labeling, and case packing at speeds up to 600 units/minute. Overcomes the challenge of rapid changeovers between SKUs (target: <5 minutes). Achieves 99.7% OEE through predictive maintenance alerts and automatic reject handling.

Oil & Gas Pipeline Monitoring: Supervises compressor stations, valve actuators, and leak detection systems across distributed SCADA networks. Handles the harsh environment of remote sites (-20°C to +50°C ambient). Enables centralized control of 50+ field devices with <2-second update rates over serial Modbus links.

Technical Parameters & Selection Guide

Selection Guidance: The IC697CPU780 is optimal for mid-to-large scale applications requiring 5,000-12,000 I/O points and program memory between 256-512KB. For smaller systems (<2,000 I/O), consider the IC697CPU771. For redundant architectures, evaluate the IC698CRE030 RX7i platform. Always verify compatibility with existing rack models (CHS750/782/790 series) and ensure adequate cooling in enclosed panels.

Extended Functions

IoT Integration: When combined with the IC697CMM742 Ethernet module, the CPU780 supports Modbus TCP, EtherNet/IP, and SRTP protocols for Industry 4.0 connectivity. Stream real-time production data to cloud analytics platforms or MES systems via OPC-UA gateways.

Advanced Motion Control: Pair with IC697PCM711 Programmable Coprocessor Module to execute complex cam profiles, electronic gearing, and multi-axis interpolation while the main CPU handles discrete logic and process control.

Customization Options: Available with pre-loaded application templates for common industries (water/wastewater, material handling, HVAC). Custom firmware configurations support specialized protocols (DNP3 for utilities, BACnet for building automation).

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours via DHL/FedEx Express. Custom-configured modules (pre-programmed firmware, extended temperature testing) require 5-7 business days.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Advance replacement available for critical applications (RMA processed within 4 hours).

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and program optimization. Remote diagnostics via TeamViewer/AnyDesk for urgent issues.

Documentation Package: Each module includes installation manual (IC697-InstallGuide-Rev8), programming reference (GFK-1503), and wiring diagrams. Downloadable firmware updates and sample ladder logic programs available via customer portal.

Frequently Asked Questions

Q: How do I migrate programs from an IC697CPU771 to the CPU780?
A: Use GE's VersaPro software (version 2.01 or later) to upload the existing program, then download to the CPU780 after verifying memory allocation. The CPU780's faster scan time may require adjusting timer presets—our team provides free migration review.

Q: What is the maximum distance for remote I/O communication?
A: With the IC697BEM731 Bus Expansion Module, Genius I/O networks support up to 7,500 feet (2,286 meters) using fiber optic links. Standard twisted-pair connections are limited to 10,000 feet total network length.

Q: Can this CPU module interface with modern Ethernet-based HMIs?
A: Yes, via the IC697CMM742 Ethernet Interface Module. This enables direct connection to Wonderware, FactoryTalk View, or Ignition SCADA systems using Modbus TCP or EtherNet/IP protocols at 10/100 Mbps speeds.

Q: Does the IC697CPU780 support battery-backed memory retention?
A: The CPU uses flash memory for program storage (no battery required) and includes a lithium battery (IC697ACC701) for retaining real-time clock and retentive data during power loss. Battery life is typically 5 years.

Q: What rack configuration is required for redundant CPU setups?
A: Redundancy requires two IC697CPU780 modules in separate CHS782 17-slot racks, connected via IC697BEM733 Remote I/O Scanner Modules. The system automatically synchronizes program execution and switches over in <50ms upon primary CPU failure.

Q: Are there energy efficiency benefits compared to older CPU models?
A: The CPU780 consumes 9W (versus 12W for CPU771), reducing panel heat load by 25%. In large systems with multiple racks, this translates to lower cooling costs and extended component lifespan.

Take the Next Step

Ready to upgrade your Series 90-70 system or need expert guidance on CPU selection? Our automation specialists are available to review your application requirements, recommend optimal configurations, and provide detailed quotations. Contact us today for same-day technical consultation and volume pricing for multi-unit orders.

Request a free compatibility check for your existing rack and I/O modules—simply email your system layout to our engineering team.
