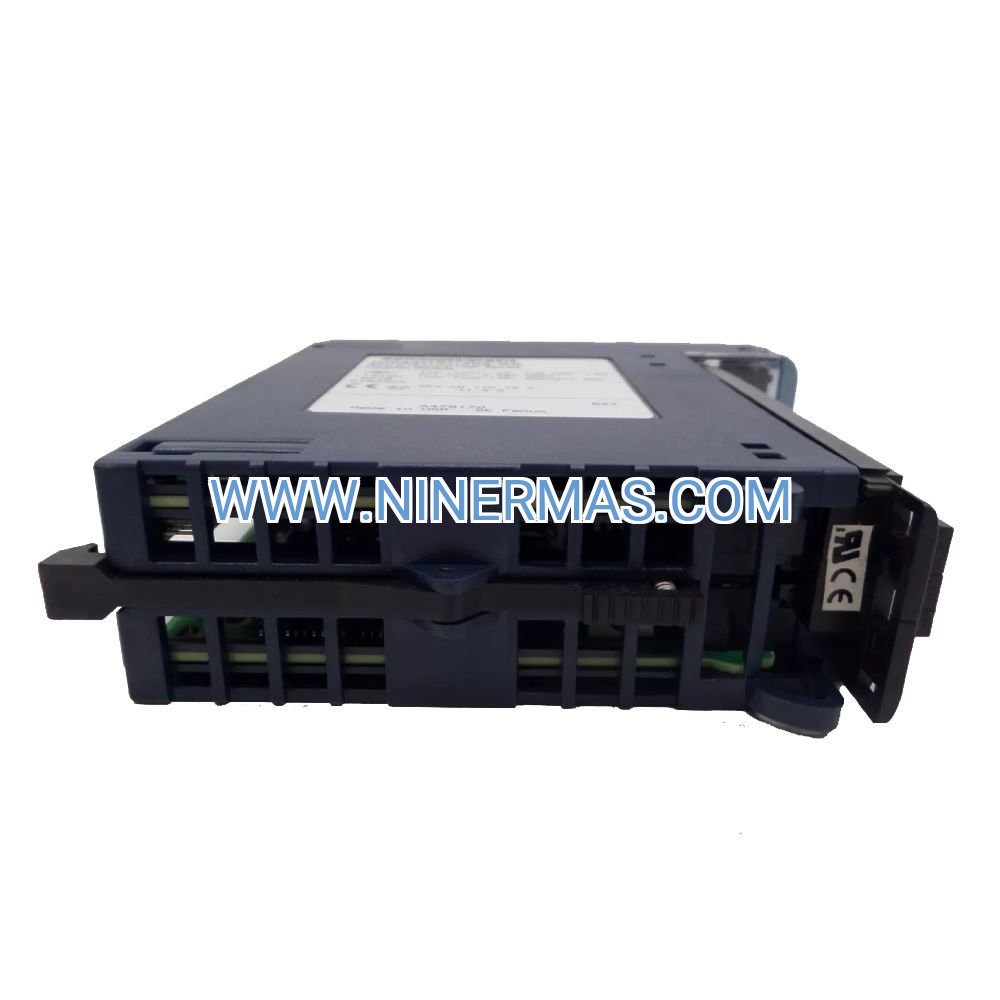

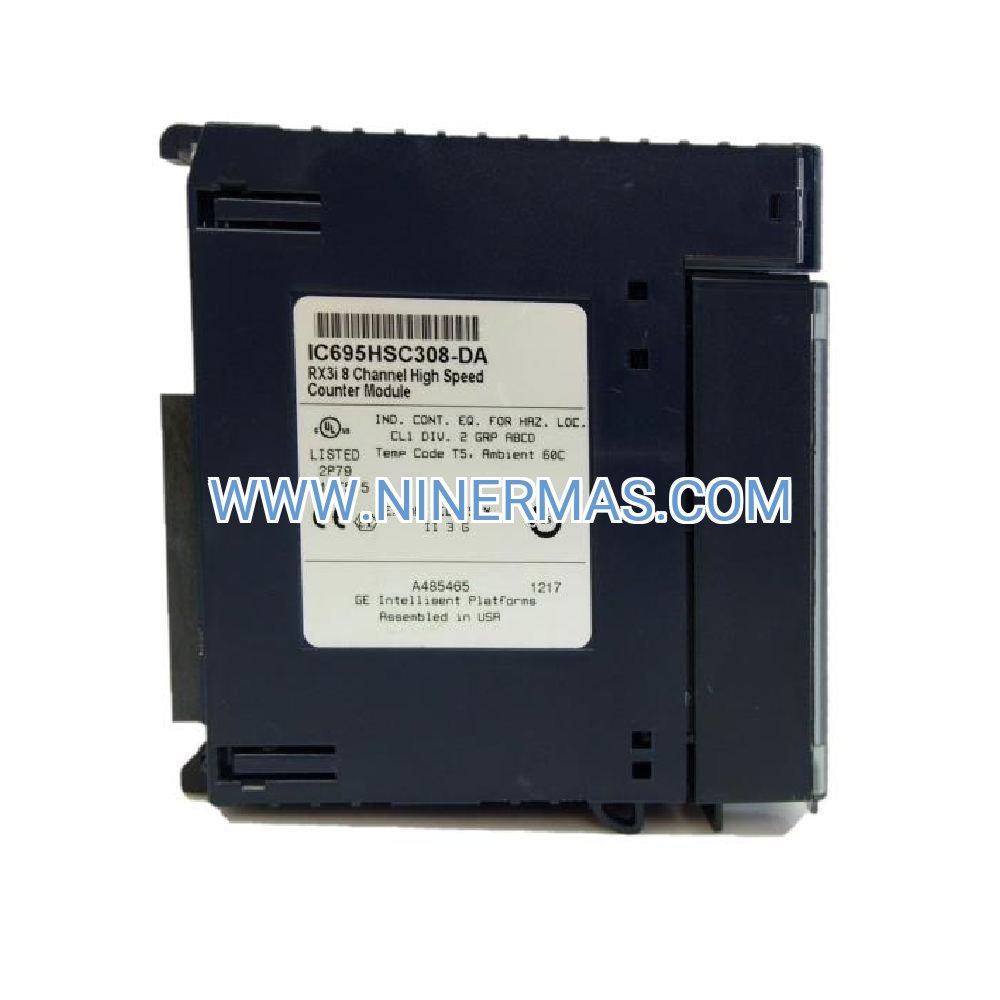

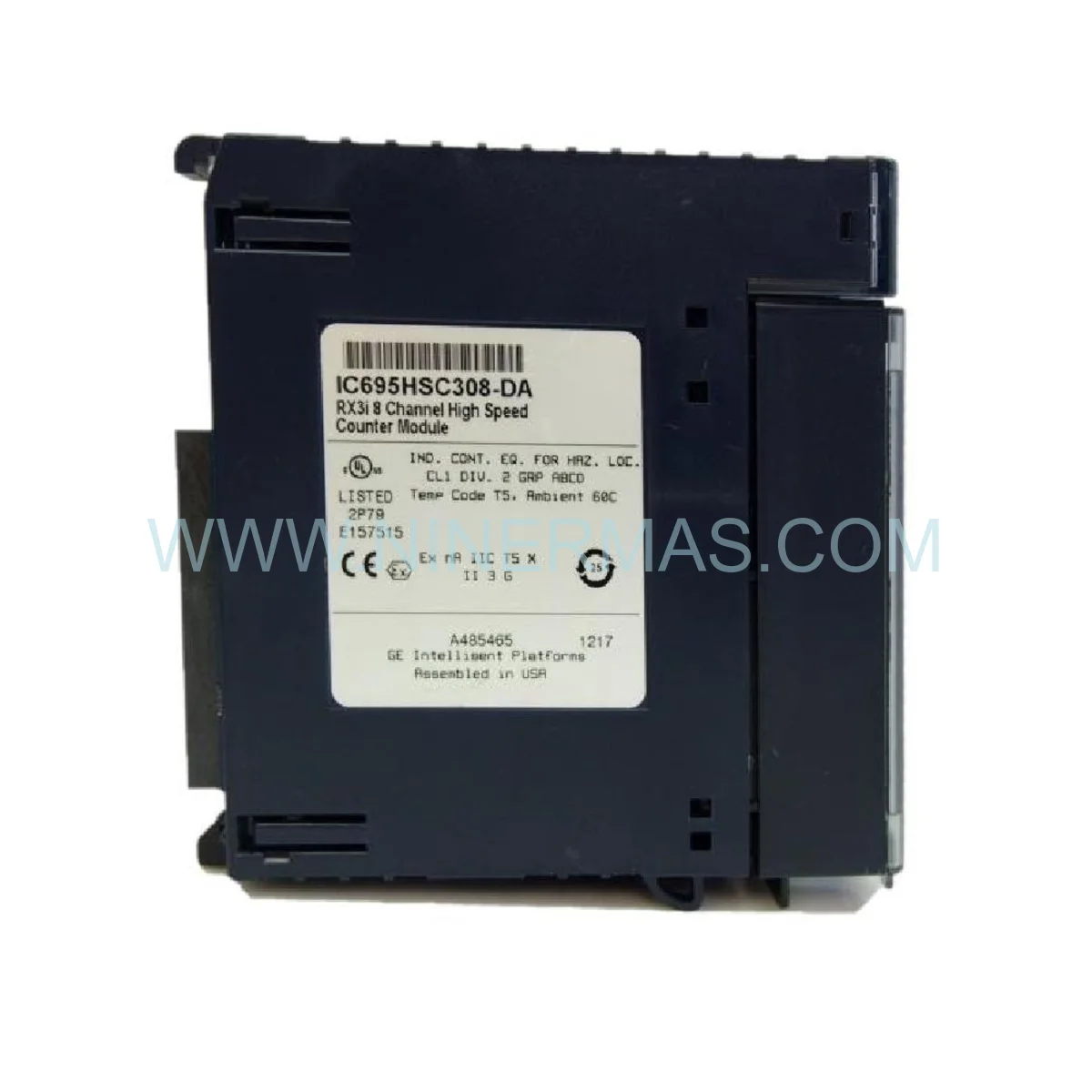

IC695HSC308 High-Speed Counter Module (Industrial-Grade Pulse & Encoder Tracking)

The IC695HSC308 represents a professional-grade counting solution engineered for GE PACSystems RX3i controllers, delivering precision pulse measurement and encoder feedback processing across eight independent input channels. This module excels in applications demanding rapid event counting, frequency analysis, and rotary encoder position tracking, making it indispensable for production lines, material handling systems, and servo-driven machinery.

Designed for manufacturers requiring reliable high-speed data acquisition, the IC695HSC308 addresses critical challenges in motion synchronization, product tallying, and velocity monitoring. Plant engineers and system integrators leverage this module to achieve microsecond-level timing accuracy while maintaining seamless integration with existing RX3i infrastructure.

With 32-bit counter resolution and differential input capability, this module transforms raw pulse trains into actionable control data, enabling sophisticated automation strategies from simple totalizing to complex multi-axis coordination. Its robust construction ensures consistent performance in demanding industrial environments where precision counting directly impacts production quality and throughput.

Core Features & Benefits

→ Eight Independent 250kHz Input Channels
Process up to 250,000 pulses per second on each channel, supporting high-resolution encoders and rapid event detection without signal loss or count errors.

→ Quadrature Encoder Processing with Index Support
Native A/B/Z encoder interpretation with 4x multiplication delivers enhanced position resolution for servo systems and linear actuators, eliminating external signal conditioning.

→ Four Configurable Digital Outputs
Implement preset-based triggering, batch completion signals, or alarm notifications directly from counter logic, reducing CPU processing overhead and improving response times.

→ 32-Bit Counter Accumulation
Track over 4 billion counts per channel before rollover, essential for long-duration totalizing applications and cumulative production monitoring.

→ Multiple Counting Modes
Switch between up-counting, down-counting, frequency measurement, pulse width capture, and period measurement to match diverse application requirements within a single hardware platform.

→ Integrated Diagnostic Monitoring
Real-time fault detection identifies wiring issues, signal integrity problems, and configuration errors, minimizing troubleshooting time and unplanned downtime.

Typical Application Scenarios

Conveyor Belt Speed Regulation & Product Tracking
Manufacturing facilities deploy the IC695HSC308 to monitor conveyor velocity via shaft encoders, ensuring consistent material flow rates. The module counts encoder pulses to calculate real-time belt speed, triggering alarms when deviations exceed tolerance thresholds. This prevents product damage from excessive acceleration and maintains synchronization across multi-zone conveyor networks.

Packaging Line Product Counting & Batch Control
Food and beverage processors utilize preset counter functions to automate case packing and palletizing operations. When product counts reach programmed values, output signals activate diverters or stop gates, enabling lights-out batch processing with ±1 count accuracy even at speeds exceeding 600 units per minute.

CNC Machine Tool Position Feedback
Machine shops integrate the module with linear and rotary encoders to provide closed-loop position verification for milling centers and lathes. Quadrature processing delivers 0.001mm resolution feedback, supporting precision machining operations where dimensional accuracy determines part acceptance.

Water Treatment Flow Totalizing
Municipal utilities connect turbine flowmeter pulse outputs to accumulate daily, monthly, and annual flow volumes. The 32-bit counters prevent rollover during extended monitoring periods, while frequency measurement mode provides instantaneous flow rate data for process optimization and regulatory reporting.

Textile Winding Length Measurement
Fabric manufacturers measure material length by counting rotations of calibrated measuring wheels. The module's high-speed capability accommodates rapid winding speeds, while preset outputs trigger automatic roll changes, reducing material waste and operator intervention.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IC695HSC308 when your application requires simultaneous monitoring of multiple high-speed pulse sources, quadrature encoder processing, or frequency measurement beyond the capability of standard discrete input modules. For applications under 10kHz with fewer than four channels, consider lower-cost discrete input alternatives. When encoder counts exceed 250kHz or more than eight channels are needed, evaluate distributed I/O solutions or dedicated motion controllers.

Extended Functions

Advanced Counting Algorithms: Implement rate-of-change detection to identify sudden speed variations indicative of mechanical failures. Configure dual-channel comparison for differential counting applications such as web tension monitoring or synchronized drive systems.

Industrial IoT Integration: Combine with GE Proficy Historian to archive count data for production analytics, OEE calculation, and predictive maintenance modeling. Export counter values via Ethernet/IP or PROFINET for SCADA visualization and enterprise MES integration.

Customization Options: Factory configuration services available for pre-programmed counter presets, custom scaling factors, and application-specific I/O mapping. Consult with our engineering team for projects requiring specialized firmware or extended temperature ratings.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days via express courier. Custom-configured modules require 10-15 business days for programming and testing. Expedited processing available for critical downtime situations.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects and component failures. Extended warranty plans available for up to 36 months, including advance replacement service.

Technical Support: Unlimited phone and email support from GE-certified application engineers. Remote diagnostic assistance, configuration file review, and troubleshooting guidance included at no additional charge.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and software configuration examples. Complete user manual, CAD drawings, and sample ladder logic available for download from our technical library.

Frequently Asked Questions

What encoder pulse rates can the IC695HSC308 reliably process in quadrature mode?
In quadrature mode with 4x multiplication, the module handles encoders up to 62.5kHz base frequency (250kHz effective after multiplication). This supports 2500 PPR encoders operating at 1500 RPM or 1000 PPR encoders at 3750 RPM without count loss.

How does the module handle power interruptions to prevent count loss?
Counter values reside in volatile memory and reset to zero upon power cycle unless battery-backed CPU modules maintain backplane power. For applications requiring count retention, implement periodic count storage to CPU retentive memory or external databases.

Can I mix single-ended and differential inputs on the same module?
Yes, each input pair (channels 0-1, 2-3, 4-5, 6-7) configures independently for single-ended or differential operation, allowing flexible sensor interfacing within a single module.

What cable lengths are supported for encoder connections?
Single-ended inputs support up to 50 meters with shielded cable. Differential inputs extend this to 100+ meters, providing superior noise immunity in electrically noisy environments. Always use twisted-pair shielded cable with 360° shield termination.

Does the module support frequency-to-analog conversion for legacy systems?
While the module measures frequency digitally, you can scale counter values in ladder logic and output proportional signals via separate analog output modules, enabling integration with chart recorders or analog controllers.

How do I configure preset outputs for batch counting applications?
Use GE Proficy Machine Edition to define preset values for each counter channel. When accumulated counts reach preset thresholds, assigned output channels activate automatically, supporting multi-stage batch processes without complex ladder logic.

Get Started with Precision Counting

Transform your motion control and production monitoring capabilities with the IC695HSC308. Our application engineers are ready to discuss your specific counting requirements, recommend optimal configurations, and provide integration support. Contact us today for technical consultation, pricing, or to request a detailed application note for your industry.
