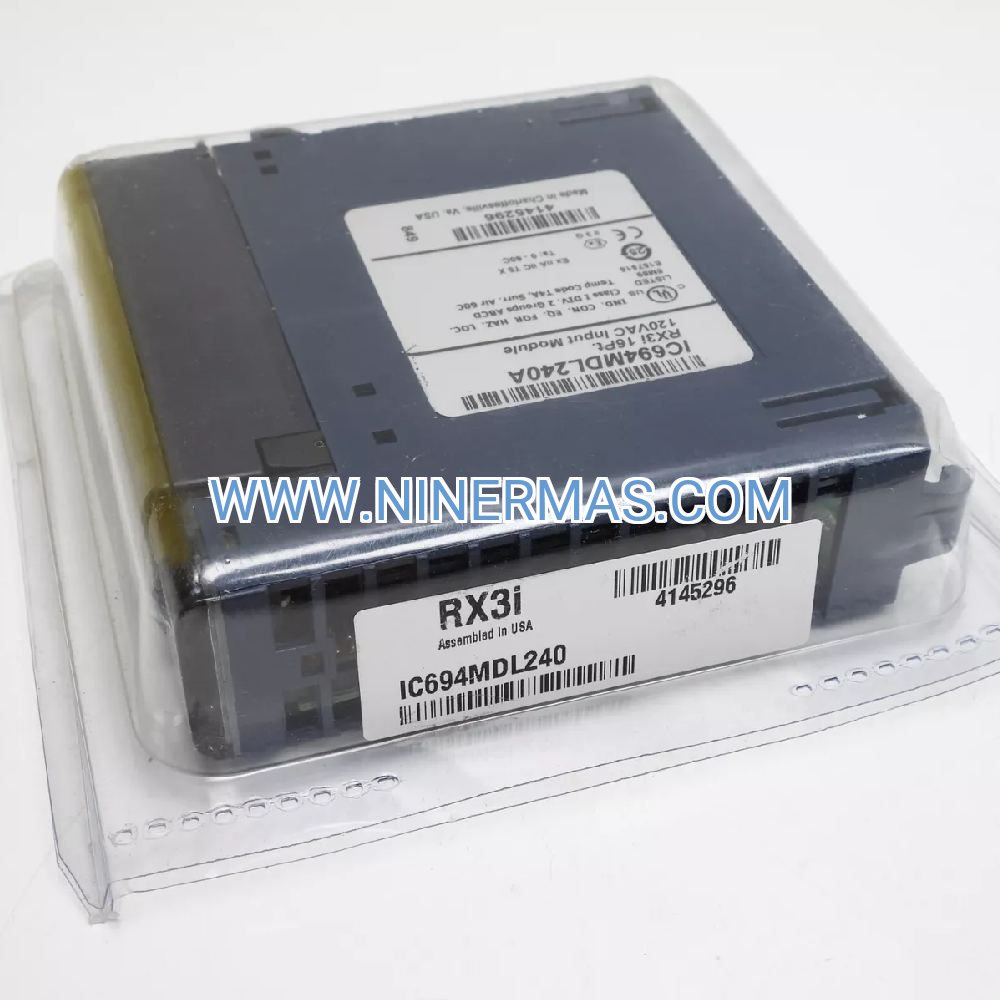

GE IC694MDL240 AC Voltage Input Module (Industrial-Grade 16-Channel Solution)

The GE IC694MDL240 represents a professional-grade AC voltage sensing solution engineered for PACSystems RX3i control platforms. This 16-channel input module delivers precise 120/240 VAC signal monitoring with complete electrical isolation, making it the preferred choice for manufacturing automation, power distribution monitoring, and critical process control applications where voltage state detection is essential.

Designed for system integrators and automation engineers, the IC694MDL240 addresses the challenge of monitoring multiple AC voltage sources simultaneously while maintaining signal integrity and system protection. Whether you're tracking motor status across production lines, monitoring electrical panel states, or implementing safety interlocks in automated machinery, this module provides the reliability and diagnostic capabilities demanded by modern industrial environments.

With 1500V RMS isolation, individual LED status indicators, and hot-swappable architecture, the IC694MDL240 minimizes downtime while maximizing operational visibility. Its dual-voltage capability eliminates the need for separate modules when monitoring mixed 120V and 240V circuits, reducing system complexity and installation costs.

Core Capabilities & Technical Advantages

✓ 16 Electrically Isolated Input Channels
Monitor up to 16 independent AC voltage signals with complete channel-to-channel isolation, preventing ground loops and cross-talk while protecting downstream control logic from voltage transients and electrical noise.

✓ Dual-Voltage Architecture (120/240 VAC)
Eliminate inventory complexity with a single module supporting both 120 VAC and 240 VAC inputs across a 0-264 VAC operating range, accommodating global power standards and mixed-voltage installations without configuration changes.

✓ Real-Time LED Diagnostics
Accelerate troubleshooting with dedicated LED indicators for each input channel, providing instant visual confirmation of signal states without requiring software tools or diagnostic equipment during commissioning and maintenance.

✓ 1500V RMS Isolation Protection
Safeguard sensitive control electronics with industrial-grade isolation between field inputs and backplane logic, ensuring system integrity even during voltage spikes, ground faults, or electrical disturbances in harsh industrial environments.

✓ Hot-Swappable Design
Perform module replacement and maintenance without system shutdown, reducing planned downtime and enabling rapid response to field failures while maintaining continuous process operation.

✓ Wide Frequency Tolerance (47-63 Hz)
Operate reliably across international power grids and variable-frequency applications, supporting both 50 Hz and 60 Hz systems with consistent performance and accurate state detection.

Industrial Application Scenarios

→ Manufacturing Process Control
Monitor conveyor motor status, pneumatic valve positions, and equipment power states across automated production lines. The IC694MDL240's 16-channel capacity reduces module count while its LED diagnostics simplify operator troubleshooting during shift changes and production transitions.

→ Electrical Distribution Monitoring
Track voltage presence across main distribution panels, emergency power circuits, and UPS systems in critical facilities. Dual-voltage capability allows monitoring of both 120V control circuits and 240V equipment feeds from a single module, reducing installation complexity.

→ Building Automation & HVAC
Detect operational status of HVAC equipment, lighting contactors, and emergency systems in commercial facilities. The module's 1500V isolation protects building management systems from electrical faults while enabling centralized monitoring of distributed equipment.

→ Machine Safety & Interlock Systems
Implement safety interlocks by monitoring guard door switches, emergency stop circuits, and safety relay outputs. Fast response time and reliable state detection ensure compliance with machine safety standards while the hot-swap capability supports maintenance without production interruption.

→ Water & Wastewater Treatment
Monitor pump motor status, valve actuator positions, and equipment operational states in treatment facilities. The module's extended temperature range and humidity tolerance ensure reliable operation in challenging environmental conditions typical of water treatment applications.

Technical Specifications & Selection Guide

Selection Criteria: Choose the IC694MDL240 when your application requires monitoring of AC voltage states (on/off detection) rather than precise voltage measurement. For analog voltage measurement applications, consider the IC695ALG series analog input modules. When monitoring DC voltage signals, select the IC694MDL series DC input modules instead.

Extended System Integration Capabilities

RX3i Platform Compatibility: The IC694MDL240 integrates seamlessly with all GE PACSystems RX3i CPU modules including the IC695CPU310, IC695CPU320, and IC695CPE400 processors. Configuration is performed through Proficy Machine Edition software, enabling rapid parameter setup and diagnostic access.

Distributed I/O Architecture: Deploy the module on local or remote I/O racks using IC694CHS series backplanes and IC695LRE expansion interfaces. This flexibility supports both centralized and distributed control architectures based on application requirements and wiring economics.

Network Integration: Combine with IC695ETM001 Ethernet modules or IC695PBM300 Profibus interfaces to enable remote monitoring, SCADA integration, and enterprise-level data collection from distributed voltage monitoring points.

Complementary Modules: Pair with IC694MDL series discrete output modules for complete control loops, IC695ALG analog modules for process variable measurement, and IC694PWR power supply modules for robust system power distribution.

Delivery Timeline & Technical Support

Standard Delivery: In-stock units ship within 1-2 business days via express courier with tracking. International shipments typically arrive within 5-7 business days depending on customs clearance and destination.

Warranty Coverage: All IC694MDL240 modules include a comprehensive 12-month warranty covering manufacturing defects and component failures. Extended warranty options are available for critical applications requiring additional coverage.

Technical Assistance: Our automation specialists provide pre-sales consultation for module selection, system design support, and integration guidance. Post-purchase support includes configuration assistance, troubleshooting support, and replacement coordination.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and quick-start guides. Complete technical manuals, CAD drawings, and configuration examples are available for download from our technical resource library.

Frequently Asked Questions

Can this module monitor both 120V and 240V circuits simultaneously on different channels?
Yes, the IC694MDL240 supports mixed-voltage monitoring with each channel independently handling any voltage within the 0-264 VAC range. No configuration changes are required when connecting different voltage levels to separate channels.

What is the minimum voltage required for reliable input state detection?
The module's ON-state threshold is typically 79 VAC minimum for 120V nominal operation and 158 VAC for 240V operation. Consult the technical datasheet for precise threshold specifications and hysteresis characteristics.

Does the IC694MDL240 require external power supplies for input sensing?
No external power is required. The module draws all necessary operating power (120 mA maximum) from the RX3i backplane 5 VDC supply. Input sensing is performed directly from the monitored AC voltage sources.

How many IC694MDL240 modules can be installed in a single RX3i rack?
Module quantity depends on backplane slot availability and total power budget. A standard 10-slot IC694CHS392 backplane can typically support 6-8 input modules depending on CPU selection and other installed modules. Consult the RX3i system planning manual for specific configurations.

Is the module compatible with legacy GE Series 90-30 control systems?
No, the IC694MDL240 is designed exclusively for PACSystems RX3i platforms and is not backward-compatible with 90-30 systems. For 90-30 applications, consider the IC693MDL series AC input modules.

What diagnostic information does the module provide to the CPU?
The module reports channel status, module health, and fault conditions to the RX3i CPU through standard I/O diagnostics. This information is accessible through Proficy Machine Edition for predictive maintenance and system monitoring applications.

Order Your IC694MDL240 Module Today

Upgrade your RX3i control system with proven AC voltage monitoring technology. Our technical team is ready to assist with module selection, system design consultation, and integration support for your automation project.

Contact our automation specialists: Discuss your application requirements and receive expert recommendations for optimal system configuration. We provide detailed technical specifications, wiring examples, and integration guidance to ensure successful project implementation.

Request a quotation: Receive competitive pricing for single modules or volume orders. We offer flexible payment terms and expedited shipping options to meet your project timeline requirements.
